Metabo Spare Parts for Angle Grinder W 820-115

SKU: Metabo W 820-115 - 06727000
€1.92
VAT included

Metabo Spare Parts for Angle Grinder W 820-115

We are METABO original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Angle Grinder W 820-115 - 06727000.

Angle Grinder W 820-115 - 06727000
Metabo Spare Parts for Angle Grinder W 820-115
  • Metabo Spare Parts for Angle Grinder W 820-115
  • Metabo Spare Parts for Angle Grinder W 820-115
Metabo

Metabo Spare Parts for Angle Grinder W 820-115

SKU: Metabo W 820-115 - 06727000 Condition: New
€1.92
VAT included

Metabo Spare Parts for Angle Grinder W 820-115

We are METABO original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Angle Grinder W 820-115 - 06727000.

Angle Grinder W 820-115 - 06727000
settings 39 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
39 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

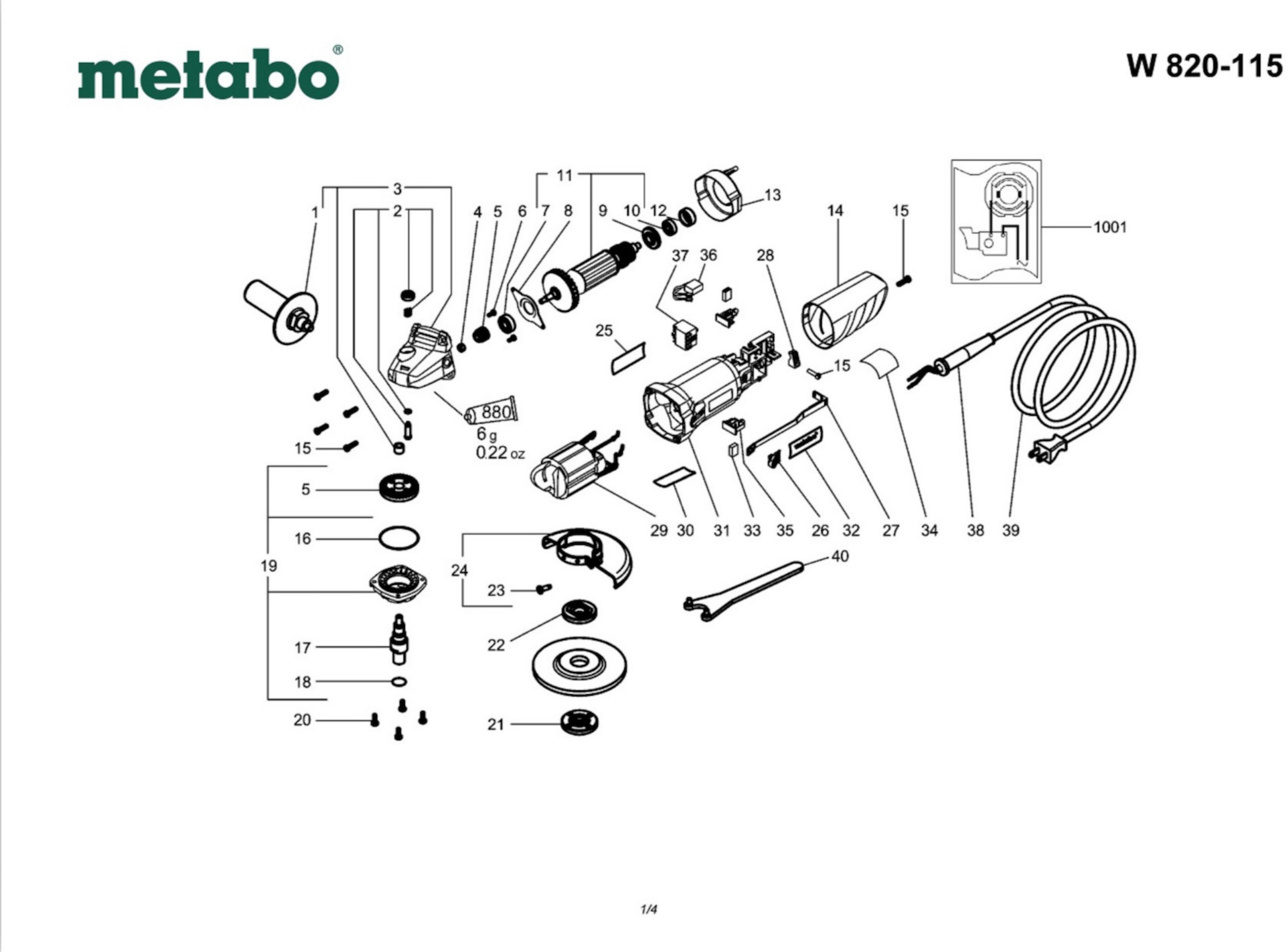

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 31400054 Handle cpl. €12.25
2
 photo_cameraImage coming soon 31604061 Spindle stop compl. €3.40
3
 Gear Box for Angle Grinder Metabo W 720 31604607 Gear Box for Angle Grinder Metabo W 720 €31.45
4
 photo_cameraImage coming soon 34110094 Hexagon nut w.recess €2.02
5
 Crown and Pinion for Angle Grinder Metabo W 820-720-WP 820-115 31605103 Crown and Pinion for Angle Grinder Metabo W 820-720-WP 820-115 €24.79
6
 photo_cameraImage coming soon 14111046 Fillister head screw €1.66
7
 photo_cameraImage coming soon 14311542 Ball bearing, 8x22x7 €6.28
8
 photo_cameraImage coming soon 31541749 Fixed bearing cover €1.66
9
 Armature Sealing Washer for Angle Grinder Metabo W 6-115 34339274 Armature Sealing Washer for Angle Grinder Metabo W 6-115 €5.18
10
 photo_cameraImage coming soon 14311504 Ball bearing, 6x19x6 €4.61
11
 photo_cameraImage coming soon 31001072 Armature cpl. 230 V €79.87
12
 Armature Bearing Rubber Holder for Angle Grinders Metabo 115 mm 34409526 Armature Bearing Rubber Holder for Angle Grinders Metabo 115 mm €2.08
13
 photo_cameraImage coming soon 34339920 Baffle €1.57
14
 photo_cameraImage coming soon 34339919 Motor cap €3.76
15
 Self Tapping Fill h Screw 4x18 for Power Tools Metabo 14111602 Self Tapping Fill h Screw 4x18 for Power Tools Metabo €1.92
16
 photo_cameraImage coming soon 34409755 O-ring 48 x 1 €1.62
17
 photo_cameraImage coming soon 34116115 Spindle M14 €7.65
18
 photo_cameraImage coming soon 14319254 O-ring €1.66
19
 Metabo W 720-115 Flange Assy 34103223 Metabo W 720-115 Flange Assy €42.55
20
 photo_cameraImage coming soon 14112007 Fill. head screw €1.66
21
 photo_cameraImage coming soon 34110690 Flange nut €9.91
22
 photo_cameraImage coming soon 34103116 Clamping flange €13.19
23
 photo_cameraImage coming soon 14112406 Fillister head screw €1.73
24
 Wheel Guard for Angle Grinder Metabo W 750-115 33920366 Wheel Guard for Angle Grinder Metabo W 750-115 €11.91
25
 photo_cameraImage coming soon 33812216 M-Label,08 52x22 €1.74
27
 photo_cameraImage coming soon 34339917 Switch rod €1.88
28
 photo_cameraImage coming soon 34336249 Cable clip €2.02
29
 photo_cameraImage coming soon 31101182 Field coil €38.13
31
 photo_cameraImage coming soon 34339918 Motor housing €21.39
32
 photo_cameraImage coming soon 33812254 Metabo plate €1.66
33
 Carbon Brushes for Angle Grinder Metabo W 820-115 31604744 Carbon Brushes for Angle Grinder Metabo W 820-115 €11.48
35
 photo_cameraImage coming soon 34301295 METABO Brush holder €3.50
36
 photo_cameraImage coming soon 34325429 Condenser €1.66
37
 Switch for Angle Grinders Metabo W 820-720-6-115 34340826 Switch for Angle Grinders Metabo W 820-720-6-115 €8.15
38
 photo_cameraImage coming soon 34409736 Cable sleeve €1.66
39
 photo_cameraImage coming soon 34449842 Cable with plug €7.34
40
 photo_cameraImage coming soon 34416392 Pin spanner €5.32
41
 photo_cameraImage coming soon 31604967 Carbon brush €10.92
880
 photo_cameraImage coming soon 34413091 Grease 100G €15.35

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Angle Grinder W 820-115

We are METABO original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Angle Grinder W 820-115 - 06727000.

In the following table, look for the model of the Angle Grinder and the respective parts of the code.
Metabo W 820-115 - 06727000

Angle Grinde W 820-115/06727000
# Part Num. Description
1 31400054 Handle cpl.
2 31604061 Spindle stop compl.
3 31604607 Gear housing compl.
4 34110094 Hexagon nut w.recess
5 31605103 Bevel gear and pinion
6 14111046 Fillister head screw
7 14311542 Ball bearing, 8x22x7
8 31541749 Fixed bearing cover
9 34339274 Sealing washer
10 14311504 Ball bearing, 6x19x6
11 31001072 Armature cpl. 230 V
12 34409526 Rubber bushing
13 34339920 Baffle
14 34339919 Motor cap
15 14111602 Self-tap fill h screw
16 34409755 O-ring 48 x 1
17 34116115 Spindle M14
18 14319254 O-ring
19 34103223 Flange compl.
20 14112007 Fill. head screw
21 34110690 Flange nut
22 34103116 Clamping flange
23 14112406 Fillister head screw
24 33920366 Wheel guard compl.,Ø115
25 33812216 M-Label,08 52x22
26 34339208 Switch slide
27 34339917 Switch rod
28 34336249 Cable clip
29 31101182 Field coil
30 33805844 Rating plate
31 34339918 Motor housing
32 33812254 Metabo plate
33 31604744 Carbon brush set cut-off
34 39999999 Part not needed
35 34301295 Brush holder
36 34325429 Condenser
37 34340826 Switch
38 34409736 Cable sleeve
39 34449842 Cable with plug
40 34416392 Pin spanner
41 31604967 Carbon brush
880 34413091 Grease 100G
