Metabo Spare Parts for Angle Grinder WP 9-115 Quick

SKU: Metabo WP 9-115 Quick 00380000
€1.85
VAT included

Metabo Spare Parts for Angle Grinder WP 9-115 Quick

Metabo original spare parts for replacing damaged parts or fix broken and worn parts of the Angle Grinder WP 9-115 Quick - 00380000.

Metabo WP 9-115 Quick 00380000
Metabo Spare Parts for Angle Grinder WP 9-115 Quick
  • Metabo Spare Parts for Angle Grinder WP 9-115 Quick
  • Metabo Spare Parts for Angle Grinder WP 9-115 Quick
Metabo

Metabo Spare Parts for Angle Grinder WP 9-115 Quick

SKU: Metabo WP 9-115 Quick 00380000 Condition: New
€1.85
VAT included

Metabo Spare Parts for Angle Grinder WP 9-115 Quick

Metabo original spare parts for replacing damaged parts or fix broken and worn parts of the Angle Grinder WP 9-115 Quick - 00380000.

Metabo WP 9-115 Quick 00380000
settings 48 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
48 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

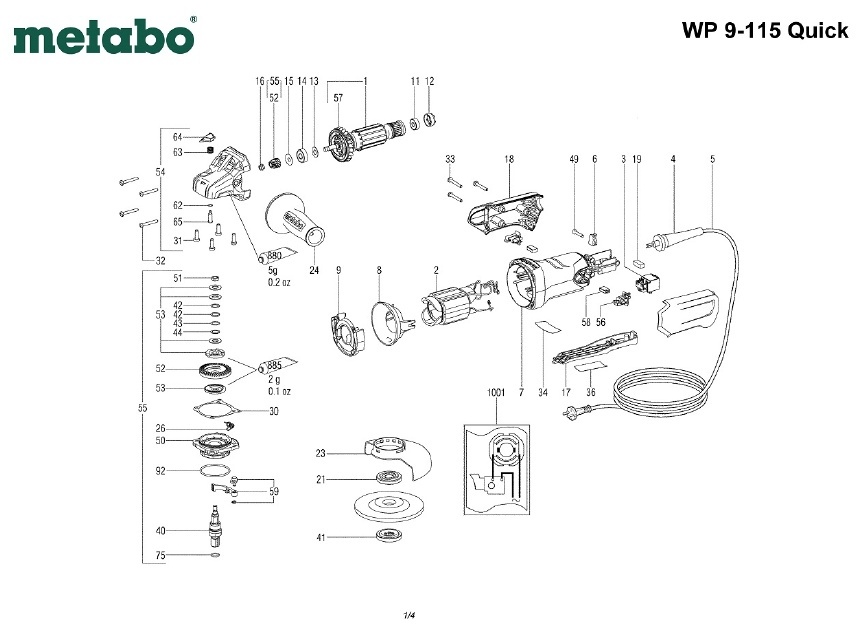

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Armature 230V for Angle Grinder Metabo W 9-115 31001092 Armature 230V for Angle Grinder Metabo W 9-115 €69.74
2
 Stator (Filed) for Angle Grinder Metabo WP 9-115 Quick 31101193 Stator (Filed) for Angle Grinder Metabo WP 9-115 Quick €49.77
3
 photo_cameraImage coming soon 34341025 Switch 2-pole,X2 €5.50
4
 photo_cameraImage coming soon 34410097 Cable sleeve €1.79
5
 photo_cameraImage coming soon 34449318 Cable with plug €23.87
6
 photo_cameraImage coming soon 34336249 Cable clip €2.02
7
 photo_cameraImage coming soon 31501358 Motor housing €7.97
8
 photo_cameraImage coming soon 33915119 Baffle €1.70
9
 photo_cameraImage coming soon 33915120 Baffle €1.76
11
 Ball Bearing 6x19x6 mm for Angle Grinders Metabo W 7-8-9-115 14311517 Ball Bearing 6x19x6 mm for Angle Grinders Metabo W 7-8-9-115 €7.95
12
 photo_cameraImage coming soon 34409787 Rubber bushing €1.76
13
 photo_cameraImage coming soon 33913306 Washer,8,05x17x0,4 €1.76
14
 photo_cameraImage coming soon 14311518 Ball bearing,8x22x7 €3.92
15
 photo_cameraImage coming soon 33900639 Washer,7,05x19,5x0,2 €1.76
16
 photo_cameraImage coming soon 34110094 Hexagon nut w.recess €2.02
17
 photo_cameraImage coming soon 31605396 Shift lever compl. €4.04
18
 photo_cameraImage coming soon 34343394 Motor cap 2 parts black €5.50
21
 photo_cameraImage coming soon 34103116 Clamping flange €13.19
23
 Wheel Guard D.115 for Angle Grinder Metabo W 9-115 33920449 Wheel Guard D.115 for Angle Grinder Metabo W 9-115 €16.60
24
 Side Support Handle for Angle Grinder Metabo W 9-115 Quick 31604659 Side Support Handle for Angle Grinder Metabo W 9-115 Quick €18.00
26
 photo_cameraImage coming soon 34202204 Spring clip €1.22
30
 photo_cameraImage coming soon 33901197 Gasket €1.75
31
 photo_cameraImage coming soon 14112164 Fill. head screw(DIN 7985) €1.76
32
 photo_cameraImage coming soon 14111698 Self-tap. fill. h. screw €1.76
33
 photo_cameraImage coming soon 14111698 Self-tap. fill. h. screw €1.76
40
 photo_cameraImage coming soon 34160442 Spindle M14 €13.76
41
 photo_cameraImage coming soon 31605535 Clamping nut compl.,M14 €11.94
42
 photo_cameraImage coming soon 14115112 Washer 10,2 X 14,8X 0,2 €1.74
43
 photo_cameraImage coming soon 14115230 Washer 10,2 X 14,8X 0,1 €1.91
44
 photo_cameraImage coming soon 14115392 Washer 10,2 X 14,8X 0,5 €1.79
49
 photo_cameraImage coming soon 14111706 Self-tap. fill. h. screw €1.98
50
 Flange Complete for Angle Grinder Metabo W 9-115 34343328 Flange Complete for Angle Grinder Metabo W 9-115 €19.52
51
 Nut EW 6114 S for Wall Chaser Metabo MFE 40 34110246 Nut EW 6114 S for Wall Chaser Metabo MFE 40 €2.76
52
 photo_cameraImage coming soon 31605497 Bevel gear w.pinion €11.31
53
 Friction Washer Set Complete for Wall Chaser Metabo MFE 40 31605508 Friction Washer Set Complete for Wall Chaser Metabo MFE 40 €17.95
54
 photo_cameraImage coming soon 31605510 Gear housing compl. €54.65
55
 photo_cameraImage coming soon 31605422 Safety clutch w.pinion €63.94
56
 photo_cameraImage coming soon 31605523 Brush holder compl. €13.27
57
 photo_cameraImage coming soon 31605485 Fan w. dust guard €3.94
58
 Carbon Brushes for Angle Grinder Metabo W 9-115 31605519 Carbon Brushes for Angle Grinder Metabo W 9-115 €24.79
59
 photo_cameraImage coming soon 31605511 Clamping lever compl. €7.00
62
 photo_cameraImage coming soon 14319365 O-ring €1.45
63
 photo_cameraImage coming soon 34200339 Pressure spring €1.76
64
 photo_cameraImage coming soon 34343313 Push button €1.76
65
 photo_cameraImage coming soon 34151564 Bolt €1.76
75
 photo_cameraImage coming soon 14319249 O-ring €1.94
92
 photo_cameraImage coming soon 14319564 O-ring €1.76
880
 photo_cameraImage coming soon 34413092 Grease 100G €40.13
885
 photo_cameraImage coming soon 34413056 Grease SF 011 50Gr 1,8oz €37.66

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Angle Grinder WP 9-115 Quick

Metabo original spare parts for replacing damaged parts or fix broken and worn parts of the Angle Grinder WP 9-115 Quick - 00380000.

In the following table, look for the model of the Angle Grinder and the respective parts of the code.
Metabo WP 9-115 Quick - 00380000

Angle Grinder WP 9-115 Quick/00380000
# Part Num. Description
1 31001092 Armature compl., 230V
2 31101193 Field coil w.field coil,230 V
3 34341025 Switch 2-pole,X2
4 34410097 Cable sleeve
5 34449318 Cable with plug
6 34336249 Cable clip
7 31501358 Motor housing
8 33915119 Baffle
9 33915120 Baffle
11 14311517 Ball bearing,6x19x6
12 34409787 Rubber bushing
13 33913306 Washer,8,05x17x0,4
14 14311518 Ball bearing,8x22x7
15 33900639 Washer,7,05x19,5x0,2
16 34110094 Hexagon nut w.recess
17 31605396 Shift lever compl.
18 34343394 Motor cap 2 parts black
19 34410140 Foam rubber self-adhesive,20 x 8 x 6,35
21 34103116 Clamping flange
23 33920449 Wheel guard,D115
24 31604659 Side support handle compl.
26 34202204 Spring clip
30 33901197 Gasket
31 14112164 Fill. head screw(DIN 7985)
32 14111698 Self-tap. fill. h. screw
33 14111698 Self-tap. fill. h. screw
34 33805982 Rating plate
40 34160442 Spindle M14
41 31605535 Clamping nut compl.,M14
42 14115112 Washer 10,2 X 14,8X 0,2
43 14115230 Washer 10,2 X 14,8X 0,1
44 14115392 Washer 10,2 X 14,8X 0,5
49 14111706 Self-tap. fill. h. screw
50 34343328 Flange compl.
51 34110246 Nut
52 31605497 Bevel gear w.pinion
53 31605508 Friction washer set compl.
54 31605510 Gear housing compl.
55 31605422 Safety clutch w.pinion
56 31605523 Brush holder compl.
57 31605485 Fan w. dust guard
58 31605519 Carbon brush set cut-off
59 31605511 Clamping lever compl.
62 14319365 O-ring
63 34200339 Pressure spring
64 34343313 Push button
65 34151564 Bolt
75 14319249 O-ring
92 14319564 O-ring
880 34413092 Grease 100G
885 34413056 Grease SF 011 50Gr 1,8oz
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
