Metabo

Metabo Spare Parts for Polisher PWE 11-100

SKU: Metabo PWE 11-100
€1.92
VAT included

Metabo Spare Parts for Polisher PWE 11-100

Metabo genuine spare parts for to fix Polisher PWE 11-100/02050000.

Fix Your Polisher PWE 11-100/02050000. All Spares can be supplied at discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

Polisher PWE 11-100/02050000
Metabo Spare Parts for Polisher PWE 11-100
  • Metabo Spare Parts for Polisher PWE 11-100
  • Metabo Spare Parts for Polisher PWE 11-100
Metabo

Metabo Spare Parts for Polisher PWE 11-100

SKU: Metabo PWE 11-100 Condition: New
€1.92
VAT included

Metabo Spare Parts for Polisher PWE 11-100

Metabo genuine spare parts for to fix Polisher PWE 11-100/02050000.

Fix Your Polisher PWE 11-100/02050000. All Spares can be supplied at discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

Polisher PWE 11-100/02050000
settings 57 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
57 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

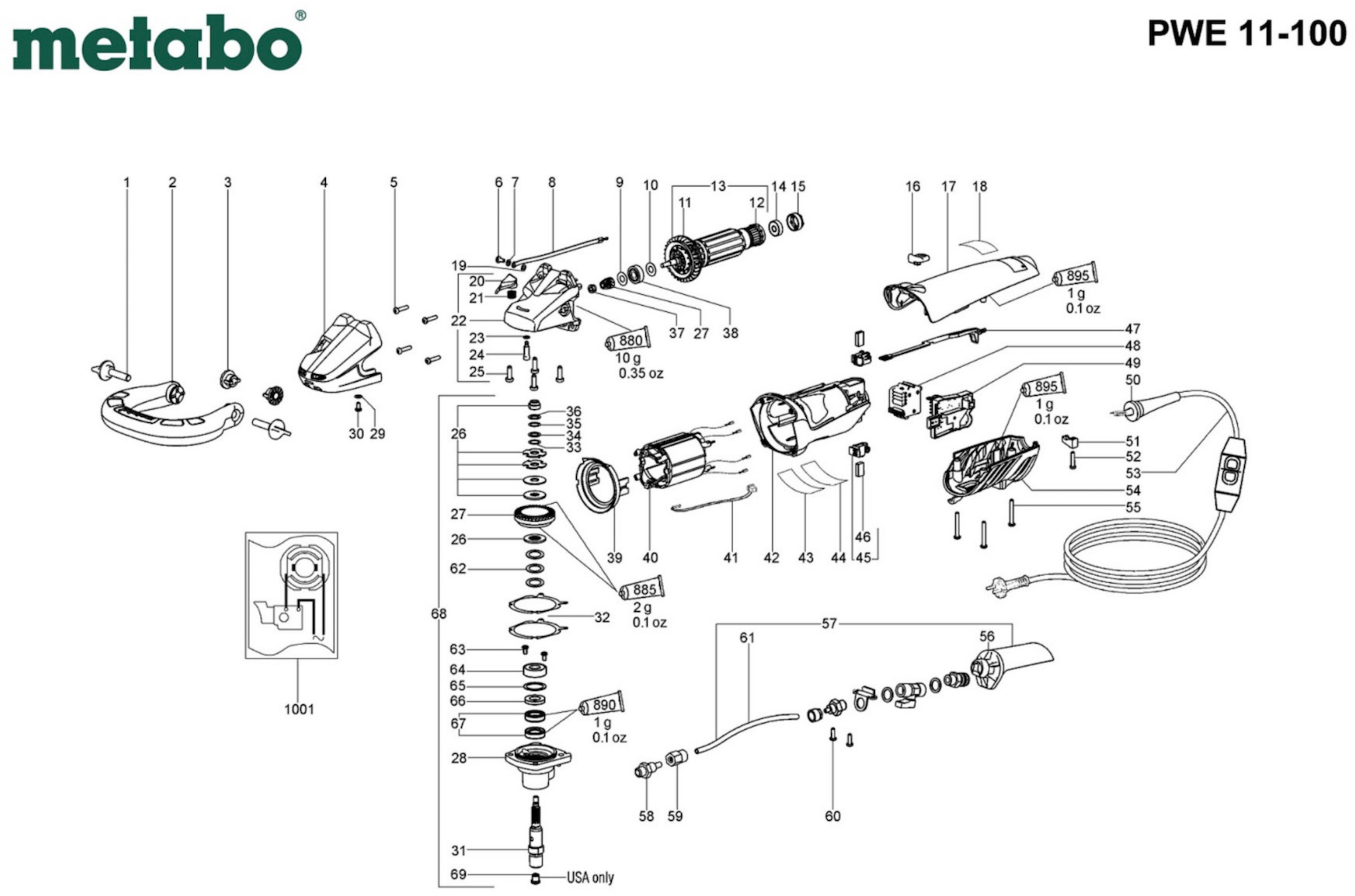

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 34339969 Loop handle compl. €15.81
4
 photo_cameraImage coming soon 34339928 Housing cap €3.81
5
 Self Tapping Fill h Screw 4x18 for Power Tools Metabo 14111602 Self Tapping Fill h Screw 4x18 for Power Tools Metabo €1.92
6
 photo_cameraImage coming soon 14111985 Fillister head screw €1.53
7
 photo_cameraImage coming soon 14115041 Serrated lock washer €1.77
8
 photo_cameraImage coming soon 33913512 earth connection €1.31
9
 photo_cameraImage coming soon 33900639 Washer,7,05x19,5x0,2 €1.76
10
 photo_cameraImage coming soon 33913228 Washer €1.59
11
 photo_cameraImage coming soon 31604145 Fan w. prot. Grid €4.36
12
 photo_cameraImage coming soon 34339985 Tacho disc €1.28
13
 photo_cameraImage coming soon 31001006 Armature compl.,230V €56.63
14
 photo_cameraImage coming soon 14311569 Ball bearing,6x19x6 €2.40
15
 photo_cameraImage coming soon 34409787 Rubber bushing €1.76
16
 Switch Slide for Angle Grinder Metabo W 8-115 34339298 Switch Slide for Angle Grinder Metabo W 8-115 €1.94
17
 photo_cameraImage coming soon 34339346 Housing cover €4.04
19
 photo_cameraImage coming soon 14115026 Spring washer €1.54
21
 photo_cameraImage coming soon 34200339 Pressure spring €1.76
22
 photo_cameraImage coming soon 31604741 Gear housing compl. €37.01
23
 photo_cameraImage coming soon 14319365 O-ring €1.45
24
 photo_cameraImage coming soon 34151528 Bolt €1.22
26
 photo_cameraImage coming soon 31604165 Friction washer cpl. €11.12
27
 photo_cameraImage coming soon 31604692 Bevel gear w.pinion €45.01
28
 photo_cameraImage coming soon 31520249 Gear flange €24.63
29
 photo_cameraImage coming soon 14115001 Washer €1.59
30
 photo_cameraImage coming soon 14112398 Fillister head screw €1.70
31
 photo_cameraImage coming soon 34116117 Spindle, M14 €36.29
32
 photo_cameraImage coming soon 33901157 Gasket €1.22
33
 photo_cameraImage coming soon 14115555 Washer 10,2 X 14,8X 1,0 €1.82
34
 photo_cameraImage coming soon 14115112 Washer 10,2 X 14,8X 0,2 €1.74
35
 photo_cameraImage coming soon 14115230 Washer 10,2 X 14,8X 0,1 €1.91
36
 photo_cameraImage coming soon 14115392 Washer 10,2 X 14,8X 0,5 €1.79
37
 photo_cameraImage coming soon 34110226 Hexagon nut w.recess €2.40
38
 photo_cameraImage coming soon 14311570 Ball bearing,8x22x7 €3.10
39
 photo_cameraImage coming soon 33915104 Baffle €1.28
40
 photo_cameraImage coming soon 31101144 Field coil assembly w.field coil,El. 230 €62.05
41
 photo_cameraImage coming soon 34308114 Temperature sensor €8.98
42
 photo_cameraImage coming soon 31501323 Motor housing €6.80
45
 photo_cameraImage coming soon 31604517 Brush holder compl. cut out,230V €7.97
48
 photo_cameraImage coming soon 34340945 Switch €19.92
49
 photo_cameraImage coming soon 34308233 Electronic unit,230V 50-60Hz €40.65
50
 photo_cameraImage coming soon 34410122 Cable sleeve €1.31
51
 photo_cameraImage coming soon 34336249 Cable clip €2.02
52
 Self Tapping Fill h Screw 4x18 for Power Tools Metabo 14111602 Self Tapping Fill h Screw 4x18 for Power Tools Metabo €1.92
53
 photo_cameraImage coming soon 34449834 Cable w.CEE plug,FI,230V,3-polig €67.32
54
 photo_cameraImage coming soon 34339914 Housing €4.21
55
 photo_cameraImage coming soon 14112349 Fillister head screw €1.22
56
 photo_cameraImage coming soon 34409882 Rubber cap €4.21
57
 photo_cameraImage coming soon 31604739 water connection, compl. €31.93
60
 photo_cameraImage coming soon 14111873 Self-tap. fill. h. screw €1.57
61
 photo_cameraImage coming soon 13519058 Hose €2.23
63
 photo_cameraImage coming soon 14111957 Fill. head screw(DIN 7985) €1.61
64
 photo_cameraImage coming soon 14311565 Ball bearing, 10x30x9 €2.99
67
 photo_cameraImage coming soon 14319531 Shaft sealing ring €1.72
68
 photo_cameraImage coming soon 31604766 Safety clutch w.pinion,M14 €158.32
70
 photo_cameraImage coming soon 14111827 Self-tap. fill. h. screw €1.28
880
 photo_cameraImage coming soon 34413092 Grease 100G €40.13
885
 photo_cameraImage coming soon 34413056 Grease SF 011 50Gr 1,8oz €37.66
890
 photo_cameraImage coming soon 34413124 Grease,400g,Petamo €72.59

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Polisher PWE 11-100

Fix Your Polisher PWE 11-100/02050000. All Spares can be supplied at discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Polisher and the respective parts of the code.
Polisher PWE 11-100/02050000

Polisher PWE 11-100/02050000
# Part Num. Description
1 34111269 Thumbscrew compl.
2 34339969 Loop handle compl.
3 34107099 Slotted disc
4 34339928 Housing cap
5 14111602 Self-tap fill h screw
6 14111985 Fillister head screw
7 14115041 Serrated lock washer
8 33913512 earth connection
9 33900639 Washer,7,05x19,5x0,2
10 33913228 Washer
11 31604145 Fan w. prot. Grid
12 34339985 Tacho disc
13 31001006 Armature compl.,230V
14 14311569 Ball bearing,6x19x6
15 34409787 Rubber bushing
16 34339298 Switch slide
17 34339346 Housing cover
18 33812259 M-Label 08 TR 49-52x22 PWE 11-100
19 14115026 Spring washer
20 34339365 Push button red
21 34200339 Pressure spring
22 31604741 Gear housing compl.
23 14319365 O-ring
24 34151528 Bolt
25 14112366 Fillister head screw
26 31604165 Friction washer cpl.
27 31604692 Bevel gear w.pinion
28 31520249 Gear flange
29 14115001 Washer
30 14112398 Fillister head screw
31 34116117 Spindle, M14
32 33901157 Gasket
33 14115555 Washer 10,2 X 14,8X 1,0
34 14115112 Washer 10,2 X 14,8X 0,2
35 14115230 Washer 10,2 X 14,8X 0,1
36 14115392 Washer 10,2 X 14,8X 0,5
37 34110226 Hexagon nut w.recess
38 14311570 Ball bearing,8x22x7
39 33915104 Baffle
40 31101144 Field coil assembly w.field coil,El. 230
41 34308114 Temperature sensor
42 31501323 Motor housing
43 33805512 Rating plate
45 31604517 Brush holder compl. cut out,230V
46 31604723 Carbon brush set compl.,230V
47 34339353 Switch rod
48 34340945 Switch
49 34308233 Electronic unit,230V 50-60Hz
50 34410122 Cable sleeve
51 34336249 Cable clip
52 14111602 Self-tap fill h screw
53 34449834 Cable w.CEE plug,FI,230V,3-polig
54 34339914 Housing
55 14112349 Fillister head screw
56 34409882 Rubber cap
57 31604739 water connection, compl.
58 14316004 Quick connector
59 14316005 Union nut
60 14111873 Self-tap. fill. h. screw
61 13519058 Hose
62 33900742 Washer 10,2 X 14,8X 1,5
63 14111957 Fill. head screw(DIN 7985)
64 14311565 Ball bearing, 10x30x9
65 14115648 Washer
66 14319471 Felt ring
67 14319531 Shaft sealing ring
68 31604766 Safety clutch w.pinion,M14
70 14111827 Self-tap. fill. h. screw
880 34413092 Grease 100G
885 34413056 Grease SF 011 50Gr 1,8oz
890 34413124 Grease,400g,Petamo
895 34413125 Grease Tube,100g,Chemplex 750
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Metabo PWE 11-100
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS

Specific References

New

Download

Diagram Metabo PWE 11-100

Diagram Metabo PWE 11-100

Download (212.69KB)
