Metabo

Metabo Spare Parts for Cordless Mitre Saw KGS 18 LTX 216

SKU: KGS18LTX216 - 19001000
€1.58
VAT included

Metabo Spare Parts for Cordless Mitre Saw KGS 18 LTX 216

Metabo original spare parts for to replace broken parts for to fix Mitre Saw KGS 18 LTX 216/19001000.

Fix Your Mitre Saw KGS 18 LTX 216. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Metabo Spare Parts for Cordless Mitre Saw KGS 18 LTX 216
  • Metabo Spare Parts for Cordless Mitre Saw KGS 18 LTX 216
  • Metabo Spare Parts for Cordless Mitre Saw KGS 18 LTX 216
  • Metabo Spare Parts for Cordless Mitre Saw KGS 18 LTX 216
  • Metabo Spare Parts for Cordless Mitre Saw KGS 18 LTX 216
Metabo

Metabo Spare Parts for Cordless Mitre Saw KGS 18 LTX 216

SKU: KGS18LTX216 - 19001000 Condition: New
€1.58
VAT included

Metabo Spare Parts for Cordless Mitre Saw KGS 18 LTX 216

Metabo original spare parts for to replace broken parts for to fix Mitre Saw KGS 18 LTX 216/19001000.

Fix Your Mitre Saw KGS 18 LTX 216. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 73 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
73 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

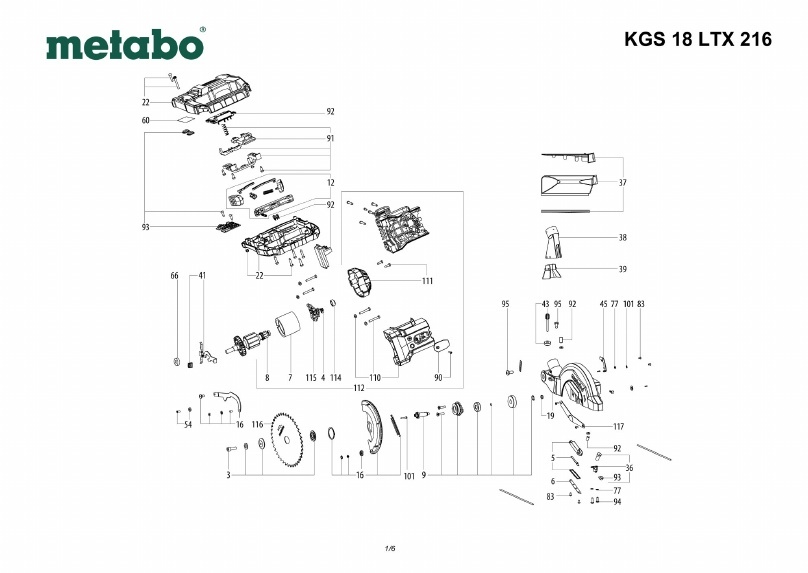

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
3
 photo_cameraImage coming soon 31606061 Flange compl. €10.75
4
 photo_cameraImage coming soon 31604758 Carbon brush set €14.61
5
 photo_cameraImage coming soon 34308514 LED lense €5.86
7
 Magnet for Cordless Mitre Saw Metabo KS 18 LTX 216 31101188 Magnet for Cordless Mitre Saw Metabo KS 18 LTX 216 €68.55
8
 photo_cameraImage coming soon 31001155 Armature compl.,18 V for JFD AKKU KGS €97.43
9
 Gear Housing Ass'y for Mitre Saw Metabo KS 216 M 31606069 Gear Housing Ass'y for Mitre Saw Metabo KS 216 M €33.12
12
 photo_cameraImage coming soon 34344055 Switch compl. €5.86
14
 photo_cameraImage coming soon 31605596 TURNTABLE COMPLETE €100.35
15
 photo_cameraImage coming soon 31605593 Table compl. €100.35
16
 Safety Guard Complete for Mitre Saw Metabo KGS 216 M 31609291 Safety Guard Complete for Mitre Saw Metabo KGS 216 M €36.02
17
 photo_cameraImage coming soon 31606084 Foot compl. €3.45
19
 photo_cameraImage coming soon 31605623 Wheel guard compl. €68.84
22
 photo_cameraImage coming soon 34344053 Handle compl. €29.56
23
 photo_cameraImage coming soon 31605607 Motor bracket compl. €30.45
24
 photo_cameraImage coming soon 31605610 Pivot compl. €92.47
25
 photo_cameraImage coming soon 31605674 Handle compl. €13.91
26
 photo_cameraImage coming soon 31606096 Detent compl. €10.75
27
 photo_cameraImage coming soon 31605679 Control grip compl. €7.41
28
 photo_cameraImage coming soon 31541852 Table side extension right €21.39
29
 photo_cameraImage coming soon 31541849 Table side extension left €27.49
31
 photo_cameraImage coming soon 31605668 Workpiece holder compl. €18.43
32
 photo_cameraImage coming soon 31605676 Clamping lever compl. €4.65
33
 Rip Fence Complete for Mitre Saw Metabo KGS 216 M 31605599 Rip Fence Complete for Mitre Saw Metabo KGS 216 M €51.18
34
 photo_cameraImage coming soon 31541854 Rear pivot compl. €60.97
35
 Table Insert for Mitre Saw Metabo KGS 216 M 34343602 Table Insert for Mitre Saw Metabo KGS 216 M €8.31
36
 Laser with Holder for Mitre Saw Metabo KGS 216 M 34343607 Laser with Holder for Mitre Saw Metabo KGS 216 M €22.49
37
 Dust Estraction Bag Set Ass'y for Mitre Saw Metabo KGS 254 M 31605634 Dust Estraction Bag Set Ass'y for Mitre Saw Metabo KGS 254 M €12.41
38
 photo_cameraImage coming soon 34343578 Cover dust collector €3.08
39
 photo_cameraImage coming soon 34343626 Extraction funnel €1.50
41
 photo_cameraImage coming soon 31609225 Spindle lock compl. €1.46
42
 photo_cameraImage coming soon 31606138 TRANSPORT LOCK COMPLETE €1.70
43
 photo_cameraImage coming soon 31605745 Depth stop compl. €1.50
44
 photo_cameraImage coming soon 31606140 tipping axis compl. €13.91
45
 photo_cameraImage coming soon 34344109 Cover (cable channel) €1.50
46
 photo_cameraImage coming soon 34411303 Plug in buffer €1.50
47
 photo_cameraImage coming soon 33913668 cover pivot €1.50
48
 photo_cameraImage coming soon 31605682 SET SCREW COMPLETE €1.50
49
 photo_cameraImage coming soon 31606144 Scale set compl. €3.86
51
 photo_cameraImage coming soon 33914765 Sliding sheet €1.70
52
 photo_cameraImage coming soon 31606152 End stop cpl. €3.86
53
 photo_cameraImage coming soon 34343622 Star grip screw €1.57
55
 photo_cameraImage coming soon 34172221 Stop screw €1.50
58
 photo_cameraImage coming soon 31606155 Tool holder col. €1.57
60
 photo_cameraImage coming soon 33806424 Rating plate €1.40
62
 photo_cameraImage coming soon 34343702 Star grip screw €1.50
64
 photo_cameraImage coming soon 34343704 Star grip screw €1.50
66
 photo_cameraImage coming soon 14311573 Ball bearing €3.08
67
 photo_cameraImage coming soon 14113203 Hex nut €1.59
68
 photo_cameraImage coming soon 14115005 Washer €1.68
69
 photo_cameraImage coming soon 14115039 Lock washer €1.59
70
 photo_cameraImage coming soon 14111389 Cap screw €1.78
71
 photo_cameraImage coming soon 14115001 Washer €1.59
72
 photo_cameraImage coming soon 14115524 Lock washer €1.80
73
 photo_cameraImage coming soon 14113089 Hexagonal lock nut €1.75
74
 photo_cameraImage coming soon 14115620 Washer €1.57
75
 photo_cameraImage coming soon 14111384 Cap screw €1.82
76
 photo_cameraImage coming soon 14111059 Fillister head screw €1.57
78
 photo_cameraImage coming soon 14111344 Hexagon head screw €1.70
80
 photo_cameraImage coming soon 14111678 Fillister head screw €1.50
82
 photo_cameraImage coming soon 14115002 Washer €1.59
84
 photo_cameraImage coming soon 14112451 HEX. SOCKET SET SCREW FLAT PT M 6X8 VER €1.50
90
 photo_cameraImage coming soon 34344052 Brush cover €1.46
91
 photo_cameraImage coming soon 31609222 clamp kit €3.75
92
 photo_cameraImage coming soon 34308440 Electronic unit €105.08
93
 photo_cameraImage coming soon 34308442 Electronic unit €110.81
96
 photo_cameraImage coming soon 14111143 Fillister head screw €1.70
100
 photo_cameraImage coming soon 14111322 Fillister head screw €1.75
101
 photo_cameraImage coming soon 14115035 Lock washer €1.57
110
 photo_cameraImage coming soon 31606010 Motor housing compl. €23.83
111
 photo_cameraImage coming soon 34344051 Motor cap €5.28
112
 photo_cameraImage coming soon 31609223 Motor compl. €236.99
114
 photo_cameraImage coming soon 34409874 Rubber bushing €1.61
115
 photo_cameraImage coming soon 31605321 Brush holder compl.,18 V €15.66
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

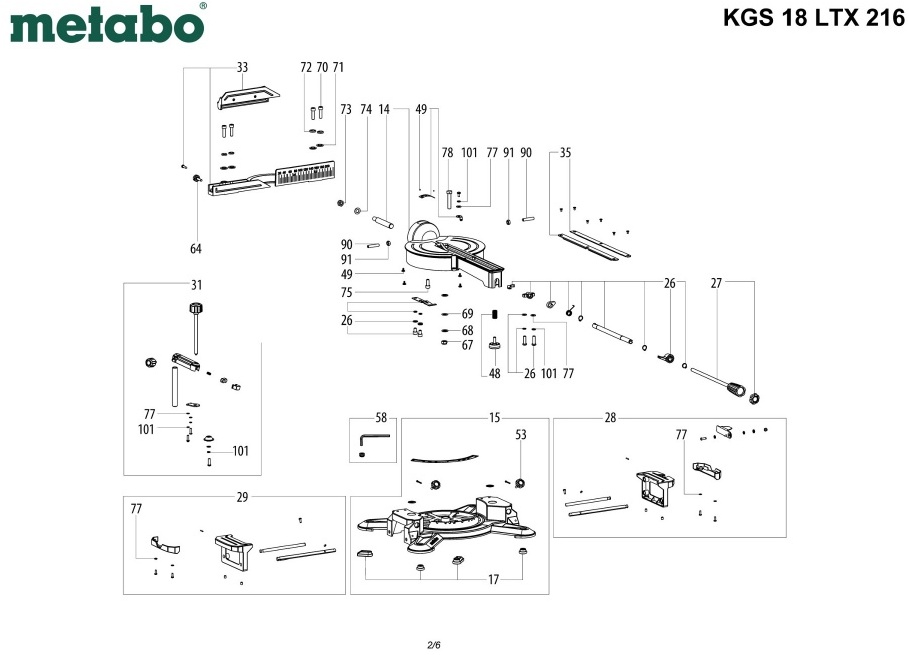

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
14
 photo_cameraImage coming soon 31605596 TURNTABLE COMPLETE €100.35
15
 photo_cameraImage coming soon 31605593 Table compl. €100.35
17
 photo_cameraImage coming soon 31606084 Foot compl. €3.45
26
 photo_cameraImage coming soon 31606096 Detent compl. €10.75
27
 photo_cameraImage coming soon 31605679 Control grip compl. €7.41
28
 photo_cameraImage coming soon 31541852 Table side extension right €21.39
29
 photo_cameraImage coming soon 31541849 Table side extension left €27.49
31
 photo_cameraImage coming soon 31605668 Workpiece holder compl. €18.43
33
 Rip Fence Complete for Mitre Saw Metabo KGS 216 M 31605599 Rip Fence Complete for Mitre Saw Metabo KGS 216 M €51.18
35
 Table Insert for Mitre Saw Metabo KGS 216 M 34343602 Table Insert for Mitre Saw Metabo KGS 216 M €8.31
48
 photo_cameraImage coming soon 31605682 SET SCREW COMPLETE €1.50
49
 photo_cameraImage coming soon 31606144 Scale set compl. €3.86
53
 photo_cameraImage coming soon 34343622 Star grip screw €1.57
58
 photo_cameraImage coming soon 31606155 Tool holder col. €1.57
64
 photo_cameraImage coming soon 34343704 Star grip screw €1.50
67
 photo_cameraImage coming soon 14113203 Hex nut €1.59
68
 photo_cameraImage coming soon 14115005 Washer €1.68
69
 photo_cameraImage coming soon 14115039 Lock washer €1.59
70
 photo_cameraImage coming soon 14111389 Cap screw €1.78
71
 photo_cameraImage coming soon 14115001 Washer €1.59
72
 photo_cameraImage coming soon 14115524 Lock washer €1.80
73
 photo_cameraImage coming soon 14113089 Hexagonal lock nut €1.75
74
 photo_cameraImage coming soon 14115620 Washer €1.57
75
 photo_cameraImage coming soon 14111384 Cap screw €1.82
78
 photo_cameraImage coming soon 14111344 Hexagon head screw €1.70
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

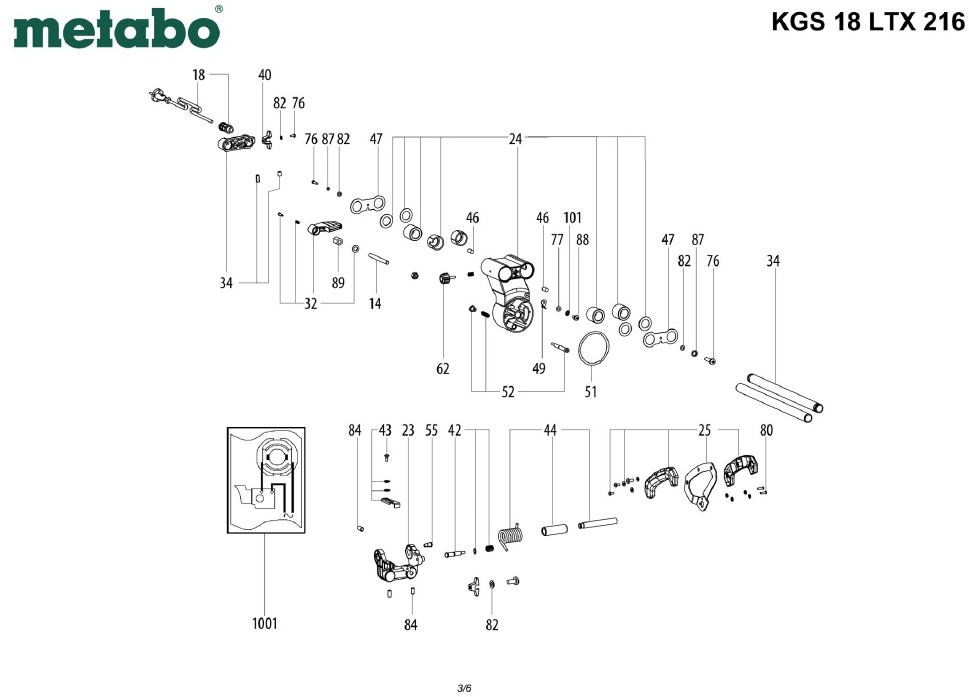

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
23
 photo_cameraImage coming soon 31605607 Motor bracket compl. €30.45
24
 photo_cameraImage coming soon 31605610 Pivot compl. €92.47
25
 photo_cameraImage coming soon 31605674 Handle compl. €13.91
32
 photo_cameraImage coming soon 31605676 Clamping lever compl. €4.65
34
 photo_cameraImage coming soon 31541854 Rear pivot compl. €60.97
42
 photo_cameraImage coming soon 31606138 TRANSPORT LOCK COMPLETE €1.70
44
 photo_cameraImage coming soon 31606140 tipping axis compl. €13.91
46
 photo_cameraImage coming soon 34411303 Plug in buffer €1.50
47
 photo_cameraImage coming soon 33913668 cover pivot €1.50
51
 photo_cameraImage coming soon 33914765 Sliding sheet €1.70
52
 photo_cameraImage coming soon 31606152 End stop cpl. €3.86
55
 photo_cameraImage coming soon 34172221 Stop screw €1.50
62
 photo_cameraImage coming soon 34343702 Star grip screw €1.50
76
 photo_cameraImage coming soon 14111059 Fillister head screw €1.57
80
 photo_cameraImage coming soon 14111678 Fillister head screw €1.50
82
 photo_cameraImage coming soon 14115002 Washer €1.59
84
 photo_cameraImage coming soon 14112451 HEX. SOCKET SET SCREW FLAT PT M 6X8 VER €1.50

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Cordless Mitre Saw KGS 18 LTX 216

Fix Your Mitre Saw KGS 18 LTX 216 - 19001000. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Mitre Saw and the respective parts of the code.
KGS 18 LTX 216 - 19001000

Mitre Saw KGS 18 LTX 216/19001000
# Part Num. Description
3 31606061 Flange compl.
4 31604758 Carbon brush set
5 34308514 LED lense
7 31101188 Field coil compl.,2 pol.
8 31001155 Armature compl.,18 V for JFD AKKU KGS
9 31606069 Gear-box compl.
12 34344055 Switch compl.
14 31605596 Turntable compl.
15 31605593 Table compl.
16 31609291 Safety guard compl.
17 31606084 Foot compl.
19 31605623 Wheel guard compl.
22 34344053 Handle compl.
23 31605607 Motor bracket compl.
24 31605610 Pivot compl.
25 31605674 Handle compl.
26 31606096 Detent compl.
27 31605679 Control grip compl.
28 31541852 Table side extension right
29 31541849 Table side extension left
31 31605668 Workpiece holder compl.
32 31605676 Clamping lever compl.
33 31605599 Rip Fence
34 31541854 Rear pivot compl.
35 34343602 Table insert
36 34343607 Laser with holder
37 31605634 Dust etraction kit compl.
38 34343578 Cover dust collector
39 34343626 Extraction funnel
41 31609225 Spindle lock compl.
42 31606138 Transport lock compl.
43 31605745 Depth stop compl.
44 31606140 tipping axis compl.
45 34344109 Cover (cable channel)
46 34411303 Plug in buffer
47 33913668 cover pivot
48 31605682 Set screw compl.
49 31606144 Scale set compl.
51 33914765 Sliding sheet
52 31606152 End stop cpl.
53 34343622 Star grip screw
55 34172221 Stop screw
58 31606155 Tool holder col.
60 33806424 Rating plate
62 34343702 Star grip screw
64 34343704 Star grip screw
66 14311573 Ball bearing
67 14113203 Hex nut
68 14115005 Washer
69 14115039 Lock washer
70 14111389 Cap screw
71 14115001 Washer
72 14115524 Lock washer
73 14113089 Hexagonal lock nut
74 14115620 Washer
75 14111384 Cap screw
76 14111059 Fillister head screw
78 14111344 Hexagon head screw
80 14111678 Fillister head screw
82 14115002 Washer
84 14112451 HEX. SOCKET SET SCREW, FLAT PT M 6X8 VER
90 34344052 Brush cover
91 31609222 clamp kit
92 34308440 Electronic unit
93 34308442 Electronic unit
96 14111143 Fillister head screw
100 14111322 Fillister head screw
101 14115035 Lock washer
110 31606010 Motor housing compl.
111 34344051 Motor cap
112 31609223 Motor compl.
114 34409874 Rubber bushing
115 31605321 Brush holder compl.,18 V
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
KGS18LTX216 - 19001000
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS

Specific References

New

Download

Diagram Metabo KGS 18 LTX 216

Diagram Metabo KGS 18 LTX 216

Download (661.42KB)

You might also like

Gear Housing Ass'y for Mitre Saw Metabo KS 216 M
Metabo SKU: 31606069
Gear Housing Ass'y for Mitre Saw Metabo KS 216 M
Gear Housing Ass'y for Mitre Saw Metabo KS 216 M Genuine part Metabo, Gear Housing Assembly for Mitre Saw Metabo Metabo KS 216 M Lasercut/19216000 - KGS 216 M/19260000 - KS 18 LTX 216/19000000 - KGS 18 LTX 216/19001000. Parts for the...
Last items in stock €33.12
Details
Rip Fence Complete for Mitre Saw Metabo KGS 216 M
Metabo SKU: 31605599
Rip Fence Complete for Mitre Saw Metabo KGS 216 M
Rip Fence Complete for Mitre Saw Metabo KGS 216 M Genuine part Metabo, Rip Fence Complete for Mitre Saw KGS 216 M/19260000 - KGS 18 LTX 216/19001000 Parts for the following products: - Mitre Saw...
Last items in stock €51.18
Details
Laser with Holder for Mitre Saw Metabo KGS 216 M
Metabo SKU: 34343607
Laser with Holder for Mitre Saw Metabo KGS 216 M
Laser with Holder for Mitre Saw Metabo KGS 216 M Genuine part Metabo, Laser with Holder for Mitre SawsKS 216 M Lasercut - KGS 216 M/19260000 - KGS 254 M - KGS 305 M - KGS 18 LTX 216 - 19001000 Part for the following products: -  Mitre...
Last items in stock €22.49
Details
Safety Guard Complete for Mitre Saw Metabo KGS 216 M
Metabo SKU: 31609291
Safety Guard Complete for Mitre Saw Metabo KGS 216 M
Safety Guard Complete for Mitre Saw Metabo KGS 216 M Genuine replacement part Metabo, Safety Guard Complete for Mitre Saw KGS 216 M/19260000 - KGS 18 LTX 216/19001000. Parts for the following...
Last items in stock €36.02
Details
Magnet for Cordless Mitre Saw Metabo KS 18 LTX 216
Metabo SKU: 31101188
Magnet for Cordless Mitre Saw Metabo KS 18 LTX 216
Magnet for Cordless Mitre Saw Metabo KS 18 LTX 216 Original Spare Parts Metabo, Magnet Complete 2 Pol. for Cordless Mitre Saw KS 18 LTX 216 - KGS 18 LTX 216. Part for the following products: -  Cordless Mitre Saw KS 18 LTX...
Last items in stock €68.55
Details
Table Insert for Mitre Saw Metabo KGS 216 M
Metabo SKU: 34343602
Table Insert for Mitre Saw Metabo KGS 216 M
Table Insert for Mitre Saw Metabo KGS 216 M Genuine part Metabo, Table Insert for Mitre Saws KGS 216 M - KGS 18 LTX 216. Part for the following products: -  Mitre Saw Metabo KGS 216 M- 19260000 -  Mitre Saw KGS 18 LTX 216 - 19001000...
on 7/10 Business Days Approx €8.31
Details
Comments (0)
