Metabo

Metabo Spare Parts for Angle Grinder W 8-115

SKU: Metabo W 8-115 - 00259000
€1.92
VAT included

Metabo Spare Parts for Angle Grinder W 8-115

METABO Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Angle Grinder W 8-115 - 00259000.

Angle Grinder W 8-115
Metabo Spare Parts for Angle Grinder W 8-115
  • Metabo Spare Parts for Angle Grinder W 8-115
  • Metabo Spare Parts for Angle Grinder W 8-115
Metabo

Metabo Spare Parts for Angle Grinder W 8-115

SKU: Metabo W 8-115 - 00259000 Condition: New
€1.92
VAT included

Metabo Spare Parts for Angle Grinder W 8-115

METABO Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Angle Grinder W 8-115 - 00259000.

Angle Grinder W 8-115
settings 51 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
51 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

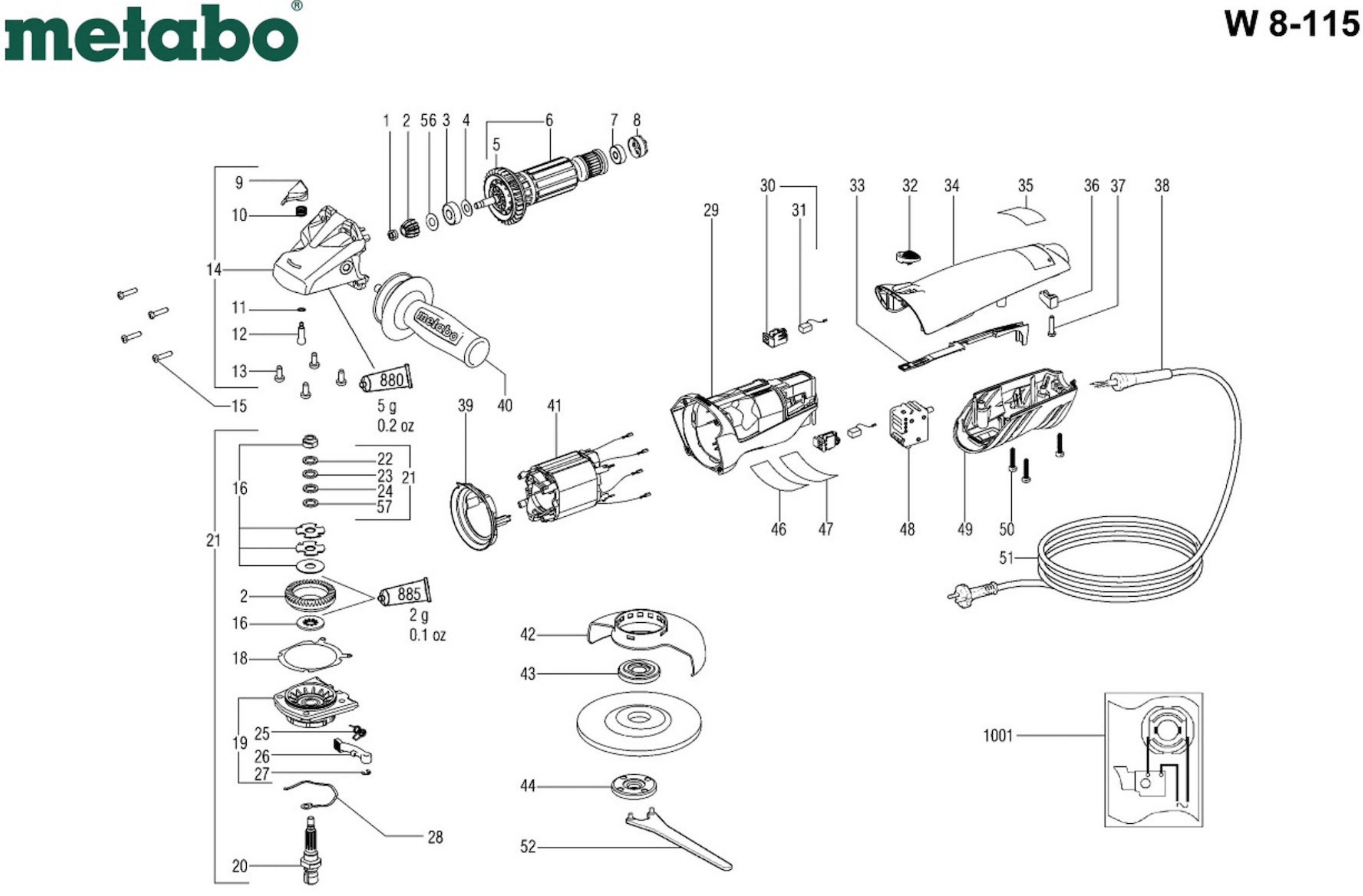

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 34110094 Hexagon nut w.recess €2.02
2
 Bevel Gear with Pinion for Angle Grinder Metabo W 8-115 31604166 Bevel Gear with Pinion for Angle Grinder Metabo W 8-115 €26.38
3
 photo_cameraImage coming soon 14311518 Ball bearing,8x22x7 €3.92
4
 photo_cameraImage coming soon 33913306 Washer,8,05x17x0,4 €1.76
5
 photo_cameraImage coming soon 31604145 Fan w. prot. Grid €4.36
6
 photo_cameraImage coming soon 31000904 Armature compl.,230V €67.52
7
 Ball Bearing 6x19x6 mm for Angle Grinders Metabo W 7-8-9-115 14311517 Ball Bearing 6x19x6 mm for Angle Grinders Metabo W 7-8-9-115 €7.95
8
 photo_cameraImage coming soon 34409787 Rubber bushing €1.76
9
 photo_cameraImage coming soon 34339341 Push button €1.22
10
 photo_cameraImage coming soon 34200339 Pressure spring €1.76
11
 photo_cameraImage coming soon 14319365 O-ring €1.45
12
 photo_cameraImage coming soon 34151528 Bolt €1.22
13
 photo_cameraImage coming soon 14112164 Fill. head screw(DIN 7985) €1.76
14
 photo_cameraImage coming soon 31604144 Gear housing compl. €39.24
15
 Self Tapping Fill h Screw 4x18 for Power Tools Metabo 14111602 Self Tapping Fill h Screw 4x18 for Power Tools Metabo €1.92
16
 photo_cameraImage coming soon 31604165 Friction washer cpl. €11.12
18
 photo_cameraImage coming soon 33901157 Gasket €1.22
19
 photo_cameraImage coming soon 31604172 Flange w.clamping lever cpl. €24.32
20
 photo_cameraImage coming soon 34116103 Spindle shaft €23.80
21
 photo_cameraImage coming soon 31604168 Safety clutch w.pinion,230V €61.24
22
 photo_cameraImage coming soon 14115112 Washer 10,2 X 14,8X 0,2 €1.74
23
 photo_cameraImage coming soon 14115230 Washer 10,2 X 14,8X 0,1 €1.91
24
 photo_cameraImage coming soon 14115392 Washer 10,2 X 14,8X 0,5 €1.79
25
 photo_cameraImage coming soon 34202204 Spring clip €1.22
26
 photo_cameraImage coming soon 34107044 Lever €2.48
27
 photo_cameraImage coming soon 14118181 Circlip €1.52
28
 photo_cameraImage coming soon 34205084 Compression Spring €1.22
29
 photo_cameraImage coming soon 31501321 Motor housing €5.93
30
 photo_cameraImage coming soon 31604598 Brush holder compl. cut out €8.61
31
 Carbon Brush Set for Angle Grinder Metabo W 8-115 31604680 Carbon Brush Set for Angle Grinder Metabo W 8-115 €24.98
32
 Switch Slide for Angle Grinder Metabo W 8-115 34339298 Switch Slide for Angle Grinder Metabo W 8-115 €1.94
33
 Switch Lever for Angle Grinder Metabo W 8-115 34339311 Switch Lever for Angle Grinder Metabo W 8-115 €5.88
34
 photo_cameraImage coming soon 34339299 Housing cover €3.73
36
 photo_cameraImage coming soon 34336249 Cable clip €2.02
37
 Self Tapping Fill h Screw 4x18 for Power Tools Metabo 14111602 Self Tapping Fill h Screw 4x18 for Power Tools Metabo €1.92
38
 photo_cameraImage coming soon 34410097 Cable sleeve €1.79
39
 photo_cameraImage coming soon 33915105 Baffle €1.22
40
 Side Support Handle for Angle Grinder Metabo W 9-115 Quick 31604659 Side Support Handle for Angle Grinder Metabo W 9-115 Quick €18.00
41
 photo_cameraImage coming soon 31101069 Field coil assembly w.field coil,230V €54.95
42
 photo_cameraImage coming soon 33920299 Wheel guard,D115 €10.41
43
 photo_cameraImage coming soon 34103116 Clamping flange €13.19
44
 photo_cameraImage coming soon 34110690 Flange nut €9.91
46
 photo_cameraImage coming soon 33804885 Rating plate €1.22
48
 Switch for Angle Grinder Metabo W 8-115 34340853 Switch for Angle Grinder Metabo W 8-115 €16.47
49
 photo_cameraImage coming soon 34339560 Housing black €2.48
50
 photo_cameraImage coming soon 14112349 Fillister head screw €1.22
51
 photo_cameraImage coming soon 34449716 Cable with plug €8.61
52
 photo_cameraImage coming soon 34416392 Pin spanner €5.32
56
 photo_cameraImage coming soon 33900639 Washer,7,05x19,5x0,2 €1.76
57
 photo_cameraImage coming soon 14115555 Washer 10,2 X 14,8X 1,0 €1.82
880
 photo_cameraImage coming soon 34413092 Grease 100G €40.13
885
 photo_cameraImage coming soon 34413056 Grease SF 011 50Gr 1,8oz €37.66

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Angle Grinder W 8-115

METABO Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Angle Grinder W 8-115 - 00259000.

In the following table, look for the model of the Angle Grinder and the respective parts of the code.
Metabo W 8-115 - 00259000

Angle Grinder W 8-115/00259000
# Part Num. Description
1 34110094 Hexagon nut w.recess
2 31604166 Bevel gear w.pinion
3 14311518 Ball bearing,8x22x7
4 33913306 Washer,8,05x17x0,4
5 31604145 Fan w. prot. Grid
6 31000904 Armature compl.,230V
7 14311517 Ball bearing,6x19x6
8 34409787 Rubber bushing
9 34339341 Push button
10 34200339 Pressure spring
11 14319365 O-ring
12 34151528 Bolt
13 14112164 Fill. head screw(DIN 7985)
14 31604144 Gear housing compl.
15 14111602 Self-tap fill h screw
16 31604165 Friction washer cpl.
18 33901157 Gasket
19 31604172 Flange w.clamping lever cpl.
20 34116103 Spindle shaft
21 31604168 Safety clutch w.pinion,230V
22 14115112 Washer 10,2 X 14,8X 0,2
23 14115230 Washer 10,2 X 14,8X 0,1
24 14115392 Washer 10,2 X 14,8X 0,5
25 34202204 Spring clip
26 34107044 Lever
27 14118181 Circlip
28 34205084 Compression Spring
29 31501321 Motor housing
30 31604598 Brush holder compl. cut out
31 31604680 Carbon brush set
32 34339298 Switch slide
33 34339311 Switch rod
34 34339299 Housing cover
35 33812277 M-Label 08 49-51x25
36 34336249 Cable clip
37 14111602 Self-tap fill h screw
38 34410097 Cable sleeve
39 33915105 Baffle
40 31604659 Side support handle compl.
41 31101069 Field coil assembly w.field coil,230V
42 33920299 Wheel guard,D115
43 34103116 Clamping flange
44 34110690 Flange nut
46 33804885 Rating plate
48 34340853 Switch
49 34339560 Housing black
50 14112349 Fillister head screw
51 34449716 Cable with plug
52 34416392 Pin spanner
56 33900639 Washer,7,05x19,5x0,2
57 14115555 Washer 10,2 X 14,8X 1,0
880 34413092 Grease 100G
885 34413056 Grease SF 011 50Gr 1,8oz
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
