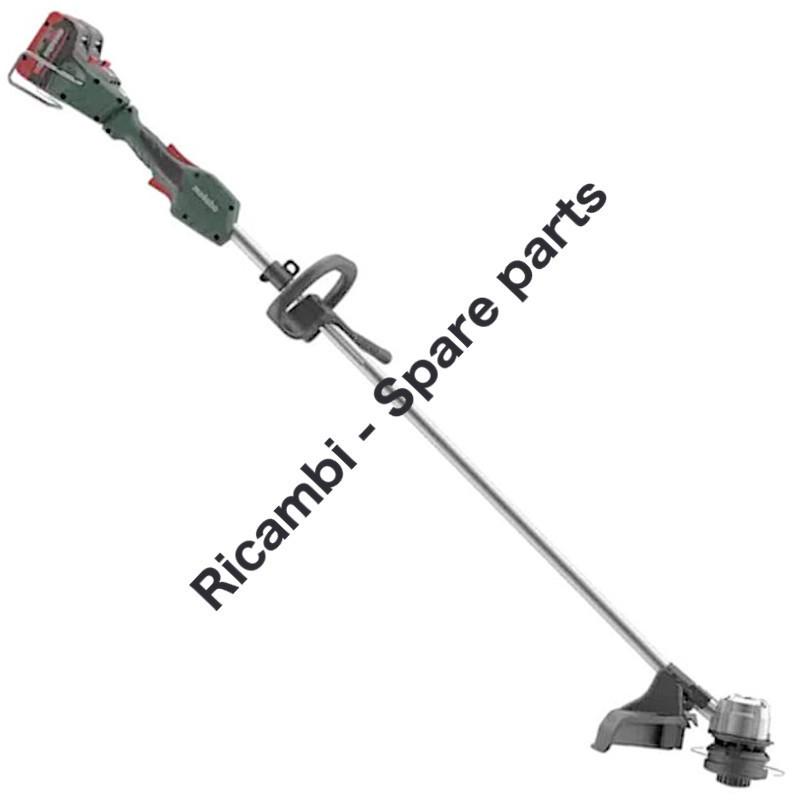

Metabo Grass Trimmer FSD 36-18 LTX BL 40 Parts
€0.10
VAT included
Metabo Grass Trimmer FSD 36-18 LTX BL 40 Spare Parts
Rely on our experience and our professionalism, take care of your FSD 36-18 LTX BL 40 - Brushless 40cm Grass Trimmer (01610000) by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.
Metabo Grass Trimmer FSD 36-18 LTX BL 40 Parts
€0.10
VAT included
Metabo Grass Trimmer FSD 36-18 LTX BL 40 Spare Parts
Rely on our experience and our professionalism, take care of your FSD 36-18 LTX BL 40 - Brushless 40cm Grass Trimmer (01610000) by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.
settings
30 spare parts
description
1 exploded view
verified_user
Original Product
Manufacturer warranty included
support_agent
Technical Support
Our team helps you choose
Secure and guaranteed payments
30 spare parts
Page 1

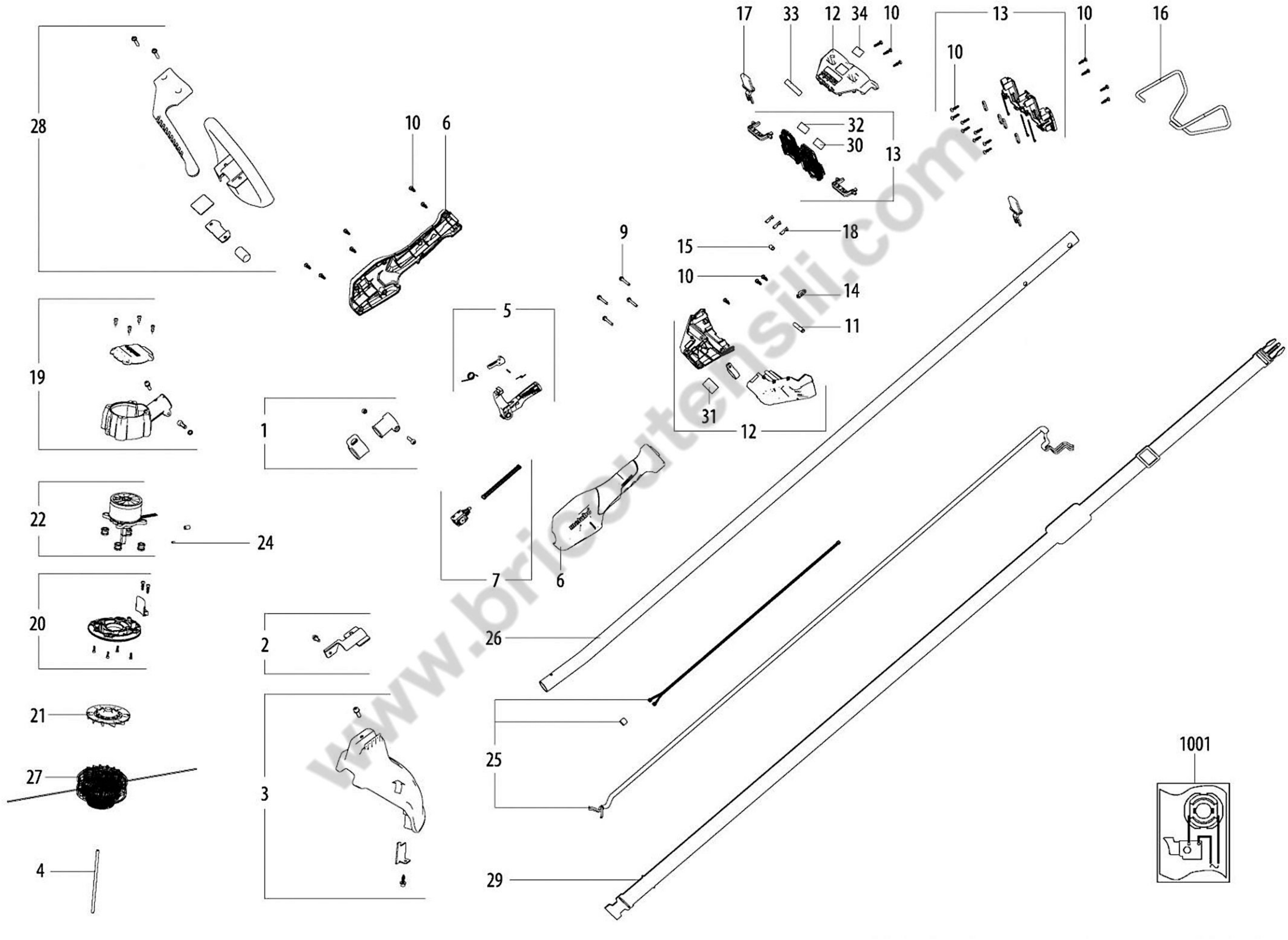

zoom_in View exploded
local_shipping Usually Ships in:: 15/20 BUSINESS DAYS
Informazioni sulle spedizioni e consegne saranno disponibili a breve.
Metabo Grass Trimmer FSD 36-18 LTX BL 40 Spare Parts
Rely on our experience and our professionalism, take care of your FSD 36-18 LTX BL 40 - Brushless 40cm Grass Trimmer (01610000) by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.
In the following table, look for the spare parts of the ABAC Air Compressor and the corresponding code.
| Metabo Decespugliatore A Batteria FSD 36-18 LTX BL 40 Elenco Ricambi | ||
| # | Part Num. | Description |
| 1 | 31607189 | Ring cpl. |
| 2 | 31607190 | Retaining sheet compl. |
| 3 | 31607191 | Guard support comp. |
| 4 | 34153973 | Locking pin |
| 5 | 31607192 | Latch Key cpl. |
| 6 | 31607193 | Handle comp. |
| 7 | 31607259 | Cable with Poti switch |
| 8 | 34453477 | Cable |
| 9 | 34172163 | Cap screw |
| 10 | 34172189 | Cap screw |
| 11 | 34157107 | Shoulder bolt |
| 12 | 31607194 | Housing compl. |
| 13 | 31608128 | Electronic compl. |
| 14 | 34116442 | STRESS RELIEVE |
| 15 | 33904164 | Shrink hose |
| 16 | 34220077 | Protective strap |
| 17 | 34345221 | Locking slide |
| 18 | 34453331 | plug |
| 19 | 31607196 | Housing compl. |
| 20 | 31607197 | Motor flange cpl. |
| 21 | 31607198 | Fan compl. |
| 22 | 31607204 | Motor compl. |
| 24 | 33908301 | Connector |
| 25 | 34453332 | Lead wire with terminal |
| 26 | 31607199 | Pipe compl. |
| 27 | 62842900 | Replacement spool with thread |
| 28 | 31607200 | Front handle cpl. |
| 29 | 62842700 | Shoulder strap |
| 30 | 33807590 | Rating plate |
| 31 | 33812996 | Indication label, CAS |
| 32 | 33813252 | Indication label same battery |
| 33 | 33813204 | Type label 01610 FSD 36-18 LTX BL 40 |
| 34 | 33813206 | Indication label |
| 1001 | 33850666 | Diagram |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s ABAC websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to ABAC brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
FSD 36-18 LTX BL 40 01610000
Data sheet
- SHIPPING IN:
- Usually Ships in:: 15/20 BUSINESS DAYS
- CHECK S/N METABO:
- METABO S/N START WITH ( 0 ) and have 8 DIGITS
Specific References
