Metabo Hedge Trimmers HS 18 LTX BL 75 Parts
Rely on our experience and our professionalism, take care of your Hedge Trimmers METABO HS 18 LTX BL 75 - 01724000 by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.
In the following table, look for the spare parts of the ABAC Air Compressor and the corresponding code.

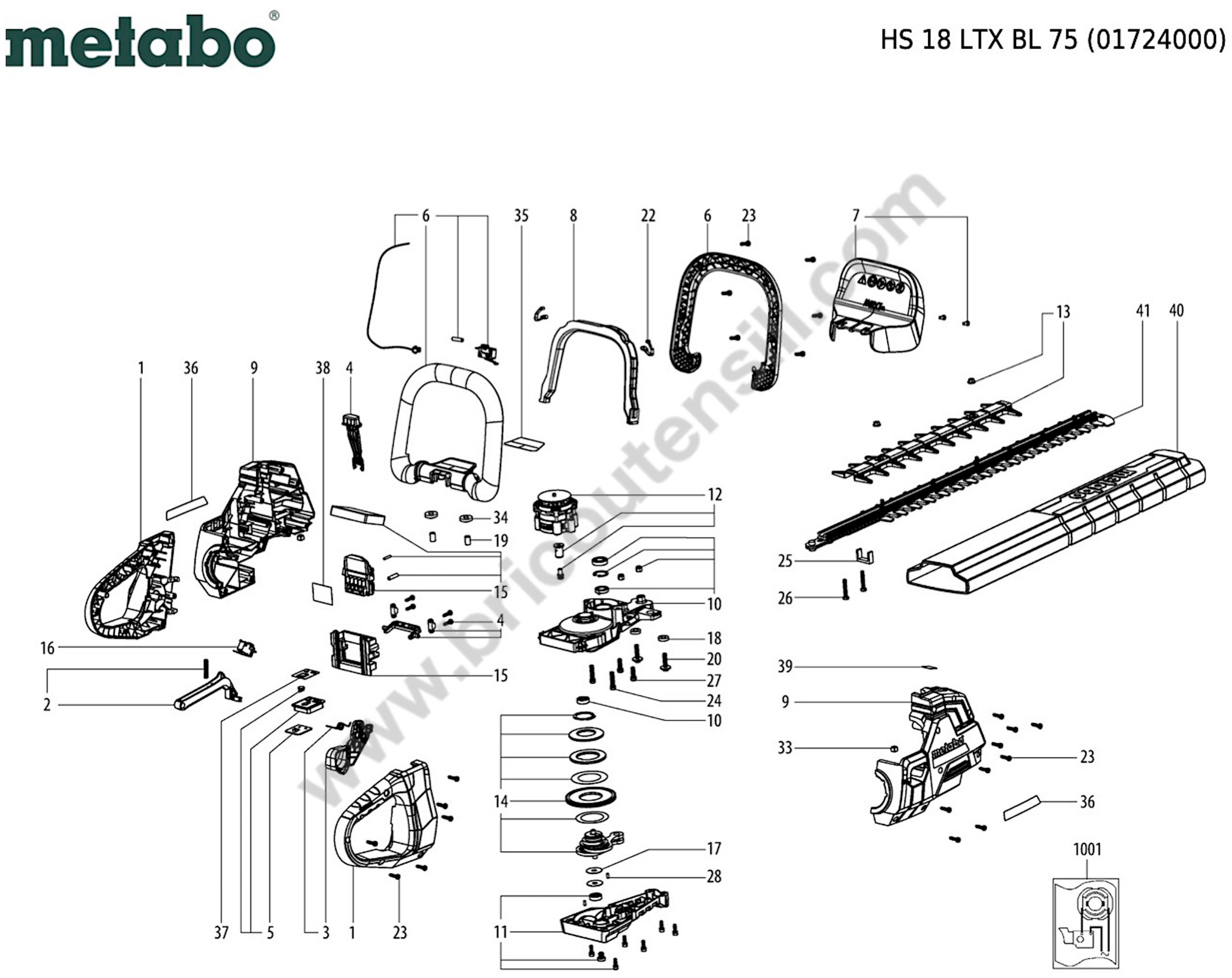

| HS 18 LTX BL 75 - Hedge Trimmers (01724000) | ||
| # | Part Num. | Description |
| 1 | 316076470 | Carry handle comp. |
| 2 | 316076310 | Switch trigger compl. |
| 3 | 316076320 | Latch f. handle cpl. |
| 4 | 316076330 | Latch cpl. |
| 5 | 316076340 | Control unit complete |
| 6 | 316076350 | Bowhandle compl. |
| 7 | 316076360 | Hand guard cpl. |
| 8 | 343458490 | Auxiliary handle trigger |
| 9 | 316076370 | Motor housing compl. |
| 10 | 316076380 | Gear housing compl. |
| 11 | 316076390 | Gearbox cover complete |
| 12 | 316076400 | Motor compl. |
| 13 | 316076410 | Blade cover complete |
| 14 | 316076420 | Gear-box compl. |
| 15 | 316076430 | Control Board cpl. |
| 16 | 343413180 | Micro switch |
| 17 | 344104460 | SEAL PACKING |
| 18 | 344115170 | Rubber bearing |
| 19 | 343460070 | Sleeve |
| 20 | 341724220 | Screw |
| 22 | 342051120 | Flat spring |
| 23 | 341721890 | Cap screw |
| 24 | 341724180 | Screw |
| 25 | 344071250 | Felt packing |
| 26 | 341724200 | Screw |
| 27 | 341724210 | Screw |
| 28 | 341525500 | Cylindrical pin |
| 33 | 341109240 | nut |
| 34 | 344115180 | Rubber bearing |
| 35 | 338136050 | Indication label,dB 01722 HS 18 LTX BL 5 |
| 36 | 338136040 | Nameplate 01724000 HS 18 LTX BL 75 |
| 37 | 338136740 | Indicating Label on off button 01722XXX |
| 38 | 338079990 | Rating plate 01724000 HS 18 LTX BL 75 |
| 39 | 338129960 | Indication label, CAS |
| 40 | 343458560 | Blade cover 75cm |
| 41 | 316077660 | Blade COMPL. 75cm |
| 880 | 344131480 | Grease 40G |
| 1001 | 338510970 | Wiring diagram |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s ABAC websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to ABAC brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
HS 18 LTX BL 75 (01724000)
Data sheet
- SHIPPING IN:
- Usually Ships in:: 15/20 BUSINESS DAYS
- CHECK S/N METABO:
- METABO S/N START WITH ( 0 ) and have 8 DIGITS
