Meccanica Benassi Spare Parts for Motorhoe RL 350

Name: Meccanica Benassi Spare Parts for Motorhoe RL 350
Brand: MECCANICA BENASSI S.R.L.
SKU: Mec. Benassi RL 350 da N.4500457
Availability: InStock

SKU: Mec. Benassi RL 350 da N.4500457

€3.50

VAT included

Meccanica Benassi Spare Parts for Motorhoe RL 350

Meccanica Benassi Genuine spare parts or replacement parts for to repair Motorhoe RL 350 from SN.4500457

Fix Your Motorhoe RL 350. All Spares are original and can be supplied at Low and discounted prices For Shipping Our Spares are Genuine Parts and Come with a Full Guarantee

160 spare parts

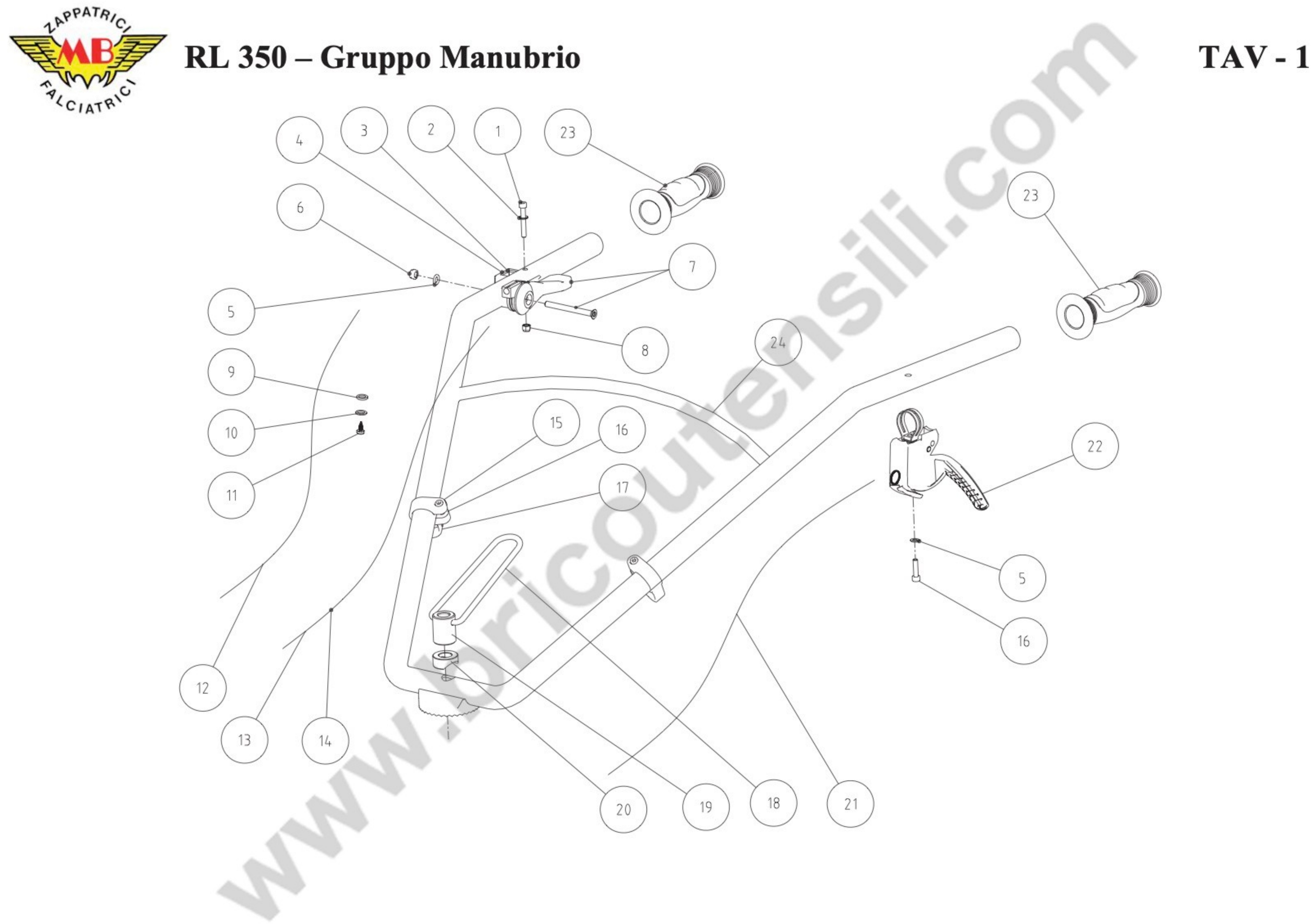

Page 1 View exploded Usually Ships in 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
1	Image coming soon	SI0162510 Screw M5x35	€0.15	Not available for order
2	Image coming soon	SI0147511 FLAT WASHER Ø5	€0.15	Not available for order
3	Image coming soon	SI0148406 SWITCH SUPPORT	€3.49
4		SI0148300 Switch for Motorhoe Meccanica Benassi RL 50	€2.67
5	Image coming soon	SI0062010 FLAT WASHER Ø6	€0.15	Not available for order
6	Image coming soon	SI0147811 NUT M6	€0.15	Not available for order
7		SI0147600 Throttle Lever for Tiller Meccanica Benassi RL 40-45	€14.55
8	Image coming soon	SI0148511 NUT M5	€0.15	Not available for order
9	Image coming soon	SI0162606 CLAMP	€0.15	Not available for order
10	Image coming soon	SI0052306 FLAT WASHER Ø4	€0.15	Not available for order
11	Image coming soon	SI0148110 SCREW ST4X12-C	€0.15	Not available for order
12	Image coming soon	SI0162700 Stop wire	€5.79
13	Image coming soon	SI0200083 Speed wire	€22.53
14	Image coming soon	SI0200084 Speed wire sheath	€0.15	Not available for order
15	Image coming soon	SI0038311 Nut M5	€0.15	Not available for order
16	Image coming soon	SI0161810 Screw M5x20	€0.15	Not available for order
17	Image coming soon	SI0148706 Cable sleeve	€0.15	Not available for order
18	Image coming soon	SI0200077 Lever spring	€4.95
19	Image coming soon	SI0200076 Bushing (type II handlebar)	€6.83
20	Image coming soon	SI0200075 Washer (type II handlebar)	€0.15	Not available for order
21	Image coming soon	SI0200082 Clutch wire	€25.90
22		SI0200901 Clutch Lever for Tiller Meccanica Benassi RL 40-50	€27.46
23		SI0147006 Handle Grip for Rototiller Meccanica Benassi RL 40-50	€9.01
24	Image coming soon	5HR155C0 Handle Bar	€88.41

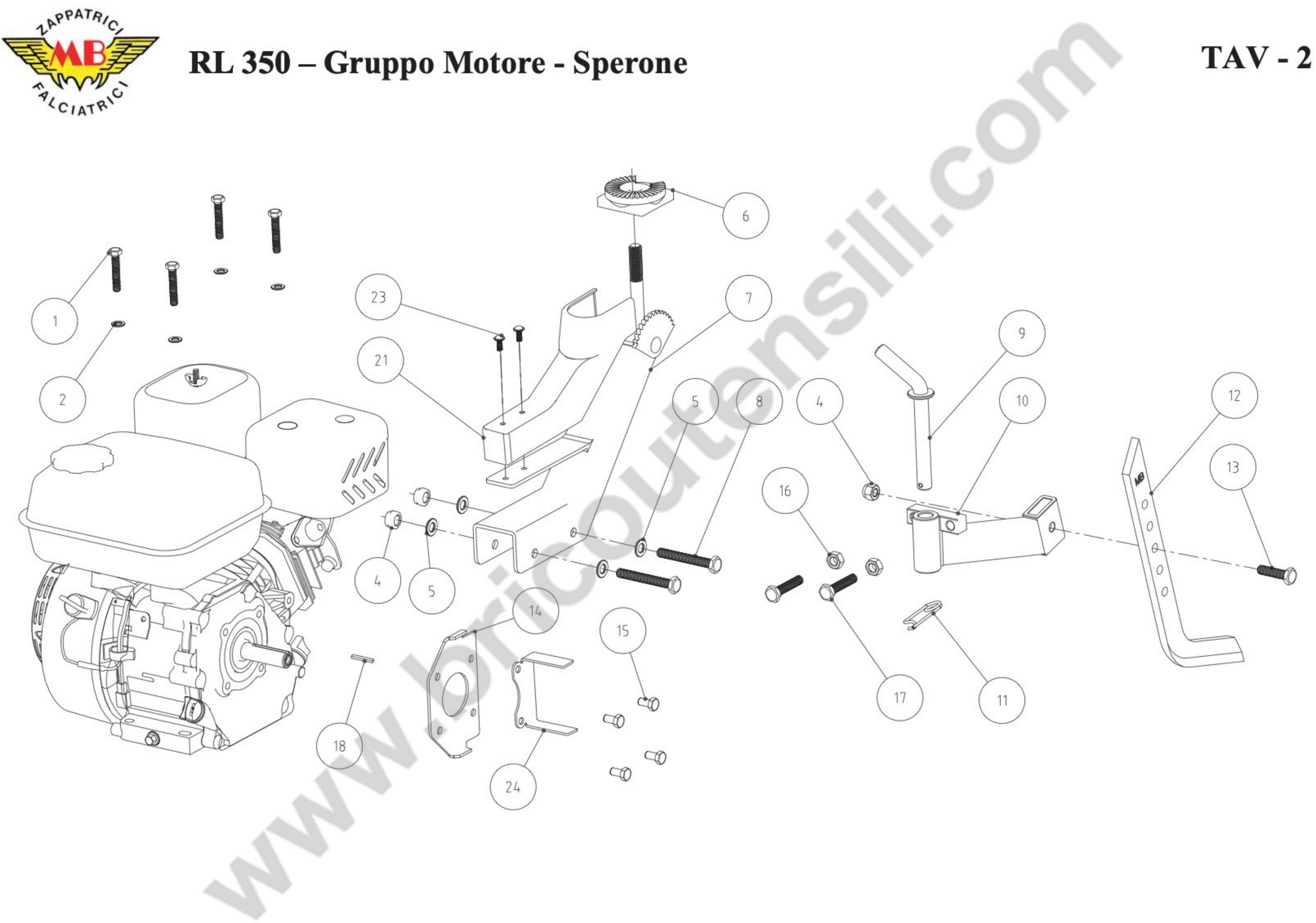

Page 2 View exploded Usually Ships in 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
1	Image coming soon	SI0200065 Screw M8x45	€0.15	Not available for order
2	Image coming soon	SI0149011 FLAT WASHER Ø8	€0.15	Not available for order
4	Image coming soon	SI0200070 Nut M10	€0.15	Not available for order
5	Image coming soon	SI0163111 washer Ø10	€0.15	Not available for order
6	Image coming soon	6HZ012T0 Toothed support	€18.94
7	Image coming soon	SI0200072 Handle support	€119.02
8	Image coming soon	SI0200091 Screw TE M 10x75	€0.15	Not available for order
9	Image coming soon	6HL011T0 Spur bolt	€19.06
10	Image coming soon	5BT055C0 Spur shaft	€52.47
11	Image coming soon	SI0200063 Cotter pin	€0.15	Not available for order
12	Image coming soon	6HO014S0 Spur	€24.36
13	Image coming soon	SI0200069 Screw M10x40	€0.15	Not available for order
14	Image coming soon	SI0210055 Type II support	€0.15	Not available for order
15	Image coming soon	3934215T Screw TE 5/16 24 3/4 (L 19)	€1.63
15	Image coming soon	SI0160310 screw TE M8x16	€0.15	Not available for order
16	Image coming soon	SI0200068 Nut M10	€0.15	Not available for order
17	Image coming soon	SI0200067 Screw M10x50	€0.15	Not available for order
18	Image coming soon	SI0163500 Key 4.8 (h9) x35 (h14)	€0.15	Not available for order
21	Image coming soon	6GQ123A0 Column cover	€29.67
23	Image coming soon	3939104T Screw TBCE M 6X16 Flang.	€0.15	Not available for order
24		SI0210056 Belt Guide for Motorhoe Meccanica Benassi RL 35	€13.39

Page 3 View exploded Usually Ships in 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
	Image coming soon	SI0149011 FLAT WASHER Ø8	€0.15	Not available for order
1	Image coming soon	SI0155310 SCREW M8X20	€0.15	Not available for order
2	Image coming soon	SI0150410 Screw M8x25	€0.15	Not available for order
4	Image coming soon	SI0300029 NUT M8	€0.15	Not available for order
5	Image coming soon	6GQ089A0 screw TE M8x25	€19.77

Page 4 View exploded Usually Ships in 10/15 BUSINESS DAYS

	Item	Price	Buy
Image coming soon	6GQ089A0 screw TE M8x25	€19.77
Image coming soon	SI0149011 FLAT WASHER Ø8	€0.15	Not available for order
Image coming soon	SI0150410 Screw M8x25	€0.15	Not available for order
Image coming soon	SI0155310 SCREW M8X20	€0.15	Not available for order
Image coming soon	SI0300029 NUT M8	€0.15	Not available for order

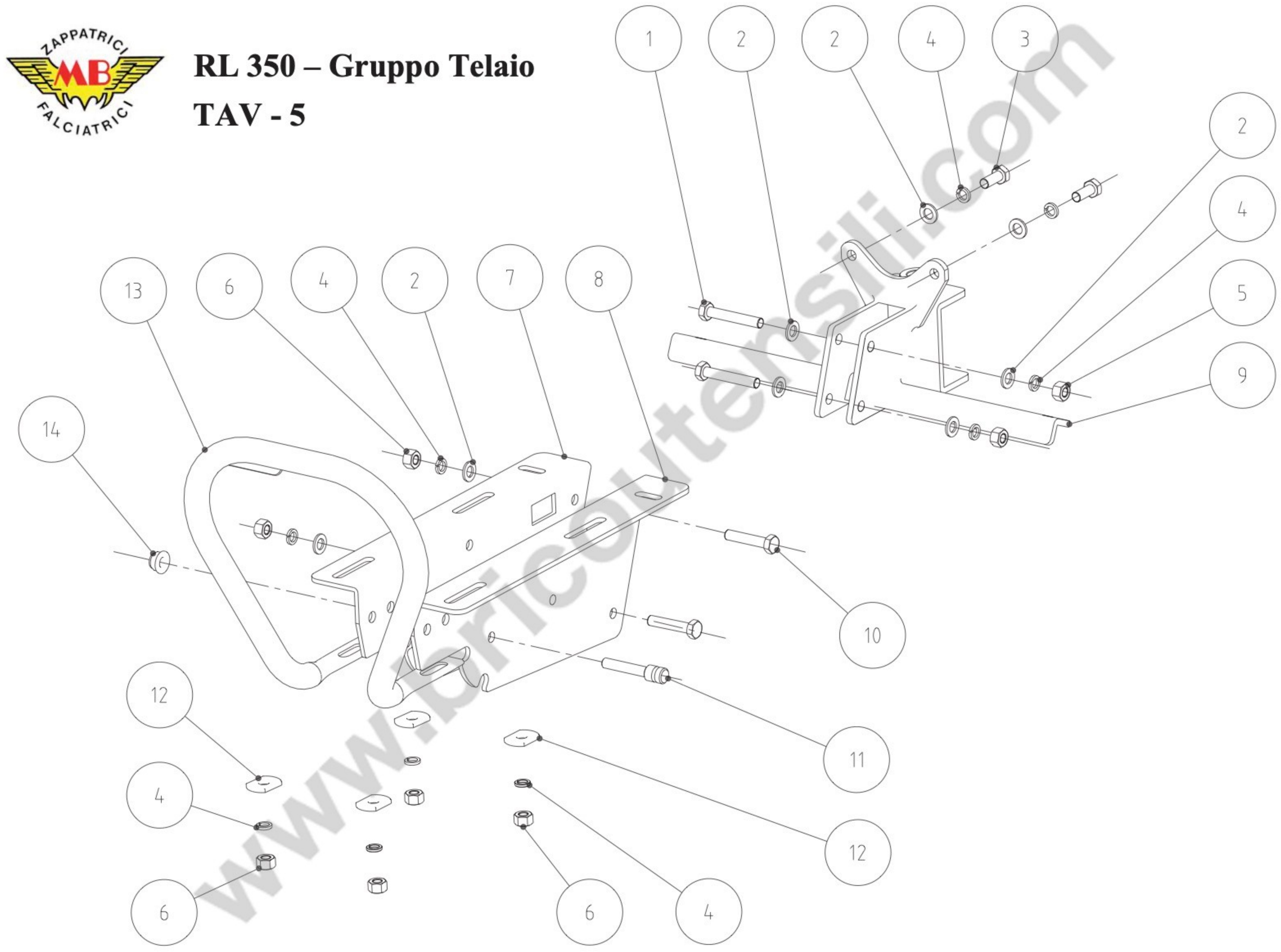

Page 5 View exploded Usually Ships in 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
	Image coming soon	SI0149011 FLAT WASHER Ø8	€0.15	Not available for order
	Image coming soon	SI0155310 SCREW M8X20	€0.15	Not available for order
	Image coming soon	SI0300029 NUT M8	€0.15	Not available for order
1	Image coming soon	SI0154610 SCREW TE M8X50	€0.15	Not available for order
4	Image coming soon	SI0149710 Ø8 ELASTIC WASHER	€0.15	Not available for order
5	Image coming soon	SI0152311 NUT M8	€0.15	Not available for order
6	Image coming soon	SI0160511 Nut M8	€0.15	Not available for order
7	Image coming soon	SI0200057 DX engine support	€23.73
8	Image coming soon	SI0200056 SX engine support	€23.73
9	Image coming soon	5HT399B0 Support carter protection	€96.43
10	Image coming soon	SI0160210 Screw M8x40	€0.15	Not available for order
11	Image coming soon	SI0210031 Bolt	€5.10
12	Image coming soon	SI0160411 Washer	€0.15	Not available for order
13	Image coming soon	6GG003C0 Bumper	€31.85

Page 6 View exploded Usually Ships in 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
	Image coming soon	indotaz. Washer Ø16	€0.15	Not available for order
	Image coming soon	SI0149011 FLAT WASHER Ø8	€0.15	Not available for order
	Image coming soon	SI0149710 Ø8 ELASTIC WASHER	€0.15	Not available for order
1	Image coming soon	SI0200026 Knob	€0.15	Not available for order
2	Image coming soon	SI0167900 Lever with knob	€9.57
3	Image coming soon	SI0200027 Gear lever	€17.79
4	Image coming soon	SI0167310 Seeger for tree	€0.15	Not available for order
5	Image coming soon	SI0168000 Gear indicator	€2.42
7	Image coming soon	SI0167000 Ø20 washer	€0.00	Not available for order
8	Image coming soon	SI0167200 Oil seal Ø19xØ12x5	€0.15	Not available for order
9	Image coming soon	SI0150610 SCREW TE M8X35	€0.15	Not available for order
12	Image coming soon	30601030 Breath pipe	€7.03
13	Image coming soon	INDOTAZ. Washer Ø16	€0.15	Not available for order
14	Image coming soon	SI0166700 Steel ball	€0.15	Not available for order
15		SI0166600 Shift Fork Spring for Motorhoe Meccanica Benassi RL 50	€1.15
16	Image coming soon	SI0200033 Washer Ø14x sp. 1.5	€0.15	Not available for order
17	Image coming soon	SI0200034 Flat washer Ø 14	€0.00	Not available for order
18	Image coming soon	SI0200032 Fork bolt	€5.10
19	Image coming soon	SI0200028 Marker label	€3.52
20	Image coming soon	SI0200004 Nylon bushing	€1.54
21	Image coming soon	SI0200050 Plug Ø6x20	€0.15	Not available for order
22	Image coming soon	SI0200031 Shift fork	€43.35
23	Image coming soon	SI0166500 Fork	€8.09
24	Image coming soon	SI0200005 Gasket	€7.28
25	Image coming soon	SI0200055 Coverage	€7.09
26	Image coming soon	SI0200003 Gearbox cover	€123.58

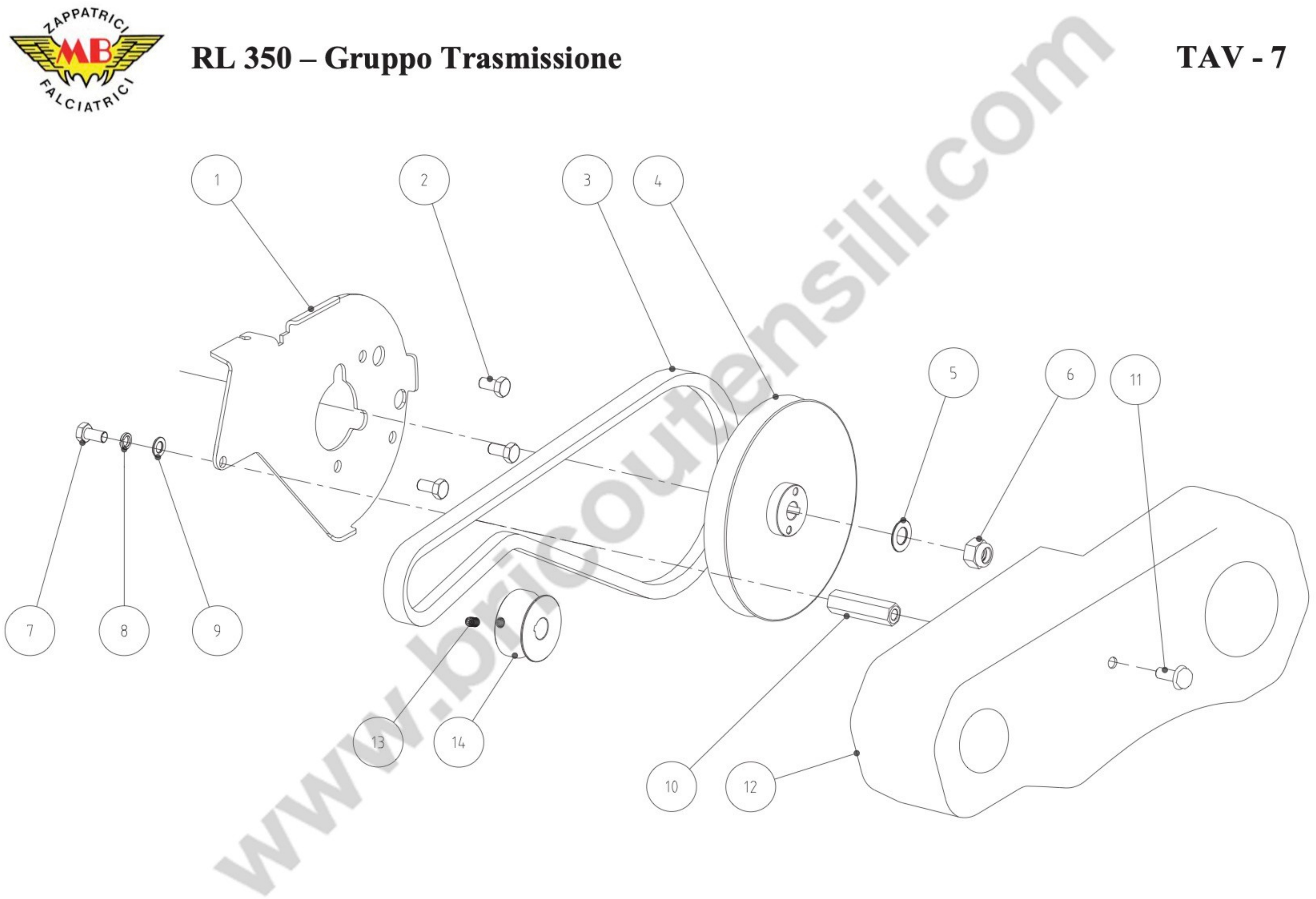

Page 7 View exploded Usually Ships in 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
	Image coming soon	31001690* GATES 5L 6940 solid belt (green) * modification: recommended belt *	€0.15	Not available for order
	Image coming soon	6GV05000* Pulley Ø77 mm * modification: recommended pulley *	€0.15	Not available for order
	Image coming soon	SI0149011 FLAT WASHER Ø8	€0.15	Not available for order
	Image coming soon	SI0149710 Ø8 ELASTIC WASHER	€0.15	Not available for order
	Image coming soon	SI0160310 screw TE M8x16	€0.15	Not available for order
1	Image coming soon	SI0210057 Internal carter	€0.15	Not available for order
3		SI0210002 Timing belt 17-1016 (black) pre-modified series belt	€37.20
4	Image coming soon	6GV045T0 Pulley	€49.69
5	Image coming soon	SI0210008 Washer Ø12	€0.15	Not available for order
6	Image coming soon	SI0210009 Locking nut M12	€0.15	Not available for order
10	Image coming soon	6BR015T0 Type II spacer	€7.28
11	Image coming soon	SI0153310 Flanged screw M8x20	€0.15	Not available for order
12	Image coming soon	6CB018A0 Belt guard	€35.56
13	Image coming soon	39103350 Grain M8x14	€0.00	Not available for order
14	Image coming soon	6GV04600 Pulley Ø65 mm pre-modification series pulley	€33.45

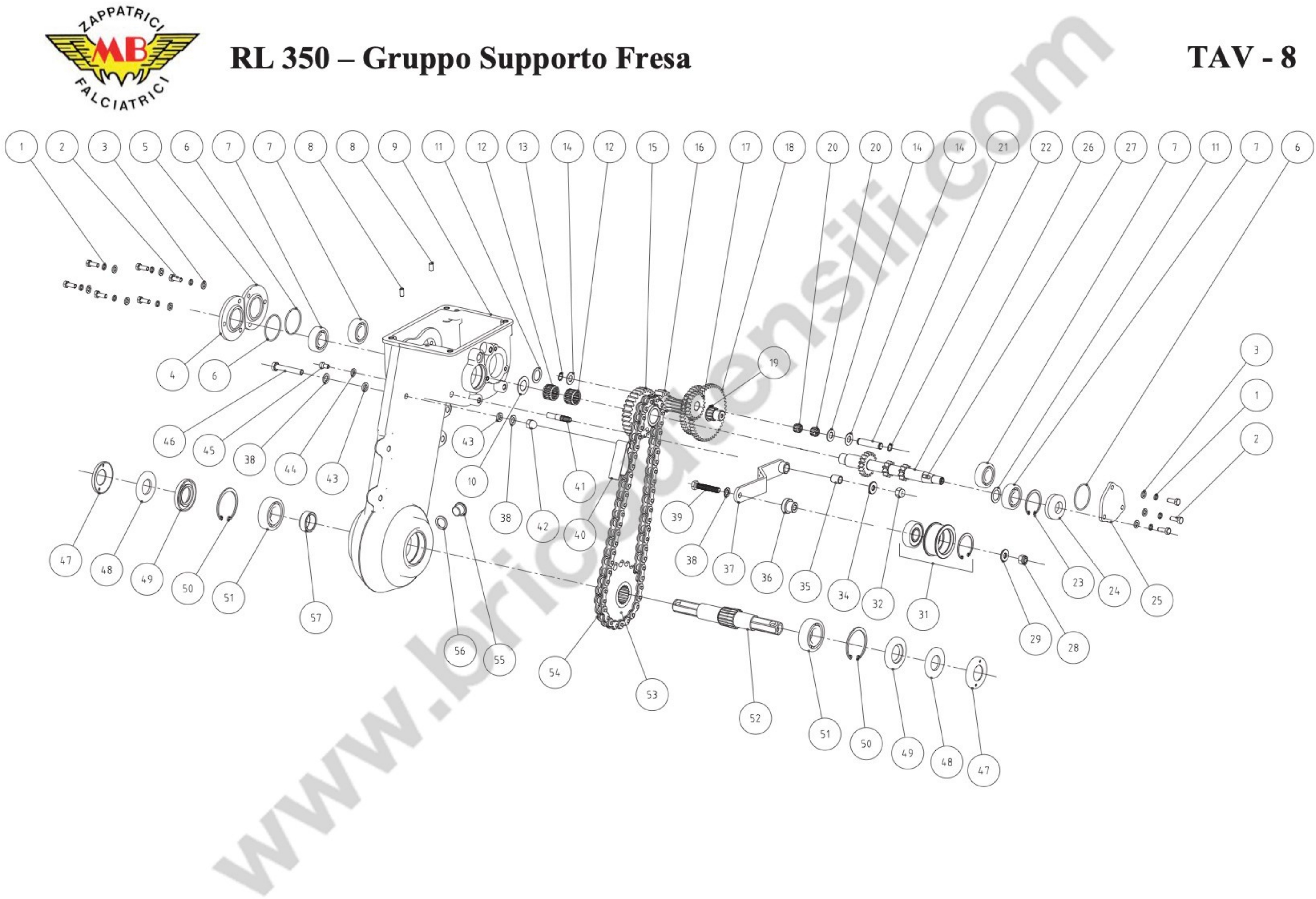

Page 8 View exploded Usually Ships in 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
	Image coming soon	SI0062010 FLAT WASHER Ø6	€0.15	Not available for order
	Image coming soon	SI0149011 FLAT WASHER Ø8	€0.15	Not available for order
	Image coming soon	SI0160210 Screw M8x40	€0.15	Not available for order
	Image coming soon	SI0163111 washer Ø10	€0.15	Not available for order
	Image coming soon	SI0200070 Nut M10	€0.15	Not available for order
	Image coming soon	SI0300029 NUT M8	€0.15	Not available for order
1	Image coming soon	SI0061910 Ø6 ELASTIC WASHER	€0.15	Not available for order
2	Image coming soon	SI0200053 Screw M 6x20	€0.15	Not available for order
4	Image coming soon	SI0200007 Cover	€10.27
5	Image coming soon	SI0200008 Cover	€10.27
6	Image coming soon	SI0200009 O-ring Ø40xØ2.4	€0.00	Not available for order
7	Image coming soon	32501250 Bearing 17x40x12 (6203)	€10.54
8	Image coming soon	SI0200049 Pin Ø6x16	€0.15	Not available for order
9	Image coming soon	6CI15600 Gear box	€502.99
10	Image coming soon	SI0200018 Thickness Ø30 x 0.8	€0.15	Not available for order
11	Image coming soon	SI0200021 Thickness Ø25 x 0.8	€0.15	Not available for order
12	Image coming soon	SI0200039 Bearing K20x24x17	€7.49
13	Image coming soon	SI0200044 Seeger Ø10	€0.15	Not available for order
14	Image coming soon	SI0200024 Thickness Ø20xØ10x sp. 1	€0.15	Not available for order
15	Image coming soon	SI0200016 Gear (z-31)	€97.63
16	Image coming soon	SI0200019 Splined shaft gear	€106.34
17	Image coming soon	SI0200023 Gear (z-21; z-14)	€66.72
18	Image coming soon	SI0200020 Gear (z-44; z-38)	€120.81
19	Image coming soon	SI0200045 Seeger Ø21	€0.15	Not available for order
20	Image coming soon	SI0167400 Bearing K14x10x10	€3.27
21	Image coming soon	SI0200022 Pin	€4.11
23	Image coming soon	SI0200042 Seeger Ø40	€0.15	Not available for order
24	Image coming soon	SI0200046 Oil seal Ø17 x Ø40 x 7	€0.15	Not available for order
25	Image coming soon	SI0200006 Cover	€10.27
26	Image coming soon	SI0200017 Triple gear	€163.00
27	Image coming soon	SI0200048 A5x15 key	€0.15	Not available for order
29	Image coming soon	SI0152111 WASHER Ø20 × Ø8.5 × 2	€0.15	Not available for order
31		6BU004PX Idler Pulley for Motorhoe Meccanica Benassi RL 350	€25.12
35	Image coming soon	SI0200099 Bushing	€0.00	Not available for order
36		6CT256T0 Idler Pulley Sapcer for Motorhoe Meccanica Benassi RL 350	€6.57
37	Image coming soon	SI0200098 Caliper arm	€10.86
40	Image coming soon	SI0200025 Chain tensioner	€2.03
41	Image coming soon	SI0210010 Stud M 10x28	€0.15	Not available for order
42	Image coming soon	SI0200051 Blind nut M 8	€0.15	Not available for order
43	Image coming soon	SI0200037 Washer Ø8	€0.15	Not available for order
44	Image coming soon	SI0200038 Washer Ø6	€0.15	Not available for order
45	Image coming soon	SI0200054 Screw M 6x10	€0.15	Not available for order
46	Image coming soon	SI0300064 SCREW TE M8X55	€0.15	Not available for order
47	Image coming soon	SI0200014 Dust cover (= 6CO117T0)	€9.87
48	Image coming soon	SI0200015 Felt washer	€1.54
49	Image coming soon	30111110 Oil seal Ø25xØ52x7	€4.56
50	Image coming soon	SI0200043 Seeger Ø52	€0.15	Not available for order
51	Image coming soon	32501600 Ball bearing 25x52x15	€14.13
52	Image coming soon	6BB03200 Cutter shaft	€112.49
53		SI0200011 Meccanica Benassi RL 350 Sprocket for Chain	€68.05
54		SI0200010 Meccanica Benassi RL 350 Chain 10A-52	€44.29
55	Image coming soon	SI0200035 Bolt	€3.92
56	Image coming soon	SI0200036 Rubber plate	€0.00	Not available for order
57	Image coming soon	SI0200013 Bush	€0.15	Not available for order

Page 9 View exploded Usually Ships in 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
	Image coming soon	SI0200068 Nut M10	€0.15	Not available for order
1	Image coming soon	5CU034C01 Side disc	€44.72
2	Image coming soon	5LF17000 Connecting rod	€31.07
3	Image coming soon	SI0210026 Spring washer Ø10	€0.15	Not available for order
5	Image coming soon	SI0210017 DX blade	€10.00
6	Image coming soon	SI0210018 Left blade	€10.00
7	Image coming soon	5FV113001 Hub II position	€41.56
8	Image coming soon	SI0210024 Screw M 10x30	€0.15	Not available for order
9	Image coming soon	5FV112001 Inner hub	€64.66

Page 10 View exploded Usually Ships in 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
	Image coming soon	5CU034C01 Side disc	€44.72
	Image coming soon	5FV112001 Inner hub	€64.66
	Image coming soon	5FV113001 Hub II position	€41.56
	Image coming soon	SI0200068 Nut M10	€0.15	Not available for order
	Image coming soon	SI0210017 DX blade	€10.00
	Image coming soon	SI0210018 Left blade	€10.00
	Image coming soon	SI0210024 Screw M 10x30	€0.15	Not available for order
	Image coming soon	SI0210026 Spring washer Ø10	€0.15	Not available for order
9	Image coming soon	SI0210021 Flat washer Ø12	€0.15	Not available for order
10	Image coming soon	SI0210022 Spring washer Ø12	€0.15	Not available for order
11	Image coming soon	SI0210023 Nut M12	€0.15	Not available for order

Page 11 View exploded Usually Ships in 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
	Image coming soon	SI0149011 FLAT WASHER Ø8	€0.15	Not available for order
1	Image coming soon	SI0156410 SCREW TE M8X75	€0.15	Not available for order
3	Image coming soon	SI0156311 BUSH Ø11.8 × Ø8.2 × 56	€1.82
4	Image coming soon	SI0210029 Wheel support	€37.79
5	Image coming soon	SI0210030 Spring	€1.33
6	Image coming soon	SI0210032 Wheel support	€27.10
7	Image coming soon	SI0150211 NUT M8	€0.15	Not available for order

Shipping and delivery information will be available shortly.

Meccanica Benassi Spare Parts for Motorhoe RL 350

Fix Your Motorhoe RL 350 from SN.4500457. All Spares are original and can be supplied at Low and discounted prices For Shipping Our Spares are Genuine Parts and Come with a Full Guarantee

In the following table, look for the model of the Tiller and the respective parts of the code

MOTOZZAPPATRICE RL 350 from SN.4500457 consigliata modifica a p.7
RL 350 – Gruppo Manubrio TAV - 1 Pag.1
Pos.	Part Num.	Description
1	SI0162510	Screw TCCE M 5x35
2	SI0147511	Flat washer Ø5
3	SI0148406	Switch support
4	SI0148300	Engine Switch
5	SI0062010	Flat washer Ø6
6	SI0147811	Nut M 6
7	SI0147600	Throttle lever
8	SI0148511	Nut M 5
9	SI0162606	Washer
10	SI0052306	Flat washer Ø4
11	SI0148110	ST4 × 12-C screw
12	SI0162700	Stop wire
13	SI0200083	Speed wire
14	SI0200084	Speed wire sheath
15	SI0038311	Nut M 8
16	SI0161810	Screw M 5 × 20
17	SI0148706	Cable gland
18	SI0200077	Lever spring
19	SI0200076	Base for lever spring
20	SI0200075	Special washer Ø12
21	SI0200082	Clutch wire
22	SI0200901	Engagement lever
23	SI0147006	Knob
24	5HR155C0	Handlebars
RL 350 – Gruppo Motore - Sperone TAV - 2 Pag.2
1	SI0200065	Screw TE M 8x45
2	SI0149011	Flat washer Ø8
4	SI0200070	Nut M10
5	SI0163111	Flat washer Ø10
6	6HZ012T0	Toothed support
7	SI0200072	Handle support
8	SI0200091	Screw TE M 10x75
9	6HL011T0	Spur attachment pin
10	5BT055C0	Spur arm
11	SI0200063	Cotter pin
12	6HO014S0	Spur
13	SI0200069	Screw TE M 10x40
14	SI0210055	Type II support
15	SI0160310	Screw TE M 8x16 (LONCIN)
15	3934215T	Screw TE 5/16 '' 24 thread. (HONDA)
16	SI0200068	Nut M 10
17	SI0200067	TE M 10x50 screw
18	SI0163500	Key 4.8 (h9) x35 (h14)
21	6GQ123A0	Column cover
23	3939104T	Screw TBCE M 6X16 Flang.
24	SI0210056	Belt guide
RL 350 - Gruppo Carter TAV - 3 Pag.3
1	SI0155310	Screw TE M 8x20
2	SI0150410	Screw TE M 8x25
3	SI0149011	Flat washer Ø8
4	SI0300029	Nut M 8
5	6GQ089A0	Carter protection
RL 350 - Gruppo Carter TAV - 4 Pag.4
1	6GQ089A0	Carter protection
2	SI0150410	Screw TE M 8 × 25
3	SI0155310	Screw TE M 8 × 20
4	SI0149011	Flat washer Ø8
5	SI0300029	Nut M 8
RL 350 – Gruppo Telaio TAV - 5 Pag.5
1	SI0154610	Screw TE M 8 × 50
2	SI0149011	Flat washer Ø8
3	SI0155310	Screw TE M 8 × 20
4	SI0149710	Spring washer Ø8
5	SI0152311	Nut M 8
6	SI0160511	Nut M 8
7	SI0200057	DX engine support
8	SI0200056	SX engine support
9	5HT399B0	Support carter protection
10	SI0160210	Screw TE M 8 × 40
11	SI0210031	Bolt
12	SI0160411	Washer
13	6GG003C0	Bumper
14	SI0300029	Nut M 8
RL 350 – Gruppo leva cambio TAV - 6 Pag.6
1	SI0200026	Knob
2	SI0167900	Gear lever extension
3	SI0200027	Gear lever
4	SI0167310	Self-tapping screw
5	SI0168000	Gear indicator
6	SI0167310	Seeger for shaft Ø12
7	SI0167000	Washer Ø20
8	SI0167200	Oil seal Ø19xØ12x5
9	SI0150610	TE screw M8x35
10	SI0149710	Spring washer Ø8
11	SI0149011	Flat washer Ø8
12	30601030	Breather plug
13	in dotaz.	Washer Ø16
14	SI0166700	Steel ball
15	SI0166600	Shift Fork Spring
16	SI0200033	Washer Ø14x sp. 1.5
17	SI0200034	Flat washer Ø 14
18	SI0200032	Fork bolt
19	SI0200028	Marker label
20	SI0200004	Nylon bushing
21	SI0200050	Plug Ø6x20
22	SI0200031	Shift fork
23	SI0166500	Fork
24	SI0200005	Gasket
25	SI0200055	Coverage
26	SI0200003	Gearbox cover
RL 350 – Gruppo Trasmissione TAV - 7 Pag.7
1	SI0210057	Internal carter
2	SI0160310	TE screw M8x16
3	SI0210002	Timing belt 17-1016 (black) pre-modified series belt
3*	31001690*	GATES 5L 6940 solid belt (green) * modification: recommended belt *
4	6GV045T0	Pulley
5	SI0210008	Washer Ø12
6	SI0210009	Nut M12
7	SI0160310	Screw M8x16
8	SI0149710	Spring washer Ø8
9	SI0149011	Flat washer Ø8
10	6BR015T0	Type II spacer
11	SI0153310	Flanged screw M8x20
12	6CB018A0	Belt guard
13	39103350	Grain M8x14
14	6GV04600	Pulley Ø65 mm pre-modification series pulley
14*	6GV05000*	Pulley Ø77 mm * modification: recommended pulley *
RL 350 – Gruppo Supporto Fresa TAV - 8 Pag.8
1	SI0061910	Spring washer Ø6
2	SI0200053	Screw M 6x20
3	SI0062010	Flat washer Ø6
4	SI0200007	Cover
5	SI0200008	Cover
6	SI0200009	O-ring Ø40xØ2.4
7	32501250	Bearing 6203
8	SI0200049	Pin Ø6x16
9	6CI15600	Gear box
10	SI0200018	Thickness Ø30 x 0.8
11	SI0200021	Thickness Ø25 x 0.8
12	SI0200039	Bearing K20x24x17
13	SI0200044	Seeger Ø10
14	SI0200024	Thickness Ø20xØ10x sp. 1
15	SI0200016	Gear (z-31)
16	SI0200019	Splined shaft gear
17	SI0200023	Gear (z-21; z-14)
18	SI0200020	Gear (z-44; z-38)
19	SI0200045	Seeger Ø21
20	SI0167400	Bearing K14x10x10
21	SI0200022	Pin
22	SI0200044	Seeger Ø10
23	SI0200042	Seeger Ø40
24	SI0200046	Oil seal Ø17 x Ø40 x 7
25	SI0200006	Cover
26	SI0200017	Triple gear
27	SI0200048	A5x15 key
28	SI0300029	Nut M 8
29	SI0152111	Washer Ø20xØ8.5x2
31	6BU004PX	Pre-assembled idler pulley
32	SI0200070	Nut M 10
34	SI0163111	Flat washer Ø10
35	SI0200099	Bushing
36	6CT256T0	Spacer bushing
37	SI0200098	Caliper arm
38	SI0149011	Flat washer Ø8
39	SI0160210	Screw M 8x40
40	SI0200025	Chain guide
41	SI0210010	Stud M 10x28
42	SI0200051	Blind nut M 8
43	SI0200037	Washer Ø8
44	SI0200038	Washer Ø6
45	SI0200054	Screw M 6x10
46	SI0300064	Screw M 8x55
47	SI0200014	Dust cover (= 6CO117T0)
48	SI0200015	Felt washer
49	30111110	Oil seal Ø25xØ52x7
50	SI0200043	Seeger Ø52
51	32501600	Bearing 6205
52	6BB03200	Cutter shaft
53	SI0200011	Sprocket for chain
54	SI0200010	Chain 10A-52
55	SI0200035	Oil cap
56	SI0200036	Washer Ø22xØ16
57	SI0200013	Bush

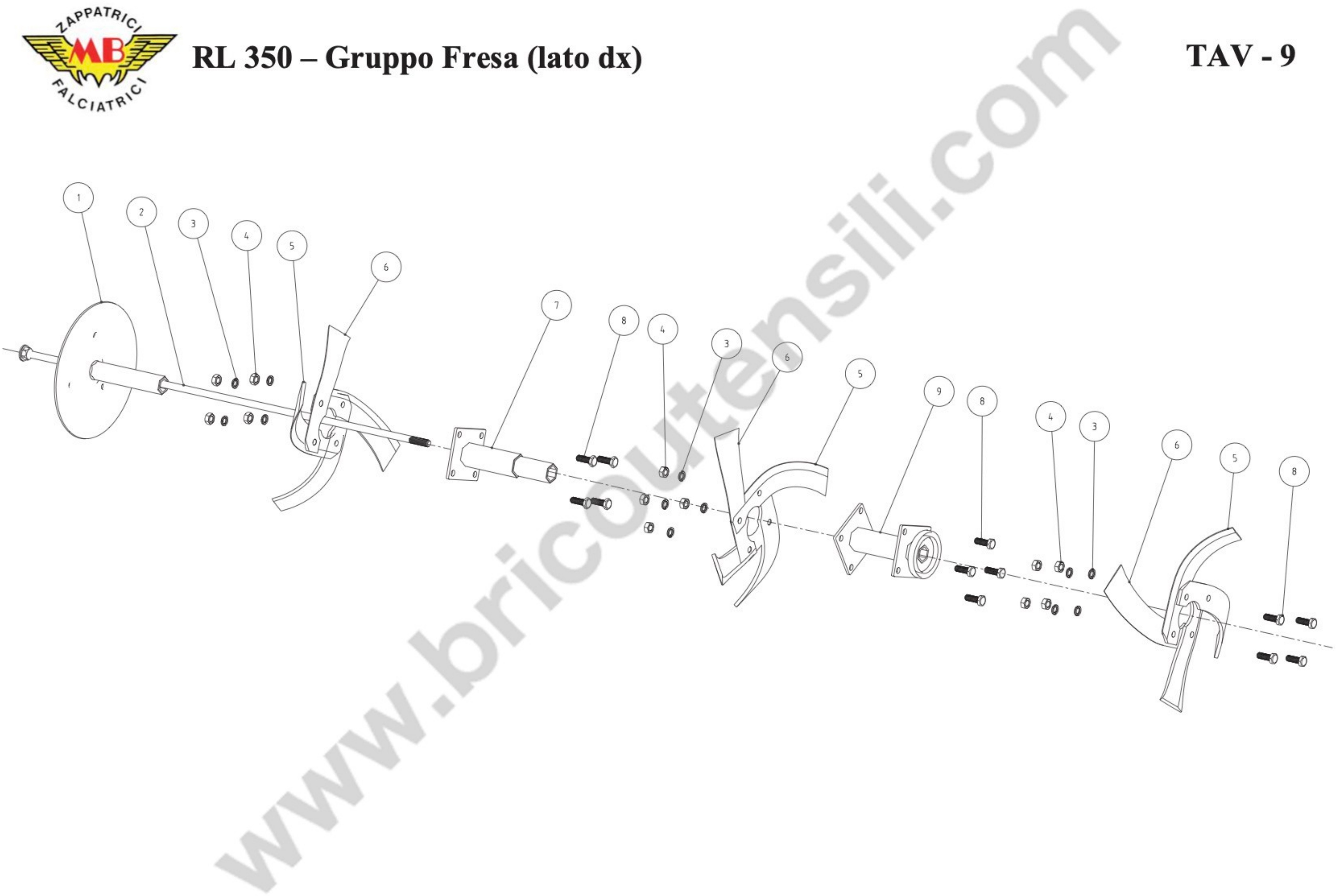

RL 350 – Gruppo Fresa (lato dx) TAV - 9 Pag.9
1	5CU034C01	Side disc
2	5LF17000	Connecting rod
3	SI0210026	Spring washer Ø10
4	SI0200068	Nut M 10
5	SI0210017	DX blade
6	SI0210018	Left blade
7	5FV113001	Hub II position
8	SI0210024	Screw M 10x30
9	5FV112001	Inner hub

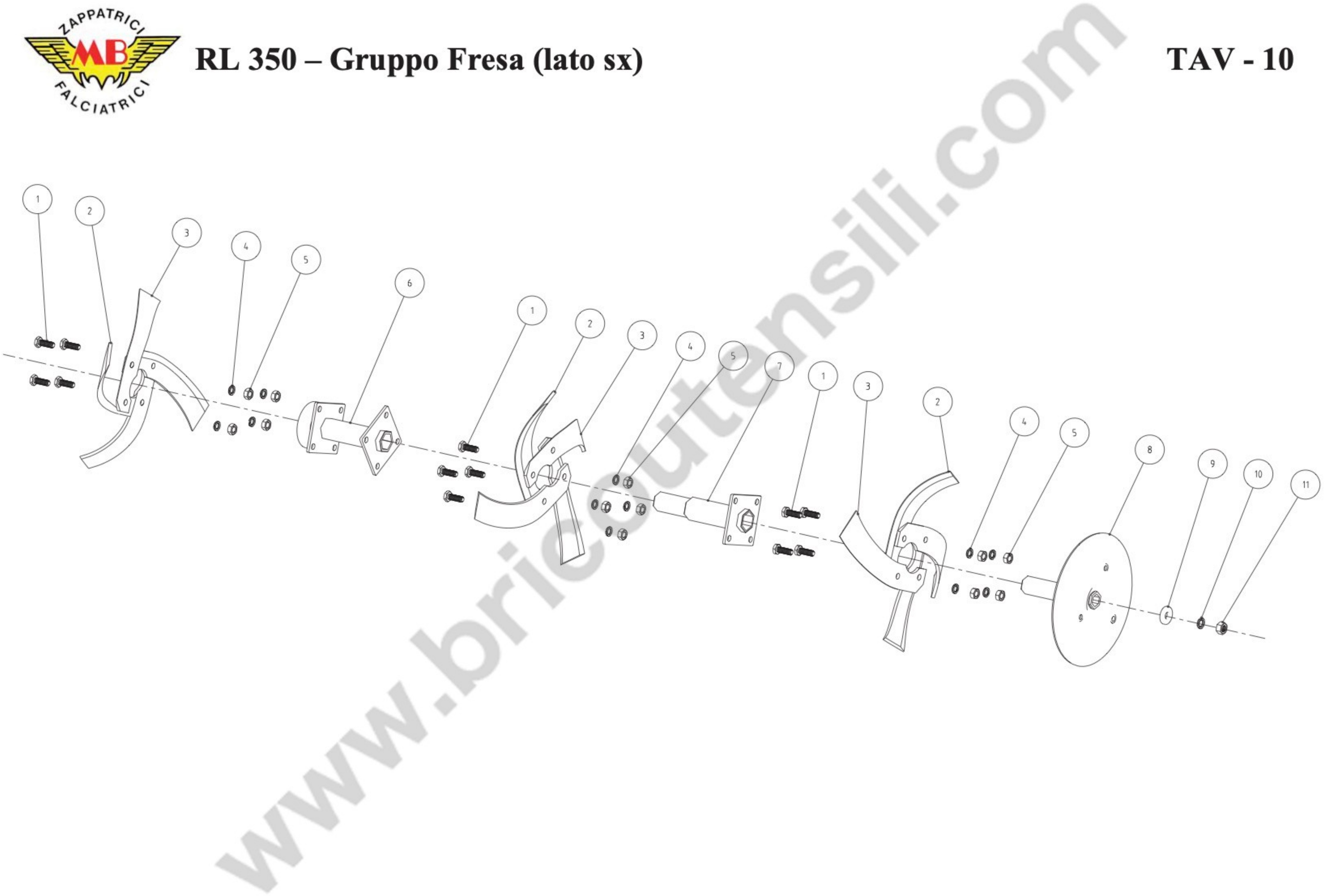

RL 350 – Gruppo Fresa (lato sx) TAV - 10 Pag.10
1	SI0210024	Screw M 10x30
2	SI0210018	Left blade
3	SI0210017	DX blade
4	SI0210026	Spring washer Ø10
5	SI0200068	Nut M 10
6	5FV112001	Inner hub
7	5FV113001	Hub II position
8	5CU034C01	Side disc
9	SI0210021	Flat washer Ø12
10	SI0210022	Spring washer Ø12
11	SI0210023	Nut M 12
RL 350 - Gruppo Supporto Ruotino TAV - 11 Pag.11
1	SI0156410	Screw M8x75
2	SI0149011	Flat washer Ø8
3	SI0156311	Bushing Ø11.8xØ8.2x56
4	SI0210029	Wheel support
5	SI0210030	Spring
6	SI0210032	Wheel support
7	SI0150211	Nut M8

Notes * amendment 07/2017:

for machines equipped with toothed belt [# 3] and pulley [# 14] with an external diameter of 65 mm, it is recommended to replace BOTH PIECES with (respectively) the codes 31001690 and 6GV05000, as shown in the table.

Notes for the assembly of the modification: recommended center distance between driving axis and gearbox axis equal to 310 mm. To reach it, bring the engine closer to the gearbox. Also remove the tool bag (if present above the column) because it is very close to the engine exhaust.

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts Most of the manufacturers reserve the right to change the product characteristics or complement without notice We strongly recommend using the published information as a basic information subject to Alpina brand review Please refine the important parameters by the selling assistant when making a purchase All content included in this catalog is the intellectual property of wwwbricoutensilicom Any publication or copying (full or partial) without a reference to the source page is prohibited

Reference Mec. Benassi RL 350 da N.4500457

Available 12 Items

Data sheet

SHIPPING IN: Usually Ships in 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Machine Type: Engine Hoe
MORE INFO:: [email protected]

Specific References

Condition New

Download

Diagram Meccanica Benassi RL 350

Download (1.84MB)

MECCANICA BENASSI S.R.L. SKU: 31001690

Drive Belt for Motorhoe Meccanica Benassi RL 350

Drive Belt for Motorhoe Meccanica Benassi RL 350 Genuine spare part Meccanica Benassi, Drive Belt GATES 5L 6940 (Green)* for Petrol Motorhoe RL 350 from SN.4500457 Part for the following...

Usually Ships in: 7/10 Business Days Approx. €58.61

Details

MECCANICA BENASSI S.R.L. SKU: 6BU004PX

Idler Pulley for Motorhoe Meccanica Benassi RL 350

Pre-Assembled Idler Pulley for Motorhoe Meccanica Benassi RL 350 Genuine spare part Meccanica Benassi, Pre-Assembled Idler Pulley for Petrol Motorhoe RL 350 from SN.4500457 Part for the following Items: - Motorhoe RL 350 from...

on 7/10 Business Days Approx €25.12

Details

MECCANICA BENASSI S.R.L. SKU: 6CT256T0

Idler Pulley Sapcer for Motorhoe Meccanica Benassi RL 350

Pre-Assembled Idler Pulley Sapcer for Motorhoe Meccanica Benassi RL 350 Genuine spare part Meccanica Benassi, Pre-Assembled Idler Pulley Sapcer for Petrol Motorhoe RL 350 from SN.4500457 Part for the following Items: - Motorhoe RL...

on 7/10 Business Days Approx €6.57

Details

MECCANICA BENASSI S.R.L. SKU: SI0210056

Belt Guide for Motorhoe Meccanica Benassi RL 35

Belt Guide for Motorhoe Meccanica Benassi RL 35 Genuine spare part Meccanica Benassi, Belt Guide Type II for Petrol Motorhoe RL 350 from SN.4500457 Part for the following Items: - Motorhoe RL 350 from SN.4500457 - Motorhoe RL 40 da...

on 7/10 Business Days Approx €13.39

Details

MECCANICA BENASSI S.R.L. SKU: SI0166600

Shift Fork Spring for Motorhoe Meccanica Benassi RL 50

Shift Fork Spring for Motorhoe Meccanica Benassi RL 50 Genuine spare part Meccanica Benassi, Shift Fork Spring for Petrol Motorhoe RL 50 - 02/2015 - RL 350 Part for the following Items: - ...

Usually Ships in: 7/10 Business Days Approx. €1.15

Details

MECCANICA BENASSI S.R.L. SKU: SI0148300

Switch for Motorhoe Meccanica Benassi RL 50

Switch for Motorhoe Meccanica Benassi RL 50 Genuine spare part Meccanica Benassi, Switch for Petrol Motorhoe RL 50 - 02/2015 - RL 350 Part for the following Items: - Petrol Motorhoe RL 50 - 02/2015 - Petrol Motorhoe RL 350 from...

on 7/10 Business Days Approx €2.67

Details

MECCANICA BENASSI S.R.L. SKU: SI0200011

Meccanica Benassi RL 350 Sprocket for Chain

Meccanica Benassi RL 350 Sprocket for Chain Genuine spare part Meccanica Benassi, Sprocket for Chain for Petrol Motorhoe RL 350 from SN.4500457 Part for the following Items: - Motorhoe RL 350 from...

AVAILABLE €68.05

Details

MECCANICA BENASSI S.R.L. SKU: SI0200010

Meccanica Benassi RL 350 Chain 10A-52

Meccanica Benassi RL 350 Chain 10A-52 Genuine spare part Meccanica Benassi, Chain 10A-52 for Petrol Motorhoe RL 350 from SN.4500457 Part for the following Items: - Motorhoe RL 350 from SN.4500457...

AVAILABLE €44.29

Details

Comments (0)

No customer reviews for the moment.

Cart (0)

Subcategories

Subcategories

Subcategories

Power Tools Spare Parts

Garden Spare Parts

Air Compressor Spare Parts

Protezione & Edilizia

Impianti & Utensili

Casa & Giardino

Meccanica Benassi Spare Parts for Motorhoe RL 350

Meccanica Benassi Spare Parts for Motorhoe RL 350

Meccanica Benassi Spare Parts for Motorhoe RL 350

Meccanica Benassi Spare Parts for Motorhoe RL 350

Meccanica Benassi Spare Parts for Motorhoe RL 350

Data sheet

Specific References

Download

Diagram Meccanica Benassi RL 350

You might also like

Products

News

Notes

Our company
