Meccanica Benassi Spare Parts for Hoe-Tiller RL 50

SKU: Meccanica Benassi RL50 02/2015
€8.54
VAT included

Meccanica Benassi Spare Parts for Motor-Hoe RL 50 - 02/2015

Meccanica Benassi Genuine spare parts or replacement parts for to repair Motor-HoeRL 50 - 02/2015.
Meccanica Benassi Spare Parts for Motorhoe RL 50
  • Meccanica Benassi Spare Parts for Motorhoe RL 50
  • Meccanica Benassi Spare Parts for Motorhoe RL 50
  • Meccanica Benassi Spare Parts for Motorhoe RL 50
  • Meccanica Benassi Spare Parts for Motorhoe RL 50
  • Meccanica Benassi Spare Parts for Motorhoe RL 50
  • Meccanica Benassi Spare Parts for Motorhoe RL 50
  • Meccanica Benassi Spare Parts for Motorhoe RL 50
  • Meccanica Benassi Spare Parts for Motorhoe RL 50
  • Meccanica Benassi Spare Parts for Motorhoe RL 50
  • Meccanica Benassi Spare Parts for Motorhoe RL 50
  • Meccanica Benassi Spare Parts for Motorhoe RL 50

Meccanica Benassi Spare Parts for Hoe-Tiller RL 50

SKU: Meccanica Benassi RL50 02/2015 Condition: New
€8.54
VAT included

Meccanica Benassi Spare Parts for Motor-Hoe RL 50 - 02/2015

Meccanica Benassi Genuine spare parts or replacement parts for to repair Motor-HoeRL 50 - 02/2015.
settings 56 spare parts
description 9 exploded views
picture_as_pdf Download Exploded PDF
CODICE ARTICOLO
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

56 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
Handle Grip for Rototiller Meccanica Benassi RL 40-50 SI0147006 Handle Grip for Rototiller Meccanica Benassi RL 40-50 €9.01
4
Throttle Lever for Tiller Meccanica Benassi RL 40-45 SI0147600 Throttle Lever for Tiller Meccanica Benassi RL 40-45 €14.55
7
Switch for Motorhoe Meccanica Benassi RL 50 SI0148300 Switch for Motorhoe Meccanica Benassi RL 50 €2.67
8
photo_cameraImage coming soon SI0148406 SWITCH SUPPORT €3.49
10
photo_cameraImage coming soon SI0162700 Stop wire €5.79
11
Throttle Wire for Tiller Meccanica Benassi RL 40-45 SI0162300 Throttle Wire for Tiller Meccanica Benassi RL 40-45 €14.56
18
photo_cameraImage coming soon SI0161411 Threaded bush €8.32
20
Clutch Lever for Tiller Meccanica Benassi RL 40-50 SI0200901 Clutch Lever for Tiller Meccanica Benassi RL 40-50 €27.46
21
Clutch Wire for Tiller Meccanica Benassi RL 40-50 SI0161600 Clutch Wire for Tiller Meccanica Benassi RL 40-50 €18.24
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
4
photo_cameraImage coming soon SI0161106 Tooth plate €15.87
8
photo_cameraImage coming soon SI0160806 Handlebars support II type €24.36
12
photo_cameraImage coming soon SI0159106 Spur €16.64
13
photo_cameraImage coming soon SI0159411 Spur jointing pin €21.02
14
photo_cameraImage coming soon SI0159006 Spur arm €29.16
16
photo_cameraImage coming soon SI0158906 Spur jointing €20.40
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
5
photo_cameraImage coming soon SI0163206 Internal casing €31.67
6
photo_cameraImage coming soon SI0164200 Crank arm €13.51
8
Idler for Rototiller Meccanica Benassi RL 40-50 SI0164500 Idler for Rototiller Meccanica Benassi RL 40-50 €20.08
9
Engine Pulley for Rototiller Meccanica Benassi RL 40-50 SI0163600 Engine Pulley for Rototiller Meccanica Benassi RL 40-50 €27.46
14
Belt for Tiller Meccanica Benassi RL 40-50 SI0163900 Belt for Tiller Meccanica Benassi RL 40-50 €51.55
16
photo_cameraImage coming soon SI0164603 Side hood €25.41
19
Pulley for Motorhoe Meccanica Benassi RL 40-50 SI0164000 Pulley for Motorhoe Meccanica Benassi RL 40-50 €29.88
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon SI0159703 Protection casing Left €20.82
3
photo_cameraImage coming soon SI0159903 Extension cutter Protection €20.92
5
photo_cameraImage coming soon SI0159206 Support of cutter casing €6.00
7
photo_cameraImage coming soon SI0159306 Carter jointing €4.33
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
3
photo_cameraImage coming soon SI0159803 Protection casing Right €20.82
Page 6 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
6
photo_cameraImage coming soon SI0157006 Chain Carter Right €76.54
7
Milling Support Assy Packing for Tiller Meccanica Benassi RL 40-50 SI0157900 Milling Support Assy Packing for Tiller Meccanica Benassi RL 40-50 €12.10
8
photo_cameraImage coming soon SI0157500 Bearing 6302-2Z €17.68
10
Meccanica Benassi RL 40 Transmission Chain SI0157300 Meccanica Benassi RL 40 Transmission Chain €23.84
13
photo_cameraImage coming soon SI0157600 Bearing 6004-2Z €15.24
14
photo_cameraImage coming soon SI0156906 Chain Carter Left €76.54
22
photo_cameraImage coming soon SI0157700 6205-2Z bearing €10.38
24
Meccanica Benassi RL 40 Crown Hex Shaft Cutter SI0200001 Meccanica Benassi RL 40 Crown Hex Shaft Cutter €101.03
25
Milling Support Assy Guard for Tiller Meccanica Benassi RL 40-50 SI0200101 Milling Support Assy Guard for Tiller Meccanica Benassi RL 40-50 €19.12
Page 7 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon SI0159606 Bumper €76.54
4
photo_cameraImage coming soon SI0156106 Fork Wheel Support €15.60
5
Wheel for Rototiller Meccanica Benassi RL 40-50 SI0156206 Wheel for Rototiller Meccanica Benassi RL 40-50 €26.15
7
photo_cameraImage coming soon SI0156311 BUSH Ø11.8 × Ø8.2 × 56 €1.82
9
photo_cameraImage coming soon SI0156011 SPRING €1.82
Page 8 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
2
Left Blade for Tiller Meccanica Benassi RL 40-50 SI0200501 Left Blade for Tiller Meccanica Benassi RL 40-50 €9.20
3
Right Blade for Tiller Meccanica Benassi RL 40-50 SI0200601 Right Blade for Tiller Meccanica Benassi RL 40-50 €9.20
6
photo_cameraImage coming soon SI0200301 Inner Hub €36.48
7
photo_cameraImage coming soon SI0201101 PIN €2.66
8
Meccanica Benassi RL40-50 Hub II Position SI0200401 Meccanica Benassi RL40-50 Hub II Position €32.48
9
photo_cameraImage coming soon SI0200701 Side disk €20.70
Page 9 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Page 10 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
7
photo_cameraImage coming soon SI0167400 Bearing K14x10x10 €3.27
16
photo_cameraImage coming soon SI0167900 Lever with knob €9.57
18
photo_cameraImage coming soon SI0168000 Gear indicator €2.42
21
Shift Fork Spring for Motorhoe Meccanica Benassi RL 50 SI0166600 Shift Fork Spring for Motorhoe Meccanica Benassi RL 50 €1.15
24
Shift Fork for Motorhoe Meccanica Benassi RL 50 SI0165700 Shift Fork for Motorhoe Meccanica Benassi RL 50 €16.00
26
Oil Level Indicator Lever for Rototiller Meccanica Benassi RL 50 SI0168100 Oil Level Indicator Lever for Rototiller Meccanica Benassi RL 50 €5.33
27
O-Ring Ø9,5x2,65 for Rototiller Meccanica Benassi RL 50 SI0168206 O-Ring Ø9,5x2,65 for Rototiller Meccanica Benassi RL 50 €0.62
31
Meccanica Benassi RL50 Gear Box Assy SI0165000 Meccanica Benassi RL50 Gear Box Assy €900.70
32
photo_cameraImage coming soon SI0166500 Fork €8.09

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Meccanica Benassi Spare Parts for Motor-Hoe RL 50 - 02/2015

Meccanica Benassi Genuine spare parts or replacement parts for to repair Motor-Hoe RL 50 - 02/2015.

In the following table, look for the model of the Tiller and the respective parts of the code.
Meccanica Benassi RL 50 - 02/2015
MOTORHOE RL 50 - 02/2015

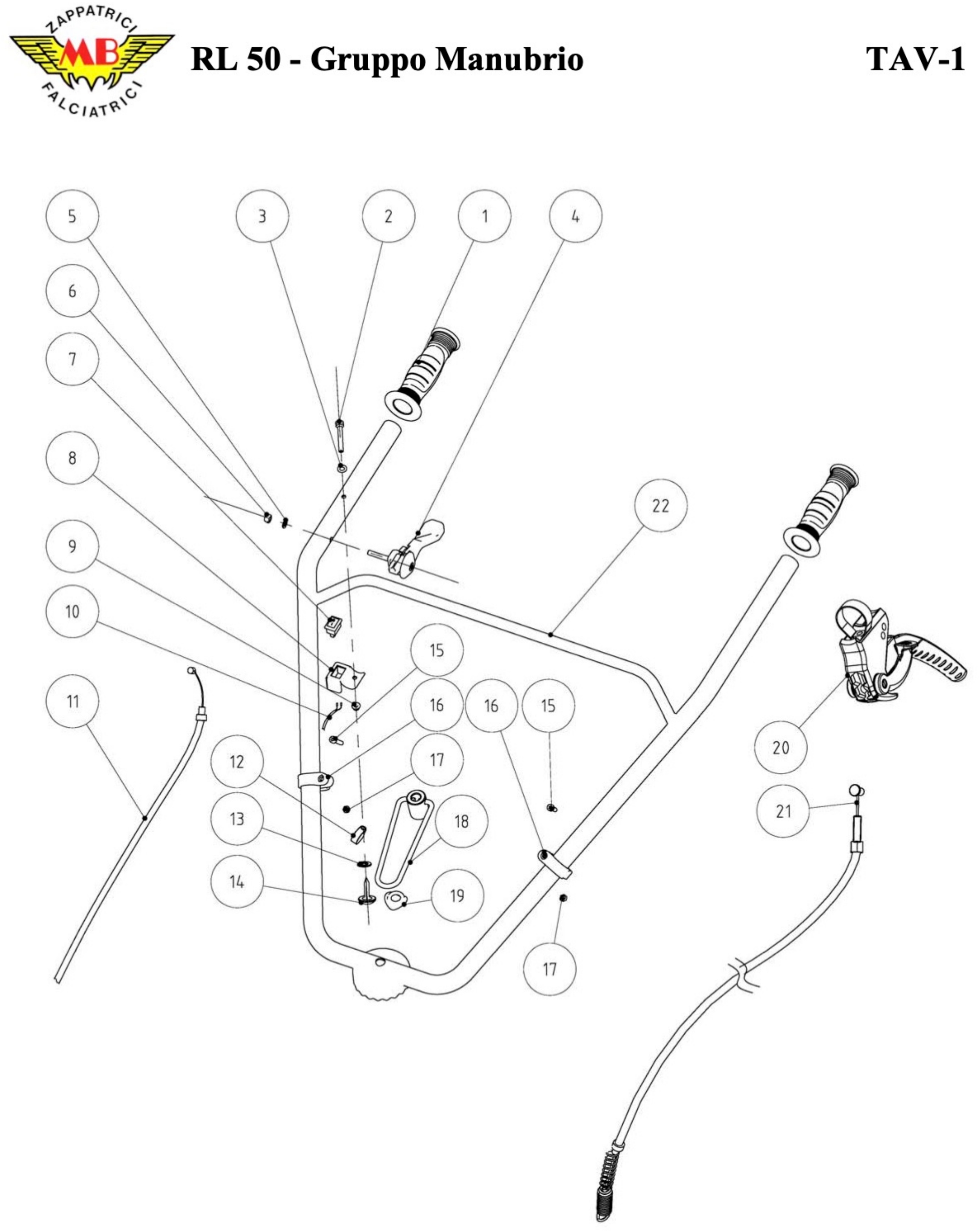

RL 50 – Gruppo Manubrio Pag.1
1 SI0147006 Handle Grip
2 SI0162510 Screw M5x35
3 SI0147511 Flat washer Ø5
4 SI0147600 Throttle Lever
5 SI0062011 Flat washer Ø6
6 SI0147811 Nut M6
7 SI0148300 Engine Switch
8 SI0148406 Switch support
9 SI0148511 Nut M5
10 SI0162700 Stop wire
11 SI0162300 Throttle wire
12 SI0162606 Wire tie
13 SI0052306 washer Ø4
14 SI0148110 Screw ST4x12-C
15 SI0161810 Screw M5x20
16 SI0148706 Cable grommet
17 SI0038311 Nut M5
18 SI0161411 Lever spring
19 SI0161311 Special washer Ø12
20 SI0200901 Clutch lever
21 SI0161600 Clutch wire
22 SI0161206 Handlebars

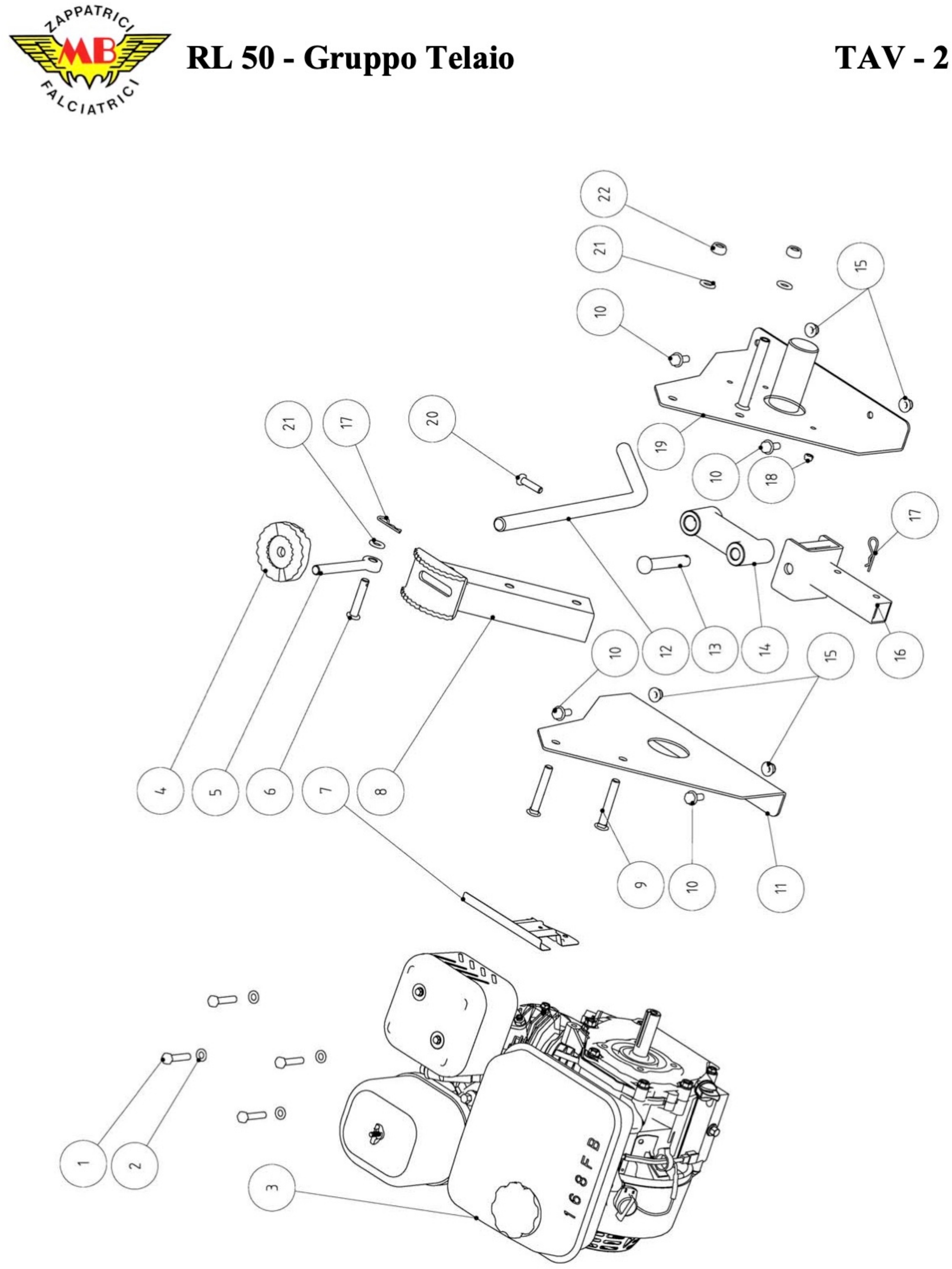

RL 50 – Gruppo Telaio Pag.2
1 SI0160210 Screw M8x40
2 SI0149011 Flat washer Ø8
3 SI0158600 6.5 HP / 3600 rpm engine
4 SI0161106 Toothed support
5 SI0161511 Eye screw
6 SI0161711 Pin Ø10
7 SI0159500 Protection plate
8 SI0160806 Handlebar support
9 SI0162910 Screw M10x60
10 SI0155310 Screw M8x20
11 SI0161006 DX support
12 SI0159106 Spur
13 SI0159411 Spur attachment pin
14 SI0159006 Spur arm
15 SI0150211 Nut M8
16 SI0158906 Spur attack
17 SI0155711 cotter
18 SI0147811 Nut M6
19 SI0160906 Support SX
20 SI0150610 Screw M8x35
21 SI0163111 Ø10 washer
22 SI0163011 Nut M10

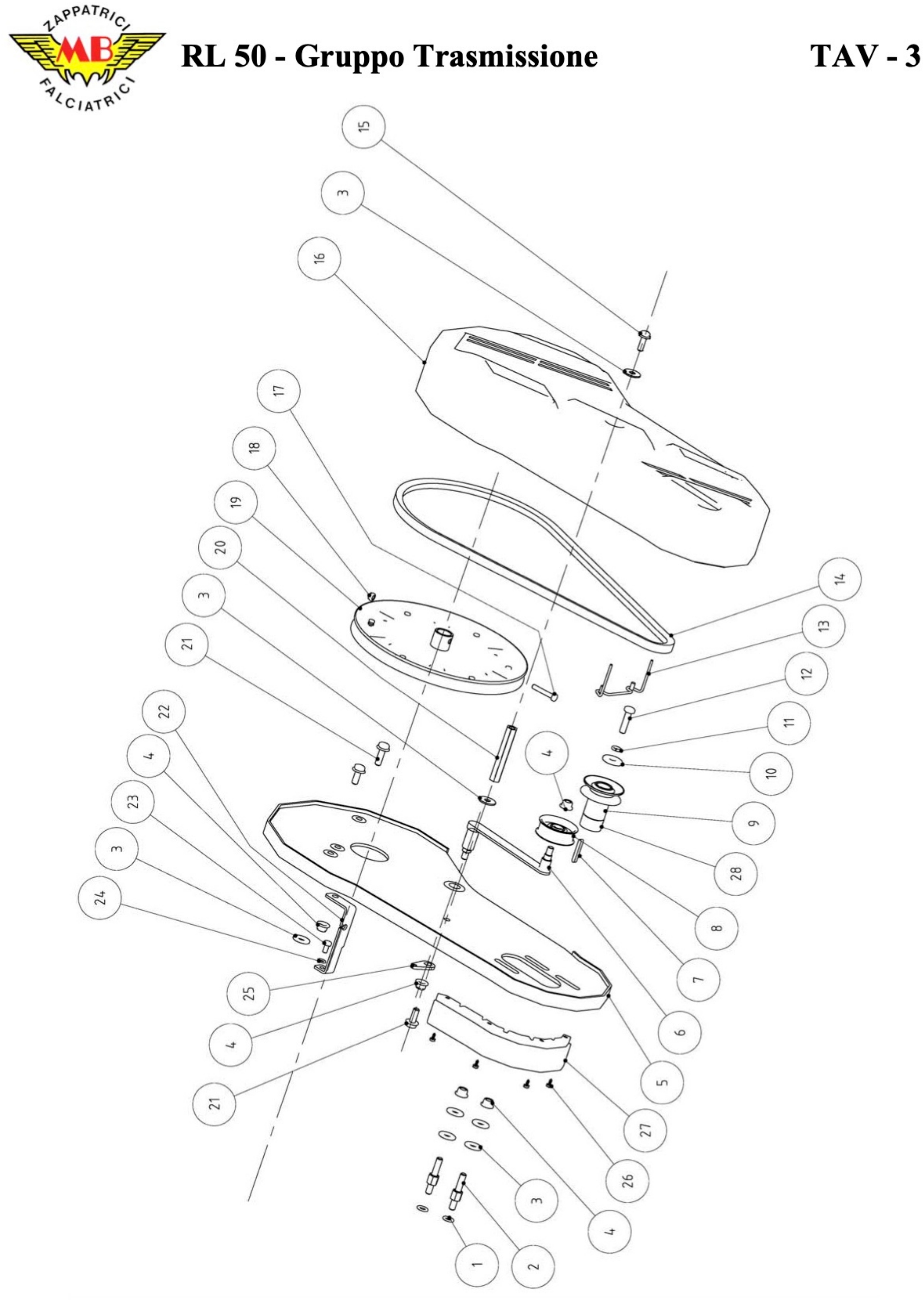

RL 50 – Gruppo Trasmissione Pag.3
1 SI0149011 Flat washer Ø8
2 SI0163306 Rod
3 SI0152111 Washer Ø20xØ8.5x2
4 SI0150211 Nut M8
5 SI0163206 Inner carter
6 SI0164200 Cranck arm
7 SI0163500 Key 4.8 (h9) x35 (h14)
8 SI0164500 Idler
9 SI0163600 Engine pulley
10 SI0163811 Washer Ø28xØ8.5x3
11 SI0149710 Ø8 washer
12 SI0163710 Screw 5 / 16-24x32
13 SI0163410 Spring
14 SI0163900 Belt 13x1265 LA
15 SI0152410 Screw M8x16
16 SI0164603 Side hood
17 SI0164110 Screw M6x40
18 SI0147811 Nut M6
19 SI0164000 Pulley
20 SI0164412 Spacer
21 SI0160310 Screw M8x16
22 SI0164806 Crankcase support bracket
23 SI0162210 Screw M6x20
24 SI0062011 Washer Ø6
25 SI0164300 Fork
26 SI0148110 Screw ST4x12 - C
27 SI0168706 Safety plate
28 SI0168500 Bushing

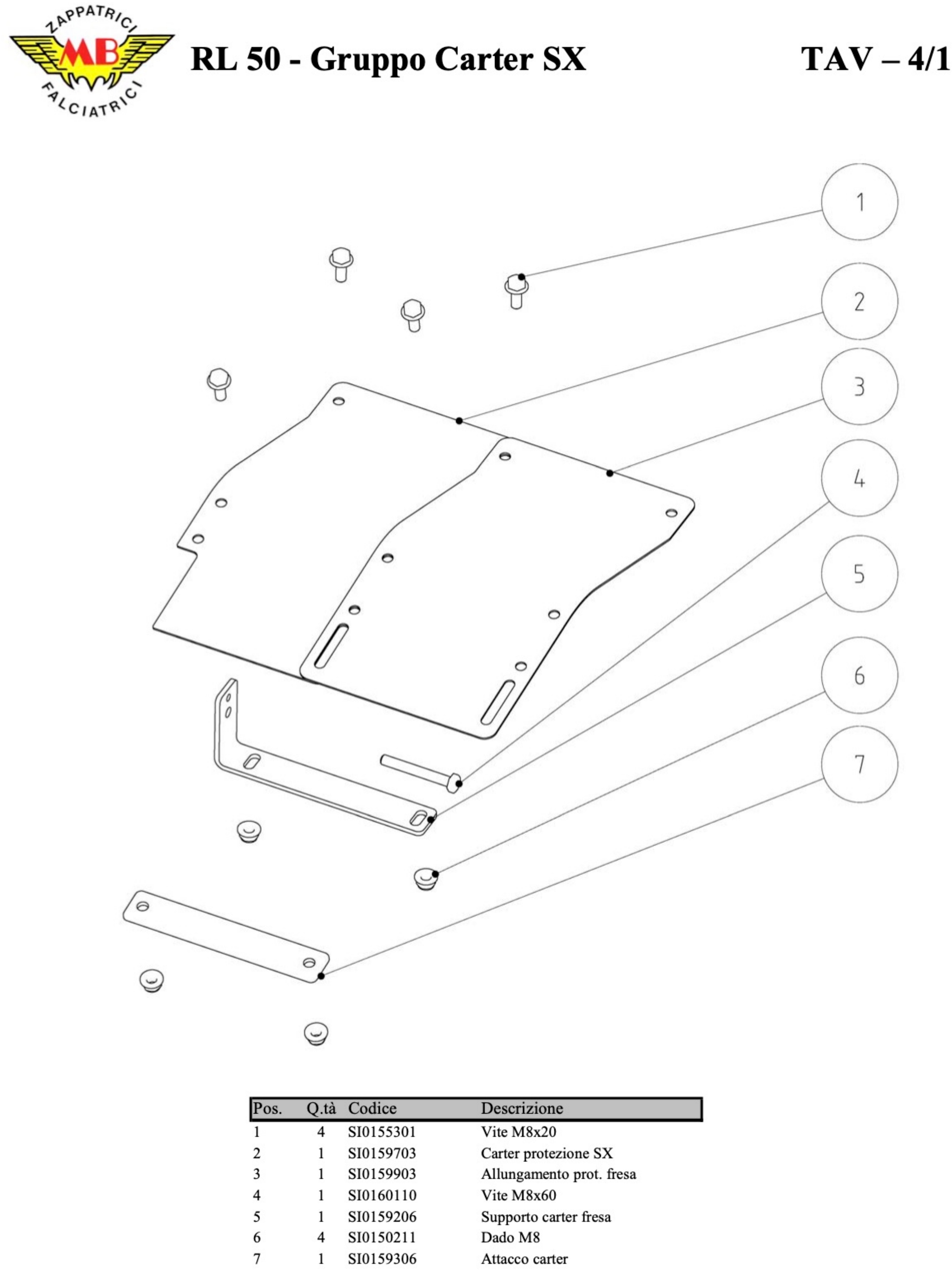

RL 50 – Gruppo Carter Left Pag.4
1 SI0155301 Screw M8x20
2 SI0159703 Left protective cover
3 SI0159903 Cutter protection extension
4 SI0160110 Screw M8x60
5 SI0159206 Cutter housing support
6 SI0150211 Nut M8
7 SI0159306 Crankcase attachment

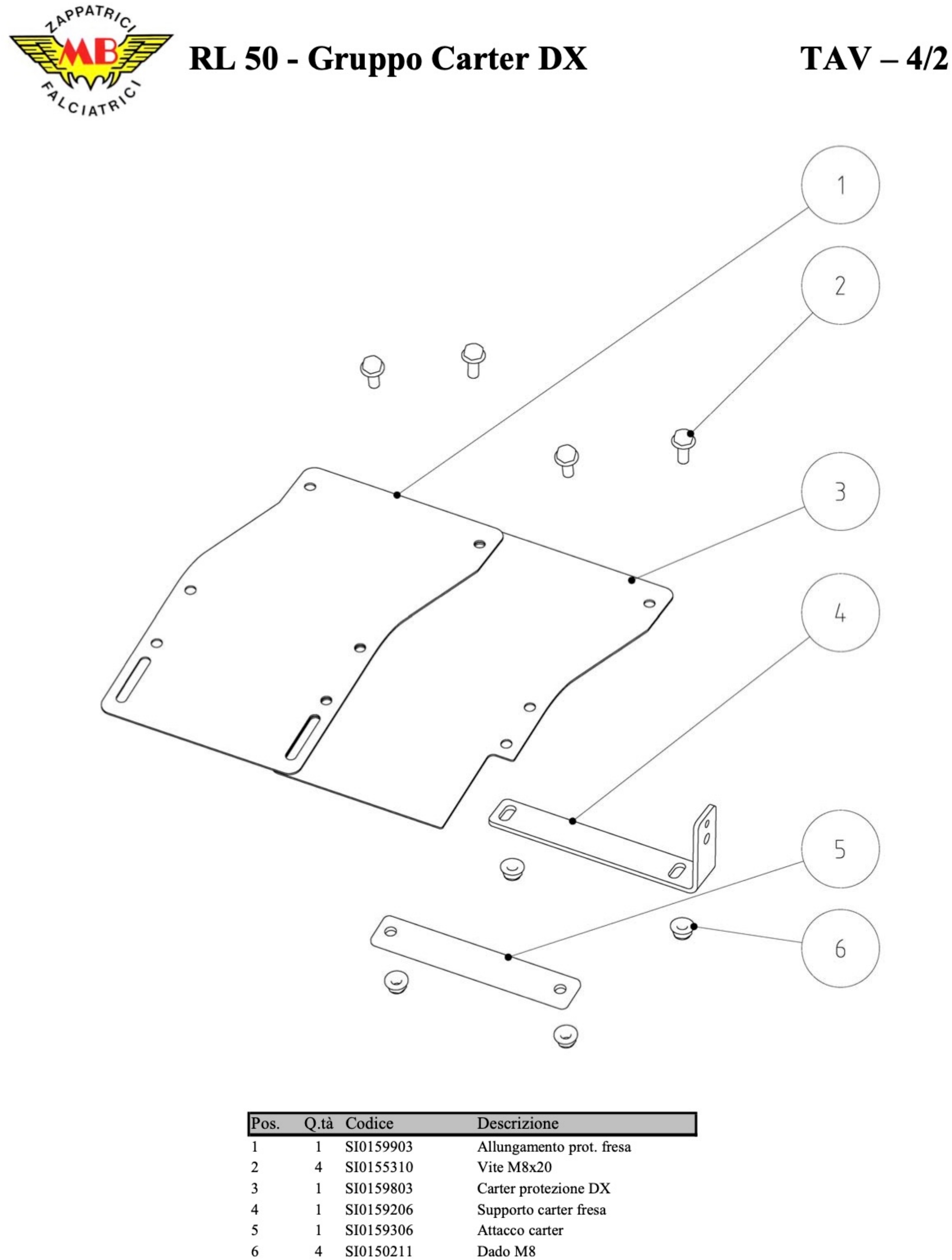

RL 50 – Gruppo Carter Right Pag.5
1 SI0159903 Cutter protection extension
2 SI0155310 Screw M8x20
3 SI0159803 Protection carter DX
4 SI0159206 Cutter housing support
5 SI0159306 Crankcase attachment
6 SI0150211 Nut M8

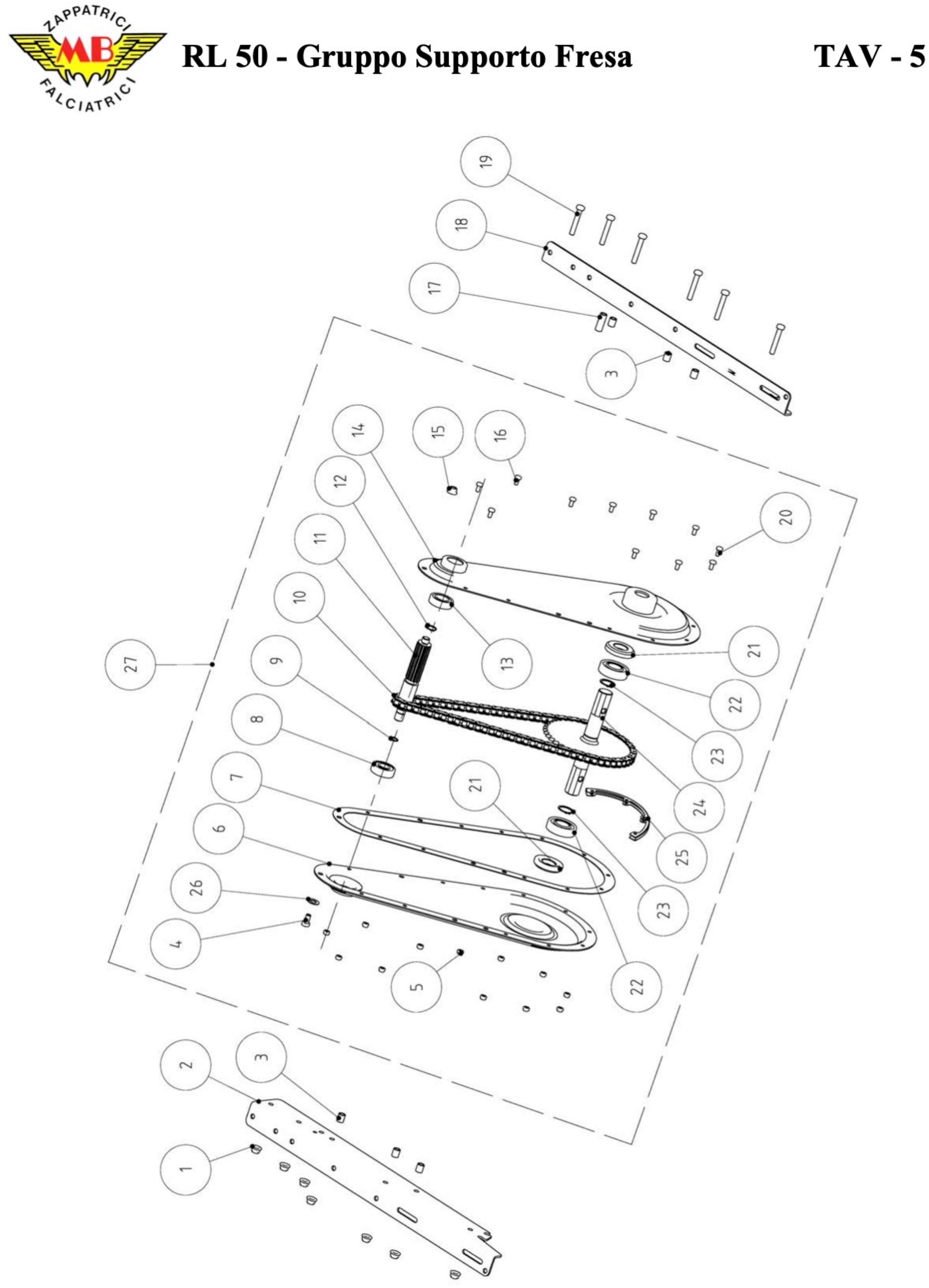

RL 50 – Gruppo Supporto Fresa Pag.6
1 SI0150211 Nut M8
2 SI0158806 Motor Holder Right
3 SI0152711 Bushing Ø11.8xØ8.2x13.5
4 SI0160310 Screw M8x16
5 SI0147811 Nut M6
6 SI0157006 Right Chain Carter
7 SI0157900 Packing
8 SI0157500 Bearing 6302-2Z
9 SI0004910 Seeger Ø15
10 SI0157300 Chain
11 SI0168800 Primary pinion
12 SI0154010 Seeger Ø20
13 SI0157600 Bearing 6004-2Z
14 SI0156906 Left chain guard
15 SI0150211 Nut M8
16 SI0153410 Screw M6x12
17 SI0160011 Spacer
18 SI0158706 Left engine support
19 SI0154610 Screw M8x50
20 SI0200201 Screw M6x16
21 SI0157800 Nylon bushing
22 SI0157700 Bearing 6205-2Z
23 SI0157410 Seeger Ø25
24 SI0200001 Cutter shaft
25 SI0200101 Carter protection
26 SI0149011 Flat washer Ø8
27 SI0156800 Pre-assembled cutter support

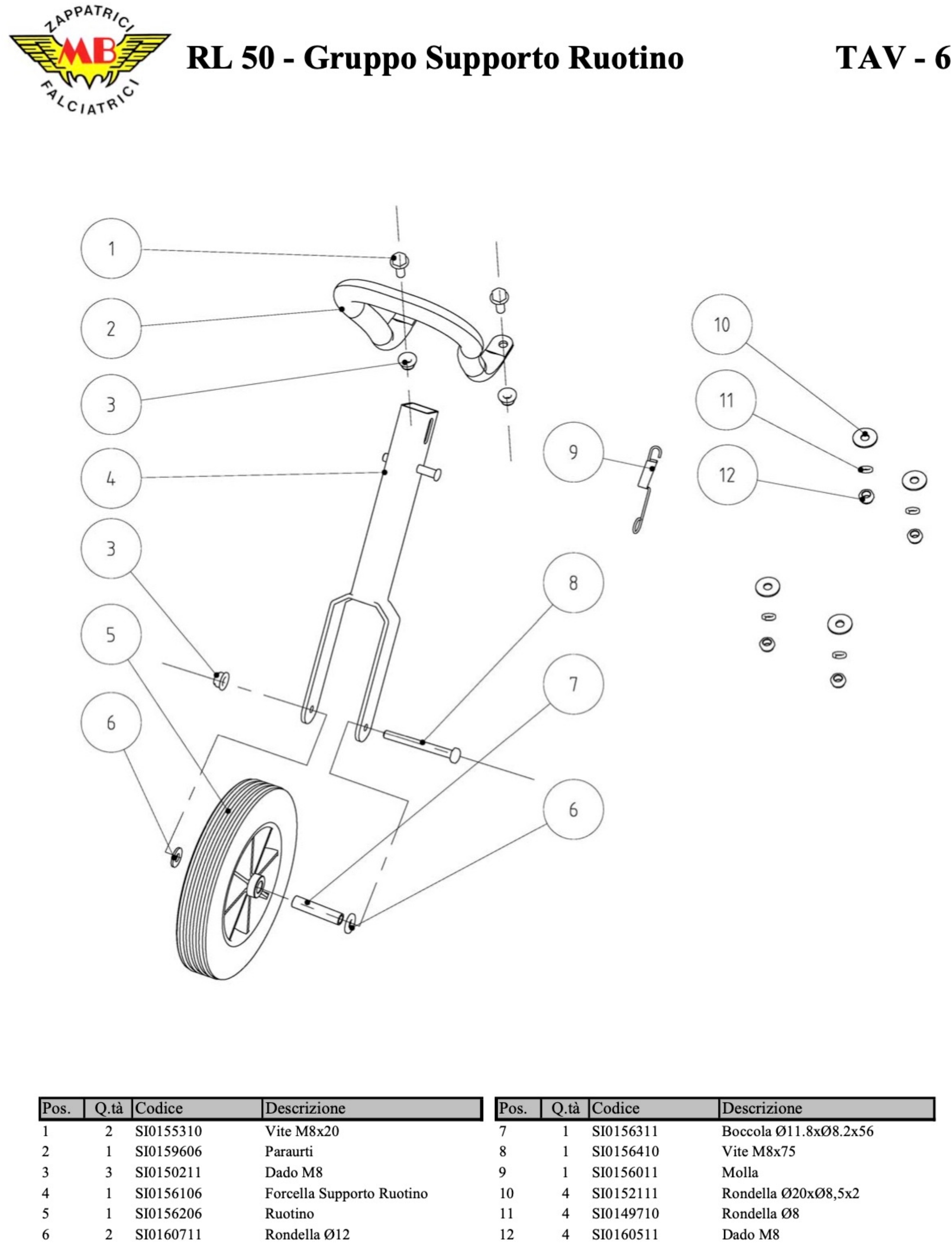

RL 50 - Gruppo Supporto Ruotino Pag.7
1 SI0155310 Screw M8x20
2 SI0159606 Bumper
3 SI0150211 Nut M8
4 SI0156106 Fork Support Wheel
5 SI0156206 Wheel
6 SI0160711 Ø12 washer
7 SI0156311 Bushing Ø11.8xØ8.2x56
8 SI0156410 Screw M8x75
9 SI0156011 Spring
10 SI0152111 Washer Ø20xØ8.5x2
11 SI0149710 Ø8 washer
12 SI0160511 Nut M8

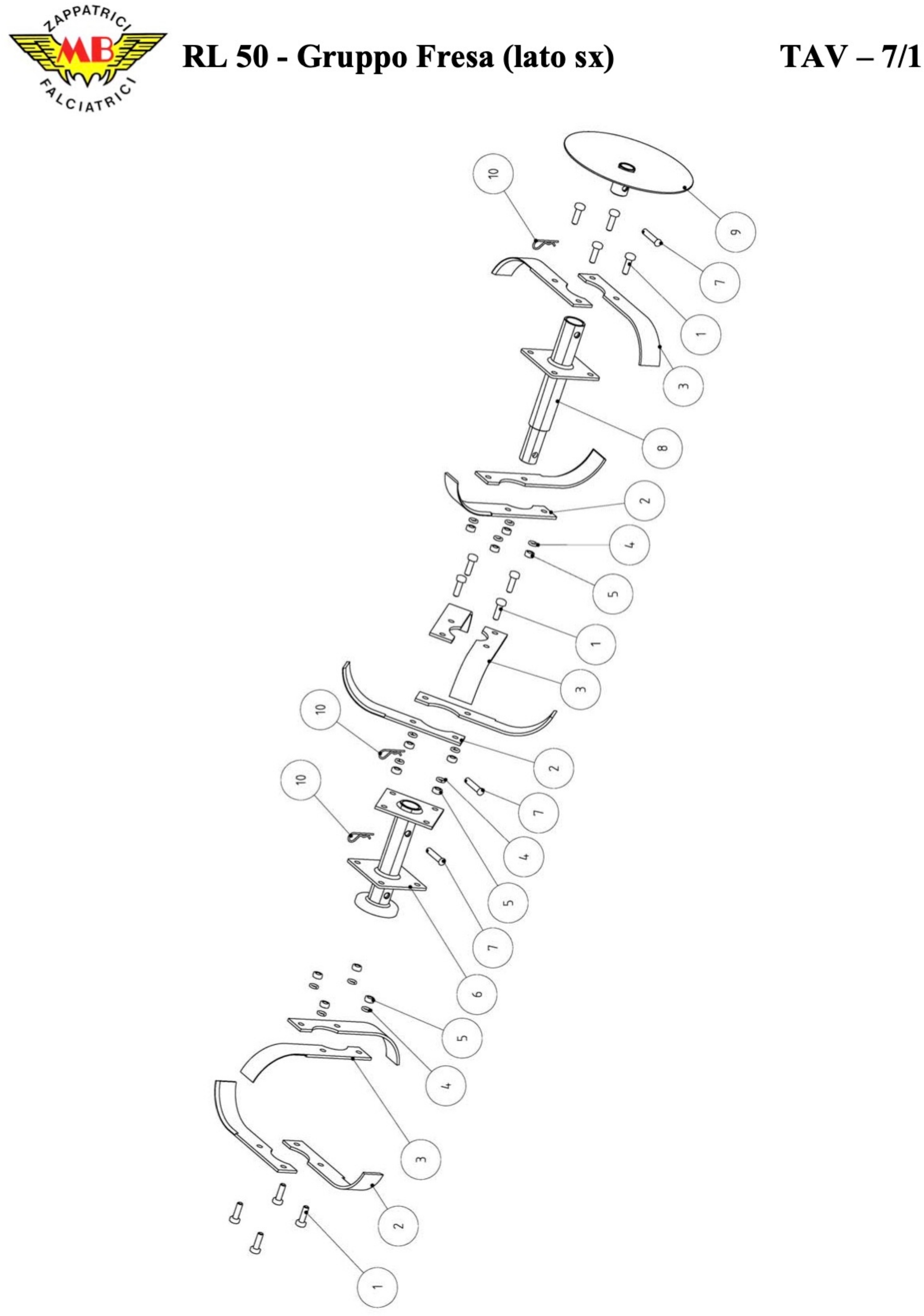

RL 50 - Gruppo Fresa Lato SX Pag.8
1 SI0150410 Screw M8x25
2 SI0200501 Left Blade
3 SI0200601 Right Blade
4 SI0149710 Ø8 washer
5 SI0152311 Nut M8
6 SI0200301 Internal hub
7 SI0201101 Pin
8 SI0200401 Hub II Position
9 SI0200701 Side disk
10 SI0155711 Cotter

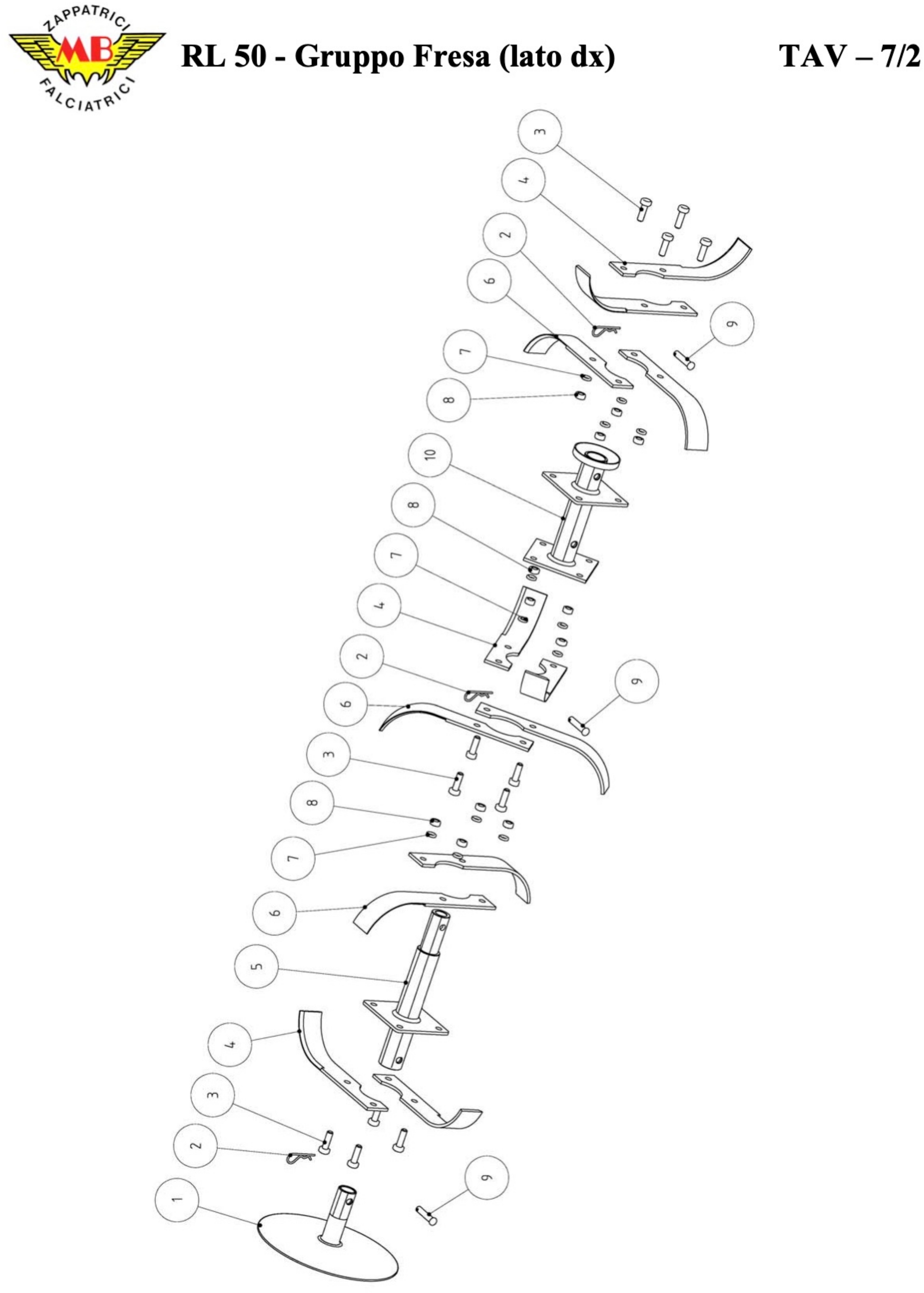

RL 50 - Gruppo Fresa Lato DX Pag.9
1 SI0200701 Side disk
2 SI0155711 Splint
3 SI0150410 Screw M8x25
4 SI0200601 Right Blade
5 SI0200401 Hub II Position
6 SI0200501 Left Blade
7 SI0149710 Ø8 washer
8 SI0152311 Nut M8
9 SI0201101 Pin
10 SI0200301 Inner hub

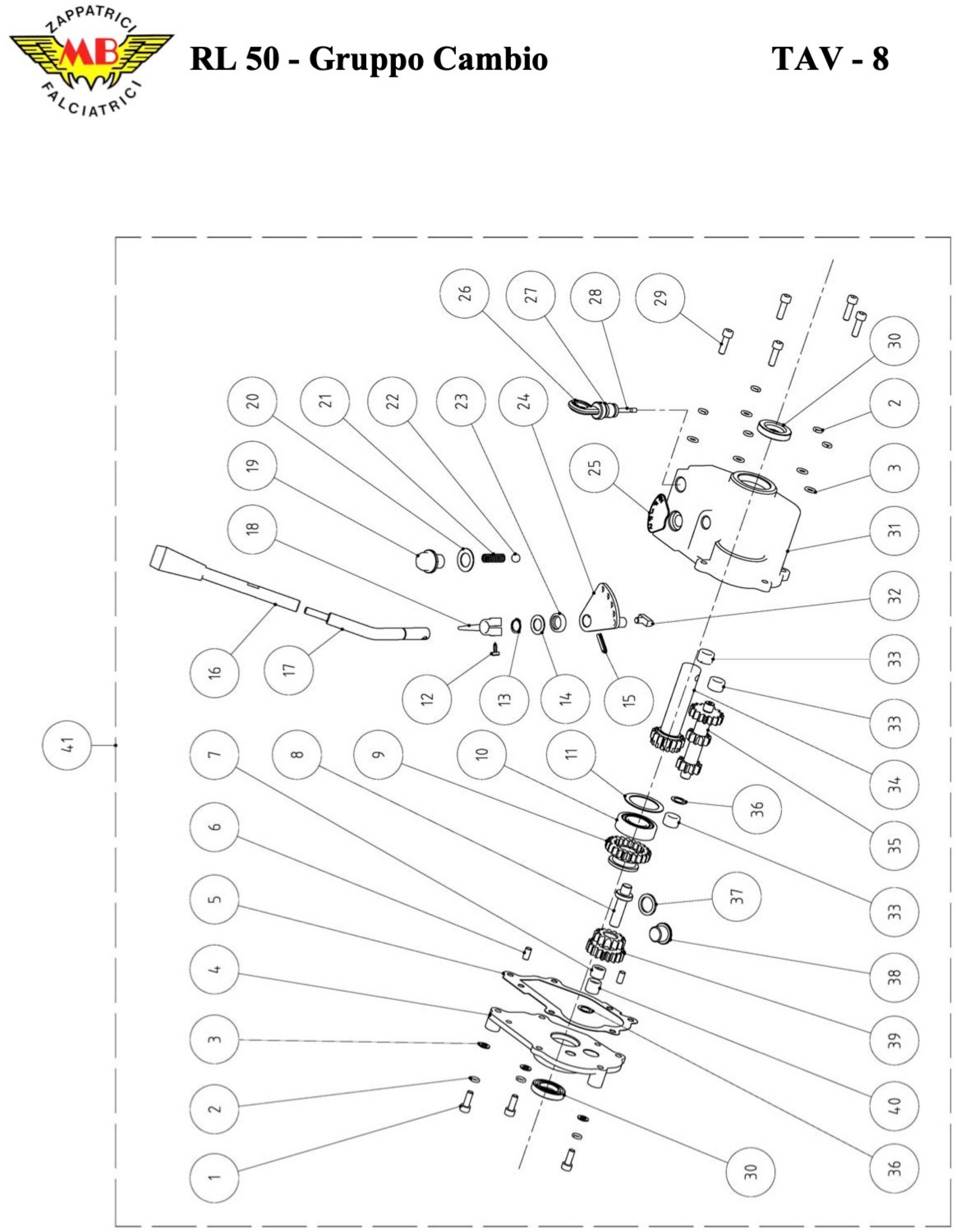

RL 50 - Gruppo Cambio Pag.10
1 SI0162410 Screw M6x20
2 SI0061910 Spring washer Ø6
3 SI0062010 Flat washer Ø6
4 SI0165100 Gear box cover
5 SI0165800 Gear Case Gasket
6 SI0161770 Centering pin
7 SI0167400 Bearing K14x10x10
8 SI0165600 Duplicating gear shaft
9 SI0165300 Gear
10 SI0157600 Bearing 6004-2Z
11 SI0165900 Washer Ø42xØ32x1
12 SI0168410 Screw ST4,2x13-F
13 SI0167310 Seeger for tree
14 SI0167000 Ø20 washer
15 SI0167810 Elastic pin Ø5 × 20
16 SI0167900 Lever with knob
17 SI0166100 Gear shift
18 SI0168000 Gear indicator
19 SI0166300 Fork bolt
20 SI0166400 seal
21 SI0166600 Spring for fork
22 SI0201001 Ball
23 SI0167200 Oil seal Ø19xØ12x5
24 SI0165700 Shift fork
25 SI0166200 Marching label
26 SI0168100 Oil level indicator lever
27 SI0168206 O-ring Ø2.65xØ9.5
28 SI0168300 Oil level indicator
29 SI0612210 M6 screw
30 SI0167100 Oil seal Ø35xØ20x7
31 SI0165000 Gearbox Assy
32 SI0166500 Fork
33 SI0167600 Bearing HKH 101610
34 SI0165200 Gear
35 SI0165400 Triple gear
36 SI0166000 Spacer
37 SI0166900 Ø22xØ16 washer
38 SI0166800 Plug
39 SI0165500 Double gear
40 SI0167500 Bearing K1410x12
41 SI0164900 Complete gearbox
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

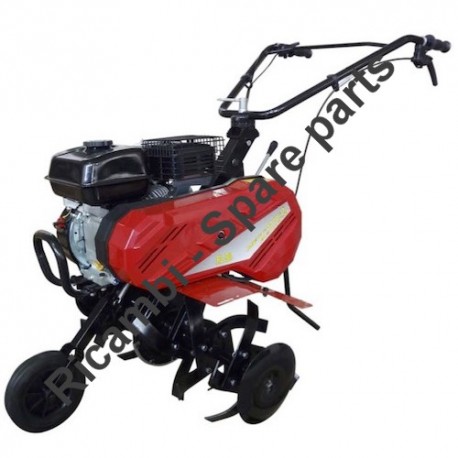

Meccanica Benassi RL50 02/2015
11 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Benassi RL 50

Drawing Benassi RL 50

Download (1.95MB)

You might also like

MECCANICA BENASSI S.R.L. SKU: SI0200601
Right Blade for Tiller Meccanica Benassi RL40-50 Genuine spare part Meccanica Benassi, Right Blade for Petrol Tiller RL 40 - 12/2016 - RL 50 - 02/2015. Part for the following Items: -  PETROL TILLER RL...
AVAILABLE €9.20
MECCANICA BENASSI S.R.L. SKU: SI0200501
Left Blade for Tiller Meccanica Benassi RL 40-50 Genuine spare part Meccanica Benassi, Left Blade for Petrol Tiller RL 40 - 12/2016 - RL 50 - 02/2015. Part for the following Items: -  PETROL TILLER RL 40 da N°1201240 - 12/2016 -...
AVAILABLE €9.20
MECCANICA BENASSI S.R.L. SKU: SI0163900
Belt for Tiller Meccanica Benassi RL 40-50 Genuine spare part Meccanica Benassi, Belt 13x1265 LA for Petrol Tiller RL 40 - 12/2016 - RL 50 - 02/2015. Part for the following Items: -  PETROL TILLER RL 40 da N°1201240 - 12/2016 -...
AVAILABLE €51.55
MECCANICA BENASSI S.R.L. SKU: SI0147600
Throttle Lever for Tiller Meccanica Benassi RL 40-45 Genuine spare part Meccanica Benassi, Throttle Lever for Petrol Tiller RL 40 - 12/2016 - RL 45 - 05/2017. Part for the following Items: - PETROL TILLER RL 350 -  PETROL TILLER RL 40...
Last items in stock €14.55
MECCANICA BENASSI S.R.L. SKU: SI0200901
Clutch Lever for Tiller Meccanica Benassi RL 40-50 Genuine spare part Meccanica Benassi, Clutch Lever for Petrol Tillers RL 40 - RL 45 - RL 50. Part for the following Items: -  PETROL TILLER RL 2 da N° 2701745 - 06/2017 -  PETROL...
Last items in stock €27.46
MECCANICA BENASSI S.R.L. SKU: SI0162300
Throttle Wire for Tiller Meccanica Benassi RL 40-45 Genuine spare part Meccanica Benassi, Throttle Wire for Petrol Tiller RL 40 - 12/2016 - RL 45 - 05/2017 - RL 50. Part for the following Items: -  PETROL TILLER RL 40 da N°1201240 -...
on 7/10 Business Days Approx €14.56
MECCANICA BENASSI S.R.L. SKU: SI0161600
Clutch Wire for Rototiller Meccanica Benassi RL 40-50 Genuine spare part Meccanica Benassi, Clutch Wire for Petrol R ototiller  RL 40 - 12/2016 - RL 50 - 02/2015. Part for the following Items: -  PETROL...
Last items in stock €18.24
MECCANICA BENASSI S.R.L. SKU: SI0164500
Idler for Rototiller Meccanica Benassi RL 40-50 Genuine spare part Meccanica Benassi, Idler (Small Wheel) for Petrol Rototiller RL 40 - 12/2016 - RL 50 - 02/2015. Part for the following Items: -  PETROL TILLER RL 40 da N°1201240 -...
on 10 Business Days Approx €20.08
MECCANICA BENASSI S.R.L. SKU: SI0163600
Engine Pulley for Rototiller Meccanica Benassi RL 40-50 Genuine spare part Meccanica Benassi, Engine Pulley for Petrol Rototiller RL 40 - 12/2016 - RL 50 - 02/2015. Part for the following Items: -  PETROL TILLER RL 40 da N°1201240 -...
Last items in stock €27.46
MECCANICA BENASSI S.R.L. SKU: SI0147006
Handle Grip for Rototiller Meccanica Benassi RL 40-50 Genuine spare part Meccanica Benassi, Handle Grip for Petrol Roto-tiller RL 40 - 12/2016 - RL 50 - 02/2015 - RL 113. Part for the following Items: -  PETROL TILLER RL 40 da...
AVAILABLE €9.01
MECCANICA BENASSI S.R.L. SKU: SI0168100
Oil Level Indicator Lever for Rototiller Meccanica Benassi RL 50 Genuine spare part Meccanica Benassi, Oil Level Indicator Lever for Petrol Rototiller RL 50 - 02/2015. Part for the following Items: -  PETROL TILLER RL 50 - 02/2015 -...
AVAILABLE €5.33
MECCANICA BENASSI S.R.L. SKU: SI0168206
O-Ring Ø9,5x2,65 for Rototiller Meccanica Benassi RL 50 Genuine spare part Meccanica Benassi, Oil Level Indicator Lever O-Ring Ø9,5x2,65 for Petrol Rototiller RL 50 - 02/2015. Part for the following Items: -  PETROL TILLER RL 50 -...
AVAILABLE €0.62
MECCANICA BENASSI S.R.L. SKU: SI0157900
Milling Support Assy Packing for Tiller Meccanica Benassi RL 40-50 Genuine spare part Meccanica Benassi, Milling Support Assy Packing for Petrol Rototiller RL 40 - RL 50 - 02/2015. Part for the following Items: -  PETROL TILLER RL 40...
Last items in stock €12.10
MECCANICA BENASSI S.R.L. SKU: SI0200101
Milling Support Assy Guard for Tiller Meccanica Benassi RL 40-50 Genuine spare part Meccanica Benassi, Milling Support Assy Guard for Petrol Rototiller RL 40 - RL 50 - 02/2015. Part for the following Items: -  PETROL TILLER RL 40 da...
AVAILABLE €19.12
MECCANICA BENASSI S.R.L. SKU: SI0156206
Wheel for Rototiller Meccanica Benassi RL 40-50 Genuine spare part Meccanica Benassi, Wheel for Petrol Rototiller RL 40 - RL 50 - 02/2015. Part for the following Items: -  PETROL TILLER RL 40 da N°1201240 - 12/2016 -  PETROL TILLER...
AVAILABLE €26.15
MECCANICA BENASSI S.R.L. SKU: SI0165700
Shift Fork for Motorhoe Meccanica Benassi RL 50 Genuine spare part Meccanica Benassi, Shift Fork for Petrol Motorhoe RL 50 - 02/2015. Part for the following Items: -  Petrol Motorhoe RL 50...
Usually Ships in: 7/10 Business Days Approx. €16.00
MECCANICA BENASSI S.R.L. SKU: SI0166600
Shift Fork Spring for Motorhoe Meccanica Benassi RL 50 Genuine spare part Meccanica Benassi, Shift Fork Spring for Petrol Motorhoe RL 50 - 02/2015 - RL 350 Part for the following Items: - ...
Usually Ships in: 7/10 Business Days Approx. €1.15
MECCANICA BENASSI S.R.L. SKU: SI0148300
Switch for Motorhoe Meccanica Benassi RL 50 Genuine spare part Meccanica Benassi, Switch for Petrol Motorhoe RL 50 - 02/2015 - RL 350 Part for the following Items: -  Petrol Motorhoe RL 50 - 02/2015 -  Petrol Motorhoe RL 350 from...
on 7/10 Business Days Approx €2.67
MECCANICA BENASSI S.R.L. SKU: SI0164000
Pulley for Motorhoe Meccanica Benassi RL 40-50 Genuine spare part Meccanica Benassi, Pulley for Petrol Motorhoe RL 40 - 12/2016 - RL 50 - 02/2015. Part for the following Items: - ...
Last items in stock €29.88
MECCANICA BENASSI S.R.L. SKU: SI0200001
Meccanica Benassi RL 40-50 Crown Hex Shaft Cutter Genuine spare part Meccanica Benassi, Crown Hex Shaft Cutter for Petrol Motorhoes RL 40 - RL 50. Part for the following Items: -  PETROL MOTORHOE RL 40 da...
Last items in stock €101.03
MECCANICA BENASSI S.R.L. SKU: SI0157300
Meccanica Benassi RL 40 Transmission Chain Genuine spare part Meccanica Benassi, Transmission Chain for Petrol Tiller RL 40 - 12/2016 - RL 50 - 02/2015. Part for the following Items: -  PETROL TILLER RL 40 da...
Last items in stock €23.84
MECCANICA BENASSI S.R.L. SKU: SI0200401
Meccanica Benassi RL40-50 Hub II Position Genuine spare part Meccanica Benassi, Right Blade for Petrol Tiller RL 40 - 12/2016 - RL 50 - 02/2015. Part for the following Items: -  PETROL TILLER RL 40 da...
Last items in stock €32.48
MECCANICA BENASSI S.R.L. SKU: SI0165000
Meccanica Benassi RL50 Gear Box Assembly Genuine spare part Meccanica Benassi, Gear Box Assembly for Petrol MOTORHOE RL 50 - 02/2015. Part for the following Items: -  PETROL MOTOR HOE RL 50 - 02/2015 - Code: SI0165000
Last items in stock €900.70
Comments (0)
