14 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon SI0200077 Lever spring €4.95
3
photo_cameraImage coming soon SI0200076 Bushing (type II handlebar) €6.83
22
Blade Cover Support L for Motorhoe Meccanica Benassi RL 113 SI0600058 Blade Cover Support L for Motorhoe Meccanica Benassi RL 113 €11.67
23
Blade Cover Support R for Motorhoe Meccanica Benassi RL 113 SI0600059 Blade Cover Support R for Motorhoe Meccanica Benassi RL 113 €7.35
35
photo_cameraImage coming soon SI0600049 Walking wheel assembly €59.43
36
photo_cameraImage coming soon SI0210030 Spring €1.33
47
photo_cameraImage coming soon SI0156106 Fork Wheel Support €15.60
48
photo_cameraImage coming soon SI0156311 BUSH Ø11.8 × Ø8.2 × 56 €1.82
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
2
Handle Grip for Rototiller Meccanica Benassi RL 40-50 SI0147006 Handle Grip for Rototiller Meccanica Benassi RL 40-50 €9.01
3
Throttle Lever Assy for Tiller Meccanica Benassi RL 113 SI0600069 Throttle Lever Assy for Tiller Meccanica Benassi RL 113 €29.66
5
Clutch Lever for Tiller Meccanica Benassi RL 40-50 SI0200901 Clutch Lever for Tiller Meccanica Benassi RL 40-50 €27.46
7
Throttle Wire for Tiller Meccanica Benassi RL 113 SI0600036 Throttle Wire for Tiller Meccanica Benassi RL 113 €15.61
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
21
Oil Seal 47x25x10 for Tiller Meccanica Benassi RL 113 SI0600006 Oil Seal 47x25x10 for Tiller Meccanica Benassi RL 113 €6.11
37
photo_cameraImage coming soon SI0200035 Bolt €3.92
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

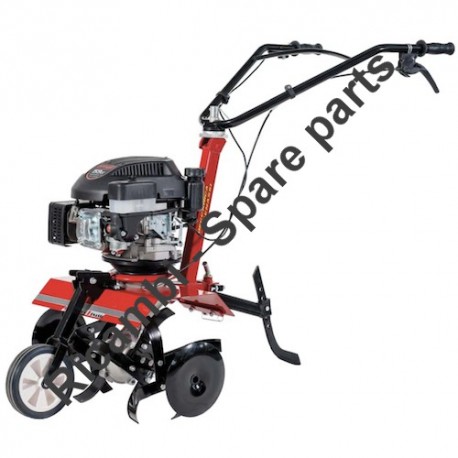

Meccanica Benassi Spare Parts for Tiller RL 113

Meccanica Benassu original replacement parts for to replace broken parts for to fix Petrol Rotary Tiller RL 113.

In the following table, look for the model of the Tiller and the respective parts of the code.
Meccanica Benassi RL 113

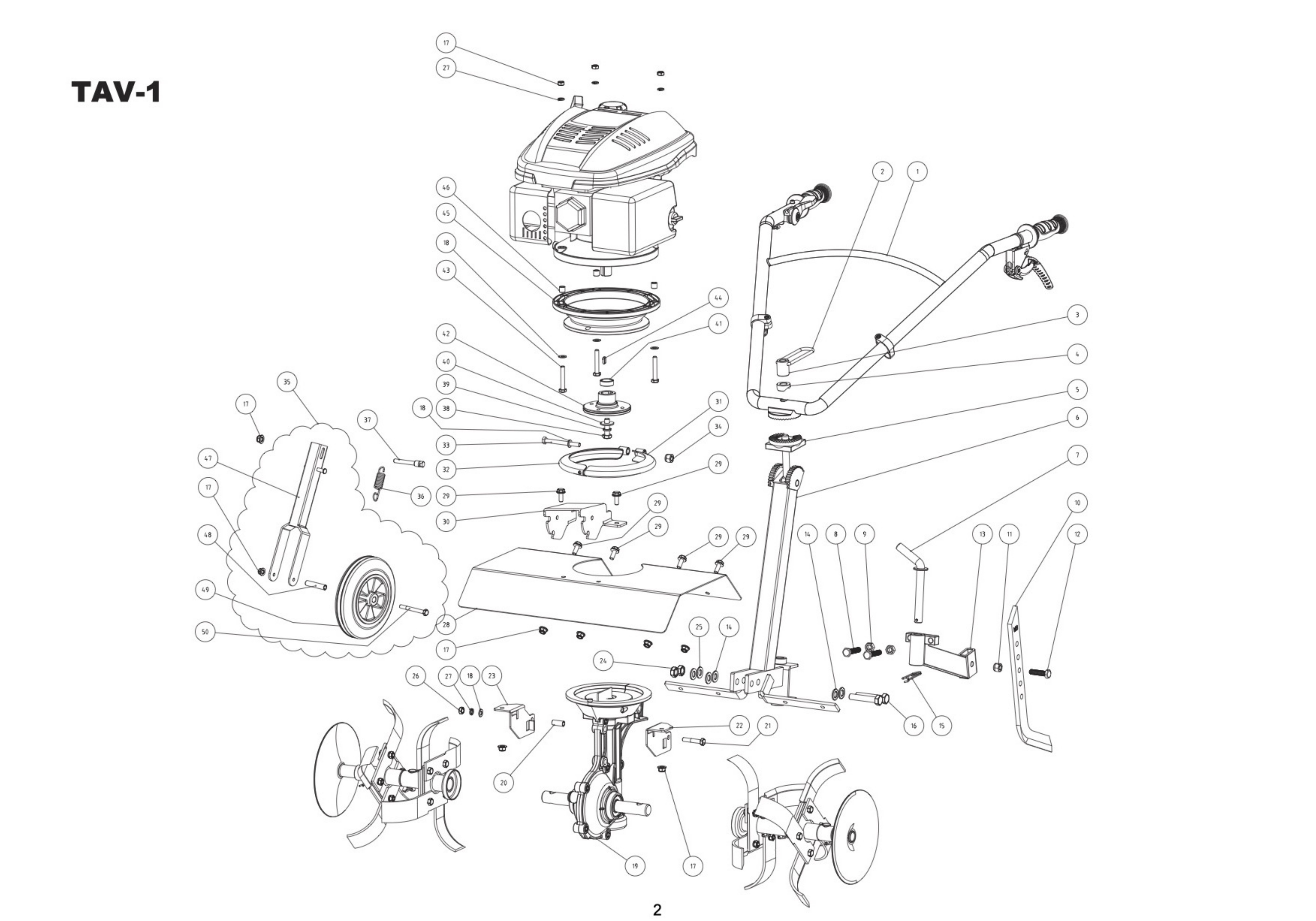

Rotary Tiller Meccanica Benassi RL 113 - Pag.1
Pos. Codice / code Description
1 SI0600033 Handle assembly
2 SI0200077 Spring lever
3 SI0200076 Threaded bush
4 SI0200075 Saddle washer
5 SI0200074 Toothed plate
6 SI0600050 Girder
7 SI0200062 Axle pin
8 SI0200067 Screw M10x50
9 SI0200068 Nut M10
10 SI0200061 Drag strut
11 SI0200070 Nut M10
12 SI0200069 Screw M10x40
13 SI0200060 Spur arm
14 SI0600067 Flat washer Ø12
15 SI0200063 Cotter pin
16 SI0600065 Screw M12x65
17 SI0150211 Nut M8
18 SI0149011 Flat washer Ø8
19 SI0600002 Gearbox assembly
20 SI0600060 Bush
21 SI0200065 Screw M8x45
22 SI0600058 Left support of blade cover
23 SI0600059 Right support of blade cover
24 SI0210023 Nut M12
25 SI0210022 Spring washer Ø12
26 SI0152311 Nut M8
27 SI0149710 Spring washer Ø8
28 SI0600061 Blade cover
29 SI0155310 Screw M8x20
30 SI0600062 Front wheel support
31 SI0610055 Left hold hoop
32 SI0600056 Right hold hoop
33 SI0148910 Screw M8x70
34 SI0300029 Nut M8
35 SI0600049 Wheel assembly
36 SI0210030 Spring
37 SI0600064 Screw
38 SI0600066 Screw M10x1x25
39 SI0210026 Spring washer Ø10
40 SI0600051 Big washer
41 SI0600052 Bush
42 SI0600045 Friction disk assembly
43 SI0154610 Screw M8x50
44 SI0600068 Key A4x5x20
45 SI0600053 Engine support flange
46 SI0600054 Engine support bush
47 SI0156106 Wheel support
48 SI0156311 Bush
49 SI0210028 Wheel
50 SI0156410 Screw M8x75

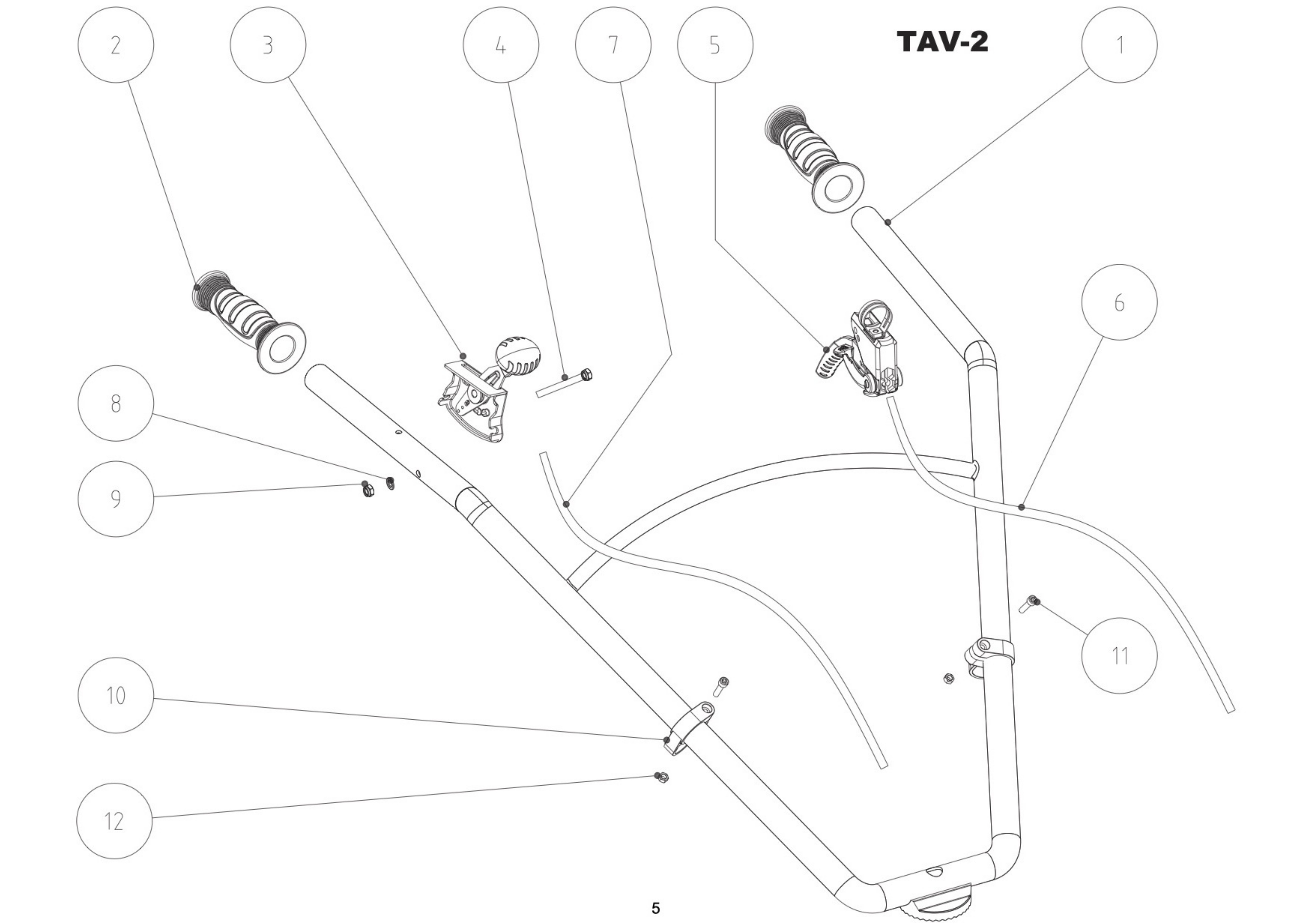

Rotary Tiller Meccanica Benassi RL 113 - Pag.2
Pos. Codice / code Description
1 SI0200073 Handle
2 SI0147006 Handle grip
3 SI0600069 Throttle lever
4 SI0600070 Screw M6x45
5 SI0200901 Clutch lever
6 SI0600026 Clutch wire
7 SI0600036 Throttle wire
8 SI0062010 Flat washer Ø6
9 SI0147811 Nut M6
10 SI0148706 Wire connector
11 SI0161810 Screw M5x20
12 SI0038311 Nut M5
Rotary Tiller Meccanica Benassi RL 113 - Pag.3

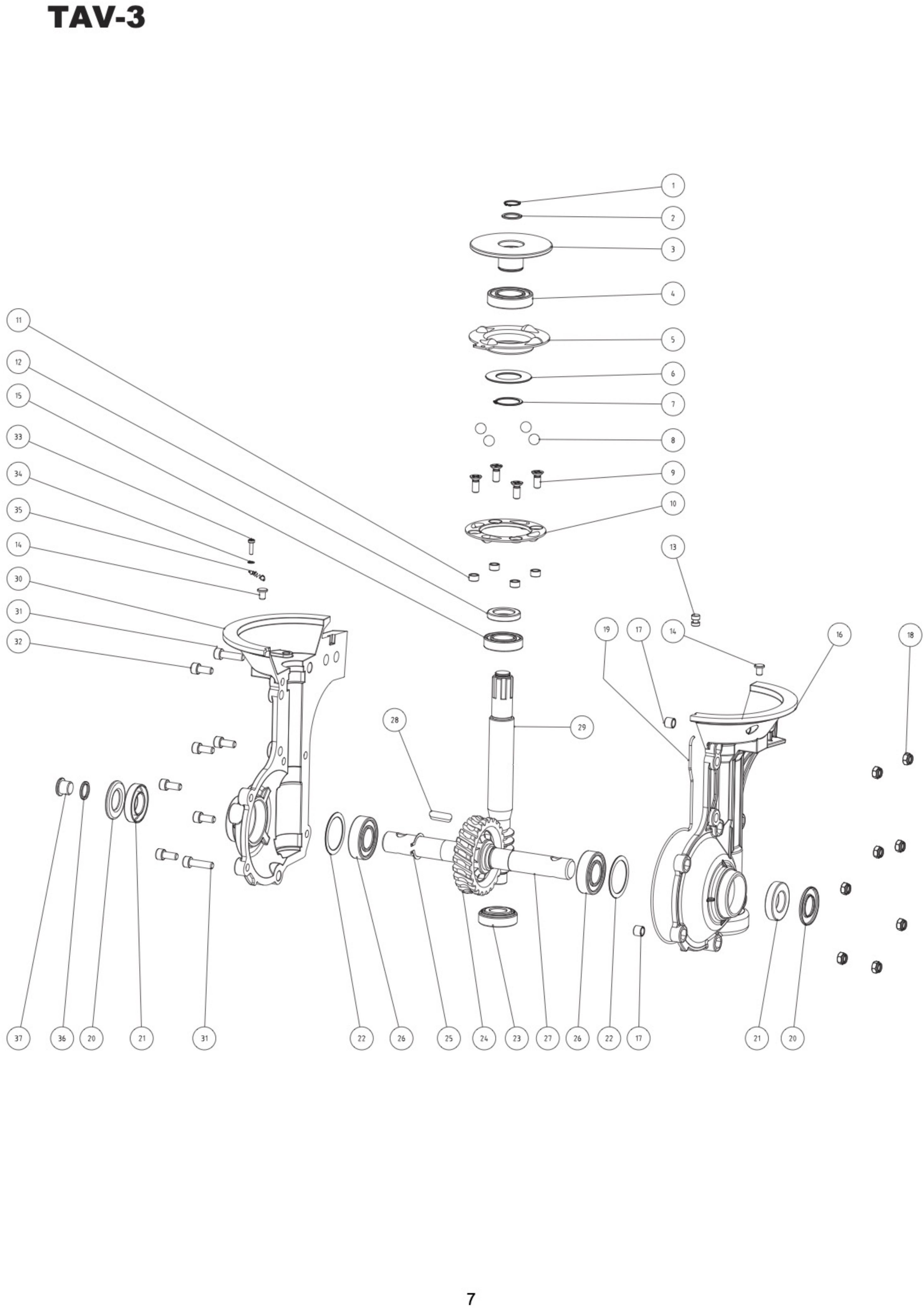

Pos. Codice / code Description
1 SI0600018 Seeger E18
2 SI0600019 Washer
3 SI0600029 Friction disc
4 SI0600028 Bearing 6006-2RS
5 SI0600027 Upper disc
6 SI0600025 Big washer
7 SI0400126 Seeger E30
8 SI0600024 Steel ball Ø13
9 SI0600023 Screw M8x20
10 SI0600022 Lower disc
11 SI0600021 Bush
12 SI0600017 Oil seal 40x25x7
13 SI0600015 Locating pin
14 SI0600032 Rubber plug
15 SI0600016 Bearing 6005-2Z
16 SI0600007 Left gearbox
17 SI0600012 Locating sleeve
18 SI0300029 Nut M8
19 SI0600013 Gasket
20 SI0600005 Dust prevention cover
21 SI0600006 Oil seal 47x25x10
22 SI0600008 Washer
23 SI0600010 Bearing 30204
24 SI0600011 Wormwheel
25 SI0600075 Shaft spring collar Ø28
26 SI0600009 Bearing 6205-2Z
27 SI0600073 Output shaft
28 SI0600074 Key A6x20
29 SI0600020 Wormscrew
30 SI0600014 Right gearbox
31 SI0600004 Screw M8x30
32 SI0600003 Screw M8x18
33 SI0600030 Screw M4x15
34 SI0052306 Flat washer Ø4
35 SI0600031 Spring
36 SI0200036 Rubber plate
37 SI0200035 Bolt

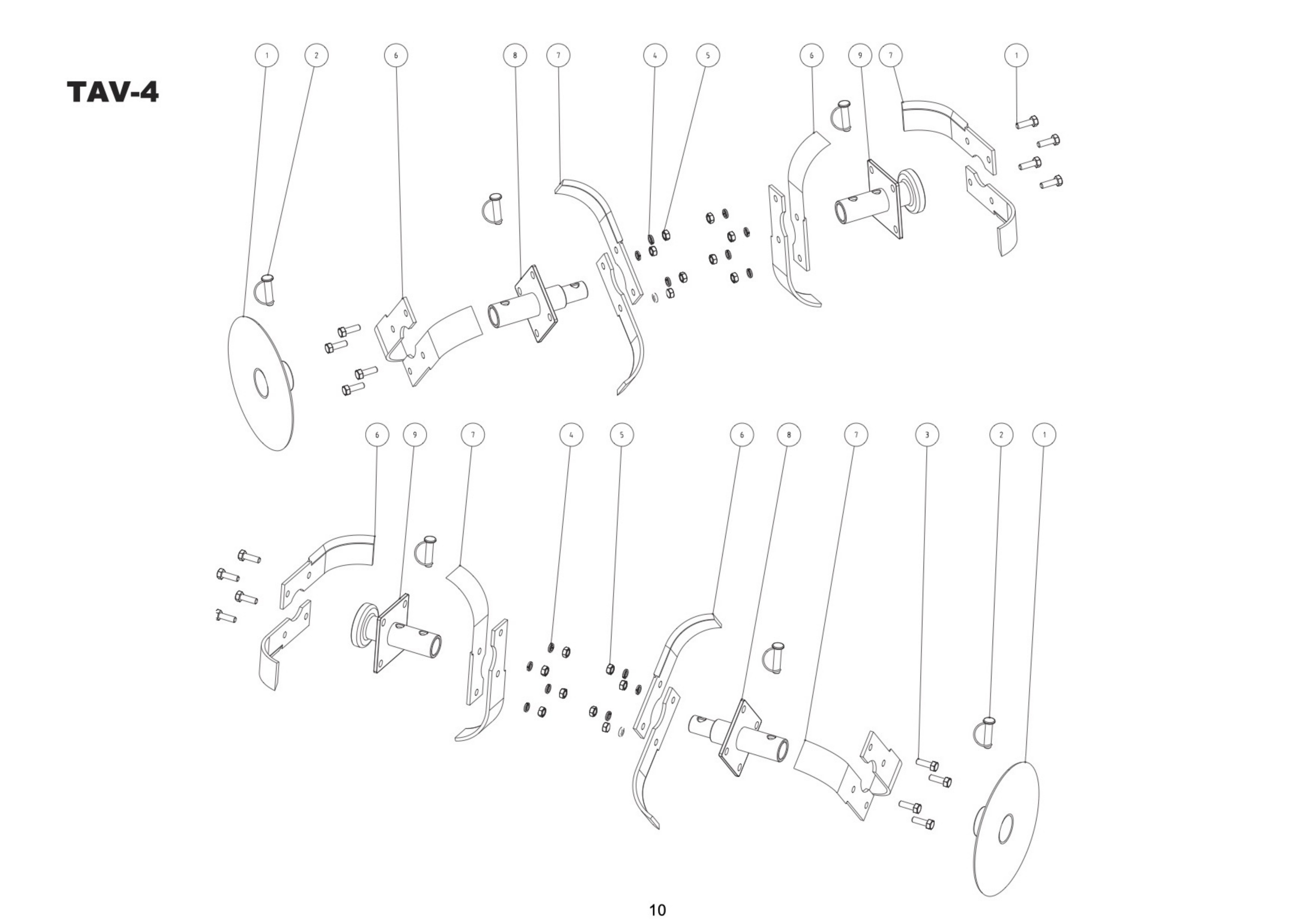

Rotary Tiller Meccanica Benassi RL 113 - Pag.4
Pos. Codice / code Description
1 SI0600042 Disc
2 SI0600071 Axle pin
3 SI0150410 Screw M8x25
4 SI0149710 Spring washer Ø8
5 SI0152311 M8 nut
6 SI0600040 Blade L
7 SI0600041 Blade R
8 SI0600039 Blade support II
9 SI0600038 Blade support I
