Meccanica Benassi Spare Parts for Tiller RL 300 - RL300 L

SKU: RL 300 - RL300 L
€3.47
VAT included

Meccanica Benassi Spare Parts for Motorhoe RL 300 - RL300 L

Meccanica Benassi Genuine spare parts or replacement parts for to repair Motorhoe RL 300 - RL300 L.
Meccanica Benassi Spare Parts for Tiller RL 300 - RL300 L
  • Meccanica Benassi Spare Parts for Tiller RL 300 - RL300 L
  • Meccanica Benassi Spare Parts for Tiller RL 300 - RL300 L
  • Meccanica Benassi Spare Parts for Tiller RL 300 - RL300 L

Meccanica Benassi Spare Parts for Tiller RL 300 - RL300 L

SKU: RL 300 - RL300 L Condition: New
€3.47
VAT included

Meccanica Benassi Spare Parts for Motorhoe RL 300 - RL300 L

Meccanica Benassi Genuine spare parts or replacement parts for to repair Motorhoe RL 300 - RL300 L.
settings 38 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

38 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
Seal Ring 17x40x7 for Rototiller Meccanica Benassi RL 300 - RL 300 L 30101500 Seal Ring 17x40x7 for Rototiller Meccanica Benassi RL 300 - RL 300 L €3.66
2
photo_cameraImage coming soon 38011400 SEEGER I 40 €1.24
4
photo_cameraImage coming soon 32501250 Bearing 17x40x12 (6203) €10.54
6
photo_cameraImage coming soon 6FC20600 Primary shaft Z-18-13-9 €247.38
11
photo_cameraImage coming soon 6GP02900 Stud M 8x31 €2.31
12
PTO Cover for Rototiller Meccanica Benassi RL 300 - RL 300 L 6GQ024001 PTO Cover for Rototiller Meccanica Benassi RL 300 - RL 300 L €7.17
18
photo_cameraImage coming soon 6FC20700 Triple gear Z 27-31-35 €196.86
19
photo_cameraImage coming soon 30701150 Internal ring LR 25x30x20.5 €13.35
20
photo_cameraImage coming soon 6GS03000 Secondary shaft Z-7 €148.49
21
photo_cameraImage coming soon 31901600 Needle Bearing HK 3020 €13.35
22
photo_cameraImage coming soon 6CO050T02 Central body cover €16.49
25
Gears Sector Shoe for Motorhoe Meccanica Benassi RL 300 6GF00900 Gears Sector Shoe for Motorhoe Meccanica Benassi RL 300 €12.95
29
photo_cameraImage coming soon 6LD01600 Pawl holder €6.17
30
photo_cameraImage coming soon 5HG00500 Gears sector €69.81
32
Oil Seal 12x19x5 for Rototiller Meccanica Benassi RL 300 - RL 300 L 30101050 Oil Seal 12x19x5 for Rototiller Meccanica Benassi RL 300 - RL 300 L €3.65
39
Seal Ring 35x62x8 for Rototiller Meccanica Benassi RL 300 30111040 Seal Ring 35x62x8 for Rototiller Meccanica Benassi RL 300 €5.72
40
photo_cameraImage coming soon 38011620 Seeger | 62 €1.88
42
photo_cameraImage coming soon 32502000 Bearing 35x62x14 (6007) €18.86
47
photo_cameraImage coming soon 6CC12600 cutter control crown Z-24 €127.85
48
photo_cameraImage coming soon 6BB01800 Cutter shaft €138.38
50
photo_cameraImage coming soon 32501450 Bearing 20x52x15 (6304) €14.22
51
photo_cameraImage coming soon 6GS11100 Pinion cutter Z-7 €136.88
52
photo_cameraImage coming soon 32501600 Ball bearing 25x52x15 €14.13
54
photo_cameraImage coming soon 6CC11400 gear transmission crown Z-26 €154.08
56
photo_cameraImage coming soon 6GP03400 Stud M 10x35 €2.09
68
photo_cameraImage coming soon 30601030 Breath pipe €7.03
69
photo_cameraImage coming soon 6GP02800 Stud M 8x36 €2.09
94
Clutch Lever Cover for Rototiller Meccanica Benassi RL 300 - RL 300 L 31801130 Clutch Lever Cover for Rototiller Meccanica Benassi RL 300 - RL 300 L €14.55
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
Oil Seal 12x19x5 for Rototiller Meccanica Benassi RL 300 - RL 300 L 30101050 Oil Seal 12x19x5 for Rototiller Meccanica Benassi RL 300 - RL 300 L €3.65
Seal Ring 17x40x7 for Rototiller Meccanica Benassi RL 300 - RL 300 L 30101500 Seal Ring 17x40x7 for Rototiller Meccanica Benassi RL 300 - RL 300 L €3.66
photo_cameraImage coming soon 30601030 Breath pipe €7.03
photo_cameraImage coming soon 30701150 Internal ring LR 25x30x20.5 €13.35
Clutch Lever Cover for Rototiller Meccanica Benassi RL 300 - RL 300 L 31801130 Clutch Lever Cover for Rototiller Meccanica Benassi RL 300 - RL 300 L €14.55
photo_cameraImage coming soon 31901600 Needle Bearing HK 3020 €13.35
photo_cameraImage coming soon 32501250 Bearing 17x40x12 (6203) €10.54
photo_cameraImage coming soon 32501450 Bearing 20x52x15 (6304) €14.22
photo_cameraImage coming soon 32501600 Ball bearing 25x52x15 €14.13
photo_cameraImage coming soon 32502000 Bearing 35x62x14 (6007) €18.86
photo_cameraImage coming soon 38011400 SEEGER I 40 €1.24
photo_cameraImage coming soon 6CC11400 gear transmission crown Z-26 €154.08
photo_cameraImage coming soon 6CO050T02 Central body cover €16.49
Gears Sector Shoe for Motorhoe Meccanica Benassi RL 300 6GF00900 Gears Sector Shoe for Motorhoe Meccanica Benassi RL 300 €12.95
photo_cameraImage coming soon 6GP02800 Stud M 8x36 €2.09
photo_cameraImage coming soon 6GP03400 Stud M 10x35 €2.09
PTO Cover for Rototiller Meccanica Benassi RL 300 - RL 300 L 6GQ024001 PTO Cover for Rototiller Meccanica Benassi RL 300 - RL 300 L €7.17
photo_cameraImage coming soon 6GS03000 Secondary shaft Z-7 €148.49
photo_cameraImage coming soon 6LD01600 Pawl holder €6.17
5
photo_cameraImage coming soon 6FC25400 Gear 23-32 vel. Z-20-24 €154.08
6
photo_cameraImage coming soon 6FC25300 Z-9 primary shaft €321.13
19
photo_cameraImage coming soon 6FC20800 Triple gear Z-21-25-35 €290.60
41
photo_cameraImage coming soon 6HC06220 Felt washer @ 35x47x2 €1.44
42
photo_cameraImage coming soon 30111030 Seal ring 35x47x7 €4.67
51
photo_cameraImage coming soon 32501400 Bearing 20x47x14 (6204) €12.41
52
photo_cameraImage coming soon 6GS03800 Z-13 gear sprocket €180.74
53
photo_cameraImage coming soon 6CC03600 Z-20 conical crown €175.79
55
photo_cameraImage coming soon 6LA012001 Reducer box €258.12
68
Meccanica Benassi RL 300 Conical Pinion Z-7 6GS10800 Meccanica Benassi RL 300 Conical Pinion Z-7 €162.90

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Meccanica Benassi Spare Parts for Motorhoe RL 300 - RL300 L

Meccanica Benassi Genuine spare parts or replacement parts for to repair Motorhoe RL 300 - RL300 L.

In the following table, look for the model of the Tiller and the respective parts of the code.
Motorhoe RL 300 - RL300 L

RL 300 - RL300 L Standard Transmission Group (Fast) Pag.1
# Part Num. Description
1 30101500 Seal ring 17x40x7
2 38011400 Seeger | 40
3 6HP03800 Thickness O 30x39,8x0,2-0,5-0,8
4 32501250 Bearing 17x40x12 (6203)
5 6HP02200 Thickness O 17x30x0.5-0.8
6 6FC20600 Primary shaft Z-18-13-9
7 6HPO0900 Thickness @ 10x21x0,3-0,5-0,8
8 6BQ04500 Bronze bushing
9 6FC18500 R.M. Gear Z-16
10 6G101800 Pin R.M.
11 6GP02900 Stud M 8x31
12 6GQ024001 PTO cover
13 3290106T Nut M 8
14 38001170 Seeger E 17
15 6FU05700 Spring
16 6HP03050 Thickness © 21.8x35x0.8
17 38001210 Seeger E 21
18 6FC20700 Triple gear Z 27-31-35
19 30701150 Internal ring LR 25x30x20.5
20 6GS03000 Secondary shaft Z-7
21 31901600 Needle Bearing HK 3020
22 6CO050T02 Central body cover
23 6DS13100 Central body gasket
24 6Cl062B0 Central body
25 6GF00900 shoe
26 6FZ00100 Pawl
27 6FUO06TO Spring
28 6HC00920 Fiber washer @ 14x20x1
29 6LD01600 Pawl holder
30 5HG00500 Gears sector
31 6HPO00800 Thickness O 12x24x0,3-0,5-0,8
32 30101050 Seal ring 12x19x5
33 / Gear shift lever (1st type)
34 37101080 Wavy washer @ 8
35 3322104T Low self-locking nut M 8
36 5FLO24TO Gear shift lever
37 6BQ04700 Bushing
38 38021060 Seeger RS ​​6
39 30111040 Seal ring 35x62x8 RP
40 38011620 Seeger | 62
41 6HP04500 Thickness @ 54x62x0,2-0,3
42 32502000 Bearing 35x62x14 (6007)
43 6HC00830 Fiber washer @ 16x22x1.5
44 6LD01TO Oil cap
45 6C1037001 Crown Holder
46 6CT04300 Spacer
47 6CC12600 cutter control crown Z-24
48 6BB01800 Cutter shaft
49 6HP02650 Thickness O 20x30x0,2-0,5-0,8
50 32501450 Bearing 20x52x15 (6304)
51 6GS11100 Pinion cutter Z-7
52 32501600 Bearing 25x52x15 (6205)
53 6HP03450 Thickness O 25x35x0.8
54 6CC11400 gear transmission crown Z-26
55 38001190 Seeger E 19
56 6GP03400 Stud M 10x35
57 3730106T Grover washer @ 10
58 3290107T Nut M 10
59 6C110100 Support cutter
60 6DS07470 Cutter support gasket
61 / Centering pin
62 3931225T VTE M 6x16
63 37101060 Wavy washer @ 6
64 39703900 VTC M 6x10
65 6HC00150 Fiber washer @ 6x10x0.8
66 / Upper Gasket Cutter support
67 30201150 Seal ring OR 115
68 30601030 Breath outlet
69 6GP02800 Stud M 8x36
70 6GP05000 Stud M 8x51
71 3950320T VTSPEI M 8x35
72 6FU08900 Spring (first type)
73 5HT11800 Lever support (first type)
74 5FL04600 R.M. Link lever (first type)
75 3730105t Grover washer @ 8
76 3931290T VTE M 8x20
77 6LM05300 Perforated screw
78 3700106T Bevelled washer @ 8
79 6CT09700 Spacer
80 3294106T Nut M 8 low
81 39103500 VSTEI M 8x20 flat tip
82 5DT002TO Clutch lever guide
83 6HP00260 Thickness @ 8x14x0.5
84 6FU07000 Safe spring R.M.
85 5FL04800 R.M. engagement lever
86 6BF07600 Secure Holder pin
87 38021060 Seeger RS ​​6
88 6BE007T0 Spring attack
89 6FU045T0O Spring
90 3290105T Nut M7
91 6CT033T0 Spacer
92 3700105T Bevelled washer @ 7
93 6FTOOSTO terminal
94 31801130 Clutch lever cover
95 6GH03700 Pin for clutch lever
96 6DFO30T0O Support for clutch lever
97 37101080 Wavy washer @ 8
98 6HP00200 Thickness O 8x14x0,3-0,8
99 38021050 Seeger RS ​​5
100 6LM05300 Perforated screw
101 6CTO9900 Spacer

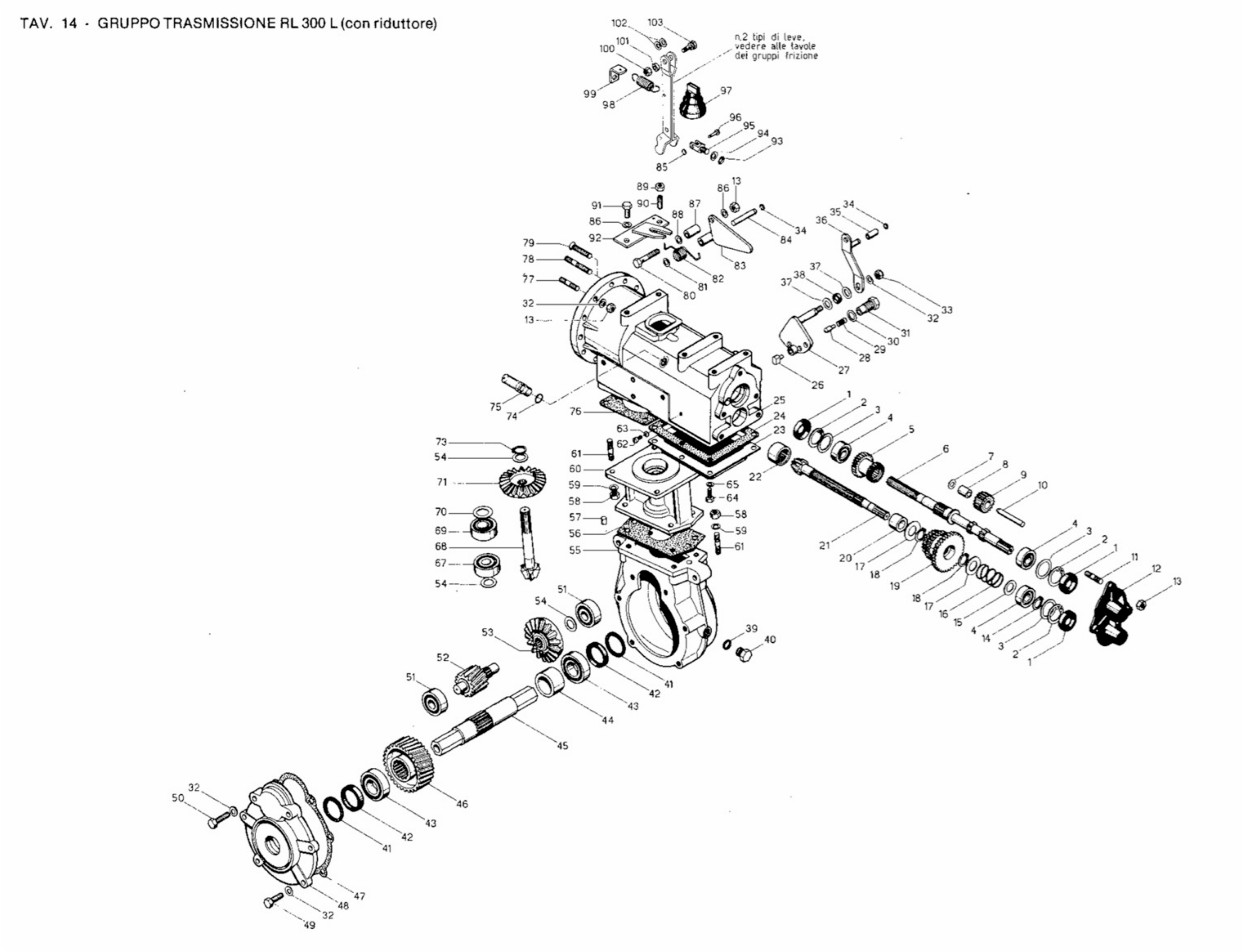

RL300 L Transmission Group RL 300 (W / Reducer) Pag.2
1 30101500 Seal ring 17x40x7
2 38011400 Seeger | 40
3 6HP03800 Thickness @ 30x39.8x0.2-0.5-0.8
4 32501250 Bearing 17x40x12 (6203)
5 6FC25400 Gear 23-32 vel. Z-20-24
6 6FC25300 Z-9 primary shaft
7 6HPO00900 Thickness @ 10x21x0,3-0,58-0,8
8 6BQ04500 Bronze bushing
9 6FC18500 R.M. Gear Z-16
10 6G101800 Pin R.M.
11 6GP01900 Stud M 8x31
12 6GQ024001 PTO cover
13 3290106T Nut M &
14 38001170 Seeger E 17
15 6HP02250 Thickness @ 17x30x0.8
16 6FU05700 Spring
17 6HP03050 Thickness @ 21.8x35x0.8
18 38001210 Seeger E 21
19 6FC20800 Triple gear Z-21-25-35
20 30701150 Inner ring
21 6GS03000 Secondary shaft Z-7
22 31901600 Needle roller HK 3020
23 6CO050T02 Central body cover
24 6DS13100 Central body gasket
25 6Cl062B0 Central body
26 6GF00900 shoe
27 5HG00700 Sector Gears
28 6FZ00100 Pawl
29 6FUO06TO Spring
30 6HC00920 Fiber washer @ 14x20x1
31 6LD01600 Pawl holder
32 37101080 Wavy washer @ 8
33 3322104T Self-locking nut M 8 low
34 38021060 Seeger RS ​​6
35 6BQ04700 Bushing
36 5FLO24TO Gear shift lever
37 6HP00800 Thickness @ 12x24x0,3x0,5x0,8
38 30101050 Seal ring 12x19x5
39 6HC0830 Fiber washer @ 16x22x1.5
40 6LD001TO Oil cap
41 6HC06220 Felt washer @ 35x47x2
42 30111030 Seal ring 35x47x7
43 32502000 Bearing 35x62x14 (6007)
44 6CT06700 Spacer
45 6BB00700 Cutter shaft
46 6CC03800 Z-32 gearbox crown
47 6DS09770 Reducer box gasket
48 6C0079001 Reducer cover
49 3931295T VTE M 8x25
50 3931300T VTE M 8x30
51 32501400 Bearing 20x47x14 (6204)
52 6GS03800 Z-13 gear sprocket
53 6CC03600 Z-20 conical crown
54 6HP02600 Thickness @ 20x30x0.2-0.3-0.5
55 6LA012001 Reducer box
56 6DS07470 Cutter support gasket
57 38311020 Centering pin
58 3290107T Nut M 10
59 3730106T Grover washer @ 10
60 6C111200 Support cutter
61 6GP03400 Stud M 10x35
62 39703900 VTC M 6x10
63 6HC00150 Fiber washer @ 6x10x0.8
64 3931225T VTE M 6x16
65 3700104T Bevelled washer @ 6
67 32501450 Bearing 20x52x15 (6304)
68 6GS10800 Conical pinion Z-7
69 32501600 Bearing 25x52x15 (6205)
70 6HP03450 Thickness @ 25x35x0.8
71 6CC11400 Z-26 gear transmission crown
73 38001190 Seeger E 19
74 30201150 Ring seal OR 115
75 30601030 Vent pipe
76 6DS13200 Seating joints. superior supp. cutter
77 6GP02800 Stud M 8x36
78 6GP05000 Stud M 8x51
79 3950320T VTSPEI M 8x35
80 6LM05300 Perforated screw
81 6HP00260 Thickness @ 8x14x0.5
82 6FU07000 Safe spring R.M.
83 5FL04800 R.M. engagement lever
84 6BF07600 Secure door pin
85 38021050 Seeger RS 5
86 3730105T Grover washer @ 8
87 6CT09900 Spacer
88 3700106T Bevelled washer @ 8
89 3294106T Nut M 8 low
90 39103500 VSTEI M 8x20 flat tip
91 3931285T VTE M 8x16
92 5DT002TO Clutch lever guide
93 37101080 Wavy washer @ 8
94 6HP00200 Thickness @ 8x14x0,3-0,8
95 6DFO30TO Clutch lever support
96 6GH03700 Pin for clutch lever
97 31801130 Hood for clutch lever
98 6FU045TO Spring
99 6BE007T0 Spring attack
100 3290105T Nut M7
101 6CTO33T0 Spacer
102 3700105T Bevelled washer @ 7
103 6FTOOSTO terminal
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
RL 300 - RL300 L
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing RL 300 - RL300 L

Drawing RL 300 - RL300 L

Download (462.04KB)

You might also like

MECCANICA BENASSI S.R.L. SKU: 6GQ024001
PTO Cover for Rototiller Meccanica Benassi RL 300 - RL 300 L Genuine spare part Meccanica Benassi, PTO Cover for Petrol Roto-Tiller RL 300 - RL 300 L. Part for the following Items: - ...
Usually Ships in: 7/10 Business Days Approx. €7.17
MECCANICA BENASSI S.R.L. SKU: 30101500
Seal Ring 17x40x7 for Rototiller Meccanica Benassi RL 300 - RL 300 L Genuine spare part Meccanica Benassi, Seal Ring 17x40x7 for Petrol Roto-Tiller RL 300 - RL 300 L - RL 328 Part for the following Items: -  Roto-Tiller RL 300 - RL...
on 7/10 Business Days Approx €3.66
MECCANICA BENASSI S.R.L. SKU: 30111040
Seal Ring 35x62x8 RP for Rototiller Meccanica Benassi RL 300 - RL 300 L Genuine spare part Meccanica Benassi, Seal Ring 35x62x8 RP for Petrol Roto-Tiller RL 300 - RL 300 L - RL 328 Part for the following...
Usually Ships in: 7/10 Business Days Approx. €5.72
MECCANICA BENASSI S.R.L. SKU: 6GF00900
Gears Sector Shoe for Motorhoe Meccanica Benassi RL 300 - RL 300 L Genuine spare part Meccanica Benassi, Gears Sector Shoe for Petrol Motorhoe RL 300 - RL 300 L.  Part for the following Items: -  MOTORHOE RL 300 - RL 300 L -...
on 7/10 Business Days Approx €12.95
MECCANICA BENASSI S.R.L. SKU: 6GS10800
Meccanica Benassi RL 300 - RL 300 L Conical Pinion Z-7 Genuine spare part Meccanica Benassi, Conical Pinion Z-7 for Petrol Roto-Tiller RL 300 - RL 300 L - RL 328 Part for the following Items: - ...
Usually Ships in: 7/10 Business Days Approx. €162.90
Comments (0)
