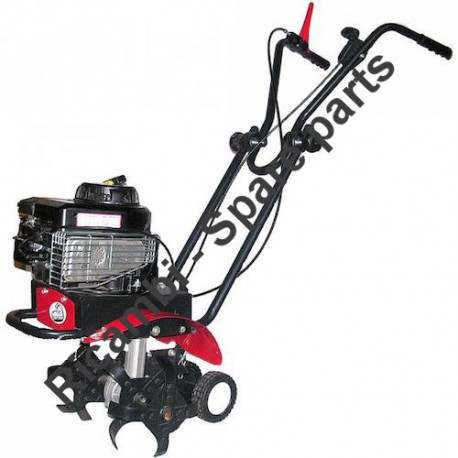

Meccanica Benassi Spare Parts for Tiller RL 1

SKU: Meccanica Benassi RL1
€5.82
VAT included

Meccanica Benassi Spare Parts for Tiller RL 1

Meccanica Benassi Genuine spare parts or replacement parts for to repair Tiller RL 1.
Benassi Spare Parts for Tiller RL 1
  • Benassi Spare Parts for Tiller RL 1
  • Benassi Spare Parts for Tiller RL 1

Meccanica Benassi Spare Parts for Tiller RL 1

SKU: Meccanica Benassi RL1 Condition: New
€5.82
VAT included

Meccanica Benassi Spare Parts for Tiller RL 1

Meccanica Benassi Genuine spare parts or replacement parts for to repair Tiller RL 1.
settings 23 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

23 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
11
photo_cameraImage coming soon 6CI16900 DRIVE SUPPORT DX RL 1 €109.52
14-2
Blade for Tiller Meccanica Benassi RL 1 6CM14900 Blade for Tiller Meccanica Benassi RL 1 €8.28
14-1
photo_cameraImage coming soon 6FV08800 MOZZO PORTA Blade RL 1 €54.42
15
Protection Cap for Tiller Meccanica Benassi RL 1 31801290 Protection Cap for Tiller Meccanica Benassi RL 1 €2.10
16
Oil Seal 20X32X8 2RP for Tiller Meccanica Benassi RL 1 30101610 Oil Seal 20X32X8 2RP for Tiller Meccanica Benassi RL 1 €6.11
18
photo_cameraImage coming soon 6CI17000 MILL SUPPORT LEFT RL 1 €113.90
19
photo_cameraImage coming soon 32541150 BEARING 6004 2RS 20X42X12 €10.80
22-1
Mill Holder Shaft for Tiller Meccanica Benassi RL 1 6BB03300 Mill Holder Shaft for Tiller Meccanica Benassi RL 1 €35.02
22
photo_cameraImage coming soon 6CC15000 CROWN RL 1 €143.33
24
photo_cameraImage coming soon 32541050 BEARING 6203 2RS 17X40X12 €15.81
25
photo_cameraImage coming soon 6FC43000 WORM SCREW RL 1 €145.84
26
Belt Guide for Motorhoe Meccanica Benassi RL 1 6DT03900 Belt Guide for Motorhoe Meccanica Benassi RL 1 €8.25
29
photo_cameraImage coming soon 6GV03800 MOTOR PULLEY RL1 €32.09
32
Belt Pulley for Tiller Meccanica Benassi RL 1 6GV03900 Belt Pulley for Tiller Meccanica Benassi RL 1 €36.69
33-3
photo_cameraImage coming soon 32510010 Bearing 608 2Z 8X22X7 €3.28
33-1
photo_cameraImage coming soon 6BT00600 BRACCIO for GALOPPINO RL 1 €8.50
33-4
photo_cameraImage coming soon 6BU00600 TENDICINGHIA RL 1 €22.69
52
photo_cameraImage coming soon 37551190 HAND-WHEEL €22.28
62
Throttle Lever for Tiller Meccanica Benassi RL 1 35701410 Throttle Lever for Tiller Meccanica Benassi RL 1 €18.42 Not available for order
64
Rubber Grip for Motorhoe Mec. Benassi RL 328 Special 35601060 Rubber Grip for Motorhoe Mec. Benassi RL 328 Special €4.74
65
Stop Lever for Tiller Meccanica Benassi RL 1 35401280 Stop Lever for Tiller Meccanica Benassi RL 1 €38.53
69
Grafting Thread for Tiller Meccanica Benassi RL 1 6DG21000 Grafting Thread for Tiller Meccanica Benassi RL 1 €21.93
70
Throttle Wire for Tiller Meccanica Benassi RL 1 6DG21100 Throttle Wire for Tiller Meccanica Benassi RL 1 €16.39

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Meccanica Benassi Spare Parts for Tiller RL 1

Meccanica Benassi Genuine spare parts or replacement parts for to repair Tiller RL 1.

In the following table, look for the model of the Tiller and the respective parts of the code.

Tiller RL 1
1 BRIGGS ENGINE SERIES 450 148cc.
2 3332104T NUT M8
3 PLASTIC WASHER
4 3930325T SCREW TE M8X40
5 CASING HOLDER ENGINE
6 3930320T SCREW M8X35
7 BUMPER
8 LOWER CASING
9 SCREW M6X12
10 3322103T NUT M6
11 6CI16900 DRIVE SUPPORT DX RL 1
12 6GH10300 PIN RL 1
13 6HL02000 PIN RL 1
14 COMPLETE HUB
14-1 6FV08800 BLADE HUB RL 1
14-2 6CM14900 BLADE RL 1
14-3 3931290T SCREW TE M8X20
15 31801290 PROTECTION CAP (PLASTIC)
16 30101610 OIL SEAL 20X32X8 2RP
17 39402800 SCREW TCEI M6X25
18 6CI17000 MILL SUPPORT LEFT RL 1
19 32541150 BEARING 6004 2RS 20X42X12
20 SPACER 20.5X37X1.5
21 31401140 5X5X18 KEY
22 6CC15000 CROWN RL 1
22-1 6BB03300 MILL SHAFT RL 1
23 SPACER 39X32X1
24 32541050 BEARING 6203 2RS 17X40X12
25 6FC43000 WORM SCREW RL 1
26 6DT03900 BELT GUIDE RL 1
27 SCREW STEI M5X12
28 31001590 BELT RL 1
29 6GV03800 MOTOR PULLEY RL1
30 GRAIN AND THE M8X10
31 ELASTIC PLUG ø6 X 28
32 6GV03900 TRANSMISSION PULLEY 1
33-1 6BT00600 ARM RL 1
33-2 SPACER
33-3 32510010 BEARING 608 2Z 8X22X7
33-4 6BU00600 BELT TENSIONER RL 1
34 SPACER
35 SPRING RECALL
36 3930300T SCREW TE M8X45
37 RUBBER
38 3930320T SCREW TE M8X35
39 3700106T FLAT WASHER ø8
40 SCREW TE M8X245
41 MILL CASING
42 SCREW TBEI M5X12
43 3320102T NUT M5
44 RIGHT HOLDER
45 CLAMP SUPPORT
46 CAP
47 SCREW TE M8X20
50 WHEEL COVER CUP
51 3930345T TE M8X60 SCREW
52 37551190 WHEEL
53 BUSH
54-1 WHEEL FRAME
54-2 SPUR
54-3 SUPPORT SPUR
55 SPRING
56 3290106T NUT M8
57 6GM02000 SETTING KNOB
58 6HH00400 JOINT SX RL 1
59 6HH00500 JOINT DX RL 1
60 3930375T M8X100 SCREW
61 SPECIAL SCREW M6
62 35701410
63 TILLERS
64 35601060 RUBBER GRIP
65 35401280 STOP LEVER
66 SCREW TCEI M6X40
67 PLASTIC PLUG
68 HANDLEBAR SUPPORT LH
69 6DG21000 GRAFTING THREAD
70 6DG21100 THROTTLE CABLE
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Meccanica Benassi RL1
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

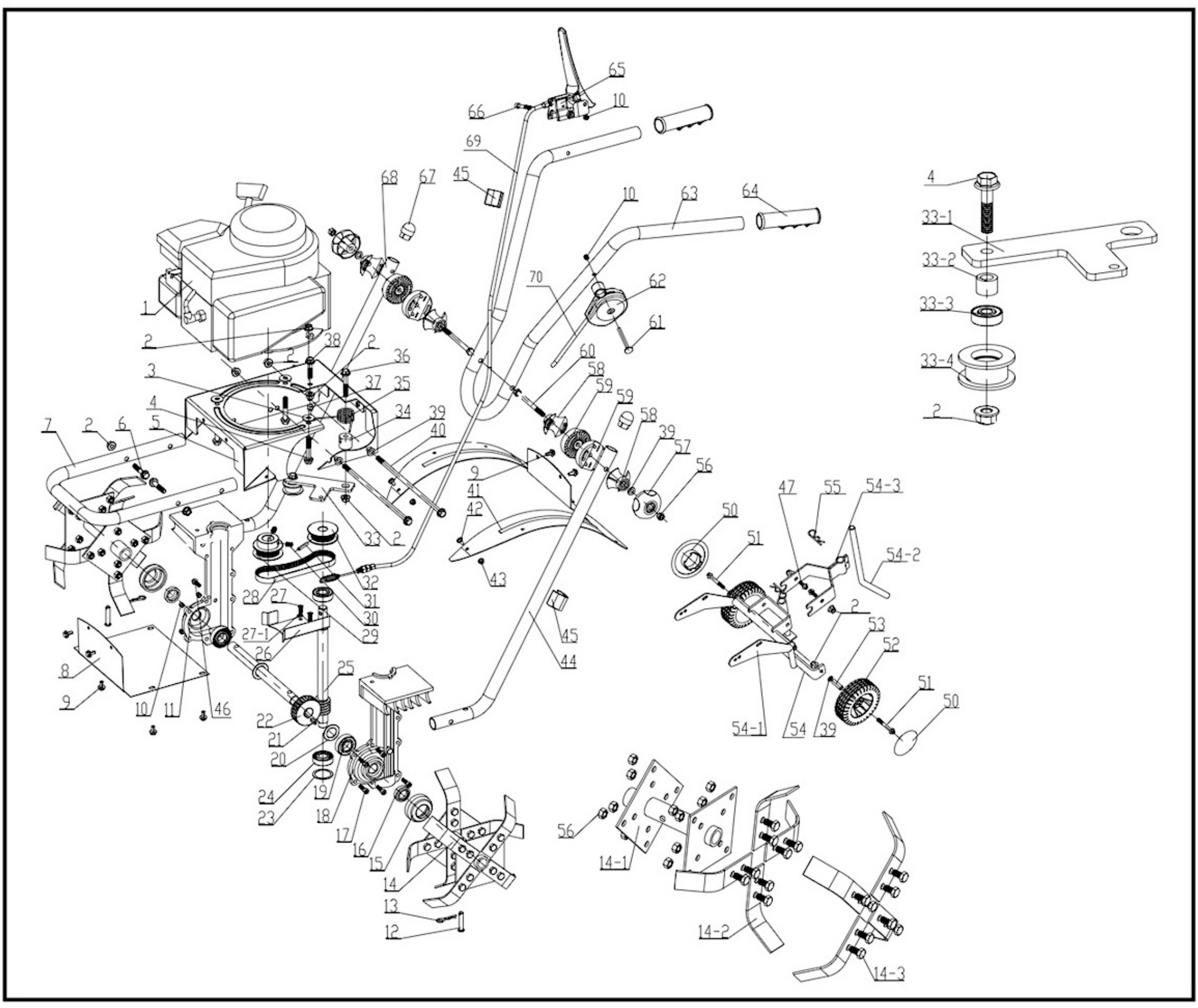

Diagram Meccanica Benassi RL 1

Diagram Meccanica Benassi RL 1

Download (236.38KB)
