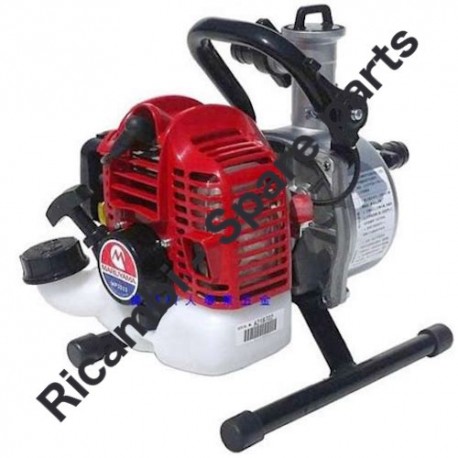

Motor Pump MP2523

Maruyama Motor Pump MP2523 Parts
Main Body Pag.1
# Part. Num. Description
1-1 332264 MP2523
1-1 718814 MP2523
1-2 287463 Label
1-3 283896 Casing Cover
1-4 240002 Mechanical Seal
1-5 550162 Screw
1-6 013918 O-Ring
1-7 283910 Impeller
1-8 284812 Spacer
1-9 284813 Spacer
1-10 283911 Scroll
1-11 027533 O-Ring
1-12 283897 Casing
1-13 012615 O-Ring
1-14 126541 Bolt
1-15 240553 Suction Port
1-16 283914 Check Valve
1-17 125824 Bolt
1-18 283916 Plug
1-19 284422 O-Ring
1-20 287472 Base Incl.21
1-21 287052 Pad
1-22 092554 Bolt
1-23 287053 Handle
1-24 092513 Bolt
1-25 287468 Instruction Manual
1-26 288793 Instruction Manual
1-27 289070 Instruction Manual
1-28 240027 Hose
1-29 284300 Strainer
1-30 272283 Hose Coupling
1-31 240858 Hose Coupling
1-32 240859 Packing
1-33 284301 Hose Band
1-34 523056 Parts List
Engine Pag.2
2-1 858821 Engine
2-1 859761 Engine
2-2 266249 Cylinder New gasket required
2-3 283420 Gasket
2-4 267290 Cap Screw
2-5 263772 Insulator New gasket required
2-6 267049 Gasket
2-7 269826 Screw
2-8 281524 Muffler
2-9 266264 Cap Screw
2-10 280409 Gasket
2-11 280846 Top Cover
2-12 283978 Screw
2-13 273674 Crankcase
2-14 280488 Bearing
2-15 261492 Oil Seal
2-16 261386 Oil Seal
2-17 055185 Snap Ring
2-18 261612 Cap Screw
2-19 281298 Piston
2-20 263789 Piston Ring
2-21 261036 Piston Pin
2-22 288520 Bearing, Needle
2-23 261576 Clip,Piston
2-24 267193 Crankshaft/Conn.Rod Ass'y
2-25 283386 Fan Cover
2-26 269831 Screw
2-27 269826 Screw
2-28 284077 Magneto Ass'y Incl.29-35
2-29 269323 Rotor/Fan
2-30 280470 Ignition Coil Ass'y Incl.31-35
2-31 267401 Coil
2-32 280868 Spark Plug Wire Ass'y Incl.33-35
2-33 280869 Spark Plug Wire
2-34 280870 Plug Boot
2-35 280871 Connector
2-36 261076 Woodruff Key
2-37 261417 Nut,Rotor
2-38 280381 Spacer
2-39 261256 Cap Screw
2-40 262483 Spark Plug
2-41 284919 Stop Switch
2-42 269419 Stay
2-43 284635 Coller
2-44 269481 Shaft
2-45 265312 Screw
2-46 273093 Recoil Ass'y Incl.47-57
2-47 280492 Reel
2-48 287421 Spiral Spring
2-49 280494 Screw
2-50 280495 Starter Rope Ass'y Incl.51-53
2-51 283616 Starter Rope
2-52 280497 Starter Grip
2-53 280550 Stopper
2-54 280547 Washer
2-55 280548 Collar
2-56 269423 Nut
2-57 288500 Plate
2-58 287399 Stater Pulley Ass'y
2-59 269833 Screw
2-60 280489 Screw
2-61 287462 Label
2-62 284587 Label
2-63 267561 Label
2-64 287717 Label
Carburetor - Fuel Tank Pag.3
3-1 287460 Carburetor Ass'y Incl.2-15 New gasket required
3-2 263739 Pump Body
3-3 262991 Purge Body
3-4 262992 Cover Plate
3-5 261874 Primer Bulb
3-6 261873 Diaphragm,Metering
3-7 262993 Gasket
3-8 262994 Diaphragm,Fuel Pump
3-9 262995 Gasket
3-10 262730 Main Jet
3-11 261871 O-Ring
3-12 261876 E-Ring
3-13 261658 Swivel
3-14 264682 Screw
3-15 262996 Screw
3-16 261864 Gasket
3-17 264691 O-Ring
3-18 266420 Cleaner Ass'y Incl.19-21
3-19 264709 Cover
3-20 266433 Housing
3-21 264695 Filter
3-22 269834 Screw
3-23 287554 Throttle Cable
3-24 103032 Throttle Lever
3-25 285728 Fuel Tank Ass'y Incl.26-36
3-26 285664 Fuel Tank
3-27 281564 Fuel Tank Cap Ass'y Incl.28
3-28 269377 Gasket
3-29 261696 Breather Ass'y
3-30 265752 Fuel Pipe Pick-up Ass'y Incl.31-36
3-31 264031 Fuel Pipe Ass'y Incl.32-34
3-32 261115 Grommet
3-33 261690 Fuel Pipe
3-34 263038 Return Pipe
3-35 264653 Filter Ass'y
3-36 261117 Clip
3-37 269828 Screw
3-38 281208 Screw
3-39 261117 Clip
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Maruyama websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Maruyama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Maruyama MP2523
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Maruyama MP2523 Parts DIagram

Maruyama MP2523 Parts DIagram

Download (870.68KB)

You might also like

Maruyama SKU: 263789
Maruyama Brushcutter BC2300RS Piston Ring Genuine replacement part Maruyama, Piston ring for Brushcutter BC2300RS - Hedgecutter HT230D-R-01. Part for the following products: -  Brushcutter Maruyama BC2300RS -  Hedgecutter Maruyama...
Usually Ships in: 10/15 Business Days Approx. €8.00
Maruyama SKU: 264709
Maruyama BC2300RS Filter Cover Genuine spare part Maruyama, Filter Cover for Brushcutter Maruyama BC2300RS. Part for the following products: -  Maruyama BC2300RS -  Maruyama HT230D-R-01 -  Maruyama PP2430...
AVAILABLE €15.46
Maruyama SKU: 264695
Maruyama BC2300RS Air Filter Genuine spare part Maruyama, Air Filter for Brushcutter Maruyama BC2300RS - MX21. Part for the following products: -  Maruyama BC2300RS -  Maruyama HT230D-R-01 -  Maruyama MX21...
Usually Ships in: 10/15 Business Days Approx. €8.65
Comments (0)
