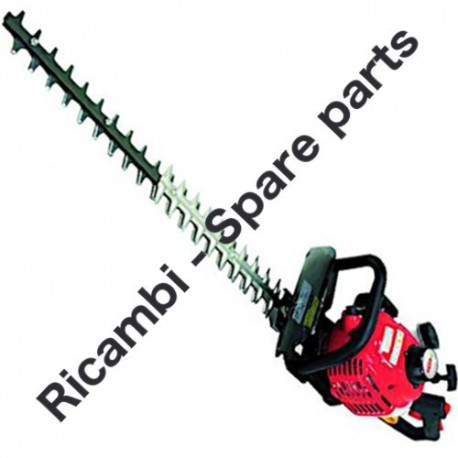

Maruyama Parts for Hedge Cutter GK761PL
  • Maruyama Parts for Hedge Cutter GK761PL
  • Maruyama Parts Diagram for Hedge Cutter GK761PL
  • Maruyama Parts Diagram for Hedge Cutter GK761PL - 1
  • Maruyama Parts Diagram for Hedge Cutter GK761PL - 2
  • Maruyama Parts Diagram for Hedge Cutter GK761PL - 3

Maruyama Parts for Hedge Trimmer GK761PL

SKU: Maruyama GK761PL Condition: New
€189.03
VAT included

Maruyama Parts for Hedge Trimmer GK761PL

Fix Your Hedge Trimmer Maruyama GK761PL. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 102 spare parts
description 5 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

102 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon 271472 UPPER CASE €183.53
3
Maruyama HT230D Clutch Drum 270021 Maruyama HT230D Clutch Drum €57.29
4
photo_cameraImage coming soon 271473 PINION GEAR €183.53
6
photo_cameraImage coming soon 580767 Bearing €26.42
7
photo_cameraImage coming soon 270423 Bearing €26.93
9
photo_cameraImage coming soon 991924 Screw €3.43
10
photo_cameraImage coming soon 271475 LOWER CASE €97.78
12
photo_cameraImage coming soon 270423 Bearing €26.93
13
photo_cameraImage coming soon 991924 Screw €3.43
14
photo_cameraImage coming soon 271465 CRANK COMPLETE €373.56
15
Maruyama HT230D Conrod HT 271466 Maruyama HT230D Conrod HT €74.06
16
photo_cameraImage coming soon 270567 FELT €10.95
17
photo_cameraImage coming soon 271470 GUIDE PLATE €163.64
18
photo_cameraImage coming soon 271471 BLADE €227.72
19
photo_cameraImage coming soon 270371 BLADE GUARD W €68.40
20
photo_cameraImage coming soon 270757 Plate €10.50
21
photo_cameraImage coming soon 580777 Snap Ring €3.43
22
photo_cameraImage coming soon 580791 HEXAGON HEAD BOLT €3.43
23
photo_cameraImage coming soon 991914 Screw €8.07
24
photo_cameraImage coming soon 271229 SCREW €10.06
25
photo_cameraImage coming soon 991941 U-NUT €3.43
26
photo_cameraImage coming soon 991913 Washer €3.43
28
photo_cameraImage coming soon 271230 SCREW €3.43
29
photo_cameraImage coming soon 271231 SCREW €3.43
30
photo_cameraImage coming soon 271469 FRONT STOPPER €23.31
32
photo_cameraImage coming soon 271454 HANDLE ASSY €350.14
33
photo_cameraImage coming soon 271278 REAR HANDLE L €46.96
34
photo_cameraImage coming soon 271279 REAR HANDLE R €48.29
35
photo_cameraImage coming soon 271280 THROTTLE LEVER €14.26
36
photo_cameraImage coming soon 271281 STOP LEVER €10.95
41
photo_cameraImage coming soon 271398 CABLE COMP. €141.55
43
photo_cameraImage coming soon 271288 SPRING €8.07
45
photo_cameraImage coming soon 270400 Spring €25.85
49
photo_cameraImage coming soon 991941 U-NUT €3.43
53
photo_cameraImage coming soon 991941 U-NUT €3.43
56
photo_cameraImage coming soon 271455 DAMPER €11.84
57
photo_cameraImage coming soon 271456 SPRING €14.04
58
photo_cameraImage coming soon 271457 SPRING €14.04
62
photo_cameraImage coming soon 270071 BLADE COVER(DL) €29.51
63
photo_cameraImage coming soon 270566 LABEL €3.43
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon 283149 CYLINDER €247.83
3
photo_cameraImage coming soon 283177 GASKET €3.43
4
photo_cameraImage coming soon 267290 Cap Screw €2.46
5
Maruyama HT230D Insulator 265802 Maruyama HT230D Insulator €34.26
6
photo_cameraImage coming soon 267049 Gasket €2.78
8
photo_cameraImage coming soon 283166 MUFFLER COMPLETE €41.67
9
photo_cameraImage coming soon 264223 CAP SCREW M5X40 €3.43
10
photo_cameraImage coming soon 283176 GASKET €3.43
12
photo_cameraImage coming soon 261607 Cap Screw €3.43
15
photo_cameraImage coming soon 286399 BOLT €4.97
17
photo_cameraImage coming soon 262712 OIL SEAL €7.63
18
photo_cameraImage coming soon 262713 OIL SEAL €8.52
19
photo_cameraImage coming soon 054676 Snap Ring €2.50
20
Maruyama HT230D Cap Screw M5x25 261246 Maruyama HT230D Cap Screw M5x25 €2.48
21
Maruyama HT230D Piston 283265 Maruyama HT230D Piston €33.42
22
Maruyama BC2300RS Piston Ring 263789 Maruyama BC2300RS Piston Ring €7.86
23
photo_cameraImage coming soon 281185 Piston Pin €5.20
24
photo_cameraImage coming soon 261037 BearingNeedle KBK €17.12
25
photo_cameraImage coming soon 261576 CIRCLIP BC230 / M28 / MX21 €2.46
26
photo_cameraImage coming soon 283155 CRANKSHAFT COMPLETE €170.49
27
Maruyama HT230D Clutch Assy 280404 Maruyama HT230D Clutch Assy €41.92
30
photo_cameraImage coming soon 280570 SPRING €7.84
31
photo_cameraImage coming soon 283160 FAN COVER €23.10
32
photo_cameraImage coming soon 261250 Cap Screw M €2.48
35
photo_cameraImage coming soon 283165 IGNITION COIL ASSY Incl.36-42 €134.91
43
photo_cameraImage coming soon 269722 GROUND CABLE BC/BKC5020 €4.46
44
photo_cameraImage coming soon 261076 Woodruff Key €2.46
46
photo_cameraImage coming soon 280381 Spacer €3.43
48
photo_cameraImage coming soon 262483 SPINNER MCV3100 *usa PR18Y €2.43
51
Maruyama GK761PL Fuel Tank 283162 Maruyama GK761PL Fuel Tank €34.92
52
photo_cameraImage coming soon 283438 TANK CAP ASSY Incl.53-54 €32.82
55
photo_cameraImage coming soon 265752 Fuel Pipe PickXup Ass'y €23.86
56
photo_cameraImage coming soon 264031 Fuel Pipe Ass'y €9.11
57
photo_cameraImage coming soon 261115 Grommet €7.21
60
photo_cameraImage coming soon 264653 FUEL FILTER €7.86
61
photo_cameraImage coming soon 261117 BC450 TANK CLAMP €2.46
62
photo_cameraImage coming soon 264318 Rubber €3.43
63
photo_cameraImage coming soon 261118 Pad €3.43
64
photo_cameraImage coming soon 261117 BC450 TANK CLAMP €2.46
65
photo_cameraImage coming soon 266959 LABEL €4.10
67
photo_cameraImage coming soon 261181 BEARING 6000C3 €12.95
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 283436 NUT X LBR 1506 VRA €154.36
3
photo_cameraImage coming soon 262991 Purge Body €26.36
4
photo_cameraImage coming soon 262992 Cover Plate €8.68
5
photo_cameraImage coming soon 261874 Primer Bulb €18.01
6
photo_cameraImage coming soon 283905 Diaphragm Meterring €34.38
7
photo_cameraImage coming soon 262993 Gasket €7.53
8
photo_cameraImage coming soon 262994 Diaphragm,Fuel Pump €12.94
9
photo_cameraImage coming soon 282576 Gasket €7.21
11
photo_cameraImage coming soon 261871 O-RING JET *16-104 AE320 AE500 €5.47
12
photo_cameraImage coming soon 261876 E-Ring €2.62
13
photo_cameraImage coming soon 261658 Swivel €7.69
19
photo_cameraImage coming soon 283181 GASKET €3.43
20
photo_cameraImage coming soon 264708 CLEANER ASSY Incl.21-23 €20.67
21
Maruyama BC2300RS Filter Cover 264709 Maruyama BC2300RS Filter Cover €14.57
22
photo_cameraImage coming soon 264693 HOUSING €27.31
23
Maruyama BC2300RS Air Filter 264695 Maruyama BC2300RS Air Filter €7.31
25
photo_cameraImage coming soon 269834 CARBURETOR SCREW MX21 M5x60 €2.48
26
photo_cameraImage coming soon 283171 RECOIL STARTER ASSY Incl.27-41 €89.17
27
photo_cameraImage coming soon 283172 STARTER ASSY Incl.28-36 €75.46
28
photo_cameraImage coming soon 286363 REEL €14.48
29
photo_cameraImage coming soon 286364 CAM PLATE €16.69
30
photo_cameraImage coming soon 283290 DAMPER SPRING €17.80
31
Maruyama BC3021RS Starter Spring 280931 Maruyama BC3021RS Starter Spring €18.99
32
photo_cameraImage coming soon 267213 PULLEY SCREW STARTER MCV3100TS €3.11
35
photo_cameraImage coming soon 261725 Starter Grip €5.97
37
photo_cameraImage coming soon 283173 STARTER PULLEY Incl.38-41 €20.89
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Maruyama Parts for Hedge Trimmer GK761PL

Fix Your Hedge Trimmer Maruyama GK761PL. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following tables, look for the spare part and its respective code.
Hedge Cutter Maruyama GK761PL

Maruyama Hedge Trimmer GK761PL Spare Parts Pag.1
Main Body Pag.1
# Part. Num. Description
1 362383 GK761PL
2 271472 UPPER CASE
3 270021 CLUTCH DRUM
4 271473 PINION GEAR
5 271474 PLATE
6 580767 BEARING 6001 2RS
7 270423 BEARING 608ZZ
8 991937 GREASE NIPPLE
9 991924 SCREW M3X5
10 271475 LOWER CASE
11 271474 PLATE
12 270423 BEARING 608ZZ
13 991924 SCREW M3X5
14 271465 CRANK COMPLETE
15 271466 CONROD
16 270567 FELT
17 271470 GUIDE PLATE
18 271471 BLADE
19 270371 BLADE GUARD W
20 270757 PLATE
21 580777 SNAP RING
22 580791 HEXAGON HEAD BOLT
23 991914 SCREW
24 271229 SCREW
25 991941 U-NUT
26 991913 WASHER
27 272280 SCREW
28 271230 SCREW
29 271231 SCREW
30 271469 FRONT STOPPER
31 283526 LABEL
32 271454 HANDLE ASSY
33 271278 REAR HANDLE L
34 271279 REAR HANDLE R
35 271280 THROTTLE LEVER
36 271281 STOP LEVER
37 271282 LOCK LEVER
38 271283 LEVER STOPPER
39 271284 ROD
40 271285 SWITCH
41 271398 CABLE COMP.
42 271287 SPACER
43 271288 SPRING
44 271289 SPRING
45 270400 SPRING
46 271276 SCREW
47 271482 FRAME L
48 271483 SPACER
49 991941 U-NUT
50 271484 LINE SEAL
51 271485 FRAME R
52 271483 SPACER
53 991941 U-NUT
54 271484 LINE SEAL
55 271276 SCREW
56 271455 DAMPER
57 271456 SPRING
58 271457 SPRING
59 271458 SCREW
60 271459 REAR STOPPER
61 271460 WASHER
62 270071 BLADE COVER(DL)
63 270566 LABEL
64 271476 FRONT HANDLE
65 271477 PROTECTOR
66 271478 SCREW
67 271479 SPACER
68 271462 SCREW
69 271425 SCREW
70 271221 TUBE
71 266957 LABEL
72 266960 LABEL
Engine Pag.2
1 859547 GK761PL
2 283149 CYLINDER
3 283177 GASKET
4 267290 CAP SCREW
5 265802 INSULATOR - New gasket required
6 267049 GASKET
7 265924 CAP SCREW
8 283166 MUFFLER COMPLETE
9 264223 CAP SCREW M5X40
10 283176 GASKET
11 283175 UNDER COVER
12 261607 CAP SCREW
13 286388 TOP COVER Incl.14-16
14 283161 TOP COVER
15 286399 BOLT
16 286270 WASHER
17 262712 OIL SEAL
18 262713 OIL SEAL
19 054676 RING SNAP
20 261246 CAP SCREW
21 283265 PISTON
22 263789 PISTON RING
23 281185 PISTON PIN
24 261037 BEARING NEEDLE
25 261576 CLIP PISTON
26 283155 CRANKSHAFT COMPLETE
27 280404 CLUTCH ASSY
28 280568 CLUTCH SHOE
29 280569 CLUTCH BOSS
30 280570 SPRING
31 283160 FAN COVER
32 261250 CAP SCREW
33 283163 ROTOR ASSY
34 283164 ROTOR Incl.34-42
35 283165 IGNITION COIL ASSY Incl.36-42
36 283267 COIL
37 283268 CORD ASSY Incl.38-40
38 283269 CORD
39 283178 PLUG CAP
40 272805 CONNECTOR
41 283271 CAP
42 283272 TIBE
43 269722 LEAD
44 261076 WOODRUFF KEY 3X10
45 261077 NUT
46 280381 SPACER
47 281211 CAP SCREW M4X20
48 262483 SPARK PLUG NGK BPMR6Y
49 283140 GROMMET
50 283437 TANK ASSY Incl.51-61
51 283162 FUEL TANK
52 283438 TANK CAP ASSY Incl.53-54
53 283727 PACKING
54 283764 BREATHER ASSY
55 265752 FUEL PIPE Incl.56-61
56 264031 FUEL PIPE ASSY Incl.57-59
57 261115 GROMMET
58 261690 FUEL PIPE
59 263038 RETURN PIPE
60 264653 FILTER ASSY
61 261117 CLIP
62 264318 PAD
63 261118 PAD
64 261117 CLIP
65 266959 LABEL
66 283150 CRANKCASE
67 261181 BEARING 6000C3
68 273272 LABEL
Carburetor - Recoil Starter pag.3
1 283436 CARBURETOR ASSY Incl.2-15 New gasket
2 268499 CARBURETOR BODY
3 262991 PURGE BODY
4 262992 COVER
5 261874 PRIMER
6 283905 DIAPHRAGM
7 262993 GASKET
8 262994 DIAPHRAGM
9 282576 GASKET
10 289621 JET
11 261871 O-RING
12 261876 RING
13 261658 SWIVEL
14 264682 SCREW
15 262996 SCREW
16 268535 STAY
17 280144 TAPPING SCREW
18 274138
19 283181 GASKET
20 264708 CLEANER ASSY Incl.21-23
21 264709 AIR CLEANER COVER
22 264693 HOUSING
23 264695 FILTER
24 268963 GASKET
25 269834 SCREW
26 283171 RECOIL STARTER ASSY Incl.27-41
27 283172 STARTER ASSY Incl.28-36
28 286363 REEL
29 286364 CAM PLATE
30 283290 DAMPER SPRING
31 280931 SPIRAL SPRING
32 267213 SCREW
33 283291 ROPE ASSY Incl.34-36
34 283292 STARTER ROPE
35 261725 STARTER GRIP
36 283293 ROPE STOPPER
37 283173 STARTER PULLEY Incl.38-41
38 283294 STARTER PULLEY
39 280936 RACHET
40 283295 RETURN SPRING
41 020299 E-RING #4
42 264535 SCREW
Accessories Pag.4
1 264606 TOOL SET
2 264607 PLUG WRENCH
3 219431 SPANNER
4 219432 WRENCH
5 274123
6 523746
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Maruyama websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Maruyama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Maruyama GK761PL
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Maruyama GK761PL Parts Diagram

Maruyama GK761PL Parts Diagram

Download (1.02MB)

You might also like

Maruyama SKU: 283265
Maruyama HT230D Piston Genuine replacement part Makita, Piston for Hedgetrimmers HT230D-R-01 - HT230DS-R-01 - GK761PL. Part for the following products: - Hedgetrimmer Maruyama HT230D-R-01 - Hedgetrimmer Maruyama HT230DS-R-01...
Last items in stock €33.42
Maruyama SKU: 261246
Maruyama HT230D Cap Screw M5x25 Genuine replacement part Makita, Cap Screw M5x25 for Hedgetrimmers HT230D-R-01 - HT230DS-R-01 - GK761PL. Part for the following products: - Hedgetrimmer Maruyama HT230D-R-01 - Hedgetrimmer...
AVAILABLE €2.48
Maruyama SKU: 280404
Maruyama HT230D Clutch Assembly Genuine replacement part Makita, Clutch Assembly for Hedgetrimmers HT230D-R-01 - HT230DS-R-01 - GK761PL. Part for the following products: - Hedgetrimmer Maruyama HT230D-R-01 - Hedgetrimmer...
Usually Ships in: 10/15 Business Days Approx. €41.92
Maruyama SKU: 270021
Maruyama HT230D Clutch Drum Genuine replacement part Makita, Clutch Drum for Hedgetrimmers HT230D-R-01 - HT230DS-R-01 - GK761PL. Part for the following products: - Hedgetrimmer Maruyama HT230D-R-01 - Hedgetrimmer...
AVAILABLE €57.29
Maruyama SKU: 271466
Maruyama HT230D Conrod HT Genuine replacement part Makita, Conrod HT for Hedgetrimmers HT230D-R-01 - HT230DS-R-01. Part for the following products: - Hedgetrimmer Maruyama HT230D-R-01 - Hedgetrimmer Maruyama...
on Demand Only Call Us Before €74.06
Maruyama SKU: 265802
Maruyama HT230D Insulator Genuine replacement part Makita, Carburator Insulator for Hedgetrimmers HT230D-R-01 - HT230DS-R-01. Part for the following products: - Hedgetrimmer Maruyama HT230D-R-01 - Hedgetrimmer...
Usually Ships in: 10/15 Business Days Approx. €34.26
Maruyama SKU: 263789
Maruyama Brushcutter BC2300RS Piston Ring Genuine replacement part Maruyama, Piston ring for Brushcutter BC2300RS - Hedgecutter HT230D-R-01. Part for the following products: -  Brushcutter Maruyama BC2300RS -  Hedgecutter Maruyama...
Usually Ships in: 10/15 Business Days Approx. €7.86
Maruyama SKU: 264709
Maruyama BC2300RS Filter Cover Genuine spare part Maruyama, Filter Cover for Brushcutter Maruyama BC2300RS. Part for the following products: -  Maruyama BC2300RS -  Maruyama HT230D-R-01 -  Maruyama PP2430...
AVAILABLE €14.57
Maruyama SKU: 264695
Maruyama BC2300RS Air Filter Genuine spare part Maruyama, Air Filter for Brushcutter Maruyama BC2300RS - MX21. Part for the following products: -  Maruyama BC2300RS -  Maruyama HT230D-R-01 -  Maruyama MX21...
Usually Ships in: 10/15 Business Days Approx. €7.31
Comments (0)
