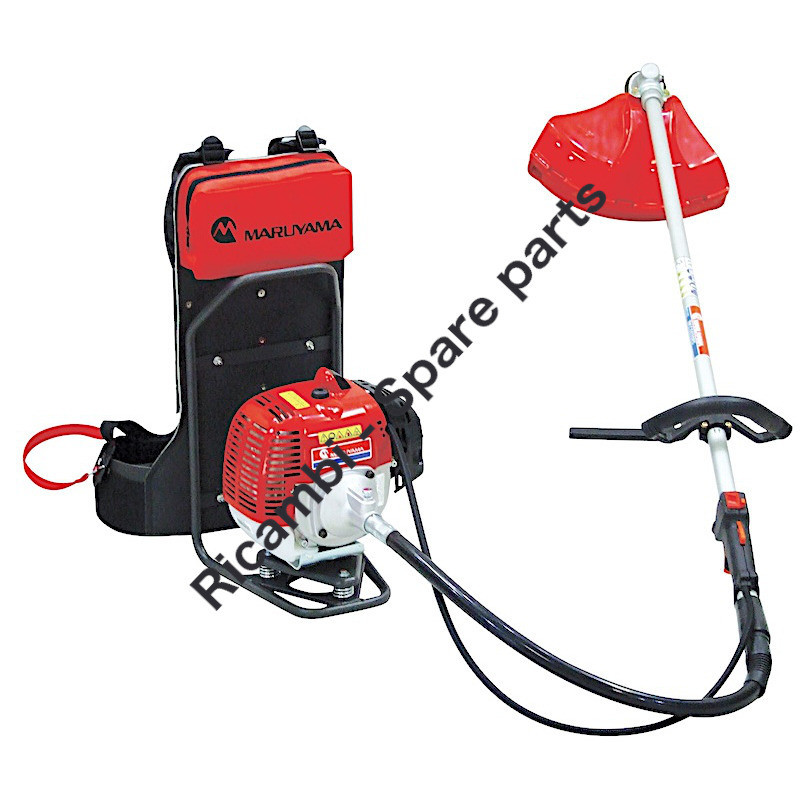

Maruyama Parts for Brushcutter BKC5020RS

Name: Maruyama Parts for Brushcutter BKC5020RS
Brand: Maruyama
SKU: Maruyama BKC5020RS
Availability: InStock

SKU: Maruyama BKC5020RS

€0.12

VAT included

Maruyama Parts for Brushcutter BKC5020RS

Fix Your Brushcutter Maruyama BKC5020RS. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

New
Out-of-Stock

Maruyama Parts for Brushcutter BKC5020RS

SKU: Maruyama BKC5020RS Condition: New

€0.12

VAT included

Maruyama Parts for Brushcutter BKC5020RS

Fix Your Brushcutter Maruyama BKC5020RS. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

172 Spare parts

6 exploded views

Download Exploded PDF

Quantity

Out-of-Stock

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS

MORE INFO:: CHECK THE VERSION OF YOUR TOOL BEFORE THE CHECKOUT

CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Machine Type: Brushcutters

Original Product Manufacturer warranty included

Technical Support Our team helps you choose

Secure and guaranteed payments

172 spare parts

Page 1 View exploded Usually Ships in: 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
2	Image coming soon	222416 Clutch Case Ass'y	€109.14
3	Image coming soon	222085 Clutch Case	€33.64
4	Image coming soon	222442 Bearing	€7.87
5	Image coming soon	012380 O-RING BELL CLUTCH BKC5020RS	€1.90
6	Image coming soon	550118 Snap Ring	€1.90
7	Image coming soon	220336 Clutch Drum	€34.27
8	Image coming soon	222530 Outer Ass'y	€145.94
9	Image coming soon	222531 Outer	€98.86
10	Image coming soon	215885 Cover	€9.14
11	Image coming soon	011338 O-Ring	€1.90
12	Image coming soon	211895 Inner Shaft	€37.44
13	Image coming soon	224125 Driveshaft Tube	€91.37
14	Image coming soon	216965 Driveshaft Ass'y	€48.23
15	Image coming soon	215730 Joint Pipe Ass'y	€25.63
16	Image coming soon	087786 Cap Screw	€1.90
18	Image coming soon	232104 HANDLE BC3420 / BC5020	€36.93
19	Image coming soon	226462 Loop Handle	€48.48
21	Image coming soon	081027 Nut	€1.90
22	Image coming soon	223188 Label	€6.22
23	Image coming soon	228422 Label	€5.97
24	Image coming soon	219113 SCREW BKC5020RS	€6.34
25	Image coming soon	232092 SAFETY COVER ASS'Y	€33.00
26	Image coming soon	231262 SAFETY COVER ASS'Y	€29.18
28	Image coming soon	221580 LOWER CLAMP SCREW BC501 GUARD	€1.90
29	Image coming soon	232093 CLAMP	€6.22
30	Image coming soon	223179 Bracket	€2.92
32	Image coming soon	231704 BC501RS WASHER	€1.90
33	Image coming soon	231882 String Cutter Ass'y	€7.75
34	Image coming soon	230747 String Cutter	€5.33
35	Image coming soon	261250 Cap Screw M	€1.90
36	Image coming soon	228325 Nut	€1.90
37		230748 Cover Extention	€8.76
38	Image coming soon	225380 Label	€1.90
39	Image coming soon	232101 Throttle Lever Ass'y	€55.84

Page 2 View exploded Usually Ships in: 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1	Image coming soon	234837 Gearcase Ass'y	€213.20
2	Image coming soon	232850 Gearcase	€52.79
4	Image coming soon	217134 Bolt	€1.90
5	Image coming soon	234349 Gear Set	€97.72
6	Image coming soon	014490 BEARING 6000 = 8250312	€6.28
7	Image coming soon	106933 BEARING 6000Z COPP.C. BC5020RS	€7.49
8	Image coming soon	014210 SEEGER RING C.CON.BC4320 901560	€1.90
9	Image coming soon	054676 Snap Ring	€1.90
10	Image coming soon	014490 BEARING 6000 = 8250312	€6.28
11	Image coming soon	012544 Bearing	€7.87
12	Image coming soon	012380 O-RING BELL CLUTCH BKC5020RS	€1.90
13	Image coming soon	232049 Oil Seal	€5.59
14	Image coming soon	232322 Bracket A Ass'y	€43.15
15	Image coming soon	232052 Bracket B	€16.49
16	Image coming soon	230849 Stabilizer	€9.52
17	Image coming soon	232920 Cover Dust Proof Board	€2.92
18	Image coming soon	217135 Bolt	€1.90

Page 3 View exploded Usually Ships in: 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
2	Image coming soon	232316 Turn Bracket Ass'y	€28.43
3	Image coming soon	211644 Bearing Case	€6.09
4	Image coming soon	220619 Bearing	€8.25
5	Image coming soon	092578 Bolt	€1.90
6	Image coming soon	231946 Spring	€2.42
7	Image coming soon	231947 Spring Holder	€1.90
8	Image coming soon	228250 Bolt	€1.90
9	Image coming soon	231948 Washer	€1.90
10	Image coming soon	215230 Nut	€1.90
11	Image coming soon	231949 Screw	€1.90
12	Image coming soon	223704 Cap Screw	€1.90
13	Image coming soon	219959 Nut	€1.90
14	Image coming soon	226490 Pad	€171.82
15	Image coming soon	215230 Nut	€1.90
16	Image coming soon	084020 Nut	€1.90

Page 4 View exploded Usually Ships in: 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1	Image coming soon	858372 Engine Assy	€644.81
2	Image coming soon	283076 Cylinder	€222.33
3	Image coming soon	282259 Gasket	€2.42
4	Image coming soon	261612 Cap Screw	€1.90
5	Image coming soon	282261 Insulator	€16.49
6	Image coming soon	282262 Gasket	€1.90
7	Image coming soon	267290 Cap Screw	€1.90
8	Image coming soon	283534 Muffler	€30.45
9	Image coming soon	282271 Gasket	€11.42
10	Image coming soon	266713 SCREW SILENCER BKC5020	€2.79
11	Image coming soon	283315 Screw	€1.90
12	Image coming soon	286390 Top Cover Ass'y	€34.27
13	Image coming soon	282274 Top Cover	€31.73
14	Image coming soon	285843 KNOB BKC / BC5020RS	€4.95
15	Image coming soon	286362 Washer	€1.90
16	Image coming soon	282277 Crankcase	€97.33
17	Image coming soon	262658 BEARING BC520 6202C3	€18.28
18	Image coming soon	262660 OIL SEAL BC500 TC15357	€4.56
19	Image coming soon	262565 OIL SEAL BC500 ISCD15257	€14.97
20	Image coming soon	012380 O-RING BELL CLUTCH BKC5020RS	€1.90
21	Image coming soon	261612 Cap Screw	€1.90
23	Image coming soon	282941 Piston Ring	€7.87
24	Image coming soon	262749 PISTON PIN 520 / BKC520	€5.71
25	Image coming soon	262659 CAGE ROLLER BC520 / BK520	€12.19
26	Image coming soon	262479 CIRCLIP BC520 / BKC52	€1.90
27	Image coming soon	283038 Crankshaft/Conn.Rod Ass'y	€158.64
28	Image coming soon	282743 CLUTCH BC / BKC-5020/4320	€48.29
30	Image coming soon	263617 CLUTCH SPRING BC5020	€6.09
31	Image coming soon	283671 Cap Screw	€3.29
32	Image coming soon	262683 WASHER BC450	€1.90
33	Image coming soon	262682 BC450 CLUTCH WASHER	€1.90
34	Image coming soon	282285 BC5020RS CLUTCH SIDE CARTER	€26.64
35	Image coming soon	261250 Cap Screw M	€1.90
37	Image coming soon	282288 Rotor/Fan	€98.67
38	Image coming soon	282289 Ignition Coil Ass'y	€107.87
40	Image coming soon	282290 Spark Plug Wire Ass'y	€24.36
41	Image coming soon	282292 Soffietto Spark Plug	€6.60
42	Image coming soon	261075 SPRING SPARKPLUG BC5020	€2.79
43	Image coming soon	282291 Spark Plug Wire	€3.29
44	Image coming soon	261072 BC5020 IGNITION COIL CAP	€1.90
45	Image coming soon	261076 Woodruff Key	€1.90
47	Image coming soon	280381 Spacer	€3.43
48	Image coming soon	283669 Cap Screw	€1.90
49	Image coming soon	262483 SPINNER MCV3100 *usa PR18Y	€6.90
50	Image coming soon	281172 Occhiello	€1.90
51	Image coming soon	269722 GROUND CABLE BC/BKC5020	€3.43
52	Image coming soon	264588 CLAMP KJBK50	€1.90
53	Image coming soon	282294 Recoil Starter Ass'y	€145.94
54	Image coming soon	282295 Starter Ass'y	€129.70
55	Image coming soon	280994 Pulley	€9.89
56	Image coming soon	280995 SPRING STARTER BKC520RS	€12.05
57	Image coming soon	280996 Pawl	€3.93
58	Image coming soon	280997 Return Spring	€1.90
59	Image coming soon	283123 Spring Comp	€52.03
60	Image coming soon	280999 Plate	€10.41
61	Image coming soon	281000 Set Screw	€1.90
62	Image coming soon	281001 Pawl	€6.09
63	Image coming soon	281002 Return Spring	€1.90
65	Image coming soon	262633 STARTING HANDLE BC520	€6.98
66	Image coming soon	262981 CAP HANDLE BC520	€3.43
67	Image coming soon	281005 Rope Stopper	€1.90
68	Image coming soon	282622 Screw	€1.90
69	Image coming soon	282623 Starter Pulley Ass'y	€17.39
71	Image coming soon	262636 Pawl	€4.56
72	Image coming soon	262637 Return Spring	€1.90
73	Image coming soon	262638 SEEGER BKC520	€1.90
74	Image coming soon	261607 Cap Screw	€1.90
75	Image coming soon	262714 MARUYAMA RED / BLUE LABEL	€2.42
76	Image coming soon	267561 Label	€1.90
77	Image coming soon	126990 Nut	€1.90
78	Image coming soon	283243 Blacket	€48.35
79	Image coming soon	261607 Cap Screw	€1.90
80	Image coming soon	283284 Label	€3.43
81	Image coming soon	265694 Label	€2.42

Page 5 View exploded Usually Ships in: 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1	Image coming soon	284109 Carburetor Ass'y	€112.81
2	Image coming soon	283124 Pump Body	€62.56
3	Image coming soon	263726 Cover Plate	€4.70
4	Image coming soon	283905 Diaphragm Meterring	€33.00
5	Image coming soon	263727 MEMBRANE BC450	€2.79
6	Image coming soon	262994 Diaphragm,Fuel Pump	€10.03
7	Image coming soon	282576 Gasket	€5.59
8	Image coming soon	283125 Main Jet	€15.23
9	Image coming soon	261871 O-RING JET *16-104 AE320 AE500	€4.18
10	Image coming soon	261875 Screw	€4.82
12	Image coming soon	261876 E-Ring	€2.03
14	Image coming soon	261658 Swivel	€5.97
15	Image coming soon	261657 Packing	€14.34
17	Image coming soon	282299 Primer Pump	€13.96
18	Image coming soon	282512 PRIMER HOSE BC5020	€1.90
19	Image coming soon	282301 CARBURETOR GASKET BC5020	€1.90
20	Image coming soon	283086 Divider	€3.93
21	Image coming soon	283087 Gasket	€2.42
22	Image coming soon	282302 AIR FILTER CASE ASS'Y BC5020RS	€16.87
23	Image coming soon	282303 AIR FILTER CASE BC5020	€9.77
25	Image coming soon	282304 AIR COVER VALVE BKC5020RS	€1.90
26	Image coming soon	282305 AIR LEVER BC5020H	€1.90
27	Image coming soon	269032 SCREW AIR VALVE BKC5020RS	€1.90
29	Image coming soon	262720 Cap Screw	€1.90
30	Image coming soon	264807 Screw	€1.90
31	Image coming soon	282481 AIR FILTER PLATE BC5020	€2.16
32	Image coming soon	282306 AIR FILTER BC5020 / BKC5020RS	€4.82
33	Image coming soon	282307 Cleaner Cover	€8.76
34	Image coming soon	281438 Knob	€3.17
35	Image coming soon	282309 Fuel Tank Ass'y	€77.41
36	Image coming soon	282310 Fuel Tank	€26.64
37		281564 Fuel Tank Cap Ass'y	€7.23
38	Image coming soon	269377 Gasket	€1.90
39	Image coming soon	282312 Fuel Pipe Ass'y	€26.64
40		268065 Grommet	€5.59
42	Image coming soon	262649 Tube	€1.90
43	Image coming soon	261590 Breather	€5.45
44	Image coming soon	261117 BC450 TANK CLAMP	€1.90
45	Image coming soon	267328 FUEL FILTER BC5020	€9.26
46	Image coming soon	261117 BC450 TANK CLAMP	€1.90
47	Image coming soon	261117 BC450 TANK CLAMP	€1.90

Page 6 View exploded Usually Ships in: 10/15 BUSINESS DAYS

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Maruyama Parts for Brushcutter BKC5020RS

Fix Your Brushcutter Maruyama BKC5020RS. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following tables, look for the spare part and its respective code.

Maruyama Brushcutter BKC5020RS
Pag.1
Main body
#	Part Num.	Description
1	364135	BKC5020RS-01
2	222416	Clutch Case Ass'y
3	222085	Clutch Case
4	222442	Bearing
5	012380	Snap Ring
6	550118	Snap Ring
7	220336	Clutch Drum
8	222530	Outer Ass'y
9	222531	Outer
10	215885	Cover
11	011338	O-Ring
12	211895	Inner Shaft
13	224125	Driveshaft Tube
14	216965	Driveshaft Ass'y
15	215730	Joint Pipe Ass'y
16	087786	Cap Screw
17	012487	Washer
18	232104	Loop Handle Ass'y
19	226462	Loop Handle
20	215608	Cap Screw
21	081027	Nut
22	223188	Label
23	228422	Label
24	219113	Cap Screw
25	232092	Safety Cover Ass'y
26	231262	Safety Cover Ass'y
27	223180	Threaded Bracket
28	221580	Screw
29	232093	Bracket Ass'y
30	223179	Bracket
31	220632	Cap Screw
32	231704	Washer
33	231882	String Cutter Ass'y
34	230747	String Cutter
35	261250	Cap Screw
36	228325	Nut
37	230748	Cover Extention
38	225380	Label
39	232101	Throttle Lever Ass'y
Pag.2
Gearcase
#	Part Num.	Description
1	234837	Gearcase Ass'y
2	232850	Gearcase
3	234109	Bolt
4	217134	Bolt
5	234349	Gear Set
6	014490	Bearing
7	106933	Bearing
8	014210	Snap Ring
9	054676	Snap Ring
10	014490	Bearing
11	012544	Bearing
12	012380	Snap Ring
13	232049	Oil Seal
14	232322	Bracket A Ass'y
15	232052	Bracket B
16	230849	Stabilizer
17	232920	Nut
18	217135	Bolt
Pag.3
Support Frame
#	Part Num.	Description
1	224730	Support Frame
2	232316	Turn Bracket Ass'y
3	211644	Bearing Case
4	220619	Bearing
5	092578	Bolt
6	231946	Spring
7	231947	Spring Holder
8	228250	Bolt
9	231948	Washer
10	215230	Nut
11	231949	Screw
12	223704	Cap Screw
13	219959	Nut
14	226490	Pad
15	215230	Nut
16	084020	Nut
Pag.4
Engine
#	Part Num.	Description
1	858372	Engine
2	283076	Cylinder
3	282259	Gasket
4	261612	Cap Screw
5	282261	Insulator
6	282262	Gasket
7	267290	Cap Screw
8	283534	Muffler
9	282271	Gasket
10	266713	Cap Screw
11	283315	Screw
12	286390	Top Cover Ass'y
13	282274	Top Cover
14	285843	Knob
15	286362	Washer
16	282277	Crankcase
17	262658	Bearing
18	262660	Oil Seal
19	262565	Oil Seal
20	012380	Snap Ring
21	261612	Cap Screw
22	283675	Piston
23	282941	Piston Ring
24	262749	Piston Pin
25	262659	Bearing, Needle
26	262479	Clip, Piston Pin
27	283038	Crankshaft/Conn.Rod Ass'y
28	282743	Clutch Ass'y
29	282624	Clutch Shoe
30	263617	Spring, Clutch
31	283671	Cap Screw
32	262683	Washer
33	262682	Wave Washer
34	282285	Fan Cover
35	261250	Cap Screw
36	282287	Magneto Ass'y
37	282288	Rotor/Fan
38	282289	Ignition Coil Ass'y
39	267572	Coil
40	282290	Spark Plug Wire Ass'y
41	282292	Plug Boot
42	261075	Connector
43	282291	Spark Plug Wire
44	261072	Cap
45	261076	Woodruff Key
46	262731	Nut,Rotor
47	280381	Spacer
48	283669	Cap Screw
49	262483	Spark Plug
50	281172	Grommet
51	269722	Lead
52	264588	Clamp
53	282294	Recoil Starter Ass'y
54	282295	Starter Ass'y
55	280994	Pulley
56	280995	Spiral Spring
57	280996	Pawl
58	280997	Return Spring
59	283123	Spring Comp
60	280999	Plate
61	281000	Set Screw
62	281001	Pawl
63	281002	Return Spring
64	281004	Starter Rope
65	262633	Starter Grip
66	262981	Cap
67	281005	Rope Stopper
68	282622	Screw
69	282623	Starter Pulley Ass'y
70	282282	Starter Pulley
71	262636	Pawl
72	262637	Return Spring
73	262638	E-Ring
74	261607	Cap Screw
75	262714	Label
76	267561	Label
77	126990	Nut
78	283243	Blacket
79	261607	Cap Screw
80	283284	Label
81	265694	Label
Pag.5
Carburetor, Fuel Tank
#	Part Num.	Description
1	284109	Carburetor Ass'y
2	283124	Pump Body
3	263726	Cover Plate
4	283905	Diaphragm, Meterring
5	263727	Gasket
6	262994	Diaphragm,Fuel Pump
7	282576	Gasket
8	283125	Main Jet
9	261871	O-Ring
10	261875	Screw
11	264677	Bracket
12	261876	E-Ring
13	264678	Washer
14	261658	Swivel
15	261657	Packing
16	263737	Screw
17	282299	Pump
18	282512	Fuel Pipe
19	282301	Gasket
20	283086	Divider
21	283087	Gasket
22	282302	Case Ass'y
23	282303	Case Body
24	282484	Sleeve
25	282304	Valve
26	282305	Lever
27	269032	Screw
28	269423	Nut
29	262720	Cap Screw
30	264807	Cap Screw
31	282481	Plate
32	282306	Element
33	282307	Cleaner Cover
34	281438	Knob
35	282309	Fuel Tank Ass'y
36	282310	Fuel Tank
37	281564	Fuel Tank Cap Ass'y
38	269377	Gasket
39	282312	Fuel Pipe Ass'y
40	268065	Grommet
41	282511	Return Pipe
42	262649	Fuel Pipe
43	261590	Breather
44	261117	Clip
45	267328	Fuel Filter Ass'y
46	261117	Clip
47	261117	Clip
Pag.6
Accessories
#	Part Num.	Description
1	228008	Box Spanner
2	054756	Double-ended Wrench
3	219432	Wrench
4	219433	Wrench
5	212300	Lever Handle
6	211337	Grease Tube
7	220548	Band
8	227910	3-Teeth Blade
9	220534	Blade Cover
10	234860	Nylon Head (L)
11	234813	Instruction Manual
12	234814	Instruction Manual
13	523501	Parts List

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Maruyama websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Maruyama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Maruyama BKC5020RS

Data sheet

Machine Type: Brushcutters
SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: CHECK THE VERSION OF YOUR TOOL BEFORE THE CHECKOUT
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

Condition New

Download

Maruyama BKC5020RS Drawing

Download (2.44MB)

Maruyama SKU: 280931

Maruyama BC3021RS Starter Spring

Maruyama BC3021RS-01 Starter Spiral Spring Genuine replacement part Makita, Starter Spiral Spring for Brushcutters BC3021RS-01 - BC2321RS-01 - BC260RS - BC2621RS - BC3021H-RS-01. Part for the following products: - Maruyama...

AVAILABLE €18.99

Details

Maruyama SKU: 263789

Maruyama BC2300RS Piston Ring

Maruyama Brushcutter BC2300RS Piston Ring Genuine replacement part Maruyama, Piston ring for Brushcutter BC2300RS - Hedgecutter HT230D-R-01. Part for the following products: - Brushcutter Maruyama BC2300RS - Hedgecutter Maruyama...

Usually Ships in: 10/15 Business Days Approx. €7.86

Details

Maruyama SKU: 264709

Maruyama BC2300RS Filter Cover

Maruyama BC2300RS Filter Cover Genuine spare part Maruyama, Filter Cover for Brushcutter Maruyama BC2300RS. Part for the following products: - Maruyama BC2300RS - Maruyama HT230D-R-01 - Maruyama PP2430...

AVAILABLE €14.57

Details

Maruyama SKU: 264695

Maruyama BC2300RS Air Filter

Maruyama BC2300RS Air Filter Genuine spare part Maruyama, Air Filter for Brushcutter Maruyama BC2300RS - MX21. Part for the following products: - Maruyama BC2300RS - Maruyama HT230D-R-01 - Maruyama MX21...

Usually Ships in: 10/15 Business Days Approx. €7.31

Details

Comments (0)

No customer reviews for the moment.

Cart (0)

Subcategories

Subcategories

Subcategories

Power Tools Spare Parts

Garden Spare Parts

Air Compressor Spare Parts

Protezione & Edilizia

Impianti & Utensili

Casa & Giardino

Maruyama Parts for Brushcutter BKC5020RS

Maruyama Parts for Brushcutter BKC5020RS

Maruyama Parts for Brushcutter BKC5020RS

Maruyama Parts for Brushcutter BKC5020RS

Maruyama Parts for Brushcutter BKC5020RS

Data sheet

Specific References

Download

Maruyama BKC5020RS Drawing

You might also like

Products

News

Notes

Our company
