Maruyama

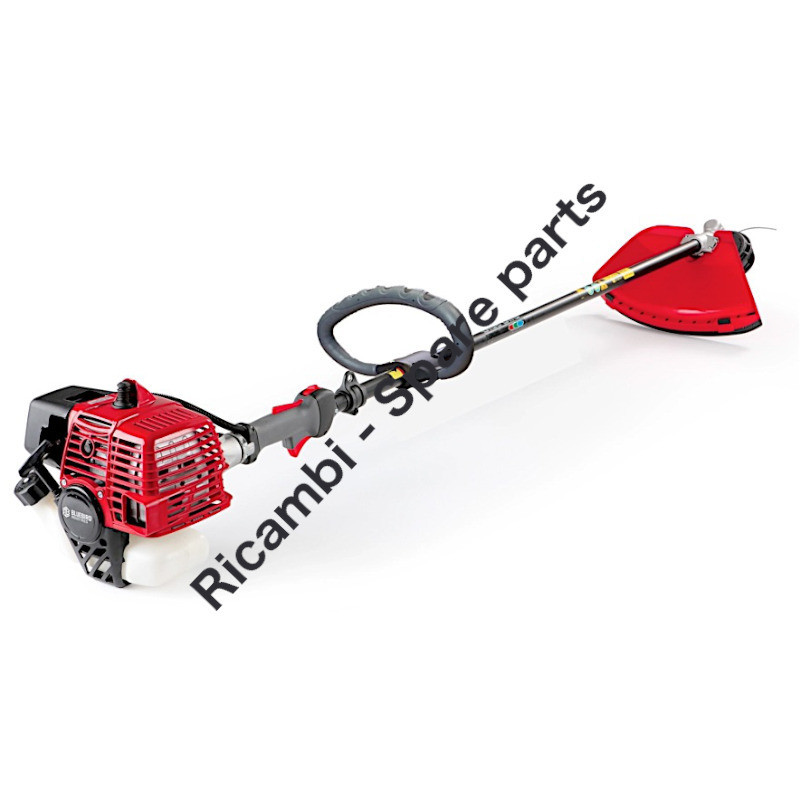

Maruyama Parts for Brushcutter BCL2250RS

SKU: Maruyama BCL2250RS
€0.12
VAT included

Maruyama Parts for Brushcutter BCL2250RS

Fix Your Brushcutter Maruyama BCL2250RS. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

Maruyama Parts for Brushcutter BCL2250RS
  • Out-of-Stock
  • Maruyama Parts for Brushcutter BCL2250RS
  • Maruyama BCL2250RS Drawing
  • Maruyama BCL2250RS Drawing - 1
  • Maruyama BCL2250RS Drawing - 2
  • Maruyama BCL2250RS Drawing - 3
Maruyama

Maruyama Parts for Brushcutter BCL2250RS

SKU: Maruyama BCL2250RS Condition: New
€0.12
VAT included

Maruyama Parts for Brushcutter BCL2250RS

Fix Your Brushcutter Maruyama BCL2250RS. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

settings 80 Spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
Quantity
Out-of-Stock

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Machine Type: Brushcutters
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
80 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 221473 Clutch Case Ass'y €45.52
3
 photo_cameraImage coming soon 221474 Clutch Case €37.16
8
 photo_cameraImage coming soon 221524 ASTA INTERNA BCL2250RS €32.67
9
 photo_cameraImage coming soon 224123 Driveshaft Tube €144.08
10
 photo_cameraImage coming soon 223188 Label €6.22
19
 photo_cameraImage coming soon 222142 Screw €2.46
20
 photo_cameraImage coming soon 220533 Hanging Strap Ass'y €19.65
23
 photo_cameraImage coming soon 215390 SET LAMETTA TAGLIAF. BK520 215392 €5.60
24
 photo_cameraImage coming soon 215392 LAMETTA TAGLIAFILO BC450 €4.27
28
 photo_cameraImage coming soon 219130 BANDELLA PARASASSI BC450 €9.22
34
 photo_cameraImage coming soon 817002 Bolt €2.46
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 223266 COPPIA CONICA CPL BCL2250 *ad esa €133.00
7
 photo_cameraImage coming soon 212999 CUSCINETTO COPPIA MC-S 6001-2RK €10.05
8
 photo_cameraImage coming soon 055185 Snap Ring €13.23
11
 photo_cameraImage coming soon 140269 SEEGER CUSCINETTO *usa 228477 €2.23
14
 photo_cameraImage coming soon 212986 Boss Adapter €12.82
15
 photo_cameraImage coming soon 140275 Clamping Washer €11.25
16
 photo_cameraImage coming soon 215547 Stabilizer €5.53
17
 photo_cameraImage coming soon 215610 Bolt €4.29
18
 photo_cameraImage coming soon 089737 BULLONE FISS. COPPIA CONICA BC230 €2.23
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 Cylinder 266249 Cylinder €144.08
4
 photo_cameraImage coming soon 267290 Cap Screw €1.90
5
 Maruyama HT230D Insulator 265802 Maruyama HT230D Insulator €34.26
6
 photo_cameraImage coming soon 267049 Gasket €2.78
11
 photo_cameraImage coming soon 261607 Cap Screw €1.90
17
 photo_cameraImage coming soon 261492 Oil Seal ISCD €5.57
19
 photo_cameraImage coming soon 055185 Snap Ring €13.23
20
 photo_cameraImage coming soon 261612 Cap Screw €1.90
21
 photo_cameraImage coming soon 263569 Piston €38.64
22
 Maruyama BC2300RS Piston Ring 263789 Maruyama BC2300RS Piston Ring €7.86
23
 photo_cameraImage coming soon 261036 Piston Pin €4.59
24
 photo_cameraImage coming soon 263957 Bearing, Needle €11.78
25
 photo_cameraImage coming soon 261576 CIRCLIP BC230 / M28 / MX21 €2.46
26
 photo_cameraImage coming soon 267193 Crankshaft/Conn.Rod Ass'y €99.05
30
 photo_cameraImage coming soon 264505 Bolt €3.82
31
 photo_cameraImage coming soon 261189 Washer €2.50
32
 photo_cameraImage coming soon 261777 Wave Washer €2.46
35
 photo_cameraImage coming soon 261356 Rotor/Fan €88.25
36
 photo_cameraImage coming soon 267173 Spare Part 267173 €98.75
37
 photo_cameraImage coming soon 267174 Spare Part 267174 €86.23
39
 photo_cameraImage coming soon 267404 Cable €2.50
40
 photo_cameraImage coming soon 261074 Plug Boot €106.94
41
 photo_cameraImage coming soon 261075 SPRING SPARKPLUG BC5020 €2.79
42
 photo_cameraImage coming soon 261072 BC5020 IGNITION COIL CAP €1.90
44
 photo_cameraImage coming soon 261076 Woodruff Key €1.90
45
 photo_cameraImage coming soon 261417 NutRotor M €2.46
47
 photo_cameraImage coming soon 261256 COIL FIXING SCREW BK520 €2.48
48
 SPINNER MCV3100 *usa PR18Y 262483 SPINNER MCV3100 *usa PR18Y €6.90
50
 photo_cameraImage coming soon 261202 Grommet €111.59
52
 photo_cameraImage coming soon 261878 Cover Dust Proof Board €2.50
54
 photo_cameraImage coming soon 265694 Label €2.42
55
 photo_cameraImage coming soon 267561 Label €1.90
63
 photo_cameraImage coming soon 261725 Starter Grip €5.97
72
 photo_cameraImage coming soon 261256 COIL FIXING SCREW BK520 €2.48
78
 photo_cameraImage coming soon 261250 Cap Screw M €1.90
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 261871 O-RING JET *16-104 AE320 AE500 €4.18
4
 photo_cameraImage coming soon 262995 Gasket €6.65
5
 photo_cameraImage coming soon 262994 Diaphragm,Fuel Pump €10.03
7
 Gasket 262993 Gasket €9.53
8
 Diaphragm,Metering 261873 Diaphragm,Metering €34.56
9
 photo_cameraImage coming soon 262991 Purge Body €26.36
10
 photo_cameraImage coming soon 261874 Primer Bulb €18.01
11
 photo_cameraImage coming soon 262992 Cover Plate €8.68
13
 photo_cameraImage coming soon 261876 E-Ring €2.03
14
 photo_cameraImage coming soon 261658 Swivel €5.97
16
 photo_cameraImage coming soon 261864 Gasket €3.44
17
 photo_cameraImage coming soon 269052 Case Ass'y Incl.18-23 €10.02
21
 photo_cameraImage coming soon 269032 SCREW AIR VALVE BKC5020RS €1.90
22
 photo_cameraImage coming soon 081028 Nut €2.43
23
 photo_cameraImage coming soon 269051 Sleeve €1.25
24
 photo_cameraImage coming soon 262720 Cap Screw €1.90
25
 photo_cameraImage coming soon 269030 Element €6.36
27
 photo_cameraImage coming soon 269031 Screw €2.43
29
 FUEL TANK BCL225RS 267103 FUEL TANK BCL225RS €24.00
30
 photo_cameraImage coming soon 262726 Fuel Tank Cap Ass'y €9.95
31
 photo_cameraImage coming soon 261105 Gasket €1.75
32
 Breather Ass'y 261696 Breather Ass'y €16.41
35
 photo_cameraImage coming soon 261115 Grommet €7.21
38
 photo_cameraImage coming soon 264653 FUEL FILTER €8.90
39
 photo_cameraImage coming soon 261117 BC450 TANK CLAMP €1.90
40
 photo_cameraImage coming soon 264318 Rubber €3.43
41
 photo_cameraImage coming soon 263824 Rubber €3.21

Shipping and delivery information will be available shortly.

Maruyama Parts for Brushcutter BCL2250RS

Fix Your Brushcutter Maruyama BCL2250RS. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following tables, look for the spare part and its respective code.
Brushcutter Maruyama BCL2250RS

Brushcutter Maruyama BCL225ORS Pag.1
Main Body
# Part Num. Description
1 345571
2 221473 CLUTCH BELL SUPPORT ASSY MX24
3 221474 CLUTCH COVER MX21
4 016405
5 013825
6 096042
7 054677
8 221524 INNER SHAFT BCL2250RS
9 224123 OUTER SHAFT BCL2250RS/MX21
10 223188 CAUTION LABEL SHAFT BC5021RS
11 225701
12 225382
13 223185
14 054691
15 089738
16 225698
17 225699
18 081027
19 222142 HANDLE FIXING SCREW BC350
20 220533 SHOULDER STRAP MX33 560229
21 223232
22 223233
23 215390 LINE CUTTER BLADE SET BK520 215392
24 215392 LINE CUTTER BLADE BC450
25 092560
26 012501
27 081027
28 219130 DEBRIS GUARD BC450
29 092548
30 022905
31 081027
32 092579
33 222899
34 817002 LINE CUTTER BLADE SCREW T.C. M5x20
Pag.2
Gearcase
# Part Num. Description
1 223266 GEAR CASE ASSY BCL2250 *hex
2 222888
3 089884 GEAR CASE SCREW BC350 089101
4 219205
5 222121
6 219430
7 212999 GEAR CASE BEARING C.MC-S 60012RK
8 055185 GEAR CASE UPPER RING SEEGER BC35
9 222122
10 140268
11 140269 BEARING SEEGER *use 228477
12 140270 SEEGER MC-PS
13 092561
14 212986 UPPER RING NUT BC350
15 140275 LOWER RING NUT BC350
16 215547 WASHER/CUP BC3021/320/350 ex210558
17 215610 BLADE FIXING SCREW M8x1.25LH x 17
18 089737 GEAR CASE FIXING BOLT BC230
19 210179
20 220534
21 210418
22 022865
23 0210181
24 226166
25 521523
Pag.3
Engine
# Part Num. Description
1 850675
2 266249 CYLINDER BCL2250RS BC2300RS
3 267178
4 267290 CYLINDER SCREW MX24
5 265802 INTAKE MANIFOLD BCL2250 BC230
6 267049 INTAKE GASKET BCL2250 MX21 BC3021
7 265924
8 267466
9 266264
10 267189 MUFFLER GASKET BCL2250-RS
11 261607 ENGINE SUPPORT SCREW BKC520
12 267060
13 264022 SCREW HT230 286349
14 267177
15 267063
16 261491
17 261492 ENGINE OIL SEAL MCV3100 ISCD12287
18 261388 PISTON M35/BC350 *use 273263
19 055185 GEAR CASE UPPER RING SEEGER BC35
20 261612 SCREW MCV3501S
21 263569 PISTON BC230/HT230D 281298
22 263789 PISTON RING BC230/HT230D/MX55
23 261036 PISTON PIN BC230/M28/MX21
24 263957 NEEDLE BEARING HT230D 261037
25 261576 PISTON PIN CIRCLIP BC230/M28/MX21
26 267193 CRANKSHAFT BC2300RS MX24 EE230
27 264025 CLUTCH ASSY Ø54 BC230/BC280
28 264026
29 264028 CLUTCH SPRING
30 264505 CLUTCH SCREW MC321 261056
31 261189 CLUTCH WASHER BC300
32 261777 CLUTCH WAVE WASHER BC320
33 267080
34 267397 COIL+FLYWHEEL SET BC320/350 267391
35 261356 FLYWHEEL BC320/BC350/MC321 265017
36 267173 IGNITION COIL HT230D/BC350 *use 267400
37 267174 IGNITION COIL ONLY BC350 *use 267400
38 267403
39 267404 IGNITION COIL CABLE MX MC MS HT
40 261074 SPARK PLUG CAP BKC501RS
41 261075 SPARK PLUG CAP SPRING BC5020
42 261072 IGNITION COIL GROMMET
43 269418
44 261076 FLYWHEEL KEY BKC5020RS
45 261417 FLYWHEEL NUT BC3021S
46 268380 SPACER 280381
47 261256 COIL FIXING SCREW BK520
48 262483 SPARK PLUG MCV3100 *use PR18Y
49 267093
50 261202 FLYWHEEL COVER GROMMET HT230D
51 264582
52 261878 THROTTLE VALVE SUPPORT NUT BCF500H
53 265409 THROTTLE CABLE ADJUSTER BKC5020RS
54 265694 CAUTION LABEL BC
55 267561 CYLINDER COVER LABEL
56 269384 STARTER ASSY BCL2250RS
57 269802
58 269787 STARTER BCL2250RS *until stock ends
59 269788
60 269218
61 269219
62 269761
63 261725 STARTER HANDLE HT230DL-R
64 269221
65 269223
66 269222
67 269224
68 269737
69 269226
70 269227
71 269790
72 261256 COIL FIXING SCREW BK520
73 261257 STARTER FIXING SCREW BKC520
74 269764 PLATE, STARTER PAWL & SPRING BCL2250RS
75 269792
76 265726
77 269688
78 261250 MUFFLER SCREW BC350 M5x20
Pag.4
Carburetor & Fuel Tank
# Part Num. Description
1 267100 CARBURETOR ASSY BCL2250RS
2 261871 JET O-RING *16-104 AE320 AE500
3 267358
4 262995 METERING DIAPHRAGM BC350/BC520
5 262994 PUMP DIAPHRAGM BC350 BC520 BC5021
6 263739
7 262993 DIAPHRAGM GASKET WA
8 261873 METERING DIAPHRAGM BC350 *ex 944219
9 262991 CARBURETOR PRIMER BODY BC520
10 261874 PRIMER BULB BC350/BC520 KK21017AA013
11 262992 PUMP COVER BC350
12 262996
13 261876 CARBURETOR VALVE SEEGER BC350
14 261658 THROTTLE VALVE NIPPLE BKC520
15 264682 THROTTLE VALVE SCREW MX HT
16 261864 CARBURETOR GASKET BC230/350
17 269052 AIR FILTER CASE BC260RS *use 284823
18 269050
19 269028
20 269029
21 269032 CHOKE VALVE SCREW BKC5020RS
22 081028 STARTER FIXING NUT BKC520R
23 269051 AIR FILTER CASE BUSHING 8420074
24 262720 SOCKET HEAD SCREW M5x55 BC5020
25 269030 AIR FILTER ELEMENT BC260RS HT230
26 269027 AIR FILTER COVER BC250
27 269031 FILTER COVER SCREW MS0835 MC2630
28 267598 FUEL TANK ASSY BCL2250
29 267103 FUEL TANK BCL2250RS
30 262726 FUEL TANK CAP ASSY BC320/MC321
31 261105 TANK CAP GASKET MX33/BC350 KF90155A
32 261696 BREATHER VALVE 122805 *use 289352
33 267309
34 266955 FUEL LINE MS062 265467
35 261115 FUEL TUBE GROMMET 92071-2142
36 265469
37 263038
38 264653 FUEL PICKUP FILTER
39 261117 FUEL LINE CLAMP
40 264318 FUEL TANK GROMMET BC230
41 263824 FUEL TANK GROMMET BC230
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Maruyama websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Maruyama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Maruyama BCL2250RS

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
Machine Type
Brushcutters
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Maruyama BCL2250RS Drawing

Maruyama BCL2250RS Drawing

Download (1.9MB)

You might also like

Maruyama BC3021RS Starter Ass'y
Maruyama SKU: 283477
Maruyama BC3021RS Starter Ass'y
Maruyama BC3021RS-01 Recoil Starter Ass'y Genuine replacement part Makita, Recoil Starter Ass'y for Brushcutters BC3021RS-01 - BC2321RS-01 - BC260RS - BC2621RS - BC3021H-RS-01. Part for the following products: - Maruyama BC3021RS-01...
AVAILABLE €62.53
Details
Maruyama BC3021RS Starter Reel
Maruyama SKU: 283504
Maruyama BC3021RS Starter Reel
Maruyama BC3021RS-01 Starter Reel Genuine replacement part Makita, Starter Reel for Brushcutters BC3021RS-01 - BC2321RS-01 - BC260RS - BC2621RS - BC3021H-RS-01. Part for the following products: - Maruyama BC3021RS-01 -...
AVAILABLE €11.60
Details
Maruyama BC3021RS Starter Spring
Maruyama SKU: 280931
Maruyama BC3021RS Starter Spring
Maruyama BC3021RS-01 Starter Spiral Spring Genuine replacement part Makita, Starter Spiral Spring for Brushcutters BC3021RS-01 - BC2321RS-01 - BC260RS - BC2621RS - BC3021H-RS-01. Part for the following products: - Maruyama...
AVAILABLE €18.99
Details
Maruyama BC3021RS-01 Clutch Assy
Maruyama SKU: 267327
Maruyama BC3021RS-01 Clutch Assy
Maruyama BC3021RS-01 Clutch Ass'y Genuine replacement part Makita, Clutch Ass'y for Brushcutters BC3021RS-01 - BC2321RS-01 - BC2621RS - BC3021H-RS-01. Part for the following products: - Maruyama BC3021RS-01 - Maruyama BC2321RS-01...
AVAILABLE €36.07
Details
Maruyama BC3021RS-01 Starter Pawl Assy
Maruyama SKU: 283575
Maruyama BC3021RS-01 Starter Pawl Assy
Maruyama BC3021RS-01 Starter Pawl Ass'y Genuine replacement part Makita, Starter Pawl Ass'y for Brushcutters BC3021RS-01 - BC2321RS-01 - BC260RS - BC2621RS - BC3021H-RS-01. Part for the following products: - Maruyama BC3021RS-01 -...
AVAILABLE €15.40
Details
Maruyama BC3021RS-01 Starter Spring
Maruyama SKU: 283506
Maruyama BC3021RS-01 Starter Spring
Maruyama Starter Spring for Brushcutter BC3021RS-01 Genuine spare part Maruyama, Starter Spring for Brushcutter BC3021RS-01 - BC2321RS-01. Part for the following products: -  Brushcutter...
Usually Ships in: 7/10 Business Days Approx. €13.24
Details
Comments (0)
No customer reviews for the moment.
