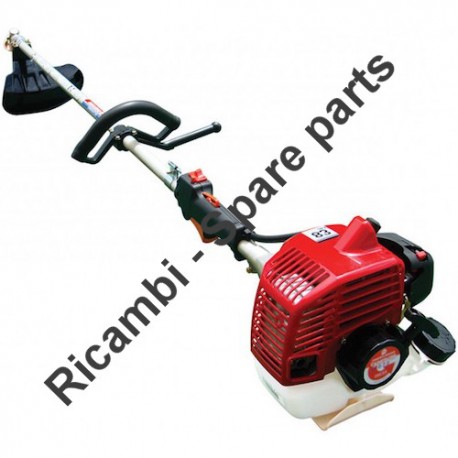

Maruyama Parts for Brushcutter BC320
Fix Your
Brushcutter Maruyama BC320(2009.01). All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following tables, look for the spare part and its respective code.

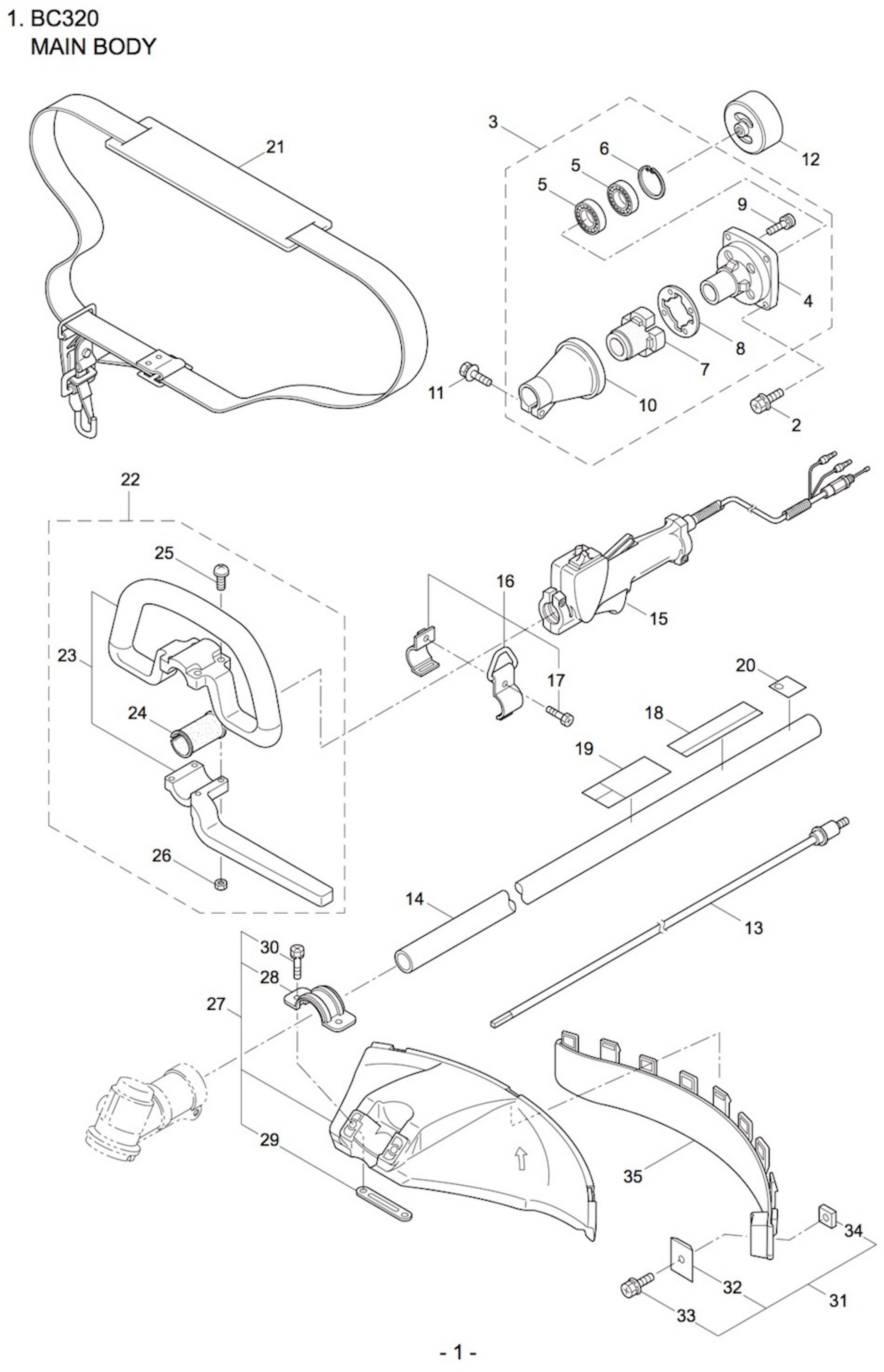

Maruyama Brushcutter BC320(2009.01) Spare Parts Pag.1
|
| # |
Part Num. |
Description |
| 1-2 |
817002 |
Bolt |
| 1-3 |
215512 |
Clutch Case Ass'y |
| 1-4 |
214592 |
Bearing Case |
| 1-5 |
214161 |
Bearing |
| 1-6 |
054676 |
Snap Ring |
| 1-7 |
214162 |
Buffer |
| 1-8 |
214163 |
Washer |
| 1-10 |
214593 |
Driveshaft Tube Adapter |
| 1-12 |
054677 |
Clutch Drum |
| 1-13 |
219268 |
Driveshaft Ass'y |
| 1-14 |
224122 |
Driveshaft Tube |
| 1-15 |
229001 |
Throttle Trigger |
| 1-16 |
054691 |
Hanging Bracket Ass'y |
| 1-19 |
223188 |
Label |
| 1-20 |
228043 |
Label |
| 1-21 |
220533 |
Hanging Strap Ass'y |
| 1-22 |
222454 |
Loop Handle Ass'y |
| 1-25 |
222142 |
Screw |
| 1-26 |
081027 |
Nut |
| 1-27 |
228302 |
Safety Cover Ass'y |
| 1-28 |
227822 |
Bracket |
| 1-31 |
228301 |
Code Cutter Ass'y |
| 1-32 |
227823 |
Code Cutter |
| 1-33 |
817002 |
Bolt |
| 1-34 |
228325 |
Nut |

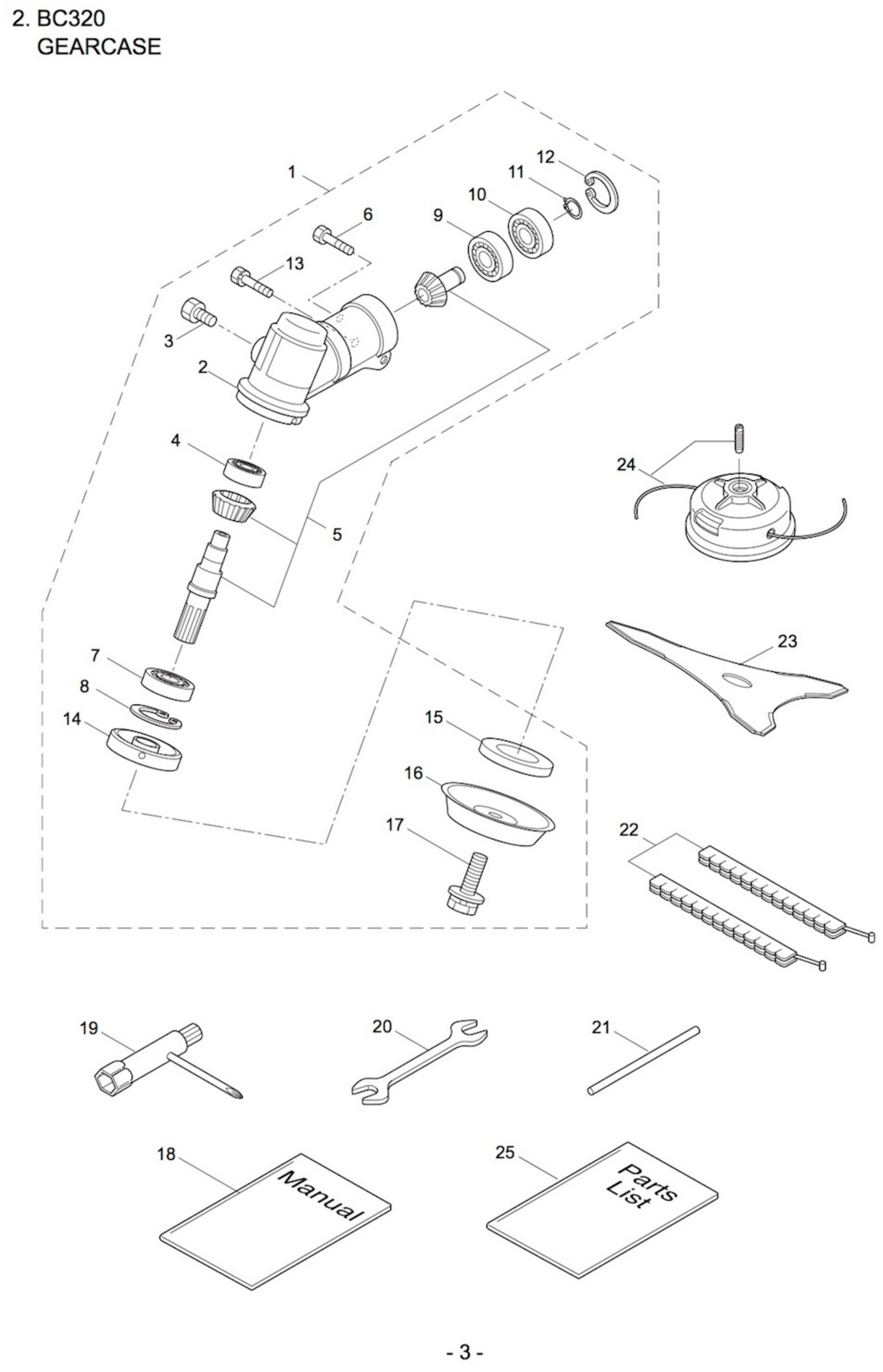

| Pag.2 |
| 2-1 |
228403 |
Gearcase Ass'y |
| 2-4 |
227990 |
Bearing |
| 2-5 |
228416 |
Gear Set |
| 2-7 |
227991 |
Bearing |
| 2-8 |
055185 |
Snap Ring |
| 2-9 |
227992 |
Bearing |
| 2-10 |
227993 |
Bearing |
| 2-11 |
228477 |
Snap Ring |
| 2-12 |
140270 |
Snap Ring |
| 2-14 |
212986 |
Boss Adapter |
| 2-15 |
140275 |
Clamping Washer |
| 2-16 |
215547 |
Stabilizer |
| 2-17 |
215610 |
Bolt |

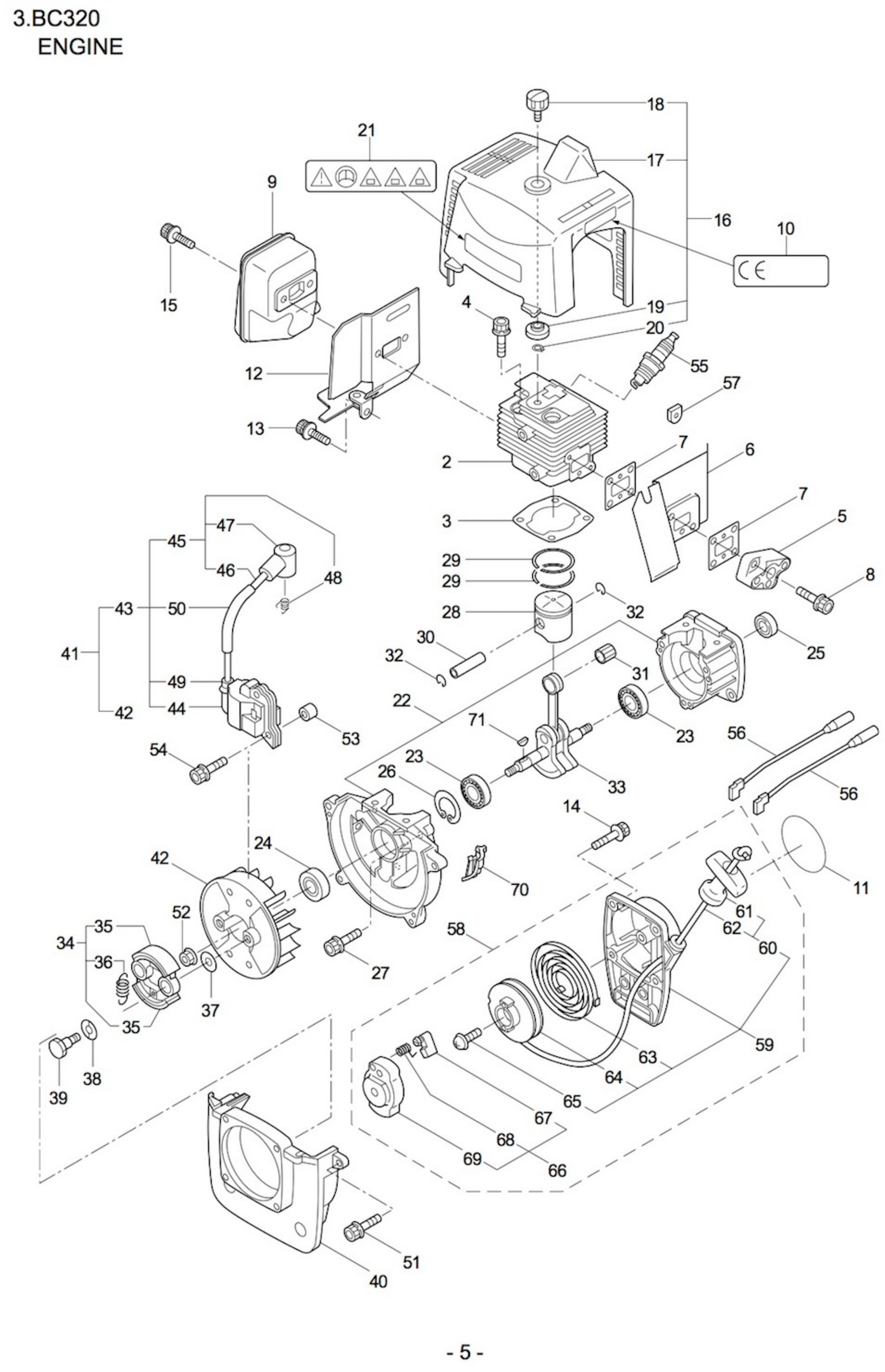

| Pag.3 |
| 3-2 |
261360 |
Cylinder |
| 3-3 |
261528 |
Gasket |
| 3-4 |
261250 |
Cap Screw |
| 3-5 |
261938 |
Insulator |
| 3-6 |
261364 |
Air Duct |
| 3-7 |
261171 |
Gasket |
| 3-9 |
280619 |
Muffler |
| 3-10 |
267561 |
Label |
| 3-12 |
261833 |
Gasket |
| 3-13 |
261607 |
Cap Screw |
| 3-14 |
261257 |
Cap Screw |
| 3-16 |
265304 |
Top Cover Ass'y |
| 3-17 |
265305 |
Top Cover |
| 3-18 |
261018 |
Knob |
| 3-19 |
261020 |
Spacer |
| 3-20 |
261734 |
Snap Ring |
| 3-21 |
265694 |
Label |
| 3-23 |
261384 |
Bearing |
| 3-24 |
261385 |
Oil Seal |
| 3-25 |
261386 |
Oil Seal |
| 3-26 |
016732 |
Snap Ring |
| 3-28 |
266980 |
Piston |
| 3-29 |
261390 |
Piston Ring |
| 3-30 |
261555 |
Piston Pin |
| 3-31 |
261392 |
Bearing,Needle |
| 3-32 |
261393 |
Clip,Piston Pin |
| 3-33 |
261395 |
Crankshaft/Conn.Rod Ass'y |
| 3-34 |
264503 |
Clutch Ass'y |
| 3-36 |
263614 |
Spring,Clutch |
| 3-37 |
261189 |
Washer |
| 3-38 |
261777 |
Wave Washer |
| 3-39 |
264505 |
Bolt |
| 3-40 |
281325 |
Fan Cover |
| 3-42 |
261356 |
Rotor/Fan |
| 3-43 |
267400 |
Ignition Coil Ass'y |
| 3-48 |
261075 |
Connector |
| 3-49 |
261072 |
Cap |
| 3-51 |
261250 |
Cap Screw |
| 3-52 |
261417 |
Nut,Rotor |
| 3-56 |
267492 |
Lead |
| 3-57 |
261202 |
Grommet |
| 3-58 |
261419 |
Recoil Starter Ass'y |
| 3-59 |
261420 |
Recoil Ass'y |
| 3-61 |
261725 |
Starter Grip |
| 3-63 |
261721 |
Spiral Spring |
| 3-66 |
263475 |
Starter Pawl Ass'y |
| 3-67 |
263477 |
Pawl |
| 3-68 |
261728 |
Return Spring |
| 3-69 |
263476 |
Pawl Case |
| 3-71 |
261076 |
Woodruff Key |

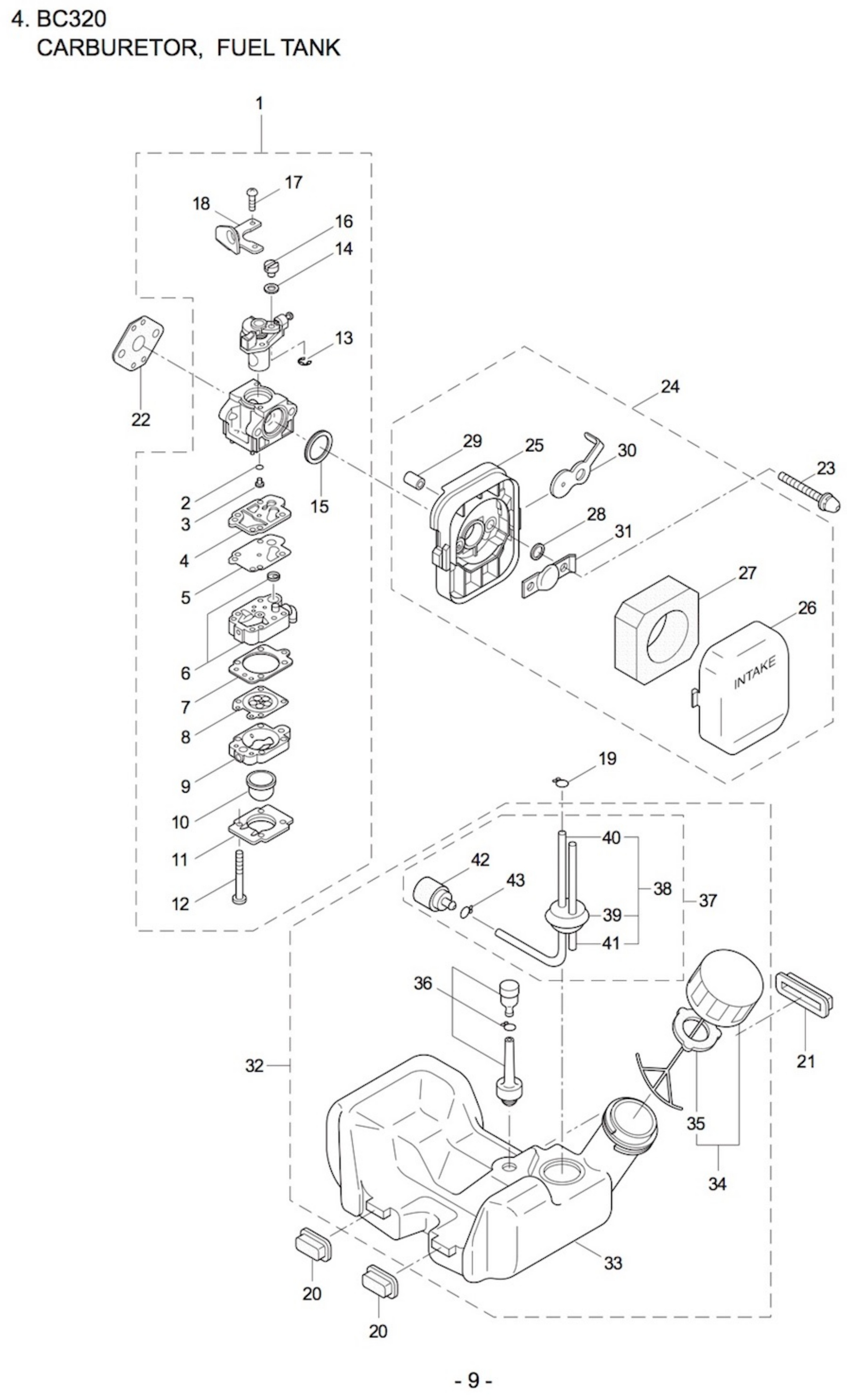

| Pag.4 |
| 4-1 |
284085 |
Carburetor Ass'y |
| 4-4 |
262995 |
Gasket |
| 4-5 |
262994 |
Diaphragm,Fuel Pump |
| 4-7 |
262993 |
Gasket |
| 4-8 |
261873 |
Diaphragm,Metering |
| 4-9 |
262991 |
Purge Body |
| 4-10 |
261874 |
Primer Bulb |
| 4-11 |
262992 |
Cover Plate |
| 4-13 |
261876 |
EXRing |
| 4-15 |
261657 |
Packing |
| 4-16 |
261658 |
Swivel |
| 4-17 |
261875 |
Screw |
| 4-19 |
261117 |
Clip |
| 4-20 |
261118 |
Pad |
| 4-21 |
261119 |
Pad |
| 4-22 |
261864 |
Gasket |
| 4-24 |
262902 |
Air Filter Ass'y |
| 4-25 |
263005 |
Housing |
| 4-26 |
262998 |
Cover |
| 4-27 |
263006 |
Element |
| 4-32 |
268141 |
Fuel Tank Ass'y |
| 4-33 |
261965 |
Fuel Tank |
| 4-34 |
262726 |
Fuel Tank Cap Ass'y |
| 4-35 |
261105 |
Gasket |
| 4-36 |
261696 |
Breather Ass'y |
| 4-37 |
265752 |
Fuel Pipe PickXup Ass'y |
| 4-38 |
264031 |
Fuel Pipe Ass'y |
| 4-39 |
261115 |
Grommet |
| 4-42 |
264653 |
Filter Ass'y |
| 4-43 |
261117 |
Clip |
