Maruyama Parts for Brushcutter BC2300RS

SKU: Maruyama BC2300RS
€1.80
VAT included

Maruyama Parts for Brushcutter BC2300RS

Fix Your Brushcutter Maruyama BC2300RS. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Maruyama Parts for Brushcutter BC2300RS
  • Maruyama Parts for Brushcutter BC2300RS
  • Maruyama Parts for Brushcutter BC2300RS
  • Maruyama Parts for Brushcutter BC2300RS
  • Maruyama Parts for Brushcutter BC2300RS
  • Maruyama Parts for Brushcutter BC2300RS
  • Maruyama Parts for Brushcutter BC2300RS
  • Maruyama Parts for Brushcutter BC2300RS

Maruyama Parts for Brushcutter BC2300RS

SKU: Maruyama BC2300RS Condition: New
€1.80
VAT included

Maruyama Parts for Brushcutter BC2300RS

Fix Your Brushcutter Maruyama BC2300RS. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 88 spare parts
description 5 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: CHECK THE VERSION OF YOUR TOOL BEFORE THE CHECKOUT
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

88 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1-11
photo_cameraImage coming soon 054691 Hanging Bracket Ass'y €3.90
1-20
photo_cameraImage coming soon 081027 Nut €2.50
1-21
photo_cameraImage coming soon 220533 Hanging Strap Ass'y €20.21
1-2
photo_cameraImage coming soon 221473 Clutch Case Ass'y €46.67
1-3
photo_cameraImage coming soon 221474 Clutch Case €38.12
1-19
photo_cameraImage coming soon 222142 Screw €2.43
1-16
photo_cameraImage coming soon 222454 Loop Handle Ass'y €19.78
1-10
photo_cameraImage coming soon 223153 Throttle Trigger €66.59
1-14
photo_cameraImage coming soon 223188 Label €9.02
1-7
photo_cameraImage coming soon 224123 Driveshaft Tube €120.02
1-8
photo_cameraImage coming soon 226399 Driveshaft Ass'y €35.02
1-27
photo_cameraImage coming soon 227823 String Cutter €6.31
1-15
photo_cameraImage coming soon 228043 Label €2.43
1-26
photo_cameraImage coming soon 228301 String Cutter Ass'y €7.15
1-29
photo_cameraImage coming soon 228325 Nut €2.62
1-22
photo_cameraImage coming soon 228392 Safety Cover Ass'y €21.67
1-9
photo_cameraImage coming soon 229091 Clutch Drum €32.93
1-31
photo_cameraImage coming soon 817002 Bolt €2.43
1-28
photo_cameraImage coming soon 817002 Bolt €2.43
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
2-7
photo_cameraImage coming soon 054676 Snap Ring €2.50
2-11
photo_cameraImage coming soon 140270 Snap Ring €2.62
2-1
photo_cameraImage coming soon 225835 Gearcase Ass'y €116.59
2-13
photo_cameraImage coming soon 225891 Blade Boss A €14.02
2-14
photo_cameraImage coming soon 225892 Blade Boss B €9.15
2-15
photo_cameraImage coming soon 225893 Nut €2.62
2-8
photo_cameraImage coming soon 225898 Collar €3.14
2-2
photo_cameraImage coming soon 226284 Gearcase €27.23
2-10
photo_cameraImage coming soon 228477 Snap Ring €8.78
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
3-19
photo_cameraImage coming soon 055185 Snap Ring €12.03
3-23
photo_cameraImage coming soon 261036 Piston Pin €4.81
3-43
photo_cameraImage coming soon 261076 Woodruff Key €3.43
3-36
photo_cameraImage coming soon 261356 Rotor/Fan €83.56
3-18
photo_cameraImage coming soon 261386 Oil Seal €6.15
3-44
photo_cameraImage coming soon 261417 NutRotor M €3.52
3-17
photo_cameraImage coming soon 261492 Oil Seal ISCD €23.04
3-25
photo_cameraImage coming soon 261576 CIRCLIP BC230 / M28 / MX21 €12.03
3-32
photo_cameraImage coming soon 261777 Wave Washer €2.62
3-21
photo_cameraImage coming soon 263569 Piston €37.75
3-5
photo_cameraImage coming soon 263772 Insulator €12.00
3-22
Maruyama BC2300RS Piston Ring 263789 Maruyama BC2300RS Piston Ring €8.00
3-24
photo_cameraImage coming soon 263957 Bearing, Needle €11.93
3-66
photo_cameraImage coming soon 265694 Label €3.57
3-2
photo_cameraImage coming soon 266249 Cylinder €136.37
3-6
photo_cameraImage coming soon 267049 Gasket €11.11
3-26
photo_cameraImage coming soon 267193 Crankshaft/Conn.Rod Ass'y €93.79
3-58
photo_cameraImage coming soon 267213 PULLEY SCREW STARTER MCV3100TS €22.45
3-4
photo_cameraImage coming soon 267290 Cap Screw €3.43
3-48
photo_cameraImage coming soon 267492 Wire, Lead €5.93
3-50
photo_cameraImage coming soon 267561 Label €39.59
3-27
photo_cameraImage coming soon 269168 Clutch Ass'y €105.39
3-30
photo_cameraImage coming soon 269647 Clutch Bolt €5.84
3-10
photo_cameraImage coming soon 280409 Gasket €4.81
3-16
photo_cameraImage coming soon 280488 Bearing €72.89
3-11
photo_cameraImage coming soon 280846 Top Cover €26.43
3-56
photo_cameraImage coming soon 280930 Spring €9.40
3-57
Maruyama BC3021RS Starter Spring 280931 Maruyama BC3021RS Starter Spring €19.17
3-62
photo_cameraImage coming soon 280934 Starter Pawl Ass'y €12.03
3-8
photo_cameraImage coming soon 281524 Muf?er €27.74
3-52
photo_cameraImage coming soon 282404 Recoil Starter Ass'y €72.58
3-53
photo_cameraImage coming soon 282405 Recoil Ass'y €50.59
3-33
photo_cameraImage coming soon 283386 Fan Cover €32.93
3-3
photo_cameraImage coming soon 283420 Gasket €2.62
3-12
photo_cameraImage coming soon 283983 Hook €2.62
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
4-32
photo_cameraImage coming soon 261115 Grommet €9.84
4-16
photo_cameraImage coming soon 261117 BC450 TANK CLAMP €8.40
4-36
photo_cameraImage coming soon 261117 BC450 TANK CLAMP €8.40
4-14
photo_cameraImage coming soon 261658 Swivel €10.50
4-29
photo_cameraImage coming soon 261696 Breather Ass'y €14.85
4-17
photo_cameraImage coming soon 261864 Gasket €3.93
4-6
photo_cameraImage coming soon 261874 Primer Bulb €24.42
4-13
photo_cameraImage coming soon 261876 E-Ring €3.65
4-4
photo_cameraImage coming soon 262991 Purge Body €35.69
4-5
photo_cameraImage coming soon 262992 Cover Plate €11.84
4-8
photo_cameraImage coming soon 262993 Gasket €10.28
4-9
photo_cameraImage coming soon 262994 Diaphragm,Fuel Pump €17.58
4-35
photo_cameraImage coming soon 264653 FUEL FILTER €10.73
4-18
photo_cameraImage coming soon 264691 O-Ring €2.62
4-22
Maruyama BC2300RS Air Filter 264695 Maruyama BC2300RS Air Filter €8.65
4-20
Maruyama BC2300RS Filter Cover 264709 Maruyama BC2300RS Filter Cover €15.46
4-19
photo_cameraImage coming soon 266420 Cleaner Ass'y €28.58
4-21
photo_cameraImage coming soon 266433 Case Ass'y €30.25
4-28
photo_cameraImage coming soon 269377 Gasket €8.47
4-24
photo_cameraImage coming soon 280020 Swivel Ring €2.62
4-27
photo_cameraImage coming soon 281564 Fuel Tank Cap Ass'y €10.48
4-26
photo_cameraImage coming soon 282401 Fuel Tank €22.30
4-10
photo_cameraImage coming soon 282576 Gasket €9.84
4-31
photo_cameraImage coming soon 283300 Fuel Pipe Ass'y €9.44
4-1
photo_cameraImage coming soon 283893 Carburetor Ass'y €104.83
4-7
photo_cameraImage coming soon 283905 Diaphragm Meterring €46.52
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
5-6
photo_cameraImage coming soon 226182 Semi-Auto Head(L) €24.92
Page 6 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Maruyama Parts for Brushcutter BC2300RS

Fix Your Brushcutter Maruyama BC2300RS. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following tables, look for the spare part and its respective code.
Brushcutter Maruyama BC2300RS

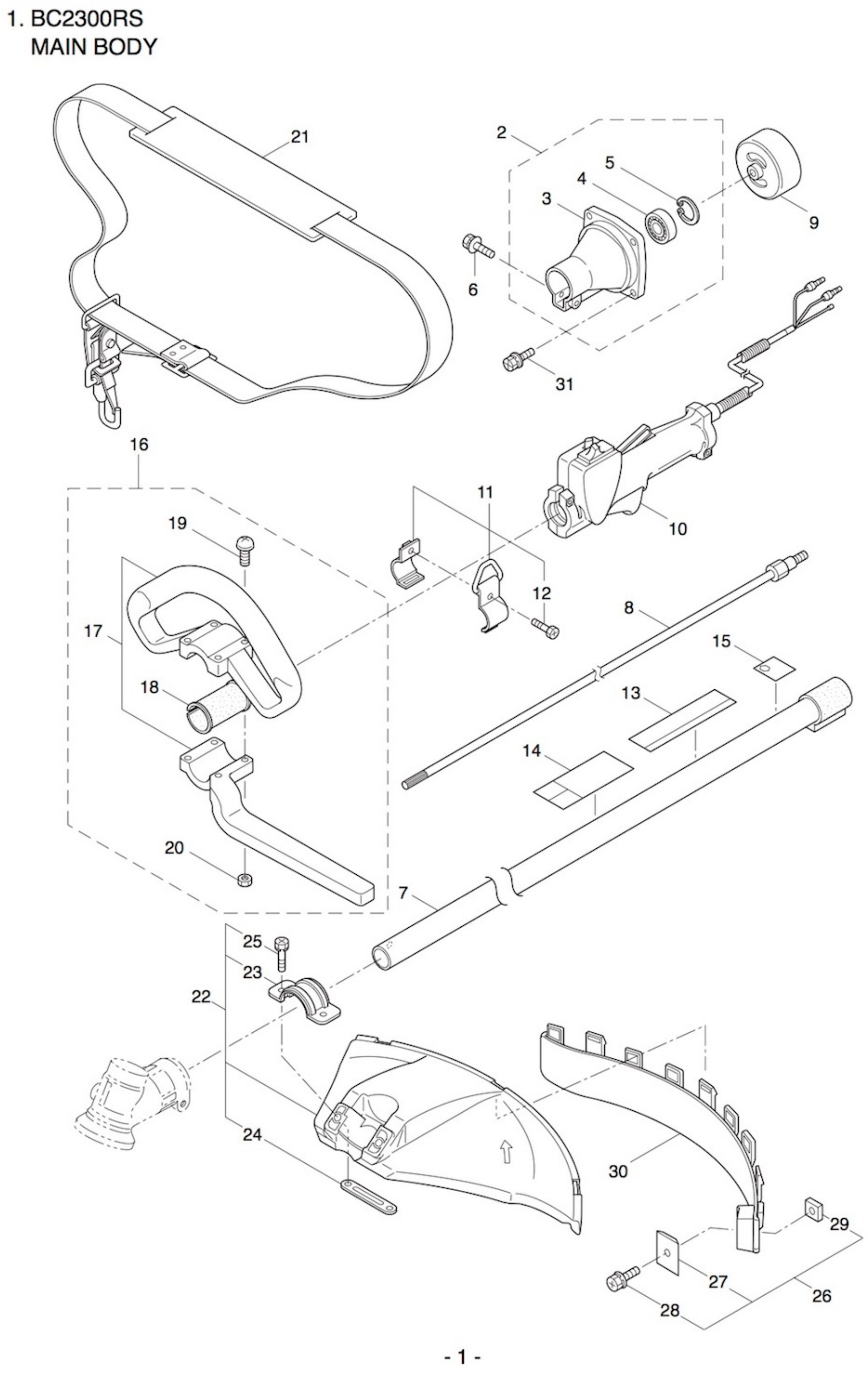

Maruyama Brushcutter BC2300RS Spare Parts Pag.1
# Part Num. Description
1-2 221473 Clutch Case Ass'y
1-3 221474 Clutch Case
1-7 224123 Driveshaft Tube
1-8 226399 Driveshaft Ass'y
1-9 229091 Clutch Drum
1-10 223153 Throttle Trigger
1-11 054691 Hanging Bracket Ass'y
1-14 223188 Label
1-15 228043 Label
1-16 222454 Loop Handle Ass'y
1-19 222142 Screw
1-20 081027 Nut
1-21 220533 Hanging Strap Ass'y
1-22 228392 Safety Cover Ass'y
1-26 228301 String Cutter Ass'y
1-27 227823 String Cutter
1-28 817002 Bolt
1-29 228325 Nut
1-31 817002 Bolt

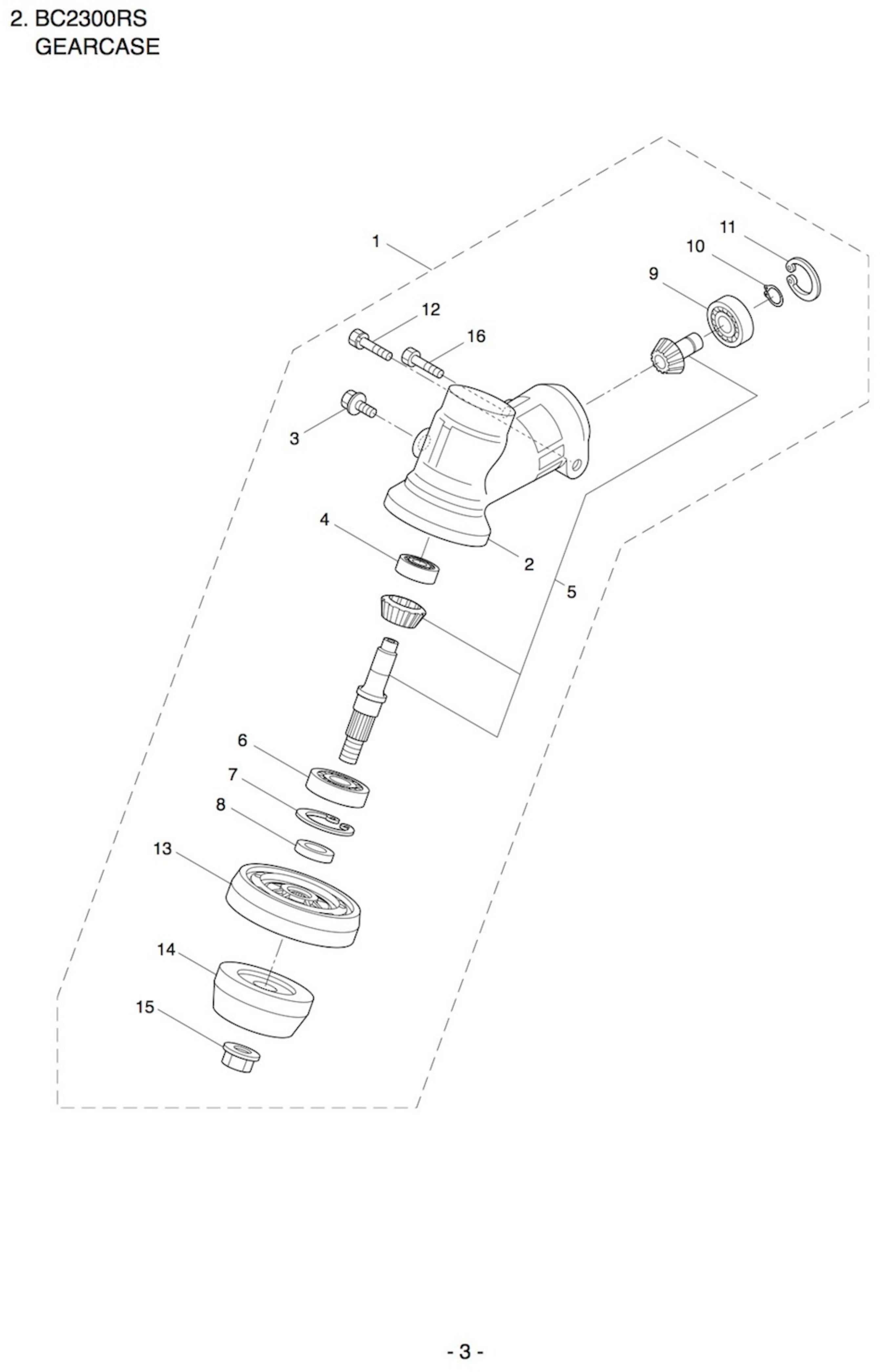

Pag.2
2-1 225835 Gearcase Ass'y
2-2 226284 Gearcase
2-7 054676 Snap Ring
2-8 225898 Collar
2-10 228477 Snap Ring
2-11 140270 Snap Ring
2-13 225891 Blade Boss A
2-14 225892 Blade Boss B
2-15 225893 Nut

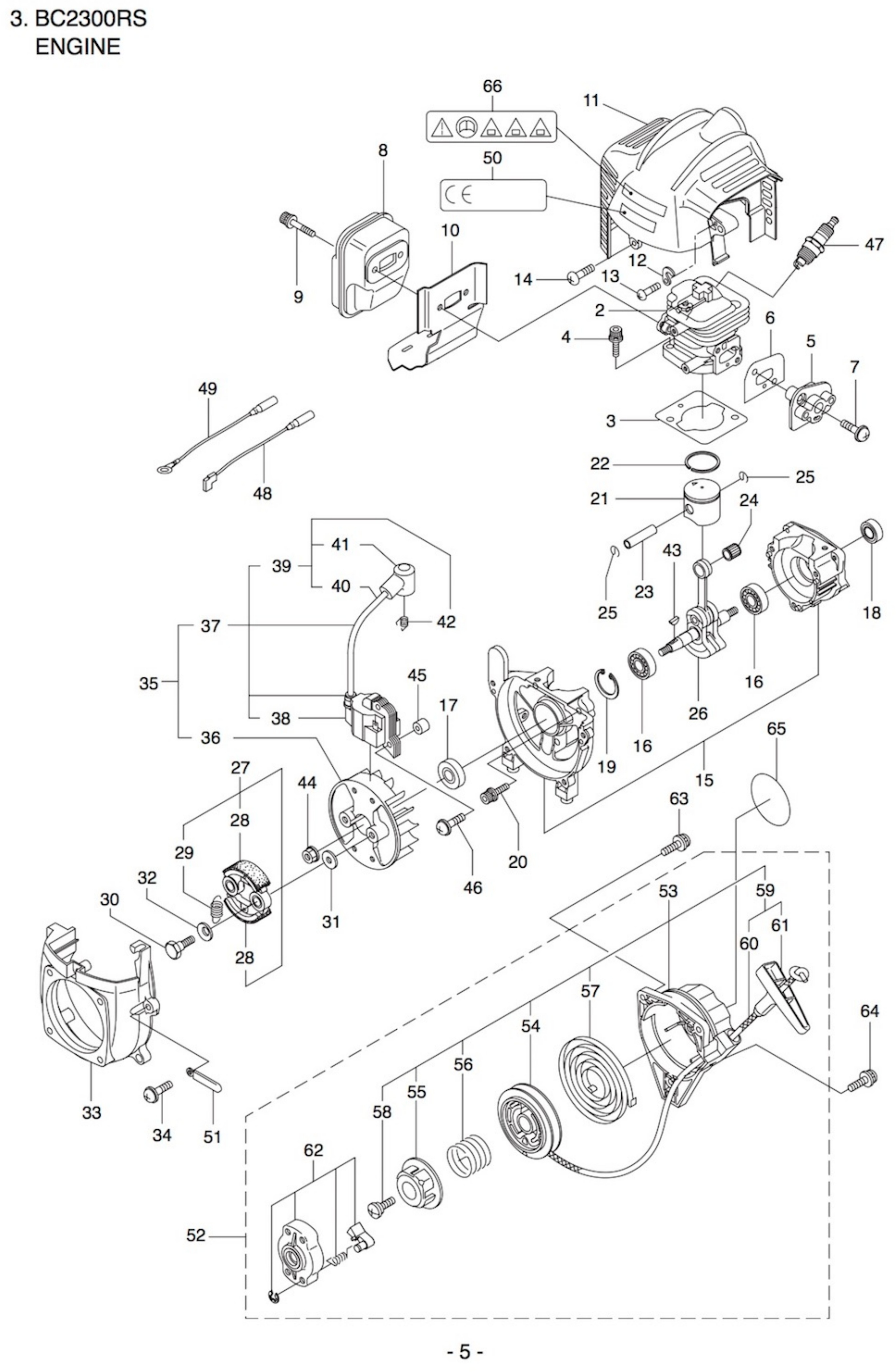

Pag.3
3-2 266249 Cylinder
3-3 283420 Gasket
3-4 267290 Cap Screw
3-5 263772 Insulator
3-6 267049 Gasket
3-8 281524 Muf?er
3-10 280409 Gasket
3-11 280846 Top Cover
3-12 283983 Hook
3-16 280488 Bearing
3-17 261492 Oil Seal
3-18 261386 Oil Seal
3-19 055185 Snap Ring
3-21 263569 Piston
3-22 263789 Piston Ring
3-23 261036 Piston Pin
3-24 263957 Bearing, Needle
3-25 261576 Clip, Piston Pin
3-26 267193 Crankshaft/Conn.Rod Ass'y
3-27 269168 Clutch Ass'y
3-30 269647 Clutch Bolt
3-32 261777 Wave Washer
3-33 283386 Fan Cover
3-36 261356 Rotor/Fan
3-43 261076 Woodruff Key
3-44 261417 Nut, Rotor
3-48 267492 Wire, Lead
3-50 267561 Label
3-52 282404 Recoil Starter Ass'y
3-53 282405 Recoil Ass'y
3-56 280930 Spring
3-57 280931 Spiral Spring
3-58 267213 Set Screw
3-62 280934 Starter Pawl Ass'y
3-66 265694 Label

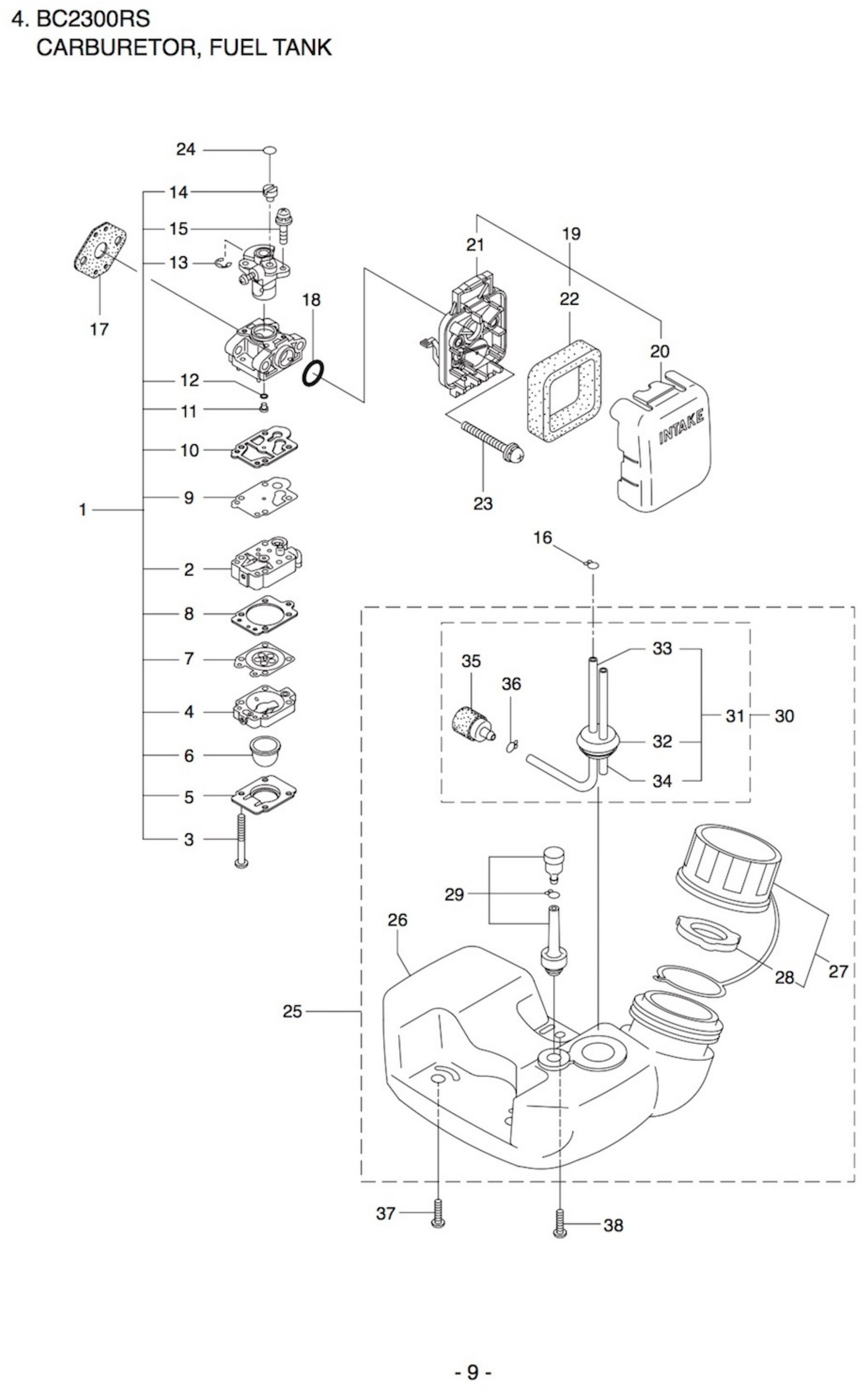

Pag.4
4-1 283893 Carburetor Ass'y
4-4 262991 Purge Body
4-5 262992 Cover Plate
4-6 261874 Primer Bulb
4-7 283905 Diaphragm, Metering
4-8 262993 Gasket
4-9 262994 Diaphragm, Fuel Pump
4-10 282576 Gasket
4-13 261876 E-Ring
4-14 261658 Swivel
4-16 261117 Clip
4-17 261864 Gasket
4-18 264691 O-Ring
4-19 266420 Cleaner Ass'y
4-20 264709 Cover
4-21 266433 Case Ass'y
4-22 264695 Filter
4-24 280020 Swivel Ring
4-26 282401 Fuel Tank
4-27 281564 Fuel Tank Cap Ass'y
4-28 269377 Gasket
4-29 261696 Breather Ass'y
4-31 283300 Fuel Pipe Ass'y
4-32 261115 Grommet
4-35 264653 Filter Ass'y
4-36 261117 Clip

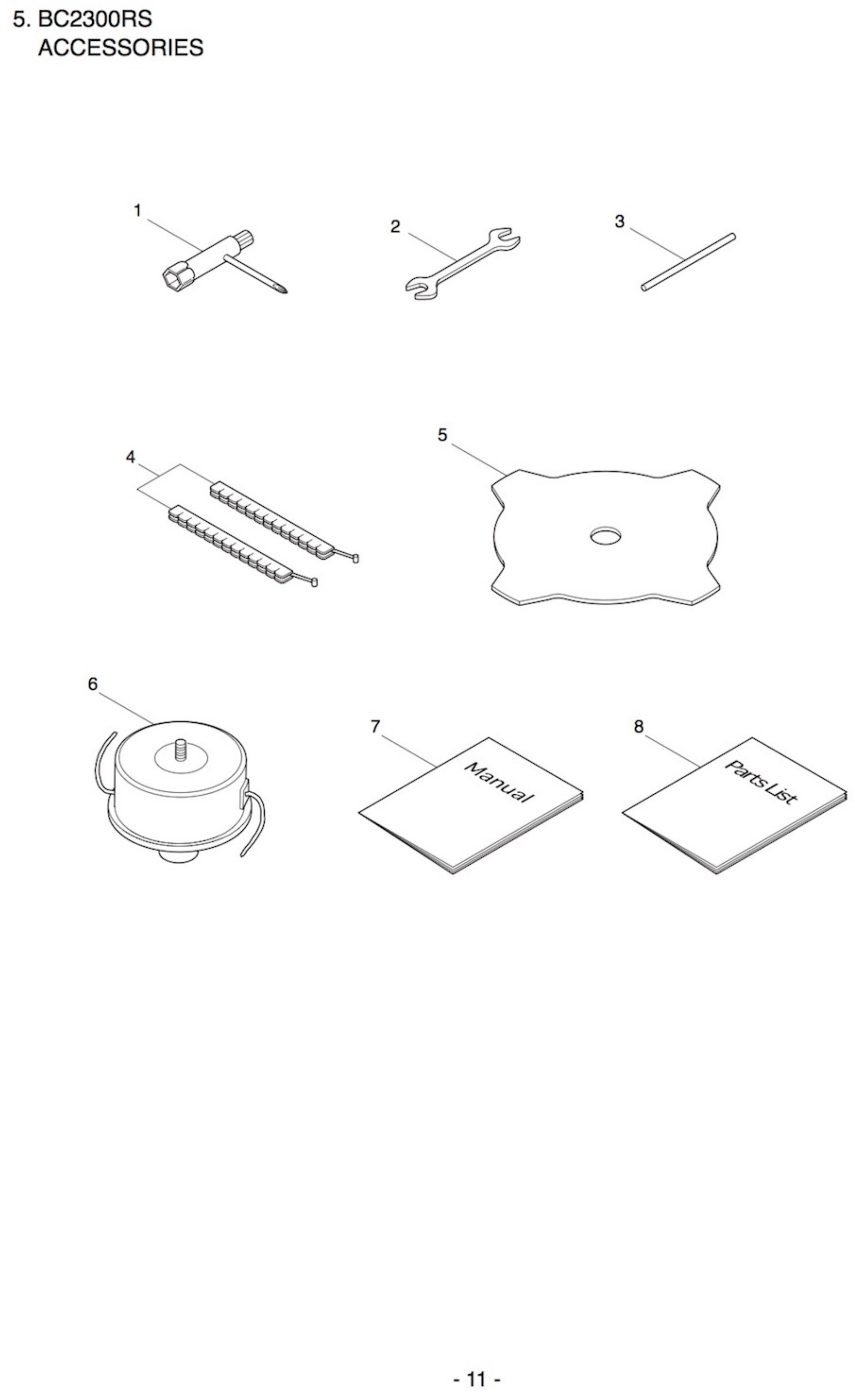

Pag.5
5-6 226182 Semi-Auto Head(L)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Maruyama websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Maruyama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Maruyama BC2300RS
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
CHECK THE VERSION OF YOUR TOOL BEFORE THE CHECKOUT
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram Maruyama BC2300RS

Diagram Maruyama BC2300RS

Download (1.03MB)

You might also like

Maruyama SKU: 280931
Maruyama BC3021RS-01 Starter Spiral Spring Genuine replacement part Makita, Starter Spiral Spring for Brushcutters BC3021RS-01 - BC2321RS-01 - BC260RS - BC2621RS - BC3021H-RS-01. Part for the following products: - Maruyama...
Last items in stock €19.17
Maruyama SKU: 263789
Maruyama Brushcutter BC2300RS Piston Ring Genuine replacement part Maruyama, Piston ring for Brushcutter BC2300RS - Hedgecutter HT230D-R-01. Part for the following products: -  Brushcutter Maruyama BC2300RS -  Hedgecutter Maruyama...
Usually Ships in: 10/15 Business Days Approx. €8.00
Maruyama SKU: 264709
Maruyama BC2300RS Filter Cover Genuine spare part Maruyama, Filter Cover for Brushcutter Maruyama BC2300RS. Part for the following products: -  Maruyama BC2300RS -  Maruyama HT230D-R-01 -  Maruyama PP2430...
AVAILABLE €15.46
Maruyama SKU: 264695
Maruyama BC2300RS Air Filter Genuine spare part Maruyama, Air Filter for Brushcutter Maruyama BC2300RS - MX21. Part for the following products: -  Maruyama BC2300RS -  Maruyama HT230D-R-01 -  Maruyama MX21...
Usually Ships in: 10/15 Business Days Approx. €8.65
Comments (0)
