Maruyama

Maruyama Parts for Brushcutter BC3021RS-01

SKU: Maruyama BC3021RS-01
€1.80
VAT included

Maruyama Parts for Brushcutter BC3021RS-01

Fix Your Brushcutter Maruyama BC3021RS-01. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

Maruyama Parts for Brushcutter BC3021RS-01
  • Maruyama Parts for Brushcutter BC3021RS-01
  • Maruyama Parts for Brushcutter BC3021RS-01
  • Maruyama Parts for Brushcutter BC3021RS-01
  • Maruyama Parts for Brushcutter BC3021RS-01
  • Maruyama Parts for Brushcutter BC3021RS-01
  • Maruyama Parts for Brushcutter BC3021RS-01
  • Maruyama Parts for Brushcutter BC3021RS-01
  • Maruyama Parts for Brushcutter BC3021RS-01
Maruyama

Maruyama Parts for Brushcutter BC3021RS-01

SKU: Maruyama BC3021RS-01 Condition: New
€1.80
VAT included

Maruyama Parts for Brushcutter BC3021RS-01

Fix Your Brushcutter Maruyama BC3021RS-01. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

settings 101 Spare parts
description 5 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Machine Type: Brushcutters
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
101 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

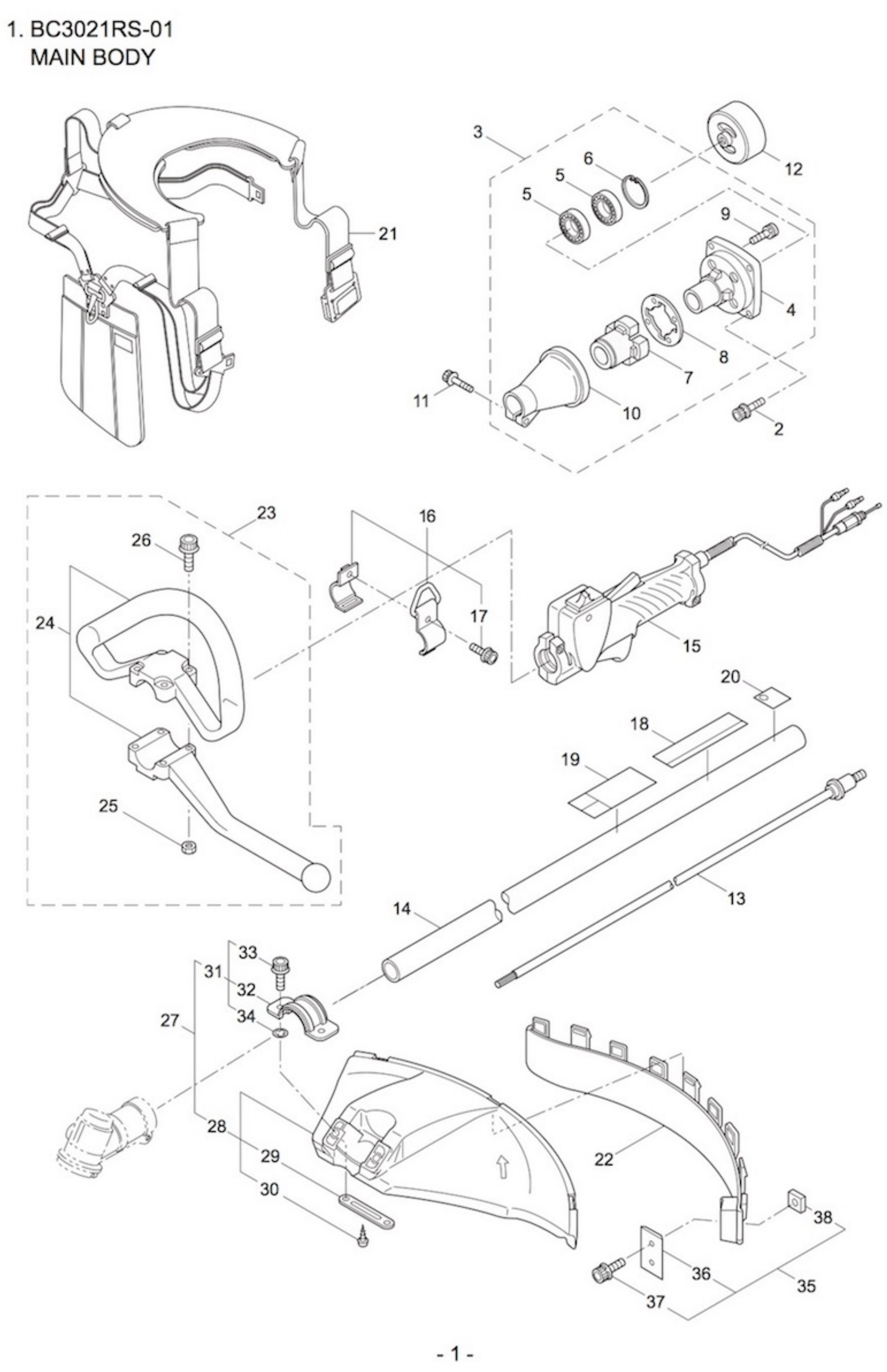

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 261250 Cap Screw M €1.90
3
 photo_cameraImage coming soon 215512 Clutch Case Ass'y €115.02
4
 photo_cameraImage coming soon 214592 Bearing Case €28.60
5
 photo_cameraImage coming soon 214161 Bearing €9.70
6
 photo_cameraImage coming soon 054676 Snap Ring €1.90
7
 photo_cameraImage coming soon 214162 Buffer €15.82
8
 photo_cameraImage coming soon 214163 Washer €4.70
10
 photo_cameraImage coming soon 214593 Driveshaft Tube Adapter €36.30
11
 Maruyama HT230D Cap Screw M5x25 261246 Maruyama HT230D Cap Screw M5x25 €2.48
12
 photo_cameraImage coming soon 054677 Clutch Drum €35.95
13
 photo_cameraImage coming soon 219268 Driveshaft Ass'y €39.83
14
 photo_cameraImage coming soon 224122 Driveshaft Tube €101.43
19
 photo_cameraImage coming soon 223188 Label €6.22
21
 photo_cameraImage coming soon 228086 Hanging Strap Ass'y €72.89
22
 Cover Extention 230748 Cover Extention €8.76
23
 photo_cameraImage coming soon 231955 Loop Handle Ass'y €46.71
25
 photo_cameraImage coming soon 081027 Nut €1.90
27
 photo_cameraImage coming soon 232086 Safety Cover Ass'y €41.91
28
 photo_cameraImage coming soon 231252 Safety Cover Ass'y €41.91
32
 photo_cameraImage coming soon 227822 Bracket €5.23
35
 photo_cameraImage coming soon 231882 String Cutter Ass'y €7.75
36
 photo_cameraImage coming soon 230747 String Cutter €5.33
37
 photo_cameraImage coming soon 261250 Cap Screw M €1.90
38
 photo_cameraImage coming soon 228325 Nut €1.90
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

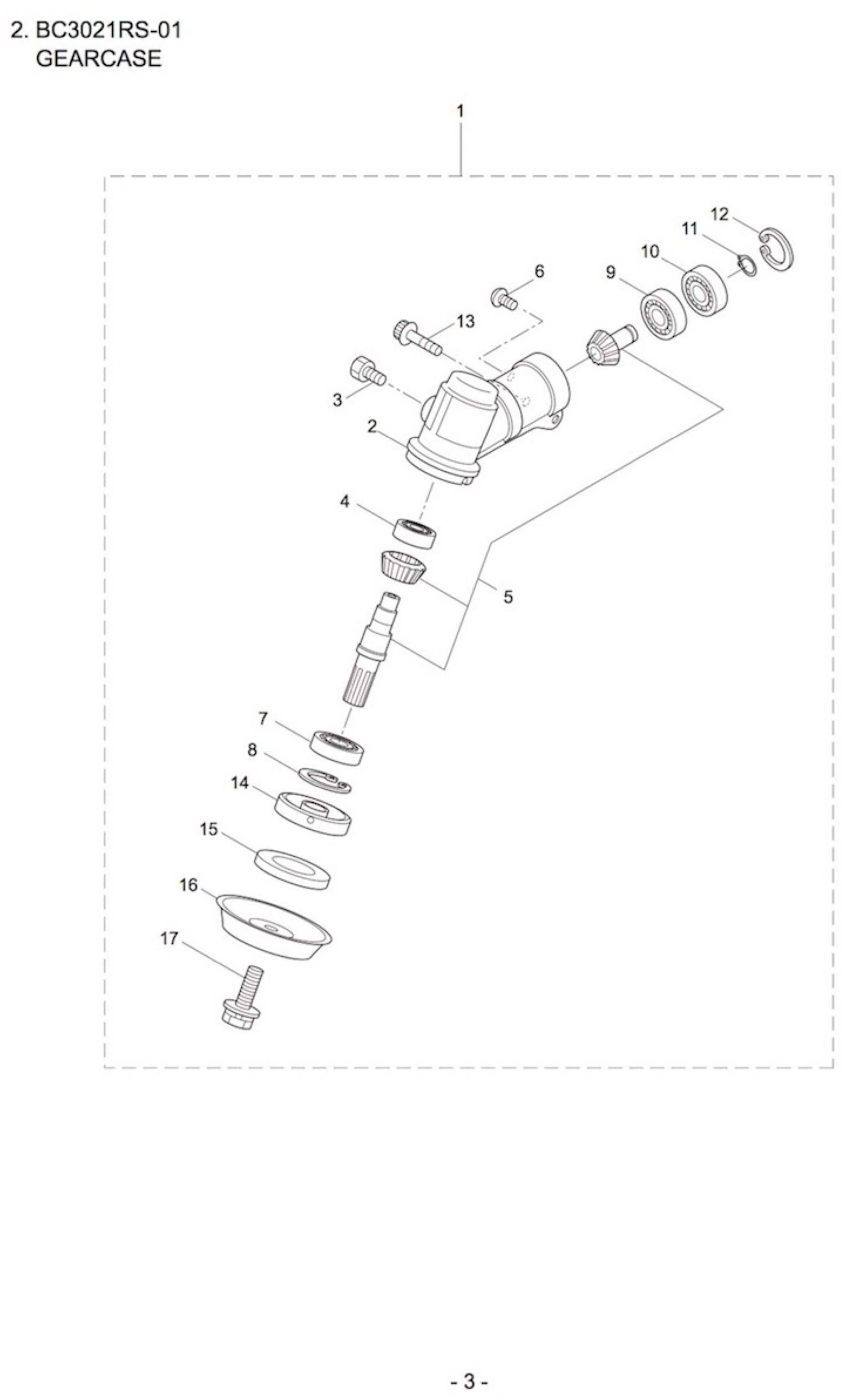

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 231880 Gearcase Ass'y €188.44
4
 photo_cameraImage coming soon 227990 Bearing €165.30
5
 photo_cameraImage coming soon 228416 Gear Set €81.13
7
 photo_cameraImage coming soon 227991 Bearing €71.18
8
 photo_cameraImage coming soon 055185 Snap Ring €13.23
9
 photo_cameraImage coming soon 227992 Bearing €7.88
10
 photo_cameraImage coming soon 227993 Bearing €9.29
11
 photo_cameraImage coming soon 228477 Snap Ring €2.46
12
 photo_cameraImage coming soon 140270 Snap Ring €2.46
13
 Maruyama HT230D Cap Screw M5x25 261246 Maruyama HT230D Cap Screw M5x25 €2.48
14
 photo_cameraImage coming soon 212986 Boss Adapter €12.82
15
 photo_cameraImage coming soon 140275 Clamping Washer €11.25
16
 photo_cameraImage coming soon 215547 Stabilizer €5.53
17
 photo_cameraImage coming soon 215610 Bolt €4.29
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

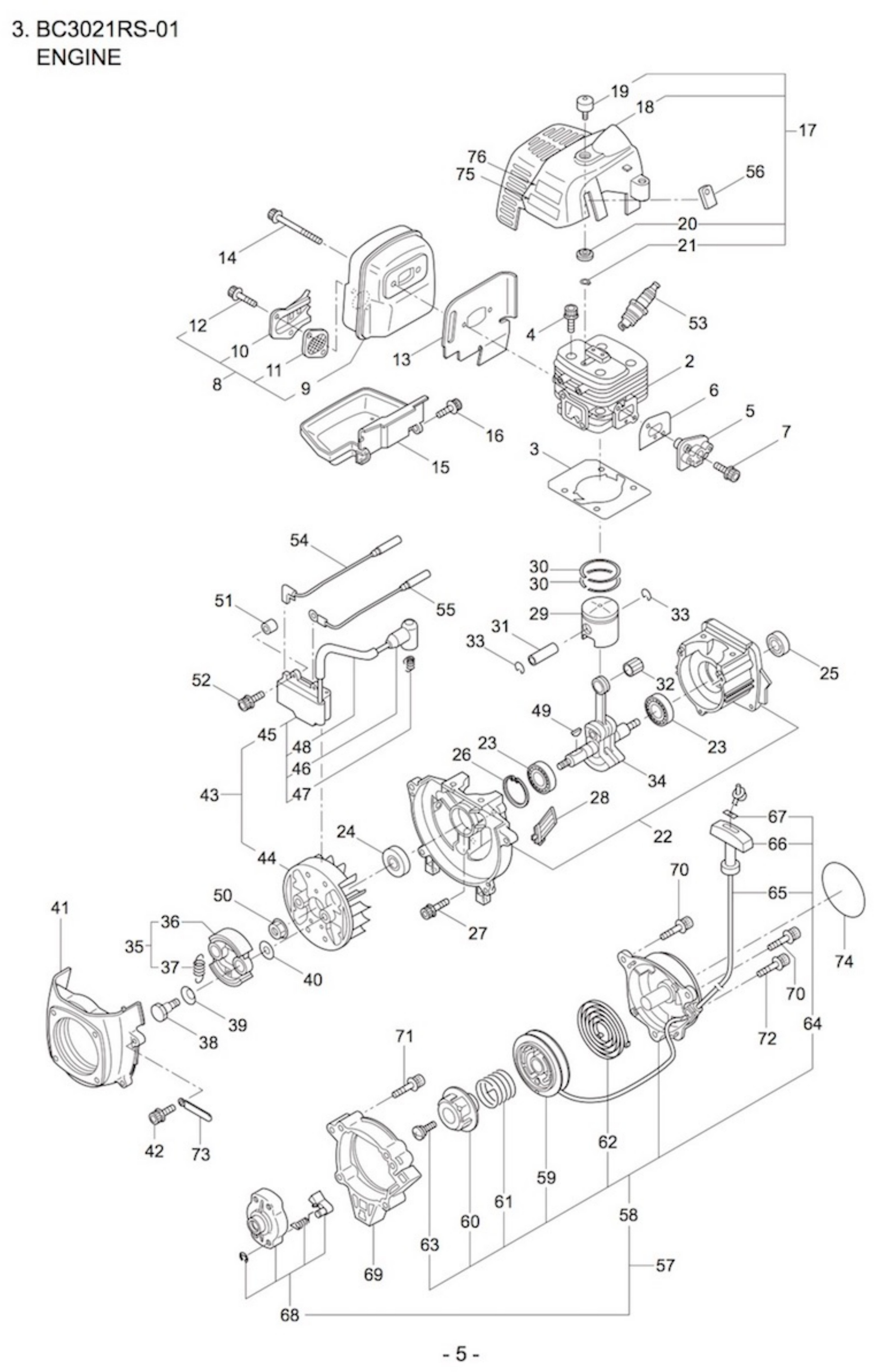

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 286791 Cylinder €363.96
3
 photo_cameraImage coming soon 286846 Gasket €13.71
4
 photo_cameraImage coming soon 261250 Cap Screw M €1.90
6
 photo_cameraImage coming soon 267049 Gasket €2.78
8
 photo_cameraImage coming soon 283007 Muffler Ass'y €45.30
18
 Maruyama BC3021RS-01 Cylinder Cover 281434 Maruyama BC3021RS-01 Cylinder Cover €27.46
19
 photo_cameraImage coming soon 286300 Knob €4.70
20
 photo_cameraImage coming soon 261020 Spacer €2.43
23
 photo_cameraImage coming soon 280488 Bearing €24.24
24
 photo_cameraImage coming soon 261492 Oil Seal ISCD €5.57
25
 photo_cameraImage coming soon 261386 Oil Seal €5.89
26
 photo_cameraImage coming soon 055185 Snap Ring €13.23
29
 photo_cameraImage coming soon 268782 Piston €39.83
30
 photo_cameraImage coming soon 265067 Piston Ring €8.63
31
 photo_cameraImage coming soon 265068 Piston Pin €5.86
32
 photo_cameraImage coming soon 265225 Bearing,Needle €14.40
33
 photo_cameraImage coming soon 261393 Clip,Piston Pin €2.57
35
 Maruyama BC3021RS-01 Clutch Assy 267327 Maruyama BC3021RS-01 Clutch Assy €36.07
37
 photo_cameraImage coming soon 267345 Spring,Clutch €2.43
38
 photo_cameraImage coming soon 264505 Bolt €3.82
39
 photo_cameraImage coming soon 261777 Wave Washer €2.46
40
 photo_cameraImage coming soon 261189 Washer €2.50
41
 photo_cameraImage coming soon 281433 Fan Cover €25.00
42
 photo_cameraImage coming soon 261250 Cap Screw M €1.90
44
 photo_cameraImage coming soon 287902 Rotor/Fan €52.01
49
 photo_cameraImage coming soon 261076 Woodruff Key €1.90
50
 photo_cameraImage coming soon 261417 NutRotor M €2.46
58
 Maruyama BC3021RS Starter Ass'y 283477 Maruyama BC3021RS Starter Ass'y €62.53
59
 Maruyama BC3021RS Starter Reel 283504 Maruyama BC3021RS Starter Reel €11.60
60
 Maruyama BC3021RS-01 Cam Plate 283505 Maruyama BC3021RS-01 Cam Plate €9.79
61
 Maruyama BC3021RS-01 Starter Spring 283506 Maruyama BC3021RS-01 Starter Spring €13.24
62
 Maruyama BC3021RS Starter Spring 280931 Maruyama BC3021RS Starter Spring €18.99
63
 photo_cameraImage coming soon 267213 PULLEY SCREW STARTER MCV3100TS €3.11
66
 photo_cameraImage coming soon 261725 Starter Grip €5.97
67
 photo_cameraImage coming soon 283511 Rope Stopper €2.57
68
 Maruyama BC3021RS-01 Starter Pawl Assy 283575 Maruyama BC3021RS-01 Starter Pawl Assy €15.40
69
 Maruyama BC3021RS Adapter Assy 284698 Maruyama BC3021RS Adapter Assy €18.85
75
 photo_cameraImage coming soon 265694 Label €2.42
76
 photo_cameraImage coming soon 267561 Label €1.90
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

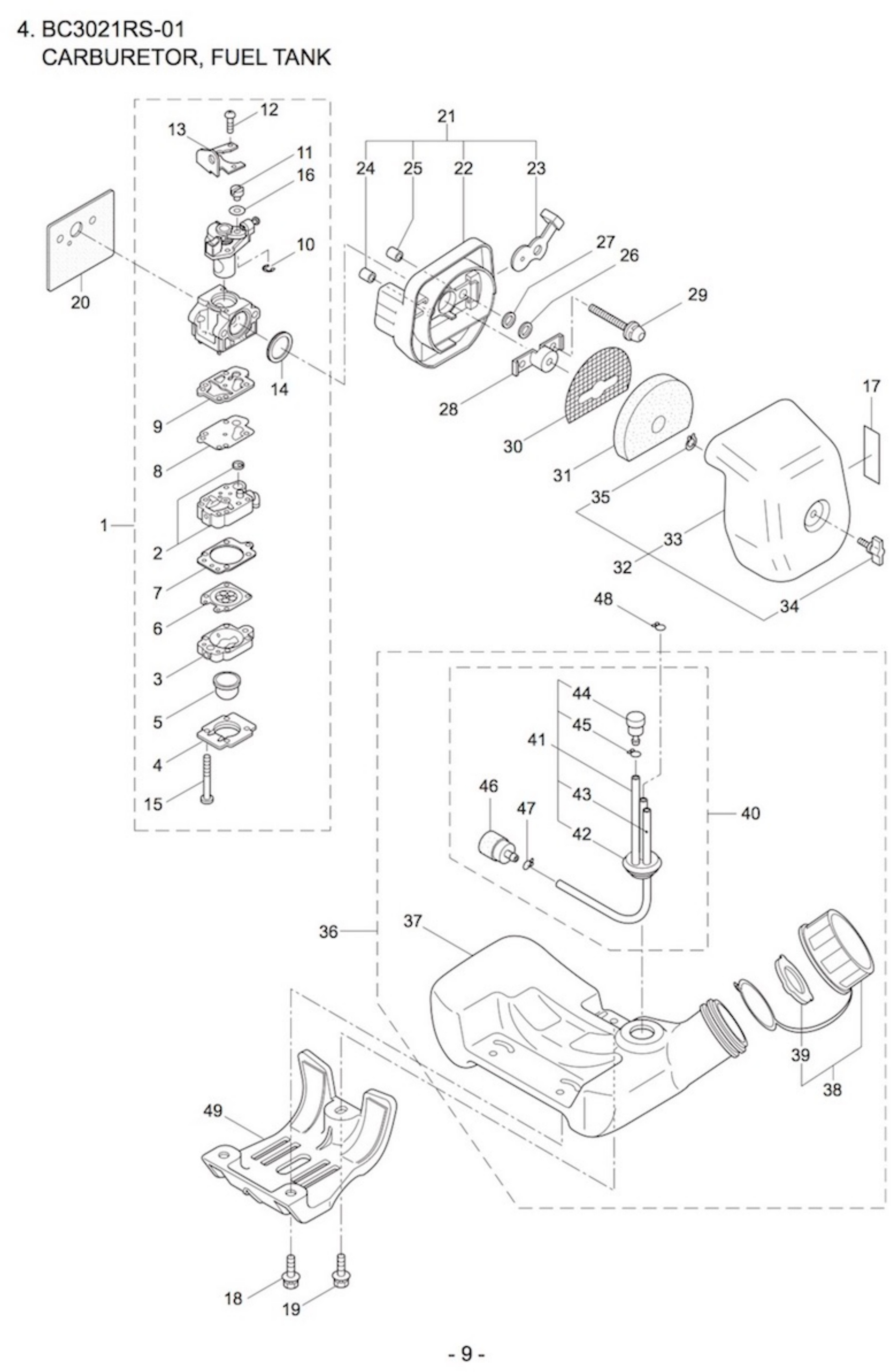

Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 284111 Carburetor Ass'y €219.96
3
 photo_cameraImage coming soon 262991 Purge Body €26.36
4
 photo_cameraImage coming soon 262992 Cover Plate €8.68
5
 photo_cameraImage coming soon 261874 Primer Bulb €18.01
6
 photo_cameraImage coming soon 283905 Diaphragm Meterring €33.00
7
 Gasket 262993 Gasket €7.53
8
 photo_cameraImage coming soon 262994 Diaphragm,Fuel Pump €10.03
9
 photo_cameraImage coming soon 282576 Gasket €5.59
10
 photo_cameraImage coming soon 261876 E-Ring €2.03
11
 photo_cameraImage coming soon 261658 Swivel €5.97
12
 photo_cameraImage coming soon 261875 Screw €4.82
14
 photo_cameraImage coming soon 261657 Packing €14.34
20
 photo_cameraImage coming soon 269762 Gasket €2.94
21
 photo_cameraImage coming soon 261734 Snap Ring €2.43
21
 photo_cameraImage coming soon 268055 Air Filter Case Ass'y €17.94
30
 photo_cameraImage coming soon 265026 Screen €4.61
31
 photo_cameraImage coming soon 265027 Foam Element €3.06
32
 photo_cameraImage coming soon 268058 Air Filter Cover Ass'y €31.36
33
 photo_cameraImage coming soon 268059 Air Filter Cover €10.00
34
 photo_cameraImage coming soon 281438 Knob €3.17
35
 photo_cameraImage coming soon 261734 Snap Ring €2.43
37
 photo_cameraImage coming soon 281439 Fuel Tank €21.47
38
 Fuel Tank Cap Ass'y 281564 Fuel Tank Cap Ass'y €7.23
39
 photo_cameraImage coming soon 269377 Gasket €1.90
40
 photo_cameraImage coming soon 282538 Fuel Pipe Pick-up Ass'y €36.30
42
 Grommet 268065 Grommet €5.59
44
 photo_cameraImage coming soon 261590 Breather €5.45
45
 photo_cameraImage coming soon 261117 BC450 TANK CLAMP €1.90
46
 photo_cameraImage coming soon 264653 FUEL FILTER €8.90
47
 photo_cameraImage coming soon 261117 BC450 TANK CLAMP €1.90
48
 photo_cameraImage coming soon 261117 BC450 TANK CLAMP €1.90
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

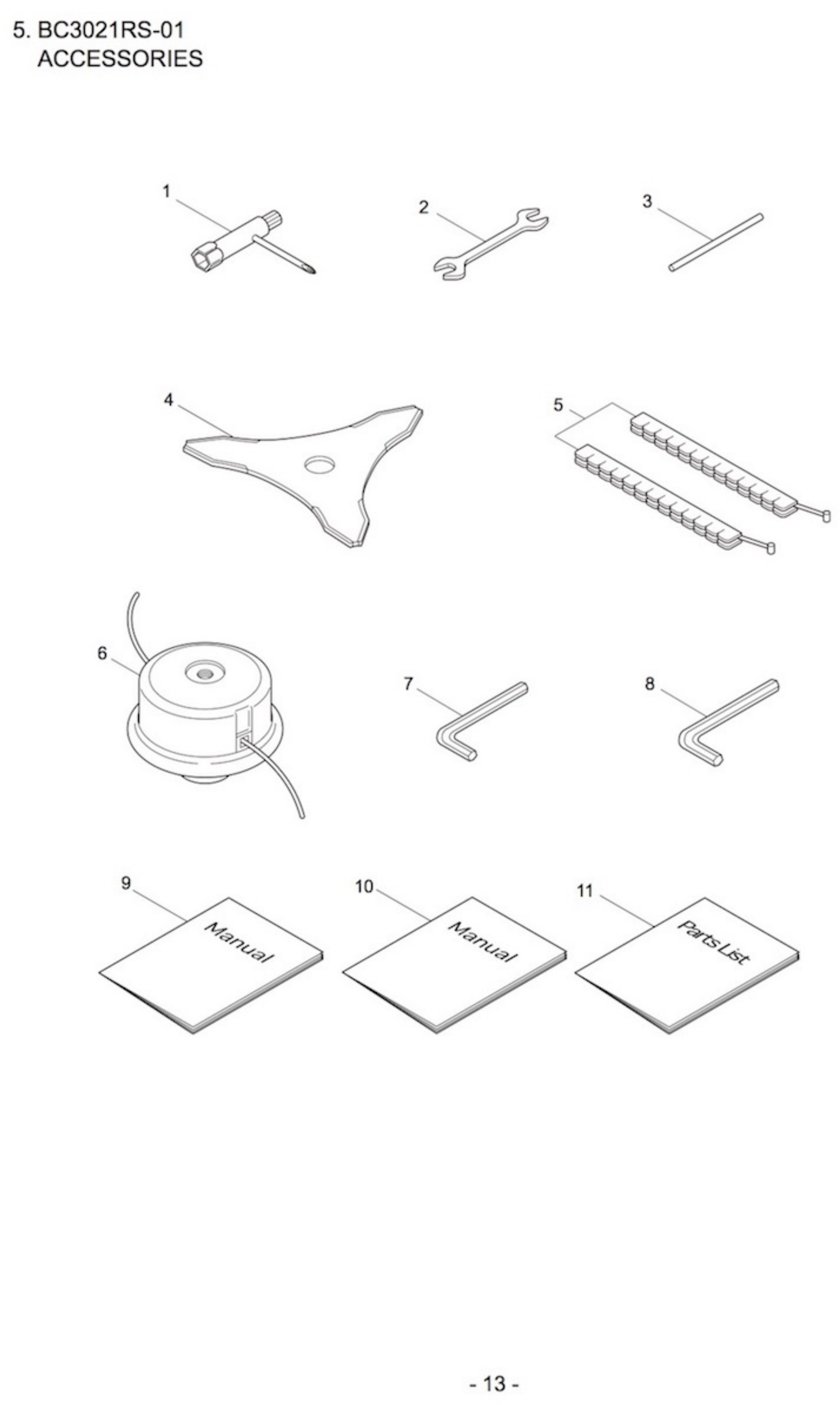

Esploso pagina 5
Pos. Item Price Buy
6
 photo_cameraImage coming soon 232226 Semi-Auto Head (L) €52.54

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Maruyama Parts for Brushcutter BC3021RS-01

Fix Your Brushcutter Maruyama BC3021RS-01. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following tables, look for the spare part and its respective code.
Brushcutter Maruyama BC3021RS-01

Brushcutter Maruyama BC3021RS-01 Spare Parts Pag.1
# Part Num. Description
2 261250 Cap Screw
3 215512 Clutch Case Ass'y
4 214592 Bearing Case
5 214161 Bearing
6 054676 Snap Ring
7 214162 Buffer
8 214163 Washer
10 214593 Driveshaft Tube Adapter
11 261246 Cap Screw
12 054677 Clutch Drum
13 219268 Driveshaft Ass'y
14 224122 Driveshaft Tube
19 223188 Label
21 228086 Hanging Strap Ass'y
22 230748 Cover Extention
23 231955 Loop Handle Ass'y
25 081027 Nut
27 232086 Safety Cover Ass'y
28 231252 Safety Cover Ass'y
32 227822 Bracket
35 231882 String Cutter Ass'y
36 230747 String Cutter
37 261250 Cap Screw
38 228325 Nut
Pag.2
1 231880 Gearcase Ass'y
4 227990 Bearing
5 228416 Gear Set
7 227991 Bearing
8 055185 Snap Ring
9 227992 Bearing
10 227993 Bearing
11 228477 Snap Ring
12 140270 Snap Ring
13 261246 Cap Screw
14 212986 Boss Adapter
15 140275 Clamping Washer
16 215547 Stabilizer
17 215610 Bolt
Pag.3
2 286791 Cylinder
3 286846 Gasket
4 261250 Cap Screw
6 267049 Gasket
8 283007 Muffler Ass'y
18 281434 Top Cover
19 286300 Knob
20 261020 Spacer
21 261734 Snap Ring
23 280488 Bearing
24 261492 Oil Seal
25 261386 Oil Seal
26 055185 Snap Ring
29 268782 Piston
30 265067 Piston Ring
31 265068 Piston Pin
32 265225 Bearing,Needle
33 261393 Clip,Piston Pin
35 267327 Clutch Ass'y
37 267345 Spring,Clutch
38 264505 Bolt
39 261777 Wave Washer
40 261189 Washer
41 281433 Fan Cover
42 261250 Cap Screw
44 287902 Rotor/Fan
49 261076 Woodruff Key
50 261417 Nut,Rotor
58 283477 Recoil Ass'y
59 283504 Reel
60 283505 Cam Plate
61 283506 Spring
62 280931 Spiral Spring
63 267213 Screw
66 261725 Starter Grip
67 283511 Rope Stopper
68 283575 Starter Pawl Ass'y
69 284698 Adapter Ass'y
75 265694 Label
76 267561 Label
Pag.4
1 284111 Carburetor Ass'y
3 262991 Purge Body
4 262992 Cover Plate
5 261874 Primer Bulb
6 283905 Diaphragm, Meterring
7 262993 Gasket
8 262994 Diaphragm,Fuel Pump
9 282576 Gasket
10 261876 E-Ring
11 261658 Swivel
12 261875 Screw
14 261657 Packing
20 269762 Gasket
21 268055 Air Filter Case Ass'y
30 265026 Screen
31 265027 Foam Element
32 268058 Air Filter Cover Ass'y
33 268059 Air Filter Cover
34 281438 Knob
35 261734 Snap Ring
37 281439 Fuel Tank
38 281564 Fuel Tank Cap Ass'y
39 269377 Gasket
40 282538 Fuel Pipe Pick-up Ass'y
42 268065 Grommet
44 261590 Breather
45 261117 Clip
46 264653 Filter Ass'y
47 261117 Clip
48 261117 Clip
Pag.5
6 232226 Semi-Auto Head (L)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Maruyama websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Maruyama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Maruyama BC3021RS-01
12 Items

Data sheet

Machine Type
Brushcutters
SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Maruyama BC3021RS-01 Diagram

Maruyama BC3021RS-01 Diagram

Download (584.65KB)

You might also like

Maruyama BC3021RS Starter Ass'y
Maruyama SKU: 283477
Maruyama BC3021RS Starter Ass'y
Maruyama BC3021RS-01 Recoil Starter Ass'y Genuine replacement part Makita, Recoil Starter Ass'y for Brushcutters BC3021RS-01 - BC2321RS-01 - BC260RS - BC2621RS - BC3021H-RS-01. Part for the following products: - Maruyama BC3021RS-01...
AVAILABLE €62.53
Details
Maruyama BC3021RS Starter Reel
Maruyama SKU: 283504
Maruyama BC3021RS Starter Reel
Maruyama BC3021RS-01 Starter Reel Genuine replacement part Makita, Starter Reel for Brushcutters BC3021RS-01 - BC2321RS-01 - BC260RS - BC2621RS - BC3021H-RS-01. Part for the following products: - Maruyama BC3021RS-01 -...
AVAILABLE €11.60
Details
Maruyama BC3021RS Starter Spring
Maruyama SKU: 280931
Maruyama BC3021RS Starter Spring
Maruyama BC3021RS-01 Starter Spiral Spring Genuine replacement part Makita, Starter Spiral Spring for Brushcutters BC3021RS-01 - BC2321RS-01 - BC260RS - BC2621RS - BC3021H-RS-01. Part for the following products: - Maruyama...
AVAILABLE €18.99
Details
Maruyama BC3021RS-01 Clutch Assy
Maruyama SKU: 267327
Maruyama BC3021RS-01 Clutch Assy
Maruyama BC3021RS-01 Clutch Ass'y Genuine replacement part Makita, Clutch Ass'y for Brushcutters BC3021RS-01 - BC2321RS-01 - BC2621RS - BC3021H-RS-01. Part for the following products: - Maruyama BC3021RS-01 - Maruyama BC2321RS-01...
AVAILABLE €36.07
Details
Maruyama BC3021RS-01 Starter Pawl Assy
Maruyama SKU: 283575
Maruyama BC3021RS-01 Starter Pawl Assy
Maruyama BC3021RS-01 Starter Pawl Ass'y Genuine replacement part Makita, Starter Pawl Ass'y for Brushcutters BC3021RS-01 - BC2321RS-01 - BC260RS - BC2621RS - BC3021H-RS-01. Part for the following products: - Maruyama BC3021RS-01 -...
AVAILABLE €15.40
Details
Maruyama BC3021RS-01 Starter Spring
Maruyama SKU: 283506
Maruyama BC3021RS-01 Starter Spring
Maruyama Starter Spring for Brushcutter BC3021RS-01 Genuine spare part Maruyama, Starter Spring for Brushcutter BC3021RS-01 - BC2321RS-01. Part for the following products: -  Brushcutter...
Usually Ships in: 7/10 Business Days Approx. €13.24
Details
Comments (0)
No customer reviews for the moment.
