Makita

Maktec Spare Parts for Angle Grinder MT962

SKU: Maktec MT962
€14.78
VAT included

Maktec Spare Parts for Angle Grinder MT962

Distribution and Sale at attractive prices of Maktec Original Spare Parts. Low prices and a professional Assistance guarantee, repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Angle Grinder MT962.
Maktec Spare Parts for Angle Grinder MT962
  • Maktec Spare Parts for Angle Grinder MT962
  • Maktec Spare Parts for Angle Grinder MT962
Makita

Maktec Spare Parts for Angle Grinder MT962

SKU: Maktec MT962 Condition: New
€14.78
VAT included

Maktec Spare Parts for Angle Grinder MT962

Distribution and Sale at attractive prices of Maktec Original Spare Parts. Low prices and a professional Assistance guarantee, repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Angle Grinder MT962.
settings 31 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
31 spare parts

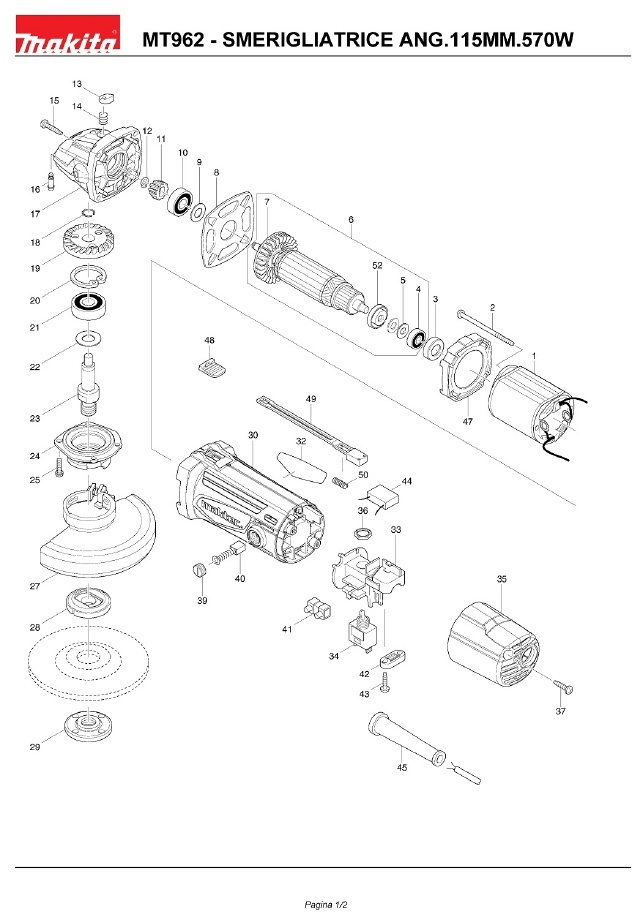

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 593523-0 STATOR X MT952 €8.86
2
 photo_cameraImage coming soon 266325-4 SCREW M 4 TO 70 PER MT952 €1.36
4
 Ball Bearing 607 ZZ for Impact Drill Maktek MT601 210062-2 Ball Bearing 607 ZZ for Impact Drill Maktek MT601 €2.03
6
 photo_cameraImage coming soon 510173-6 ARMATURE MT962 €29.67
10
 photo_cameraImage coming soon 210067-2 BEARING MT952 6000ZZ €3.35
11
 photo_cameraImage coming soon 227451-4 GEAR 11 X MT952 €4.51
12
 photo_cameraImage coming soon 961002-0 RETAINING RING S6 €1.26
13
 Button Pin Disc Block for Angle Grinder Makita 9554NB 417771-6 Button Pin Disc Block for Angle Grinder Makita 9554NB €3.18
14
 Pin Disc Block Spring for Angle Grinder Makita 9554NB 233376-2 Pin Disc Block Spring for Angle Grinder Makita 9554NB €2.51
15
 photo_cameraImage coming soon 266324-6 SCREW M 4 X 22 X MT601 €2.95
16
 Pin Disc Block for Angle Grinder Makita 9554NB 256486-8 Pin Disc Block for Angle Grinder Makita 9554NB €3.35
17
 photo_cameraImage coming soon 140433-8 GEAR HOUSING MT962 €12.90
18
 Ring 11 for Angle Grinder Makita GA4530 233950-6 Ring 11 for Angle Grinder Makita GA4530 €1.43
19
 photo_cameraImage coming soon 227452-2 GEAR 36 X MT952 €4.51
20
 Retaining Ring R32 for Powertools Makita 962151-6 Retaining Ring R32 for Powertools Makita €1.43
21
 Bearing 6201DD NSK for Powertools Makita 211129-9 Bearing 6201DD NSK for Powertools Makita €8.41
22
 photo_cameraImage coming soon 267238-2 WASHER 12 MT952 €2.39
23
 photo_cameraImage coming soon 325978-9 POST MT962 €4.51
27
 Disc Protection for Angle Grinder Makita 9554NB 123098-1 Disc Protection for Angle Grinder Makita 9554NB €16.64
28
 Inner Flange for Angle Grinder Makita 115-125 mm 224415-9 Inner Flange for Angle Grinder Makita 115-125 mm €8.23
29
 Upper Flange for Angle Grinders Makita 115-125 mm 224554-5 Upper Flange for Angle Grinders Makita 115-125 mm €8.23
30
 photo_cameraImage coming soon 140434-6 HOUSING MOTOR MT962 €11.41
34
 photo_cameraImage coming soon 651424-9 SWITCH STL106AT X MT952 €5.24
35
 photo_cameraImage coming soon 451916-6 BACK COVER MT962 €2.70
37
 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 €1.27
40
 Carbon Brushes CB-411 for Trimmer Makita 3707-3708 FC 191940-4 Carbon Brushes CB-411 for Trimmer Makita 3707-3708 FC €8.17
42
 photo_cameraImage coming soon 687124-5 CORD CLAMP MT953 €1.47
43
 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 €1.27
44
 photo_cameraImage coming soon 645190-8 CAPACITOR X MT952 €3.18
45
 photo_cameraImage coming soon 682569-2 CORD ARMOR MT601 €2.77
50
 photo_cameraImage coming soon 233360-7 COMPRESSION SPRING 4 X MT952 €1.47
52
 Armature Washer for Angle Grinder Makita GA4530 681636-0 Armature Washer for Angle Grinder Makita GA4530 €2.34

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Maktec Spare Parts for Angle Grinder MT962

Distribution and Sale at attractive prices of Maktec Original Spare Parts. Low prices and a professional Assistance guarantee, repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Angle Grinder MT962.

In the following table, look for the model of Angle Grinder and the respective parts of the code.
Maktec MT962

Angle Grinder Maktec MT962
# Part Num. Description
1 593523-0 STATOR X MT952
2 266325-4 SCREW M 4 X 70 X MT952
3 421808-3 RING RUBBER 19 MT952
4 210062-2 BEARING 607ZZ X MT601
5 267245-5 WASHER 7 X MT952
6 510173-6 ARMATURE MT962
7 240059-7 FAN 50 X MT952
8 285704-7 RETAINING BEARING 69 X MT952
9 267256-0 WASHER 10 X MT952
10 210067-2 BEARING 6000ZZ X MT952
11 227451-4 GEAR 11 X MT952
12 961002-0 RETAINING RING S6
13 417771-6 BUTTON X 9554NB
14 233376-2 SPRING COMP. 8 X MT952
15 266324-6 SCREW M 4 X 22 X MT601
16 256486-8 PIN Disc Lock 9554NB
17 140433-8 GEAR HOUSING MT962
18 233950-6 RING 11 X GA5010
19 227452-2 GEAR 36 X MT952
20 962151-6 RETAINING RING R32
21 211129-9 BALL BEARING NSK 6201DD
22 267238-2 WASHER 12 X 9554NB
23 325978-9 POST MT962
24 318374-8 BEARING BOX
25 265100-5 SCREW M4 X 16 X MT952
27 123098-1 HEADPHONES DISCO 115AK
28 224415-9 INTERNAL FLANGE 42 GA95010
29 224554-5 EXTERNAL FLANGE 14-45 X 9541
30 140434-6 HOUSING MOTOR MT962
32 868172-5 LABEL MT962
33 418397-7 HOLDER SWITCH MT952
34 651424-9 SWITCH STL106AT X MT952
35 451916-6 BACK COVER MT962
36 652112-1 HEX NUT X MT952
37 266326-2 SCREW 4x18 X MT601
39 643987-9 PLUG BRUSH 5-8 MT952
40 191940-4 CARBON BRUSHES CB-411 X EX 422/421
41 654588-8 X CLAMP MT952
42 687124-5 Cable tie CLAMP MT953
43 266326-2 SCREW 4x18 X MT601
44 645190-8 CAPACITOR X MT952
45 682569-2 CABLE SLEEVE MT601
47 418015-7 BAFFLE MT952
48 418016-5 KEY SWITCH X MT952
49 418017-3 LEVER SWITCH. X MT952
50 233360-7 SPRING COMP. 4 X MT952
52 681636-0 INSULATION WASHER

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Maktec MT962
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Maktech MT962

Diagram Maktech MT962

Download (260.91KB)
