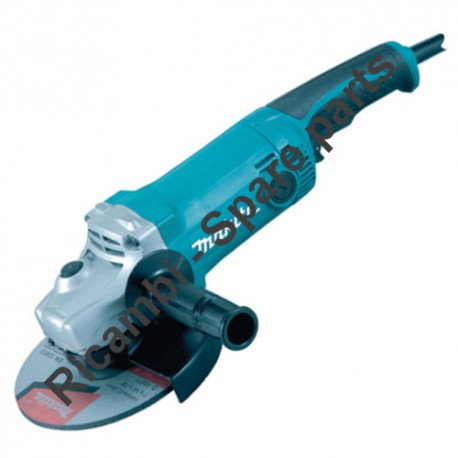

Makita Spare Parts for Angle Grinder GA7050R
Makita genuine spare parts or replacement parts for to fix Angle Grinder GA7050R.

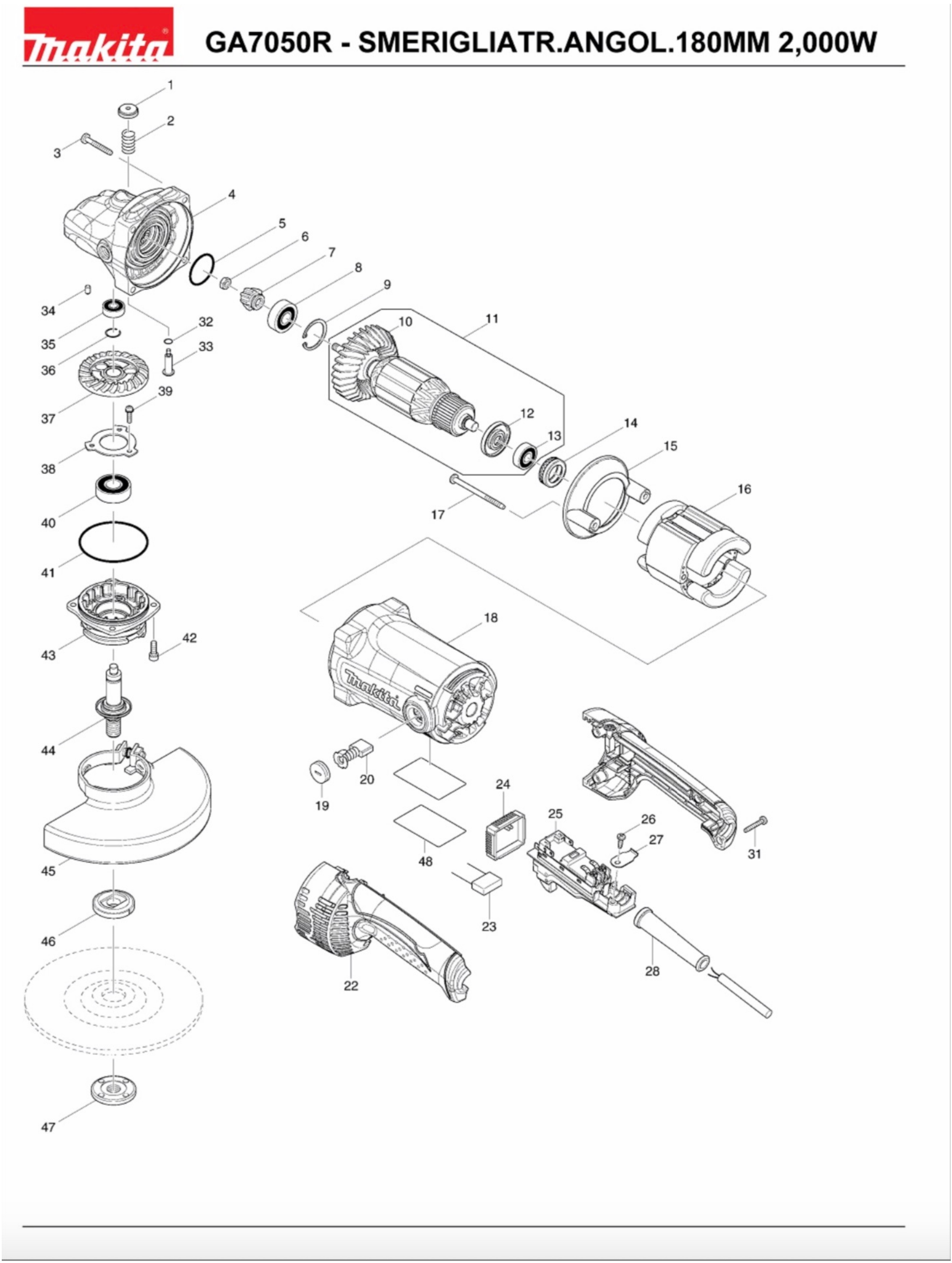

In the following table, look for the model of the Angle Grinder and the respective parts of the code.
| Angle Grinder GA7050CR |
| # |
Part Num. |
Description |
| 1 |
451485-7 |
PIN CAP GA9050R |
| 2 |
233292-8 |
COMPRESSION SPRING 12 |
| 3 |
266373-3 |
TAPPING SCREW 5x35 GA9020 |
| 4 |
140223-9 |
GEAR HOUSING COMPLETE GA9050R |
| 5 |
213487-9 |
O-RING 31 AF550H |
| 6 |
264010-3 |
HEX.NUT M7 GA5010 |
| 7 |
227564-1 |
SPIRAL BEVEL GEAR 10B |
| 8 |
211137-0 |
BALL BEARING 6201LLU HM0860C |
| 9 |
257965-9 |
O-RING R-32 GA9050R |
| 10 |
240120-0 |
FAN 80 GA9050R |
| 11 |
518747-7 |
ARMATURE ASSEMBLY 240V GA9050R |
| 12 |
681657-2 |
INSULATION WASHER GA9050R |
| 13 |
210059-1 |
BALL BEARING 6000 HR2010 |
| 14 |
421490-8 |
RUBBER RING 26 1805B |
| 15 |
451480-7 |
BAFFLE GA9050R |
| 16 |
527700-2 |
FIELD ASSY GA9050R |
| 17 |
266389-8 |
SCREW 5X70 FOR UC3020A |
| 18 |
140222-1 |
MOTOR HOUSING GA9050R |
| 19 |
643710-2 |
BRUSH COVER HM1500 |
| 20 |
191957-7 |
CARBON BRUSH SET CB-204 (201.202) |
| 22 |
188849-9 |
HANDLE SET GA9050R |
| 23 |
645088-9 |
CAPACITOR GA9020 |
| 24 |
631944-9 |
CONTROLLER GA9050R |
| 25 |
650107-8 |
SWITCH TG08-2300-013 GA9050R |
| 26 |
266192-7 |
TAPPING SCREW 4X14 HR4001C / HR4010C |
| 27 |
687169-3 |
STRAIN RELIEF HP1620 |
| 28 |
682574-9 |
CORD GUARD 10-90 PC5000C |
| 31 |
265999-8 |
TAPPING SCREW 4X25 |
| 32 |
213026-5 |
O-RING 7 GA9010C |
| 33 |
256516-5 |
SHOULDER PIN 11 GA9050R |
| 34 |
263002-9 |
RUBBER PIN 4 |
| 35 |
210029-0 |
BALL BEARING 608Z MT601 |
| 36 |
233925-5 |
O-RING 13 6413 |
| 37 |
227562-5 |
SPIRAL BEVEL GEAR 38 |
| 38 |
285851-4 |
BEARING RETAINER GA9050R |
| 39 |
911128-8 |
TAPPING SCREW M4x16 HR4000C |
| 40 |
211241-5 |
BALL BEARING 6202DDW MT601 |
| 41 |
213720-9 |
O-RING 67 HR2400 |
| 42 |
922221-3 |
TAPPING SCREW M5X16 HM1303 |
| 43 |
318523-7 |
BEARING BOX GA9050R |
| 44 |
140224-7 |
SPINDLE COMPLETE A GA9050R |
| 45 |
122889-7 |
HWHEEL COVER 230K ASSEMBLY GA7020 |
| 46 |
224415-9 |
INNER FLANGE 42 GA95010 |
| 47 |
224543-0 |
LOCK NUT 14-45 9047F 9049F 9049SF |
| 48 |
892805-0 |
CLEAR LABEL GA9050R |
