Makita Spare Parts for Angle Grinder GA7020

Name: Makita Spare Parts for Angle Grinder GA7020
Brand: Makita
SKU: Makita GA7020
Availability: InStock

SKU: Makita GA7020

€13.41

VAT included

Makita Spare Parts for Angle Grinder GA7020

46 spare parts

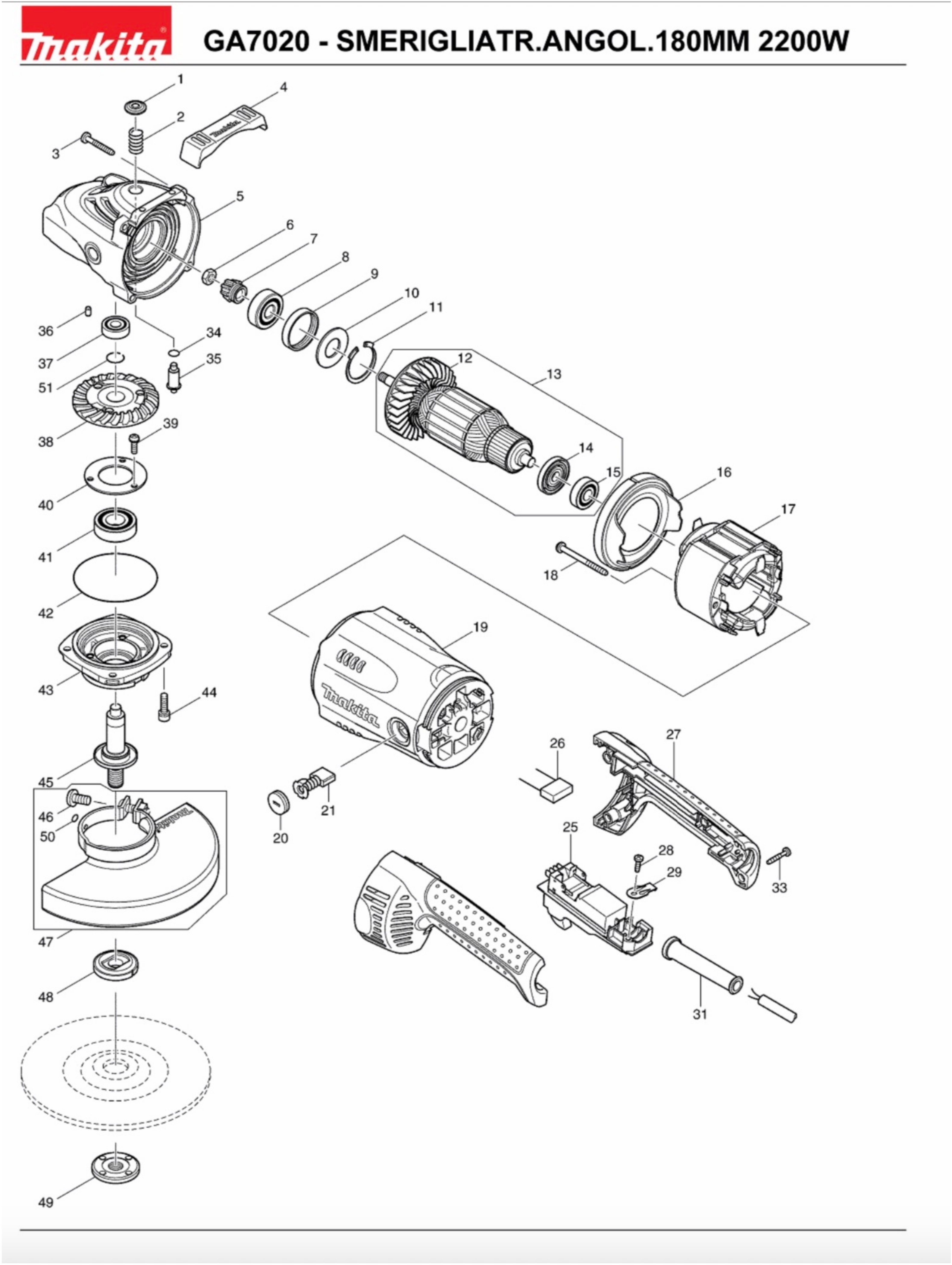

Page 1 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1		419133-4 Makita Pin Cap for Angle Grinder GA9020	€1.50
2		233292-8 Pin Disc Block Spring for Angle Grinder Makita GA9020	€1.50
3	Image coming soon	266373-3 SCREW 5x35 GA9020	€2.17
4		419144-9 Bumper for Angle Grinder Makita GA9020	€2.50
5		142754-4 Gear Box for Angle Grinder Makita GA9020	€25.65
6	Image coming soon	252194-9 NUT M8 GA9020	€1.79
7	Image coming soon	227488-1 GEAR FOR 16 GA7020	€7.15
8		211132-0 Ball Bearing 6301DD for Angle Grinders Makita	€13.46
9	Image coming soon	262085-6 RUBBER RING 38 9079S	€1.42
10		267299-2 Washer 20 for Angle Grinder Makita GA9020	€1.27
11	Image coming soon	962211-4 RETAINING RING R42	€3.13
12		240081-4 Armature Fan for Angle Grinder Makita GA9020	€5.87
13		517793-7 Armature for Angle Grinder Makita GA9020	€67.13
14	Image coming soon	681630-2 WASHER 9029-9029SF.	€2.90
15	Image coming soon	210075-3 BALL BEARING 6200DDW GA9020	€3.13
16	Image coming soon	419135-0 DEFLECTOR GA9020	€1.79
17		526179-4 Stator for Angle Grinder Makita GA9020	€61.29
18	Image coming soon	266329-6 SCREW 5x60 GA9020	€1.29
19		154671-6 Motor Housing for Angle Grinder Makita GA9020	€33.48
20		643710-2 Brushes Holder Cap for Angle Grinders Makita GA7020-GA9020-9069	€2.01
21		191957-7 Carbon Brushes CB-204 Makita for Hammers and Angle Grinders	€9.15
25		650102-8 Switch for Angle Grinder Makita GA9020 2200 W	€31.96
26		645088-9 Capacitor for Angle Grinder Makita GA9020	€1.50
27		188059-8 Handle for Angle Grinder Makita GA7020-GA9020	€36.17
28	Image coming soon	266385-6 SCREW 4x14 GA9020	€1.44
29	Image coming soon	687169-3 STRAIN RELIEF HP1620	€1.46
31		682560-0 Power Cord Protection for Angle Grinder Makita 1800-2000-2200W	€3.18
33	Image coming soon	266374-1 SCREW 4X25 GA9020	€1.43
34	Image coming soon	213062-1 9 RING BSR730	€1.79
35		256491-5 Pin Disc Block for Angle Grinders Makita 180-230MM	€3.35
36		263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C	€1.32
37	Image coming soon	210067-2 BEARING MT952 6000ZZ	€3.35
38	Image coming soon	227489-9 GEAR FOR 53 GA7020	€15.51
39	Image coming soon	265120-9 SCREW M5x16 GA9020	€1.79
40		285724-1 Bearings Washer Grinders Makita GA7020-GA9020	€2.51
41		211285-5 Ball Bearing 6203DDW for Makita GA9020	€3.84
42	Image coming soon	213760-7 SEAL 78 HR2010	€2.69
43		318377-2 Bearings Box for Angle Grinders Makita GA7020-GA9020	€8.73
44	Image coming soon	265541-5 SCREW M6X22 GA9020	€1.79
45		158206-5 Spindle Complete for Angle Grinder Makita GA7020-GA9020	€13.28
46	Image coming soon	265198-2 SCREW M8X25 GA9020	€1.79
47	Image coming soon	122889-7 HEADSET FOR DISCO GA7020	€9.54
48		224415-9 Inner Flange for Angle Grinder Makita 115-125 mm	€8.23
49		224543-0 Upper Flange for Angle Grinder Makita 180-230 mm	€5.45
50	Image coming soon	213017-6 RING 6 AN621	€1.79
51	Image coming soon	233946-7 SNAP RING 15 X MT903	€1.79

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Angle Grinder GA7020

Makita original replacement parts for to replace broken parts for to fix Angle Grinder GA7020.

Fix Your Angle Grinder. All Spares can be supplyed at discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Angle Grinder and the respective parts of the code.

	Angle Grinder GA7020
#	Part Num.	Description
1	419133-4	PLUG PLUG FOR GA9020
2	233292-8	SPRING COMPRESSION 12
3	266373-3	5x35 SCREW FOR GA9020
4	419144-9	PROTECTION FOR RUBBER GA9020
5	142754-4	GEAR HOUSING FOR GA9020
6	252194-9	NUT M8 FOR GA9020
7	227488-1	GEAR FOR 16 GA7020
8	211132-0	BALL BEARING 6301DD
9	262085-6	RUBBER RING 38 9079S
10	267299-2	WASHER 20 FOR GA9020
11	962211-4	RETAINING RING R42
12	240081-4	FAN FOR 80 GA9020
13	517793-7	INDUCED FOR GA9020
14	681630-2	WASHER X 9029-9029SF.
15	210075-3	BEARING FOR 6200DDW GA9020
16	419135-0	DEFLECTOR FOR GA9020
17	526179-4	STATOR FOR GA9020
18	266329-6	5x60 SCREW FOR GA9020
19	154671-6	HOUSING MOTOR GA9020
20	643710-2	PLUG BRUSH XHM1500
21	191957-7	CHARCOALS CB-204 (201.202)
25	650102-8	SWITCH TG08-1200-011
26	645088-9	CONDENSER GA9020
27	188059-8	HANDLE POSTER. FOR GA9020
28	266385-6	4x14 SCREW FOR GA9020
29	687169-3	CLAMP ties HP1620
31	682560-0	CABLE SLEEVE X HM1202C / 9079S
33	266374-1	4X25 SCREW FOR GA9020
34	213062-1	RING 9 X BSR730
35	256491-5	5 PIN FOR GA9020
36	263002-9	RUBBER PLUG 4
37	210067-2	BEARING 6000ZZ X MT952
38	227489-9	GEAR FOR 53 GA7020
39	265120-9	SCREW M5X16 FOR GA9020
40	285724-1	BEARING RETAINER 50 GA9020
41	211285-5	BEARING FOR 6203DDW GA9020
42	213760-7	SEAL 78 HR2010
43	318377-2	BOX BEARING GA9020
44	265541-5	SCREW M6X22 FOR GA9020
45	158206-5	POST FOR GA9020
46	265198-2	SCREW M8X25 FOR GA9020
47	122889-7	HEADSET FOR DISCO GA7020
48	224415-9	FLANGE INTERNAL 42 GA95010
49	224543-0	FLANGE 9047F 9049F 9049SF
50	213017-6	RING 6 X AN621
51	233946-7	SNAP RING 15 X MT903
