Makita Spare Parts for Angle Grinder GA9050R
Choose a Quality Original Spare Part, choose only MAKITA Original Spare Parts. Here you will find a wide selection of spare parts to make your Angle Grinder GA9050R as good as new.

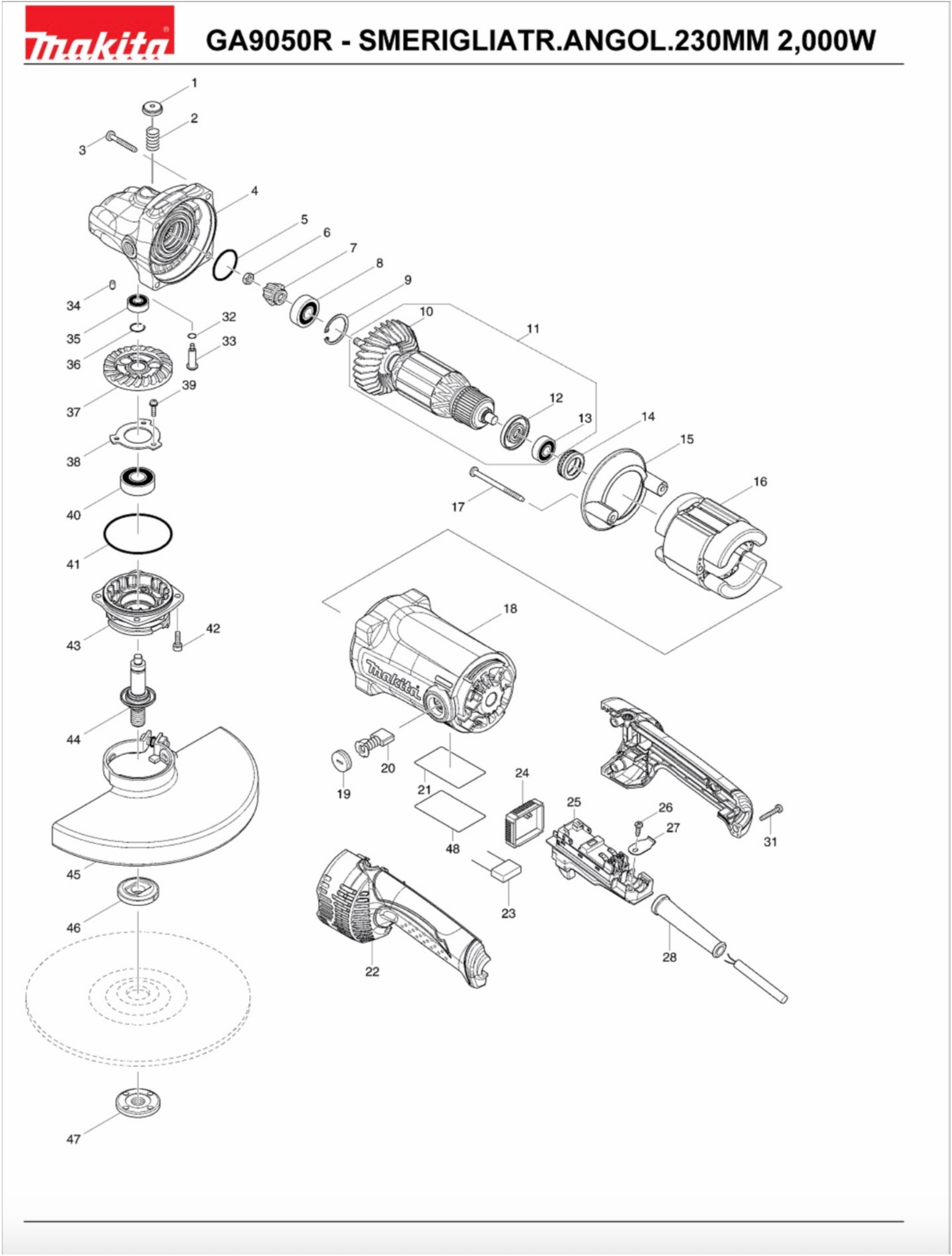

In the following table, look for the model of the Angle Grinder and the respective parts of the code.
| Angle Grinder GA9050R |
| # |
Part Num. |
Description |
| 1 |
451485-7 |
PIN CAP GA9050R |
| 2 |
233292-8 |
COMPRESSION SPRING 12 |
| 3 |
266012-5 |
SCREW M5 X 35 HR160DW |
| 4 |
140223-9 |
GEAR HOUSING CPL X GA9050R |
| 5 |
213487-9 |
RING 31 X AF550H |
| 6 |
264010-3 |
NUT M7 X GA5010 |
| 7 |
227563-3 |
SPIRAL BEVEL GEAR 10B X GA9050R |
| 8 |
211137-0 |
BALL BEARING 6201LLU X HM0860C |
| 9 |
257965-9 |
RING R-32 X GA9050R |
| 10 |
240120-0 |
FAN X GA9050R |
| 11 |
518747-7 |
ARMATURE 240V X GA9050R |
| 12 |
681657-2 |
INSULATION WASHER GA9050R |
| 13 |
210059-1 |
BALL BEARING 6000 HR2010 |
| 14 |
421490-8 |
RUBBER RING 26 X 1805B |
| 15 |
451480-7 |
BAFFLE PLATE GA9050R |
| 16 |
527700-2 |
FIELD GA9050R |
| 17 |
266389-8 |
SCREW 5 X 70 FOR UC3020A |
| 18 |
140222-1 |
MOTOR HOUSING X GA9050R |
| 19 |
643710-2 |
BRUSH HOLDER CAP HM1500 |
| 20 |
191957-7 |
CARBON BRUSCHE CB-204 (201.202) |
| 21 |
867486-9 |
LABEL X GA9050R |
| 22 |
188849-9 |
REAR HANDLE X GA9050R |
| 23 |
645088-9 |
NOISE SUPPRESSOR GA9020 |
| 24 |
631944-9 |
CONTROLLER FOR GA9050R |
| 25 |
650107-8 |
SWITCH TG08-2300-013 X GA9050R |
| 26 |
266192-7 |
SCREW 4 X 14 X HR4001C / HR4010C |
| 27 |
687169-3 |
STRAIN RELIEFE HP1620 |
| 28 |
682574-9 |
CORD GUARD 10-90 PC5000C |
| 31 |
265999-8 |
SCREW 4X25 |
| 32 |
213026-5 |
RING 7 X GA9010C |
| 33 |
256516-5 |
PIN 11 X GA9050R |
| 34 |
263002-9 |
RUBBER PIN 4 |
| 35 |
210029-0 |
BALL BEARING 608Z X MT601 |
| 36 |
233925-5 |
RING 13 X 6413 |
| 37 |
227561-7 |
SPIRAL BEVEL GEAR 49 X GA9050R |
| 38 |
285851-4 |
BEARING RETAINER X GA9050R |
| 39 |
911128-8 |
SCREW M4x16 X HR4000C |
| 40 |
211241-5 |
BALL BEARING 6202DDW X MT601 |
| 41 |
213720-9 |
O-RING 67 X HR2400 |
| 42 |
922221-3 |
SCREW M5X16 X HM1303 |
| 43 |
318523-7 |
BALL BEARING BOX GA9050R |
| 44 |
140224-7 |
SPINDLE COMPLETE A X GA9050R |
| 45 |
122891-0 |
DISC GUARD GA9020 |
| 46 |
224415-9 |
RECIEVE WASHER 42 GA95010 |
| 47 |
224543-0 |
CLAMP WASHER 9047F 9049F 9049SF |
| 48 |
892805-0 |
CLEAR LABEL GA9050R |
