Makita

Makita Spare Parts for Angle Grinder GA9040R

SKU: Makita GA9040R
€16.61
VAT included

Makita Spare Parts for Angle Grinder GA9040R

Makita original spare parts for to make maintenance, replacement or repair damaged parts of the Angle Grinder GA9040R.
Makita Spare Parts for Angle Grinder GA9040R
  • Makita Spare Parts for Angle Grinder GA9040R
  • Makita Spare Parts for Angle Grinder GA9040R
Makita

Makita Spare Parts for Angle Grinder GA9040R

SKU: Makita GA9040R Condition: New
€16.61
VAT included

Makita Spare Parts for Angle Grinder GA9040R

Makita original spare parts for to make maintenance, replacement or repair damaged parts of the Angle Grinder GA9040R.
settings 52 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
52 spare parts

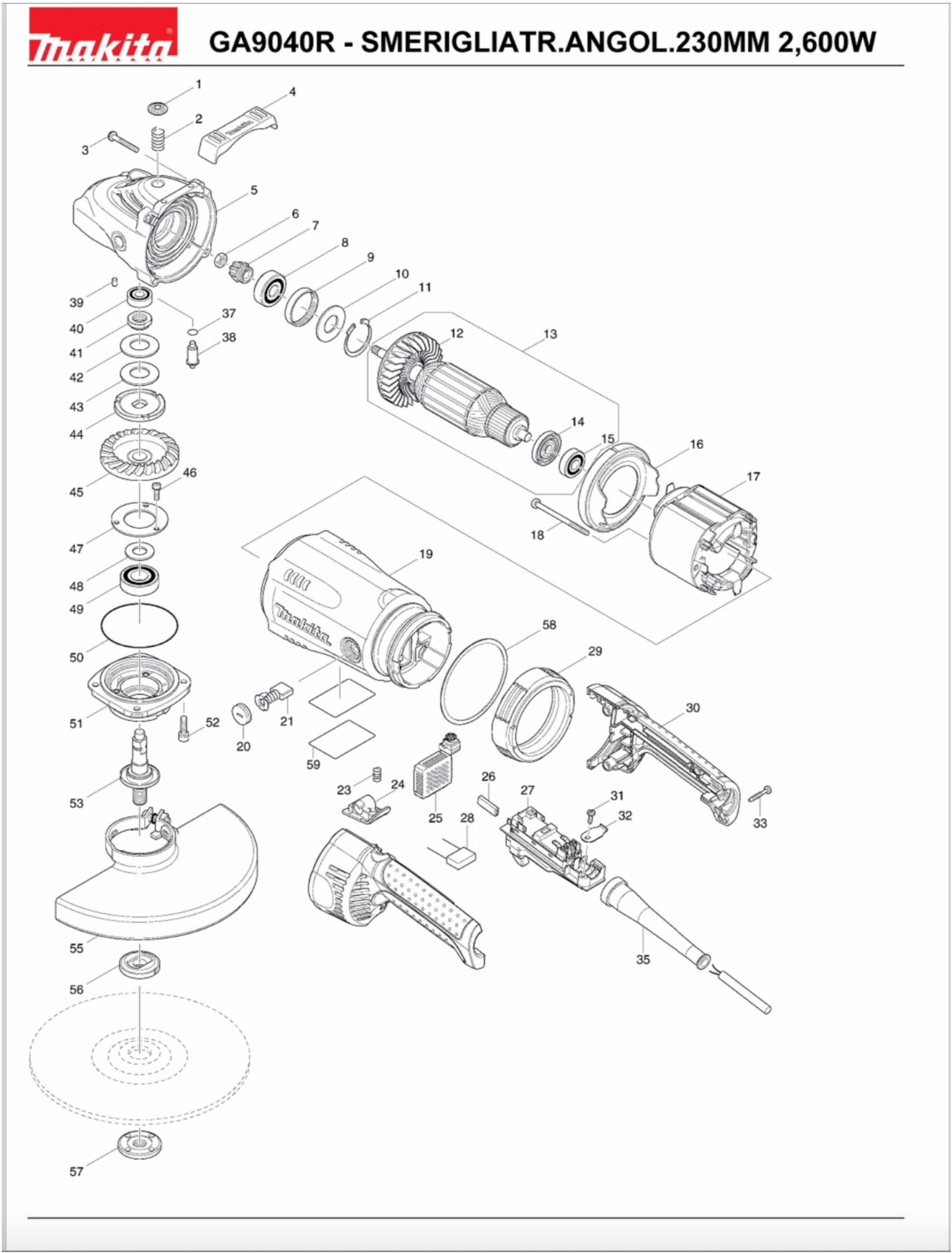

Page 1 zoom_in View exploded
Esploso pagina 1
Pos. Item Price Buy
1
 Makita Pin Cap for Angle Grinder GA9020 419133-4 Makita Pin Cap for Angle Grinder GA9020 €1.50
2
 Pin Disc Block Spring for Angle Grinder Makita GA9020 233292-8 Pin Disc Block Spring for Angle Grinder Makita GA9020 €1.50
3
 Screw M5 X 35 for Angle Grinder Makita GA9050R 266012-5 Screw M5 X 35 for Angle Grinder Makita GA9050R €2.01
4
 Bumper for Angle Grinder Makita GA9020 419144-9 Bumper for Angle Grinder Makita GA9020 €2.50
5
 Gear Box for Angle Grinder Makita GA9020 142754-4 Gear Box for Angle Grinder Makita GA9020 €25.65
6
 photo_cameraImage coming soon 252194-9 NUT M8 GA9020 €1.79
7
 photo_cameraImage coming soon 227490-4 BEVEL GEAR 12 GA9020 €7.11
8
 Ball Bearing 6301DD for Angle Grinders Makita 211132-0 Ball Bearing 6301DD for Angle Grinders Makita €13.46
9
 photo_cameraImage coming soon 262085-6 RUBBER RING 38 9079S €1.42
10
 Washer 20 for Angle Grinder Makita GA9020 267299-2 Washer 20 for Angle Grinder Makita GA9020 €1.27
11
 photo_cameraImage coming soon 962211-4 RETAINING RING R42 €3.13
12
 Armature Fan for Angle Grinder Makita GA9020 240081-4 Armature Fan for Angle Grinder Makita GA9020 €5.87
14
 photo_cameraImage coming soon 681630-2 WASHER 9029-9029SF. €2.90
15
 photo_cameraImage coming soon 211087-9 BALL BEARING 6200DDW €8.75
16
 photo_cameraImage coming soon 419135-0 DEFLECTOR GA9020 €1.79
18
 photo_cameraImage coming soon 266059-9 SCREW M5X75 X 9059SF €5.93
19
 photo_cameraImage coming soon 154786-9 HOUSING MOTOR GA9040S €28.31
20
 Brushes Holder Cap for Angle Grinders Makita GA7020-GA9020-9069 643710-2 Brushes Holder Cap for Angle Grinders Makita GA7020-GA9020-9069 €2.01
21
 Carbon Brushes CB-204 Makita for Hammers and Angle Grinders 191957-7 Carbon Brushes CB-204 Makita for Hammers and Angle Grinders €9.15
23
 photo_cameraImage coming soon 233375-4 SPRING COMPRESSION 7 X GA9040S €1.79
24
 photo_cameraImage coming soon 451630-4 KEY LOCK X GA9030R €1.79
25
 photo_cameraImage coming soon 631946-5 REGULATOR FOR GA9030R €29.70
26
 photo_cameraImage coming soon 686036-9 TERMINAL GA9020 €1.79
27
 photo_cameraImage coming soon 650107-8 SWITCH TG08-2300-013 X GA9050R €15.51
28
 Capacitor for Angle Grinder Makita GA9020 645088-9 Capacitor for Angle Grinder Makita GA9020 €1.50
29
 photo_cameraImage coming soon 421936-4 INSERT X Absorbed. Vibrate. €2.69
30
 photo_cameraImage coming soon 188845-7 HANDLE SET GA9030R €14.31
31
 Srew M4X14 for Hammers Makita HR4001C-HR4010C 266192-7 Srew M4X14 for Hammers Makita HR4001C-HR4010C €1.46
32
 photo_cameraImage coming soon 687169-3 STRAIN RELIEF HP1620 €1.46
33
 photo_cameraImage coming soon 265999-8 4X25 SCREW €1.47
35
 Power Cord Protection for Angle Grinder Makita 1800-2000-2200W 682560-0 Power Cord Protection for Angle Grinder Makita 1800-2000-2200W €3.18
37
 photo_cameraImage coming soon 213062-1 9 RING BSR730 €1.79
38
 Pin Disc Block for Angle Grinders Makita 180-230MM 256491-5 Pin Disc Block for Angle Grinders Makita 180-230MM €3.35
39
 Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.47
40
 Ball Bearing 6000DD NSK for Cordless Drill Makita 6221DW 211061-7 Ball Bearing 6000DD NSK for Cordless Drill Makita 6221DW €8.69
41
 photo_cameraImage coming soon 252429-8 NUT FOR M15-23 GA9040S €2.08
42
 photo_cameraImage coming soon 232163-6 WASHER 20 X 9047F 9049F €3.84
44
 photo_cameraImage coming soon 267798-4 WASHER LOCK FOR GA9040S €4.43
45
 photo_cameraImage coming soon 227492-0 GEAR FOR 53C GA9040S €18.98
46
 photo_cameraImage coming soon 265120-9 SCREW M5x16 GA9020 €1.79
47
 Bearings Washer Grinders Makita GA7020-GA9020 285724-1 Bearings Washer Grinders Makita GA7020-GA9020 €2.51
48
 photo_cameraImage coming soon 267167-9 WASHER 15 X 9047F 9049F €2.08
49
 Ball Bearing 6203LLU for Makita SG150-2 211490-4 Ball Bearing 6203LLU for Makita SG150-2 €10.49
50
 photo_cameraImage coming soon 213760-7 SEAL 78 HR2010 €2.69
51
 Bearings Box for Angle Grinders Makita GA7020-GA9020 318377-2 Bearings Box for Angle Grinders Makita GA7020-GA9020 €8.73
52
 photo_cameraImage coming soon 265541-5 SCREW M6X22 GA9020 €1.79
53
 photo_cameraImage coming soon 154777-0 POST FOR GA9040S €10.73
55
 Cover Disc for Angle Grinder Makita GA9020 122891-0 Cover Disc for Angle Grinder Makita GA9020 €36.84
56
 Inner Flange for Angle Grinder Makita 115-125 mm 224415-9 Inner Flange for Angle Grinder Makita 115-125 mm €8.23
57
 Upper Flange for Angle Grinder Makita 180-230 mm 224543-0 Upper Flange for Angle Grinder Makita 180-230 mm €5.45
58
 photo_cameraImage coming soon 261131-2 WASHER NYLON 89 TO GA9040S €1.79
59
 photo_cameraImage coming soon 819357-6 LABEL X GA9030R €1.79

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Angle Grinder GA9040R

Makita original spare parts for to make maintenance, replacement or repair damaged parts of the Angle Grinder GA9040R.

In the following table, look for the model of the Angle Grinder and the respective parts of the code.
Makita GA9040R

Angle Grinder GA9040R
1 419133-4 PLUG PLUG FOR GA9020
2 233292-8 SPRING COMPRESSION 12
3 266012-5 SCREW M5 X 35 HR160DW
4 419144-9 PROTECTION FOR RUBBER GA9020
5 142754-4 GEAR HOUSING FOR GA9020
6 252194-9 NUT M8 FOR GA9020
7 227490-4 GEAR FOR 12 GA9020
8 211132-0 BALL BEARING 6301DD
9 262085-6 RUBBER RING 38 9079S
10 267299-2 WASHER 20 FOR GA9020
11 962211-4 RETAINING RING R42
12 240081-4 FAN FOR 80 GA9020
13 517833-1 ARMATURE FOR GA9040S
14 681630-2 WASHER X 9029-9029SF.
15 211087-9 BALL BEARING 6200DDW NSK
16 419135-0 DEFLECTOR FOR GA9020
17 526223-7 STATOR FOR GA9040R
18 266059-9 SCREW M5X75 X 9059SF
19 154786-9 MOTOR HOUSING GA9040S
20 643710-2 PLUG BRUSH XHM1500
21 191957-7 CARBON BRUSH SET CB-204 (201.202)
23 233375-4 COMPRESSION SPRING 7 X GA9040S
24 451630-4 KEY LOCK X GA9030R
25 631946-5 REGULATOR FOR GA9030R
26 686036-9 TERMINAL FOR GA9020
27 650107-8 SWITCH TG08-2300-013 X GA9050R
28 645088-9 NOISE SUPPRESSOR GA9020
29 421936-4 VIBRATION PROOF RUBBER
30 188845-7 HANDLE SET GA9030R
31 266192-7 SCREW 4 X 14 X HR4001C / HR4010C
32 687169-3 STRAIN RELIEFE HP1620
33 265999-8 SCREW 4X25
35 682560-0 CABLE SLEEVE X HM1202C / 9079S
37 213062-1 RING 9 X BSR730
38 256491-5 5 PIN FOR GA9020
39 263002-9 RUBBER PLUG 4
40 211061-7 BALL BEARING 6000DD 6221DW
41 252429-8 NUT FOR M15-23 GA9040S
42 232163-6 WASHER 20 X 9047F 9049F
43 232163-6 WASHER 20 X 9047F 9049F
44 267798-4 WASHER LOCK FOR GA9040S
45 227492-0 GEAR FOR 53C GA9040S
46 265120-9 SCREW M5X16 FOR GA9020
47 285724-1 BEARING RETAINER 50 GA9020
48 267167-9 WASHER 15 X 9047F 9049F
49 211490-4 BEARING 6203LLU X SG150-2
50 213760-7 SEAL 78 HR2010
51 318377-2 BOX BEARING GA9020
52 265541-5 SCREW M6X22 FOR GA9020
53 154777-0 POST FOR GA9040S
55 122891-0 HEADSET FOR DISCO GA9020
56 224415-9 FLANGE INTERNAL 42 GA95010
57 224543-0 FLANGE 9047F 9049F 9049SF
58 261131-2 WASHER NYLON 89 TO GA9040S
59 819357-6 LABEL X GA9030R

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Makita GA9040R
12 Items

Specific References

New

Download

Diagram Makita GA9040R

Diagram Makita GA9040R

Download (321.06KB)
