Makita Spare Parts for Screw Drill DP4011

SKU: Makita DP4011
€8.68
VAT included

Makita Spare Parts for Screw Drill DP4011

We supply original Makita spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Screw Drill DP40111.

- High torque: 73 Nm
- Side handle Large
- Gears direct drive for a high tightening torque
Makita Spare Parts for Screw Drill DP4011
  • Makita Spare Parts for Screw Drill DP4011
  • Makita Spare Parts for Screw Drill DP4011

Makita Spare Parts for Screw Drill DP4011

SKU: Makita DP4011 Condition: New
€8.68
VAT included

Makita Spare Parts for Screw Drill DP4011

We supply original Makita spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Screw Drill DP40111.

- High torque: 73 Nm
- Side handle Large
- Gears direct drive for a high tightening torque
settings 49 spare parts

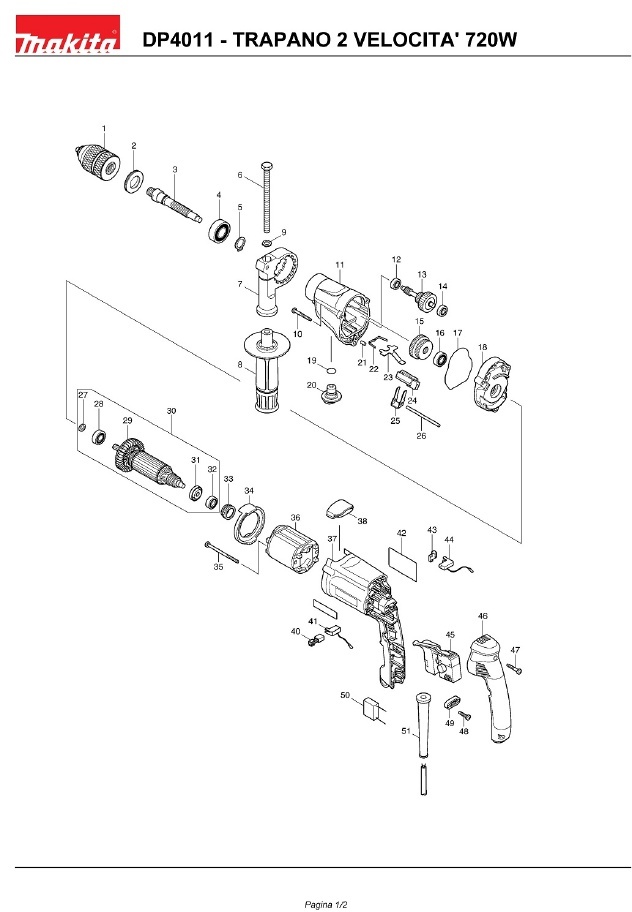

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

48 spare parts
Pos. Item Price Buy
1
photo_cameraImage coming soon 194254-0 CHUCK CHUCK 13 €49.59
2
photo_cameraImage coming soon 285806-9 BEARING 19-36 €2.06
3
photo_cameraImage coming soon 324835-8 POST DP4011 €8.61
4
photo_cameraImage coming soon 211206-7 BEARING 6202V €9.76
5
Ext DIN471 Circlip-15 for Makita Power Tools 961055-9 Ext DIN471 Circlip-15 for Makita Power Tools €1.47
6
Bolt M 8 X 120 for Hammer Drills Makita HP1630-HP1631 921923-8 Bolt M 8 X 120 for Hammer Drills Makita HP1630-HP1631 €2.22
7
Handle Base for Hammer Drills Makita HP1630-HP1631 417630-4 Handle Base for Hammer Drills Makita HP1630-HP1631 €4.41
8
Handle for Hammer Drills Makita HP1630-HP1631 153503-4 Handle for Hammer Drills Makita HP1630-HP1631 €4.41
9
photo_cameraImage coming soon 345280-4 WASHER HEXAGON €1.40
10
photo_cameraImage coming soon 266351-3 SCREW 4 X 35 X 9557PB €1.38
11
photo_cameraImage coming soon 318187-7 GEAR BOX DP4011 €14.68
12
photo_cameraImage coming soon 210028-2 BEARING 606ZZ €2.08
13
photo_cameraImage coming soon 153622-6 GEAR CPL X HP2071F €30.97
15
Gear 29 - 37 for Percussion Drill Makita HP2071F 227119-2 Gear 29 - 37 for Percussion Drill Makita HP2071F €15.81
16
photo_cameraImage coming soon 210029-0 BALL BEARING 608ZZ X MT601 €2.08
17
photo_cameraImage coming soon 421810-6 SEALING RING €2.86
18
photo_cameraImage coming soon 158412-2 COVER GEAR BOX DP4011 €8.61
19
photo_cameraImage coming soon 213122-9 RING 12 X HP2071F €2.86
20
photo_cameraImage coming soon 417805-5 LEVER B €4.09
21
photo_cameraImage coming soon 256251-5 PIN 4 HP1500 €1.40
22
photo_cameraImage coming soon 232143-2 SPRING CROSSBOW HP2030 €3.47
23
photo_cameraImage coming soon 345225-2 LOCKOUT LEVER €2.61
24
photo_cameraImage coming soon 417804-7 SUPPORT 12 €2.49
25
photo_cameraImage coming soon 345223-6 SUPPORT LEVER B €2.24
26
photo_cameraImage coming soon 268092-7 PIN 4 €2.86
27
photo_cameraImage coming soon 262087-2 RING 8 X 6823 €8.39
28
Ball Bearing 608DDW for Jigsaw Makita 4327 210005-4 Ball Bearing 608DDW for Jigsaw Makita 4327 €5.44
29
photo_cameraImage coming soon 241881-5 FAN 52 6408 €7.85
30
Armature for Percussion Drills Makita HP2050-HP2051 517414-1 Armature for Percussion Drills Makita HP2050-HP2051 €55.67
31
Armature Washer for Angle Grinder Makita GA4530 681636-0 Armature Washer for Angle Grinder Makita GA4530 €2.34
32
photo_cameraImage coming soon 211021-9 BEARING 607LLB €14.38
33
photo_cameraImage coming soon 421494-0 RUBBER 19 X 9521NB €11.93
34
photo_cameraImage coming soon 417803-9 DEFLECTOR €2.24
35
photo_cameraImage coming soon 266340-8 SCREW 4X65 GA5010 €1.26
36
Stator for Percussion Drills Makita HP2050-HP2051 633528-9 Stator for Percussion Drills Makita HP2050-HP2051 €13.28
37
photo_cameraImage coming soon 417807-1 CASING MOTOR DP4011 €18.22
38
photo_cameraImage coming soon 450179-1 COVER DP4011 €1.74
40
Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 191962-4 Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 €7.53
41
Brush Holder (Red) for Rotary Hammer Makita HR2020 643989-5 Brush Holder (Red) for Rotary Hammer Makita HR2020 €4.69
43
photo_cameraImage coming soon 689111-0 DISTANCE X HR2020 €1.40
44
Brush Holder (Blue) for Rotary Hammer Makita HR2020 643988-7 Brush Holder (Blue) for Rotary Hammer Makita HR2020 €4.69
45
Switch for Hammer Drill Makita HP2050-2051-2051F-DP4011 650524-2 Switch for Hammer Drill Makita HP2050-2051-2051F-DP4011 €46.94
46
photo_cameraImage coming soon 153284-0 COVER GRIP X HR2020 €14.34
47
photo_cameraImage coming soon 266374-1 SCREW 4X25 GA9020 €1.43
48
Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 €1.47
49
photo_cameraImage coming soon 687124-5 CORD CLAMP MT953 €1.47
50
Capacitor for Angle Grinder Makita GA4530 645200-1 Capacitor for Angle Grinder Makita GA4530 €2.65
51
Power Cord Protection for Angle Grinder Makita 115-125 mm 682559-5 Power Cord Protection for Angle Grinder Makita 115-125 mm €2.07

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Screw Drill DP4011

We supply original Makita spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Screw Drill DP40111.

- High torque: 73 Nm
- Side handle Large
- Gears direct drive for a high tightening torque
- Electronic switch
- Reversible
- Key insertion Standing continuous use

In the following table, look for the model of Screw Drills and the respective parts of the code.
Makita DP4011

Screw Drills DP4011
# Part Num. Description
1 194254-0 CHUCK KEYLESS 13
2 285806-9 BEARING 19-36
3 324835-8 POST DP4011
4 211206-7 BEARING 6202V
5 961055-9 RETAINING RING S15
6 921923-8 SCREW M 8 X 120 X HR2020
7 417630-4 HANDLE BASE X X HR2020
8 153503-4 GRIP X MT811
9 345280-4 WASHER X HP2051F
10 266351-3 SCREW 4 X 35 X 9557PB
11 318187-7 GEAR BOX DP4011
12 210028-2 BEARING 606ZZ
13 153622-6 GEAR CPL X HP2071F
14 210028-2 BEARING 606ZZ
15 227119-2 GEAR 29-37 X HP2071F
16 210029-0 BEARING 608Z X MT601
17 421810-6 RING X HP2050
18 158412-2 COVER GEAR BOX DP4011
19 213122-9 RING 12 X HP2071F
20 417805-5 LEVER B HP2050
21 256251-5 PIN 4 HP1500
22 232143-2 SPRING CROSSBOW HP2030
23 345225-2 LEVER LOCK X HP2050
24 417804-7 HOLDER 12 X HP2050
25 345223-6 HOLDER LEVER B HP2050
26 268092-7 PIN 4 X HP2050
27 262087-2 RING 8 X 6823
28 210005-4 BALL BEARING 608 DDW
29 241881-5 FAN 52 X 6408
30 517414-1 ARMATURE HP2050
31 681636-0 INSULATION WASHER
32 211021-9 BEARING 607LLB
33 421494-0 RUBBER 19 X 9521NB
34 417803-9 BAFFLE X HP2050
35 266340-8 SCREW 4X65 GA5010
36 633528-9 STATOR 220 X HP2050
37 417807-1 HOUSING MOTOR DP4011
38 450179-1 COVER DP4011
40 191962-4 CARBON BRUSHESC B-419 (406.407) 6408
41 643989-5 BRUSH X HR2020
42 864033-7 LABEL MOD. DP4011
43 689111-0 DISTANCE X HR2020
44 643988-7 HOLDERS X HR2020
45 650524-2 SWITCH X HP2050
46 153284-0 COVER HANDLE X HR2020
47 266374-1 SCREW 4X25 FOR GA9020
48 266326-2 SCREW 4x18 X MT601
49 687124-5 STRAIN RELIEFE MT953
50 645200-1 CAPACITOR
51 682559-5 SAVE CABLE X 6822

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Makita DP4011
12 Items

Specific References

New

Download

Diagram Makita DP4011

Diagram Makita DP4011

Download (188.79KB)
