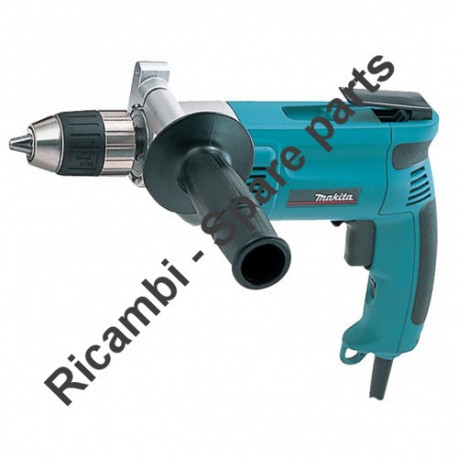

Makita Spare Parts for Screw Drill DP4003K
Distribution and Sale at attractive prices of MAKITA Original Spare Parts & Accessories. Low prices and a professional Assistance guaranteed. We are a Repair service able to advise you on the purchase the most suitable spare parts to quickly solve any maintenance or issue for Screw Drill DP4003K.

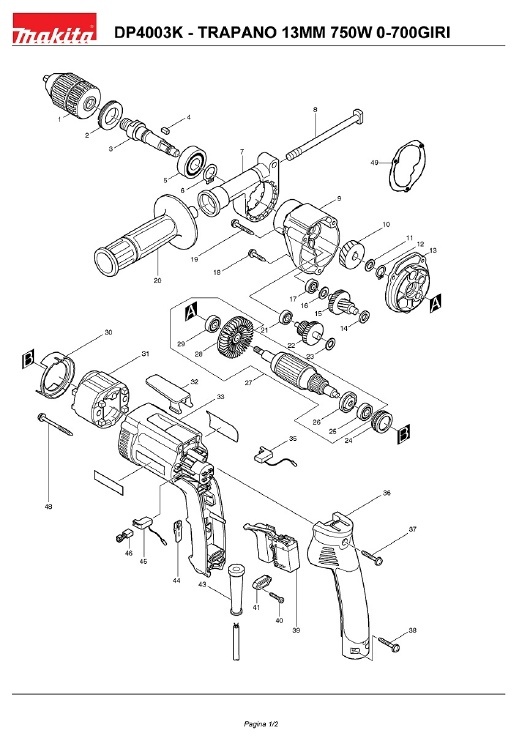

In the following table, look for the model of Screw Drills and the respective parts of the code.
| Screw Drills DP4003K |
| # |
Part Num. |
Description |
| 1 |
192956-2 |
CHUCK KEYLESS X 6343DW |
| 2 |
285807-7 |
BEARING 22-36 |
| 3 |
324039-2 |
POST X DP4003 |
| 4 |
254202-2 |
KEY 4 |
| 5 |
211206-7 |
BEARING 6202V |
| 6 |
961055-9 |
RETAINING RING S15 |
| 7 |
317401-8 |
BASE HANDLE CPL X DP4003 |
| 8 |
266265-6 |
SCREW M 8 X 195 X GP4003 |
| 9 |
317397-3 |
GEAR BOX CPL DP4003 |
| 10 |
226529-0 |
GEAR 26 X DP4003 |
| 11 |
267143-3 |
WASHER X 6960DW |
| 12 |
961051-7 |
RETAINING RING S11 |
| 13 |
152639-6 |
COVER BOX INPUT. DP4003 |
| 14 |
253804-1 |
WASHER 6 X LS1013 |
| 15 |
226138-5 |
GEAR X DP4003 |
| 16 |
253133-2 |
PLAIN WASHER 7 |
| 17 |
211021-9 |
BEARING 607LLB |
| 18 |
266050-7 |
PT SCREW 4X30 |
| 19 |
266069-6 |
PT SCREW S X 45 HR2410 |
| 20 |
152668-9 |
GRIP X DP4003 |
| 21 |
211012-0 |
BEARING X 9524NB |
| 22 |
226139-3 |
16-34 GEAR CPL. DP4003 |
| 23 |
253804-1 |
WASHER 6 X LS1013 |
| 24 |
421479-6 |
RUBBER 19 X 9541 |
| 25 |
211021-9 |
BEARING 607LLB |
| 26 |
681636-0 |
INSULATION WASHER |
| 27 |
517358-5 |
ARMATURE X DP4003 |
| 28 |
241873-4 |
FAN 55 X DP4003 |
| 29 |
211031-6 |
BEARING 608 X 4304T-4305T |
| 30 |
417356-8 |
BAFFLE DP4003 |
| 31 |
633468-1 |
STATOR 220 X DP4003 |
| 32 |
417625-7 |
HOOK X 6827 |
| 33 |
183270-7 |
HOUSING MOTOR X DP4003 |
| 35 |
643951-0 |
HOLDER CARBON BRUSHES X DP4003 |
| 36 |
152641-9 |
HOUSING COVER X DP4003 |
| 37 |
265999-8 |
SCREW 4X25 |
| 38 |
265999-8 |
SCREW 4X25 |
| 39 |
651991-4 |
SWITCH X DP4003 |
| 40 |
265995-6 |
SCREW M4X18 X 6408 / 6221DW |
| 41 |
687063-9 |
RELIEF X 4304T |
| 43 |
682559-5 |
SAVE CABLE X 6822 |
| 44 |
417358-4 |
LEVER SWITCH X DP4003 |
| 45 |
643948-9 |
HOLDER CARBON BRUSHES X DP4003 |
| 46 |
191962-4 |
CARBON BRUSHES CB-419 (406.407) 6408 |
| 48 |
266060-4 |
SCREW M4 X 65 JN1601 |
| 49 |
442134-7 |
SEAL X DP4003K |
