Makita

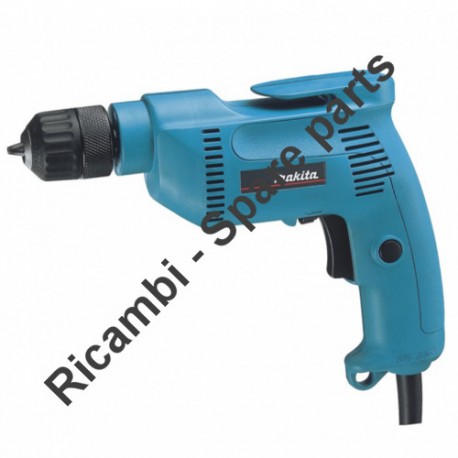

Makita Spare Parts for Screw Drill 6408

€25.25
VAT included

Makita Spare Parts for Screw Drill 6408

Makita genuine spare parts for the repair or replacement of Screw Drill 6408

- High torque: 73 Nm
- Side handle Large
- Gears direct drive for a high tightening torque
- Electronic switch
- Reversible
Makita Spare Parts for Screw Drill 6408
  • Makita Spare Parts for Screw Drill 6408
  • Makita Spare Parts for Screw Drill 6408
Makita

Makita Spare Parts for Screw Drill 6408

Condition: New
€25.25
VAT included

Makita Spare Parts for Screw Drill 6408

Makita genuine spare parts for the repair or replacement of Screw Drill 6408

- High torque: 73 Nm
- Side handle Large
- Gears direct drive for a high tightening torque
- Electronic switch
- Reversible
settings 42 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
42 spare parts
Page 1 zoom_in View exploded
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Makita Pin Cap for Angle Grinder GA9020 419133-4 Makita Pin Cap for Angle Grinder GA9020 €1.50
2
 Pin Disc Block Spring for Angle Grinder Makita GA9020 233292-8 Pin Disc Block Spring for Angle Grinder Makita GA9020 €1.50
3
 Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
3
 Screw M5 X 35 for Angle Grinder Makita GA9050R 266012-5 Screw M5 X 35 for Angle Grinder Makita GA9050R €2.01
4
 Bumper for Angle Grinder Makita GA9020 419144-9 Bumper for Angle Grinder Makita GA9020 €2.50
5
 Gear Box for Angle Grinder Makita GA9020 142754-4 Gear Box for Angle Grinder Makita GA9020 €25.65
6
 photo_cameraImage coming soon 252194-9 NUT M8 GA9020 €1.79
7
 photo_cameraImage coming soon 227490-4 BEVEL GEAR 12 GA9020 €7.11
8
 Ball Bearing 6301DD for Angle Grinders Makita 211132-0 Ball Bearing 6301DD for Angle Grinders Makita €13.46
9
 photo_cameraImage coming soon 262085-6 RUBBER RING 38 9079S €1.42
10
 Washer 20 for Angle Grinder Makita GA9020 267299-2 Washer 20 for Angle Grinder Makita GA9020 €1.27
11
 photo_cameraImage coming soon 241881-5 FAN 52 6408 €7.85
11
 photo_cameraImage coming soon 962211-4 RETAINING RING R42 €3.13
12
 Armature Fan for Angle Grinder Makita GA9020 240081-4 Armature Fan for Angle Grinder Makita GA9020 €5.87
13
 Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 191962-4 Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 €7.53
14
 photo_cameraImage coming soon 643923-5 CARBON BRUSH HOLDER  €4.09
14
 photo_cameraImage coming soon 681630-2 WASHER 9029-9029SF. €2.90
15
 photo_cameraImage coming soon 211087-9 BALL BEARING 6200DDW €8.75
16
 photo_cameraImage coming soon 419135-0 DEFLECTOR GA9020 €1.79
16
 photo_cameraImage coming soon 687052-4 CLAMP cable clamp X 6408 €5.40
17
 photo_cameraImage coming soon 682502-4 CABLE SLEEVE 8/85 €4.09
18
 photo_cameraImage coming soon 266059-9 SCREW M5X75 X 9059SF €5.93
19
 photo_cameraImage coming soon 154786-9 HOUSING MOTOR GA9040S €28.31
20
 Brushes Holder Cap for Angle Grinders Makita GA7020-GA9020-9069 643710-2 Brushes Holder Cap for Angle Grinders Makita GA7020-GA9020-9069 €2.01
21
 Carbon Brushes CB-204 Makita for Hammers and Angle Grinders 191957-7 Carbon Brushes CB-204 Makita for Hammers and Angle Grinders €9.15
21
 photo_cameraImage coming soon 645253-0 CAPACITOR X 6408 €5.93
23
 photo_cameraImage coming soon 233375-4 SPRING COMPRESSION 7 X GA9040S €1.79
24
 photo_cameraImage coming soon 451630-4 KEY LOCK X GA9030R €1.79
25
 photo_cameraImage coming soon 631946-5 REGULATOR FOR GA9030R €29.70
26
 photo_cameraImage coming soon 686036-9 TERMINAL GA9020 €1.79
27
 photo_cameraImage coming soon 650107-8 SWITCH TG08-2300-013 X GA9050R €15.51
28
 Capacitor for Angle Grinder Makita GA9020 645088-9 Capacitor for Angle Grinder Makita GA9020 €1.50
29
 photo_cameraImage coming soon 421936-4 INSERT X Absorbed. Vibrate. €2.69
30
 photo_cameraImage coming soon 188845-7 HANDLE SET GA9030R €14.31
31
 Srew M4X14 for Hammers Makita HR4001C-HR4010C 266192-7 Srew M4X14 for Hammers Makita HR4001C-HR4010C €1.46
32
 photo_cameraImage coming soon 687169-3 STRAIN RELIEF HP1620 €1.46
33
 photo_cameraImage coming soon 265999-8 4X25 SCREW €1.47
35
 Power Cord Protection for Angle Grinder Makita 1800-2000-2200W 682560-0 Power Cord Protection for Angle Grinder Makita 1800-2000-2200W €3.18
37
 photo_cameraImage coming soon 213062-1 9 RING BSR730 €1.79
38
 Pin Disc Block for Angle Grinders Makita 180-230MM 256491-5 Pin Disc Block for Angle Grinders Makita 180-230MM €3.35
39
 Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.32
40
 Ball Bearing 6000DD NSK for Cordless Drill Makita 6221DW 211061-7 Ball Bearing 6000DD NSK for Cordless Drill Makita 6221DW €8.69

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Screw Drill 6408

Makita genuine spare parts for the repair or replacement of Screw Drill 6408

In the following table, look for the model of Screw Drills and the respective parts of the code.
Items will be shipped within 7/10 working days approx.

Screw Drills 6408
1 182862-9 HOUSING COMPLETE X 6408
3 265995-6 SCREW M4X18 X HR2400
4 651986-7 SWITCH X 8450
5 192016-0 KEYLESS CHUCK 10MM CORDL.X 6221D
6 153246-8 GEAR COMPLETE X 6408
7 210047-8 BEARING X 6408
8 633338-4 STATOR 220 / 240V
9 211030-8 BEARING 627Z X 6408
10 517198-1 ARMATURE 220 / 240V
11 241881-5 FAN 52 6821
12 211030-8 BEARING 627Z X 6408
13 191962-4 CARBON BRUSHES CB-419 (406.407)
14 643923-5 HOLDER CARBON BRUSHES X HP1500
15 265995-6 SCREW M4X18 X HR2400
16 687052-4 CLAMP Cable tie X N500
17 682502-4 CABLE SLEEVE 8/85
21 645253-0 CAPACITOR X 4304

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

12 Items

Specific References

New

Download

Diagram Makita 6408

Diagram Makita 6408

Download (217.01KB)
