Makita Spare Parts for Percussion Drill HP2071F

SKU: Makita HP2071F
€6.29
VAT included

Makita Spare Parts for Percussion Drill HP2071F

MAKITA repair service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Percussion Drill HP2071F.
Makita Spare Parts for Percussion Drill HP2071F
  • Makita Spare Parts for Percussion Drill HP2071F
  • Makita Spare Parts for Percussion Drill HP2071F
Makita

Makita Spare Parts for Percussion Drill HP2071F

SKU: Makita HP2071F Condition: New
€6.29
VAT included

Makita Spare Parts for Percussion Drill HP2071F

MAKITA repair service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Percussion Drill HP2071F.
settings 56 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
54 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

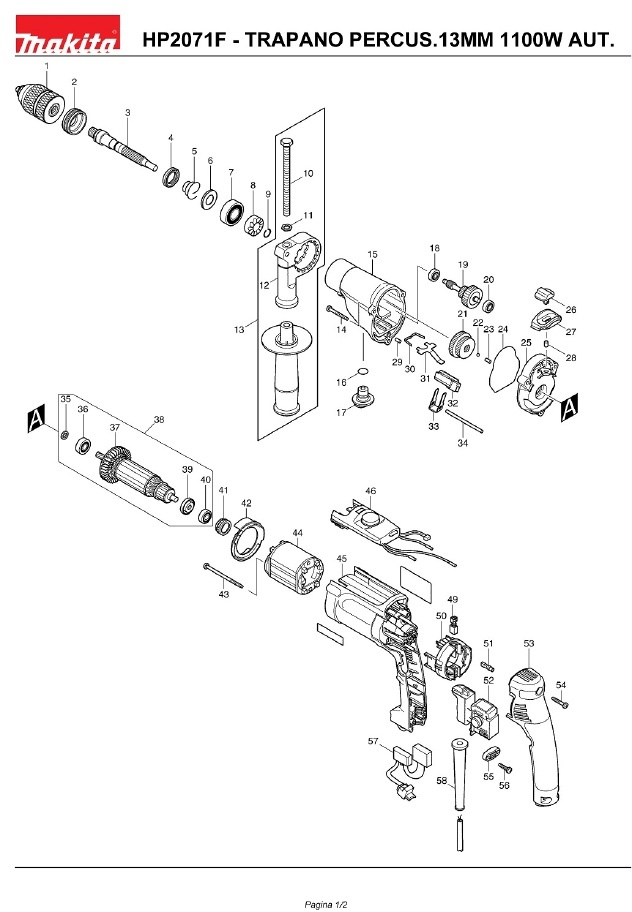

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 194254-0 CHUCK CHUCK 13 €49.59
2
 photo_cameraImage coming soon 285839-4 RETAINING BEARING €5.93
3
 photo_cameraImage coming soon 324247-5 POST €22.52
4
 photo_cameraImage coming soon 213314-0 SEAL OIL 19 HP2030 €10.85
5
 photo_cameraImage coming soon 233921-3 COMPRESSION SPRING €2.86
6
 photo_cameraImage coming soon 345224-4 WASHER 15 €2.24
7
 photo_cameraImage coming soon 211206-7 BEARING 6202V €9.76
8
 photo_cameraImage coming soon 223141-7 CAM A HP2071F €1.79
9
 photo_cameraImage coming soon 233920-5 SNAP RING 11 €2.86
10
 Bolt M 8 X 120 for Hammer Drills Makita HP1630-HP1631 921923-8 Bolt M 8 X 120 for Hammer Drills Makita HP1630-HP1631 €2.22
11
 photo_cameraImage coming soon 345280-4 WASHER HEXAGON €1.40
12
 Handle Base for Hammer Drills Makita HP1630-HP1631 417630-4 Handle Base for Hammer Drills Makita HP1630-HP1631 €4.41
13
 photo_cameraImage coming soon 135302-6 GRIP FOR HR2020 €5.76
14
 photo_cameraImage coming soon 266048-4 VITE M 4 PER 40 PER 4334D €3.51
15
 photo_cameraImage coming soon 153621-8 BOFOR ING. CPL FOR HP2071F €11.66
16
 photo_cameraImage coming soon 213122-9 RING 12 X HP2071F €2.86
17
 photo_cameraImage coming soon 417805-5 LEVER B €4.09
18
 Bearing for Angle Grinder Makita 9524NB 211012-0 Bearing for Angle Grinder Makita 9524NB €8.23
19
 photo_cameraImage coming soon 153622-6 GEAR CPL X HP2071F €30.97
20
 Bearing for Angle Grinder Makita 9524NB 211012-0 Bearing for Angle Grinder Makita 9524NB €8.23
21
 Gear 29 - 37 for Percussion Drill Makita HP2071F 227119-2 Gear 29 - 37 for Percussion Drill Makita HP2071F €15.81
22
 photo_cameraImage coming soon 216040-0 BALL 3.5 €1.44
23
 photo_cameraImage coming soon 256251-5 PIN 4 HP1500 €1.40
24
 photo_cameraImage coming soon 421810-6 SEALING RING €2.86
25
 photo_cameraImage coming soon 153620-0 COVER BOX ING. HP2071F €11.95
26
 Change Lever for Impact Drills Makita HP2071F-HP2051 418083-0 Change Lever for Impact Drills Makita HP2071F-HP2051 €1.83
27
 Holder Change Lever for Percussion Drills Makita HP2050-HP2051 417802-1 Holder Change Lever for Percussion Drills Makita HP2050-HP2051 €2.00
28
 Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.47
29
 photo_cameraImage coming soon 256251-5 PIN 4 HP1500 €1.40
30
 photo_cameraImage coming soon 232143-2 SPRING CROSSBOW HP2030 €3.47
31
 photo_cameraImage coming soon 345225-2 LOCKOUT LEVER €2.61
32
 photo_cameraImage coming soon 417804-7 SUPPORT 12 €2.49
33
 photo_cameraImage coming soon 345223-6 SUPPORT LEVER B €2.24
34
 photo_cameraImage coming soon 268092-7 PIN 4 €2.86
35
 photo_cameraImage coming soon 262087-2 RING 8 X 6823 €8.39
36
 Ball Bearing 608DDW for Jigsaw Makita 4327 210005-4 Ball Bearing 608DDW for Jigsaw Makita 4327 €5.44
37
 photo_cameraImage coming soon 240065-2 FAN 52 FOR HP2071F €1.38
38
 Armature for Percussion Drill Makita HP2071F 517464-6 Armature for Percussion Drill Makita HP2071F €36.05
39
 Armature Washer for Angle Grinder Makita GA4530 681636-0 Armature Washer for Angle Grinder Makita GA4530 €2.34
40
 photo_cameraImage coming soon 211021-9 BEARING 607LLB €14.38
41
 photo_cameraImage coming soon 421494-0 RUBBER 19 X 9521NB €11.93
43
 photo_cameraImage coming soon 266004-4 SCREW 4x70 €1.87
44
 Stator for Percussion Drill Makita HP2071F 633573-4 Stator for Percussion Drill Makita HP2071F €16.64
45
 photo_cameraImage coming soon 183658-1 HOUSING MOTOR FOR HP2071F €5.90
46
 Controller for Percussion Drill Makita HP2071F 631534-8 Controller for Percussion Drill Makita HP2071F €70.38
49
 Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 191962-4 Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 €7.53
50
 photo_cameraImage coming soon 638413-1 CARBON BRUSHE HOLDER X HP2071F €18.87
52
 Switch TG813TB-4 for Percussion Drill Makita HP2071F 650212-1 Switch TG813TB-4 for Percussion Drill Makita HP2071F €25.26
53
 photo_cameraImage coming soon 418273-5 COVER HANDLE FOR HP2071F €5.90
54
 photo_cameraImage coming soon 265999-8 4X25 SCREW €1.47
55
 photo_cameraImage coming soon 687052-4 CLAMP cable clamp X 6408 €5.40
56
 Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
57
 Light Circuit for Percussion Drill Makita HP2071F 631545-3 Light Circuit for Percussion Drill Makita HP2071F €29.38
58
 Power Cord Protection for Angle Grinder Makita 115-125 mm 682559-5 Power Cord Protection for Angle Grinder Makita 115-125 mm €2.07

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Percussion Drill HP2071F

MAKITA repair service center and original spare parts Worldwide Distributor

. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Percussion Drill HP2071F.

In the following table, look for the model of Drill and the respective parts of the code.
Makita HP2071F

Percussion Drill HP2071F
# Part Num. Description
1 194254-0 CHUCK KEYLESS 13
2 285839-4 RETAINING CUSCINET.FOR HP2050
3 324247-5 POST HP2050
4 213314-0 SEAL OIL 19 HP2030
5 233921-3 SPRING COMPRESSION FOR HP2050
6 345224-4 WASHER FOR HP2050
7 211206-7 BEARING 6202V
8 223141-7 CAM A HP2071F
9 233920-5 CIRCLIP 11 FOR HP2050
10 921923-8 SCREW M 8 FOR 120 FOR HR2020
11 345280-4 WASHER FOR HP2051F
12 417630-4 HANDLE BASE FOR FOR HR2020
13 135302-6 GRIP FOR HR2020
14 266048-4 SCREW M 4 FOR 40 FOR 4334D
15 153621-8 BOFOR ING. CPL FOR HP2071F
16 213122-9 RING 12 FOR HP2071F
17 417805-5 LEVER B HP2050
18 211012-0 BEARING FOR 9524NB
19 153622-6 GEAR CPL FOR HP2071F
20 211012-0 BEARING FOR 9524NB
21 227119-2 GEAR 29-37 FOR HP2071F
22 216040-0 BALL 3.5
23 256251-5 PIN 4 HP1500
24 421810-6 RING FOR HP2050
25 153620-0 COVER BOFOR ING. HP2071F
26 418083-0 LEVER A FOR HP2071F
27 417802-1 HOLDER LEVER A HP2050
28 263002-9 PIN RUBBER 4
29 256251-5 PIN 4 HP1500
30 232143-2 SPRING CROSSBOW HP2030
31 345225-2 LEVER LOCK FOR HP2050
32 417804-7 HOLDER 12 FOR HP2050
33 345223-6 HOLDER LEVER B HP2050
34 268092-7 PIN 4 FOR HP2050
35 262087-2 RING 8 FOR 6823
36 210005-4 BALL BEARING 608DDW
37 240065-2 FAN 52 FOR HP2071F
38 517464-6 ARMATURE FOR HP2071F
39 681636-0 INSULATION WASHER
40 211021-9 BEARING 607LLB
41 421494-0 RUBBER 19 FOR 9521NB
42 418269-6 STATOR FOR HP2071F
43 266004-4 SCREW 4FOR70
44 633573-4 STATOR FOR HP2071F
45 183658-1 HOUSING MOTOR FOR HP2071F
46 631534-8 REGULATOR FOR HP2071F
49 191962-4 CARBON BRUSHE SET CB-419 (406.407) 6408
50 638413-1 CARBON BRUSCHES HOLDER FOR HP2071F
51 686038-5 PIN HOLDER FOR HP2071F
52 650212-1 SWITCH TG813TB-4
53 418273-5 COVER HANDLE FOR HP2071F
54 265999-8 SCREW 4FOR25
55 687052-4 CLAMP Cable tie FOR 6408
56 265995-6 SCREW M4FOR18 FOR 6408 / 6221DW
57 631545-3 LIGHT CIRCUIT FOR HP2071F
58 682559-5 SAVE CABLE FOR 6822
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
