Makita

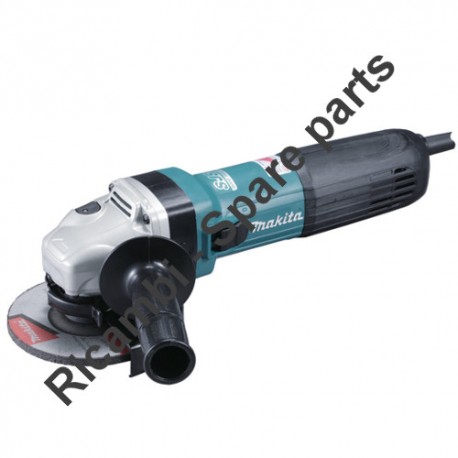

Makita Spare Parts for Angle Grinder GA5041C

SKU: Makita GA5041C
€4.19
VAT included

Makita Spare Parts for Angle Grinder GA5041C

We have the original Spares MAKITA for Angle Grinder GA5041C, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Angle Grinder GA5041C All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.
Makita Spare Parts for Angle Grinder GA5041C
  • Makita Spare Parts for Angle Grinder GA5041C
  • Makita Spare Parts for Angle Grinder GA5041C
Makita

Makita Spare Parts for Angle Grinder GA5041C

SKU: Makita GA5041C Condition: New
€4.19
VAT included

Makita Spare Parts for Angle Grinder GA5041C

We have the original Spares MAKITA for Angle Grinder GA5041C, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Angle Grinder GA5041C All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.
settings 108 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
108 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
A1
 Dipstick level Oil for Pump Unit and Compressors GM-MB-MCX-CP 7181150000 Dipstick level Oil for Pump Unit and Compressors GM-MB-MCX-CP €10.95
A
 photo_cameraImage coming soon 9104890000 Pump Unit GM 142B V230 / 50 + CAREN.NERA €151.41
1
 photo_cameraImage coming soon 125310-5 SPEED SHIFT LEVER. FOR BDF440 €2.14
1
 photo_cameraImage coming soon 168705-9 GEAR BOX FOR GA €23.75
1
 photo_cameraImage coming soon 193203-4 KEYLESS CHUCK X 6501X €52.65
2
 photo_cameraImage coming soon 187363-2 HOUSING MOTOR BDF453-BHP453 €30.38
2
 Armature Nut M6 for Angle Grinder Makita 9554NB 252186-8 Armature Nut M6 for Angle Grinder Makita 9554NB €1.47
2
 photo_cameraImage coming soon 326280-3 BALL SCREW €2.94
3
 photo_cameraImage coming soon 210087-6 BEARING 6900LLB €1.34
3
 photo_cameraImage coming soon 253077-6 WASHER P. 6 4300 / 01BV €1.40
4
 photo_cameraImage coming soon 227591-8 GEAR FOR 10 GA €14.23
4
 photo_cameraImage coming soon 266130-9 SCREW 3X16 X 6203/13 / 6313DW €1.46
4
 photo_cameraImage coming soon 961006-2 RETAINING RING S10 €2.17
5
 photo_cameraImage coming soon 211142-7 BEARING 6001LLB X GD0800C €11.39
5
 photo_cameraImage coming soon 227776-6 GEAR 34 €5.73
5
 photo_cameraImage coming soon 232182-2 SPRING PLATE X 6096DW €1.43
6
 photo_cameraImage coming soon 141981-0 COVER GEAR BOX €12.33
6
 Bearing 696ZZ FOR Angle Grinder Makita GA4530 210033-9 Bearing 696ZZ FOR Angle Grinder Makita GA4530 €3.35
6
 Change Lever for Makita Cordless BDF343RHE 419250-0 Change Lever for Makita Cordless BDF343RHE €2.51
7
 photo_cameraImage coming soon 187620-8 HOUSING MOTOR €12.92
7
 photo_cameraImage coming soon 234230-3 SPRING COMPRESSION 33 €1.66
7
 photo_cameraImage coming soon 632A23-2 SWITCH BDF453-BHP453 €51.67
8
 photo_cameraImage coming soon 141515-9 BRAKE HOLDER €22.07
8
 photo_cameraImage coming soon 643852-2 TERMINAL X BVC350Z €4.56
9
 Chuck Screw M 6x22 for Cordless Drill Makita MT064SK 251468-5 Chuck Screw M 6x22 for Cordless Drill Makita MT064SK €1.43
9
 photo_cameraImage coming soon 326132-8 PLATE BRAKE €15.82
10
 Keyless Chuck S13 for Cordless Drill Makita 8391D 196306-3 Keyless Chuck S13 for Cordless Drill Makita 8391D €18.02
10
 Keyless Chuck 10 mm for Cordless Drill Makita 8271DWAE 196310-2 Keyless Chuck 10 mm for Cordless Drill Makita 8271DWAE €19.47
10
 Ball Bearing 607DDW for Laminate Trimmer Makita 3706 210017-7 Ball Bearing 607DDW for Laminate Trimmer Makita 3706 €8.46
11
 photo_cameraImage coming soon 125485-0 GROUP GEARS X 8391D €63.40
11
 photo_cameraImage coming soon 240066-0 FAN 52 X 6413 €1.34
12
 photo_cameraImage coming soon 517694-9 ARMATURE €24.42
12
 14.4V DC Motor for Cordless Screwdrivers Makita HP347D 629900-1 14.4V DC Motor for Cordless Screwdrivers Makita HP347D €19.50
12
 Motor for Cordless Makita 6390 DWAE 629937-8 Motor for Cordless Makita 6390 DWAE €26.79
13
 Ball Bearing 607 ZZ for Impact Drill Maktek MT601 210062-2 Ball Bearing 607 ZZ for Impact Drill Maktek MT601 €4.41
13
 Armature Washer for Angle Grinders Makita 9561-9562CV 681656-4 Armature Washer for Angle Grinders Makita 9561-9562CV €1.50
13
 photo_cameraImage coming soon 911003-8 SCREW M3X6 X 6096DW €4.09
13
 photo_cameraImage coming soon 911108-4 SCREW M4X8 X 5103R €3.18
14
 photo_cameraImage coming soon 253823-7 ROND. FLAT 7 X JS1600 €2.40
14
 photo_cameraImage coming soon 521769-8 FIELD €19.31
15
 photo_cameraImage coming soon 210027-4 BEARING 627DDW X 9561CV €6.30
15
 photo_cameraImage coming soon 424026-2 RUBBER X BTW251 €4.09
15
 photo_cameraImage coming soon 643936-6 BRUSH 8450 €5.40
16
 Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 191962-4 Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 €7.53
16
 photo_cameraImage coming soon 421738-8 RING LABYRINTH 22 X 9561CV €14.23
16
 photo_cameraImage coming soon 421940-3 COVER FOR MOTOR DC 8390D €2.86
17
 photo_cameraImage coming soon 267756-0 WAVY WASHER X BO6040 €3.76
18
 photo_cameraImage coming soon 650706-6 CONTROL SWITCH €24.42
18
 Magnet Sleeve for Angle Grinder Makita GA4540C 688117-5 Magnet Sleeve for Angle Grinder Makita GA4540C €4.20
19
 photo_cameraImage coming soon 259039-2 LOCKING 6 X 9566CV €3.76
19
 photo_cameraImage coming soon 266385-6 SCREW 4x14 GA9020 €1.44
20
 photo_cameraImage coming soon 455351-0 BARREL €3.31
20
 Strain Relief for Angle Grinder Makita GA4530 687681-3 Strain Relief for Angle Grinder Makita GA4530 €2.51
21
 photo_cameraImage coming soon 645190-8 CAPACITOR X MT952 €3.18
22
 photo_cameraImage coming soon 453375-0 BAFFLE B €1.66
22
 photo_cameraImage coming soon 682569-2 CORD ARMOR MT601 €2.77
23
 photo_cameraImage coming soon 266258-3 SCREW 4 X 70 X 9564 €2.34
24
 photo_cameraImage coming soon 344871-8 RETAINING X GD0800C €3.24
25
 photo_cameraImage coming soon 626653-3 STATOR 220-240V €47.39
27
 Carbon Brushes CB-318 for Angle Grinder Makita 9564 191978-9 Carbon Brushes CB-318 for Angle Grinder Makita 9564 €11.55
28
 Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030 266007-8 Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030 €2.07
29
 Carbon Brushes Holder for Grinders Makita GA4540-4541-5040-5041 643769-9 Carbon Brushes Holder for Grinders Makita GA4540-4541-5040-5041 €2.51
30
 photo_cameraImage coming soon 453376-8 HOUSING MOTOR B €5.58
31
 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 €1.47
32
 photo_cameraImage coming soon 687169-3 STRAIN RELIEF HP1620 €1.46
33
 photo_cameraImage coming soon 638947-4 SWITCH SUPPORT €11.06
35
 Power Cord Protection for Angle Grinder Makita 115-125 mm 682559-5 Power Cord Protection for Angle Grinder Makita 115-125 mm €2.07
38
 photo_cameraImage coming soon 453365-3 BACK COVER C €4.72
39
 photo_cameraImage coming soon 620127-6 CONTROLLER €60.12
40
 Switch Makita Makita ST115A-40 651418-4 Switch Makita Makita ST115A-40 €10.80
42
 photo_cameraImage coming soon 233071-4 SPRING COMPRESSION 4 X 9541 €2.34
43
 photo_cameraImage coming soon 453847-5 LEVER SWITCH €2.34
44
 photo_cameraImage coming soon 453377-6 KEY SWITCH B €1.66
45
 photo_cameraImage coming soon 346557-0 PLATE SWITCH €1.66
46
 photo_cameraImage coming soon 453369-5 BUTTON €2.34
47
 Pin Disc Block Sping for Angle Grinder Makita GA4530 234057-1 Pin Disc Block Sping for Angle Grinder Makita GA4530 €1.83
48
 photo_cameraImage coming soon 266467-4 SCREW 4X50 FS2500K €1.66
49
 photo_cameraImage coming soon 213032-0 RING 4 X GA4530 €2.34
50
 photo_cameraImage coming soon 256535-1 PLUG FOR 6 GA €2.34
51
 Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.47
51
 Aluminium Pipe Ø10 Bushing for Air Compressors FIAC COSMOS S 225-255 7041070000 Aluminium Pipe Ø10 Bushing for Air Compressors FIAC COSMOS S 225-255 €4.37
52
 photo_cameraImage coming soon 210026-6 BALL BEARING 696ZZ €4.06
52
 photo_cameraImage coming soon 7360190000 Rubber Foot €4.32
53
 Drain Tap 3/8" for Air COmpressors FIAC 7130160000 Drain Tap 3/8" for Air COmpressors FIAC €12.14
53
 photo_cameraImage coming soon 961005-4 RETAINING RING S9 €2.34
54
 photo_cameraImage coming soon 253180-3 FLAT WASHER 10 6221DW €2.18
54
 photo_cameraImage coming soon 7260410000 Wheel Ø210X65 F20 €24.64
55
 photo_cameraImage coming soon 7090030000 Cap M1/2" €7.24
56
 photo_cameraImage coming soon 346556-2 C PLATE FOR GA €4.72
56
 photo_cameraImage coming soon 7329070000 Power Cord €29.80
57
 photo_cameraImage coming soon 227592-6 GEAR FOR 38 GA €11.06
57
 photo_cameraImage coming soon 7280190000 knob €7.22
58
 Fiac Safety Valve M1/4" 8,5 Bar CE 7192020000 Fiac Safety Valve M1/4" 8,5 Bar CE €19.19
59
 Pressure Switch 8 BAR CE for air Compressors FIAC 7250740000 Pressure Switch 8 BAR CE for air Compressors FIAC €27.75
60
 photo_cameraImage coming soon 7081090000 Fitting 1/4 "MM €5.87
61
 Pressure Regulator for Air Compressors Michelin MCX 24 - MCX 50 7100750000 Pressure Regulator for Air Compressors Michelin MCX 24 - MCX 50 €22.91
62
 photo_cameraImage coming soon 7130570000 Tap Universal M1/4" €11.96
63
 photo_cameraImage coming soon 7110450000 manometer €15.53
64
 photo_cameraImage coming soon 7085180000 Fitting 1 / 4-1 / 8 MF €6.97
65
 photo_cameraImage coming soon 7081140000 Joint 1/4" MM €6.97
66
 photo_cameraImage coming soon 7023040000 Locknut 1/4" €4.38
67
 Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
68
 Check Valve MM 1/2"x3/8"- SX for Air Compressor Fiac-B&D-Michelin 7190180000 Check Valve MM 1/2"x3/8"- SX for Air Compressor Fiac-B&D-Michelin €28.12
69
 photo_cameraImage coming soon 7024140000 Nut 3/8 " €4.11
70
 photo_cameraImage coming soon 7231700000 Tube feeding €15.17
72
 photo_cameraImage coming soon 7030140000 Washer Ø12 UNI-6592 €4.23
73
 photo_cameraImage coming soon 7332030000 wheel axle €4.32
75
 photo_cameraImage coming soon 7011200000 Screw M12X100 UNI-5737 €5.77

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Angle Grinder GA5041C

We have the original Spares MAKITA for Angle Grinder GA5041C, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Angle Grinder GA5041C All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.

In the following table, look for the model of the Angle Grinder and the respective parts of the code.

Angle Grinder GA5041C
1 168705-9 GEAR BOX FOR GA
2 252186-8 NUT M6 X 9554NB
3 253077-6 WASHER P. 6 4300 / 01BV
4 227591-8 GEAR FOR 10 GA
5 211142-7 BEARING 6001 LLB X GD0800C
6 141981-0 COVER GEAR BOX
7 234230-3 SPRING COMPRESSION 33
8 141515-9 BRAKE HOLDER
9 326132-8 PLATE BRAKE
11 240135-7 FAN 60B
12 515378-3 ARMATURE
13 681656-4 INSULATOR X GD0810C
14 253823-7 WASHER FLAT 7 X JS1600
15 210027-4 BEARING 627DDW X 9561CV
16 421738-8 RING LABYRINTH 22 X 9561CV
17 267756-0 WAVY WASHER X BO6040
18 688117-5 MAGNETIC SOCKET X GD0800C
19 259039-2 LOCKING 6 X 9566CV
20 455351-0 SPACERS
22 453375-0 BAFFLE B
23 266258-3 SCREW 4 X 70 X 9564
24 344871-8 RETAINING X GD0800C
25 626653-3 STATOR 220-240V
27 191978-9 CARBON BRUSHES CB 318 (EX 310)
28 266007-8 SCREW M3 X10 HP2030
29 643769-9 BRUSHES HOLDER
30 453376-8 HOUSING MOTOR B
31 266326-2 SCREW 4x18 X MT601
32 687169-3 CLAMP ties HP1620
33 638947-4 SWITCH HOLDER
35 682559-5 SAVE CABLE X 6822
36 266326-2 SCREW 4x18 X MT601
38 453365-3 BACK COVER C
39 620127-6 REGULATOR
40 651418-4 SWITCH ST115A-40 X 9541
42 233071-4 SPRING COMPRESSION 4 X 9541
43 453847-5 LEVER SWITCH
44 453377-6 KEY SWITCH B
45 346557-0 PLATE SWITCH
46 453369-5 BUTTON
47 234057-1 SPRING COMPRESSION 6 GA5021C
48 266467-4 SCREW 4X50 FS2500K
49 213032-0 RING 4 X GA4530
50 256535-1 PLUG FOR 6 GA
51 263002-9 RUBBER PLUG 4
52 210026-6 BALL BEARING 696ZZ
53 961005-4 RETAINING RING S9
54 253180-3 FLAT WASHER 10 X 6221DW
55 310577-0 JOINT
56 346556-2 C PLATE FOR GA
57 227592-6 GEAR FOR 38 GA
58 313228-4 JUNCTION FOR GA
59 210302-8 BEARING 6903ZZ FOR GA
60 253744-3 WASHER PIANA 12 24B / 12N / 14
61 263002-9 RUBBER PLUG 4
62 213641-5 RING FOR 51 GA
63 318839-0 BOX BEARING B
64 265490-6 SCREW M4 X 16 X 9561CV
65 211129-9 BALL BEARING NSK 6201DD
66 267279-8 FLAT WASHER 21 X HR2450FT
67 443124-3 FELT RING 17 GD0600
68 285854-8 RETAINING BEARING 20-33
69 962105-3 RETAINING RING R26 P01
70 326133-6 POST P99
71 310514-4 FLANGE POST P99
72 123145-8 DISC COVER GA P15 SERIES
73 224447-6 FLANGE INTERNAL 42B P99
74 224554-5 EXTERNAL FLANGE 14-45 X 9541 P08
75 135555-7 JUNCTION CPL P99

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita GA5041C
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita GA5041C

Diagram Makita GA5041C

Download (293.55KB)

You might also like

Polisher Sander Makita SA7000C -15% Sale
Makita SKU: Makita SA7000C
Polisher Sander Makita SA7000C
Polisher Sander Makita SA7000C Sander - Polisher 1600 Watt platorelo 180 mm, equipped with powerful engine. The brushes are externally accessible for convenient replacement. The pad allows you to install both the sandpaper sheets of...
AVAILABLE €290.58 €341.86
Details
Carbon Brushes Makita for Angle Grinders 9554-9555-9557
Makita SKU: 194074-2
Carbon Brushes Makita for Angle Grinders 9554-9555-9557
Carbon Brushes Makita for Angle Grinders 9554-9555-9557 Genuine spare part Makita,  Carbon Brushe Set CB-325 for Angle Grinders 9554HN - 9554HNG - 9554NB - 9555NB - 9557HN - 9557HNG - 9557HP - 9557NB -...
Last items in stock €4.19
Details
Switch Makita Makita ST115A-40
Makita SKU: 651418-4
Switch Makita Makita ST115A-40
Switch Makita Makita ST115A-40 Genuine parts: - JigSaws Makita 4305-4341 - Angle Grinder Makita - Sanders Random Orbital Sanders Makita - Grinders Makita straight - Breakers Makita - Rotary Hammers Makita - Nibblers Makita -...
Last items in stock €10.80
Details
Inner Flange for Angle Grinder Makita 115-125 mm
Makita SKU: 224415-9
Inner Flange for Angle Grinder Makita 115-125 mm
Inner Flange for Angle Grinder Makita 115-125 mm Genuine replacement part Makita, inner tighten flange for Angle Grinder with disk max 180-230 mm. For the following items: - ANGLE GRINDER 125 MM - 9005B - ANGLE GRINDER 150 MM - 9006B...
AVAILABLE €8.23
Details
Carbon Brushes CB-325 for Angle Grinder Makita 9554NB
Makita SKU: 194074-2
Carbon Brushes CB-325 for Angle Grinder Makita 9554NB
Carbon Brushes CB-325 for Angle Grinder Makita 9554NB Original spare part Makita for Angle Grinder, Carbon Brushes for 9554HN - 9554HNG - 9554NB - 9555NB - 9555NB - 9557HN - 9558HN - 9564H Part for the following products: - ANGLE...
AVAILABLE €4.19
Details
Upper Flange for Angle Grinders Makita 115-125 mm
Makita SKU: 224554-5
Upper Flange for Angle Grinders Makita 115-125 mm
Upper Flange for Angle Grinders Makita 115-125 mm Genuine part Makita, Upper Disk Flange for Angle Grinders with disk max 115-125 mm and compatible. Parts for the following products: - 9015B - ANGLE GRINDER 125MM 1050W - 9016B -...
AVAILABLE €8.23
Details
Pin Disc Block Sping for Angle Grinder Makita GA4530
Makita SKU: 234057-1
Pin Disc Block Sping for Angle Grinder Makita GA4530
Makita GA4530 Compression Spring 6 Genuine spare Makita, Pin Disc Block Compression Spring for Angle Grinders with disk mm 115-125 GA4530 - GA4530R - GA4534 - GA5034. Parts for the following products: - GA4530 - ANGLE GRINDER 720W...
AVAILABLE €1.83
Details
Magnet Sleeve for Angle Grinder Makita GA4540C
Makita SKU: 688117-5
Magnet Sleeve for Angle Grinder Makita GA4540C
Magnet Sleeve for Angle Grinder Makita GA4540C Genuine Replacement Part Makita, Magnet Sleeve for Angle Grinders GA4540C - GA4541C - GA5040C - GA4541C - 9561CVH -  9561CVR. Part for the following products: - 3707FC - TRIMMER 6MM 500W...
AVAILABLE €4.20
Details
Comments (0)
