Makita Spare Parts for Angle Grinder 9554HN

Name: Makita Spare Parts for Angle Grinder 9554HN
Brand: Makita
SKU: Makita 9554HN
Availability: InStock

SKU: Makita 9554HN

€3.34

VAT included

Makita Spare Parts for Angle Grinder 9554HN

Makita genuine spare parts or replacement parts for to repair Angle Grinder 115 mm 710W 9554 HN.

- With 710 Watt power input
- Disc Ø 115 mm
- No-load speed 10000 min
- Type M14

51 spare parts

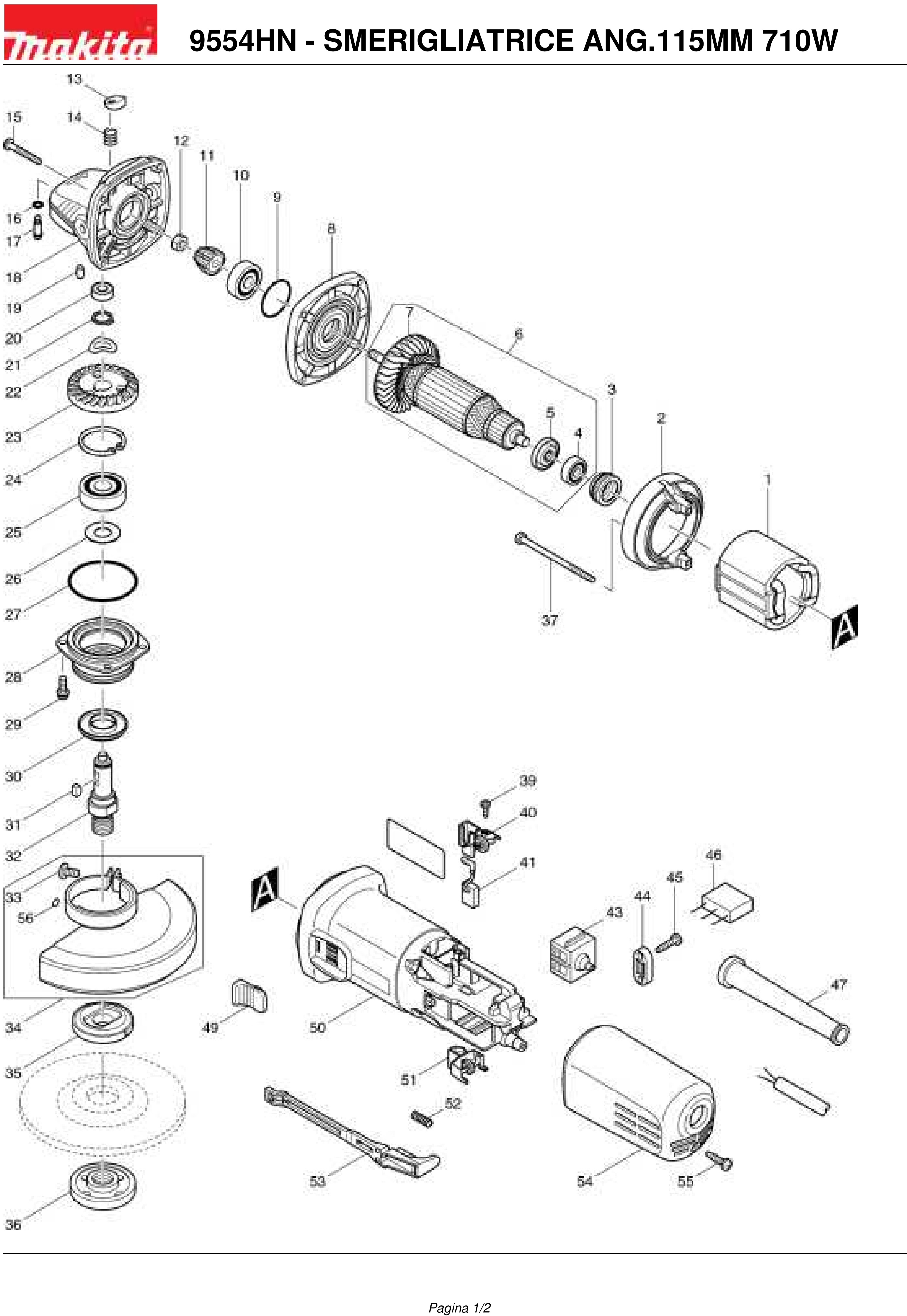

Page 1 View exploded Usually Ships in: 7/10 BUSINESS DAYS

1 / 2

Pos.		Item	Price
1		621713-6 Stator for Angle Grinder Makita 9554-9555	€19.59
2	Image coming soon	418795-5 DEFLECTOR FOR 9554NB	€2.39
3		421868-5 Ball Bearing Protection for Angle Grinder Makita GA4530	€2.00
4		210034-7 Ball Bearing 607 LLB for Angle Grinder Makita 9554NB	€3.34
5		681636-0 Armature Washer for Angle Grinder Makita GA4530	€2.34
6		515619-7 Armature for Angle Grinder Makita 9553-9554-9555	€31.12
7	Image coming soon	240076-7 FAN FOR 56 9554NB	€2.27
8	Image coming soon	317821-6 COVER SCAT.INGR. FOR 9554NB	€8.12
9		213445-5 O-Ring 26 for Powertools Makita	€1.95
10	Image coming soon	210042-8 BEARING FOR 629LLB GD0600	€5.93
11		227541-3 Makita 9554NB Bevel Gear 10	€13.43
12		252186-8 Armature Nut M6 for Angle Grinder Makita 9554NB	€1.47
13		417771-6 Button Pin Disc Block for Angle Grinder Makita 9554NB	€3.18
14		233376-2 Pin Disc Block Spring for Angle Grinder Makita 9554NB	€2.51
15	Image coming soon	266050-7 SCREW 4X30 PT	€3.76
16		213960-9 OR Ring mm 5 for Pin Disc Block for Angle Grinder Makita 9554NB	€1.43
17		256486-8 Pin Disc Block for Angle Grinder Makita 9554NB	€3.35
18		317814-3 Gears Box for Angle Grinder Makita 9554NB	€11.60
19		263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C	€1.47
20		210033-9 Bearing 696ZZ FOR Angle Grinder Makita GA4530	€3.35
21		961052-5 Retaining Ring S12 for Power Tools Makita	€1.40
22		267794-2 Wave Washer 12 for Angle Grinders Makita 9554HN/NB	€1.32
23		227542-1 Makita 9554NB Spiral Bevel Gear 37	€8.38
24		962151-6 Retaining Ring R32 for Powertools Makita	€1.43
25		211129-9 Bearing 6201DD NSK for Powertools Makita	€8.41
26	Image coming soon	267238-2 WASHER 12 MT952	€2.39
27	Image coming soon	213622-9 RING FOR 9554NB 45	€2.40
28	Image coming soon	318331-6 BEARING CASE 9554NB	€5.69
29	Image coming soon	265099-4 SCREW M4x14 FOR 9554NB	€1.43
30	Image coming soon	345464-4 RING FOR DUST 9554NB	€1.40
31		254011-9 Woodruf Key mm 4x7,95x4,97 for Angle Grinder Makita 9554NB	€1.38
32	Image coming soon	324489-1 SPINDLE 9554NB	€6.49
33	Image coming soon	265180-1 SCREW M5x16	€1.40
34		123098-1 Disc Protection for Angle Grinder Makita 9554NB	€16.64
35		224415-9 Inner Flange for Angle Grinder Makita 115-125 mm	€8.23
36		224554-5 Upper Flange for Angle Grinders Makita 115-125 mm	€8.23
37	Image coming soon	266325-4 SCREW M 4 TO 70 PER MT952	€1.36
39		266007-8 Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030	€2.07
40	Image coming soon	643760-7 BRUSH HOLDER FOR BO6040	€6.31
41		194074-2 Carbon Brushes CB-325 for Angle Grinder Makita 9554NB	€4.19
43		651947-7 Switch for Angle Grinder Makita 710 W 9554HN/NB	€14.96
44	Image coming soon	687124-5 CORD CLAMP MT953	€1.47
45		265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C	€1.46
46		645233-6 Capacitor for Angle Grinder Makita 9554NB	€3.35
47		682559-5 Power Cord Protection for Angle Grinder Makita 115-125 mm	€2.07
49		419566-3 Switch Lever Button for Angle Grinder Makita 9554-9555	€2.51
50	Image coming soon	451126-5 MOTOR HOUSING FOR 9554NB	€18.44
52		233121-5 Lever Switch Spring for Angle Grinder Makita 9554NB	€1.30
53		418796-3 Switch Lever for Angle Grinder Makita 9554-9555	€6.55
54	Image coming soon	418726-4 BACK COVER FOR 9554NB	€4.47
56	Image coming soon	213009-5 RING 4	€1.40

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Angle Grinder 9554HN

Makita genuine spare parts or replacement parts for to repair Angle Grinder 115 mm 710W 9554 HN.

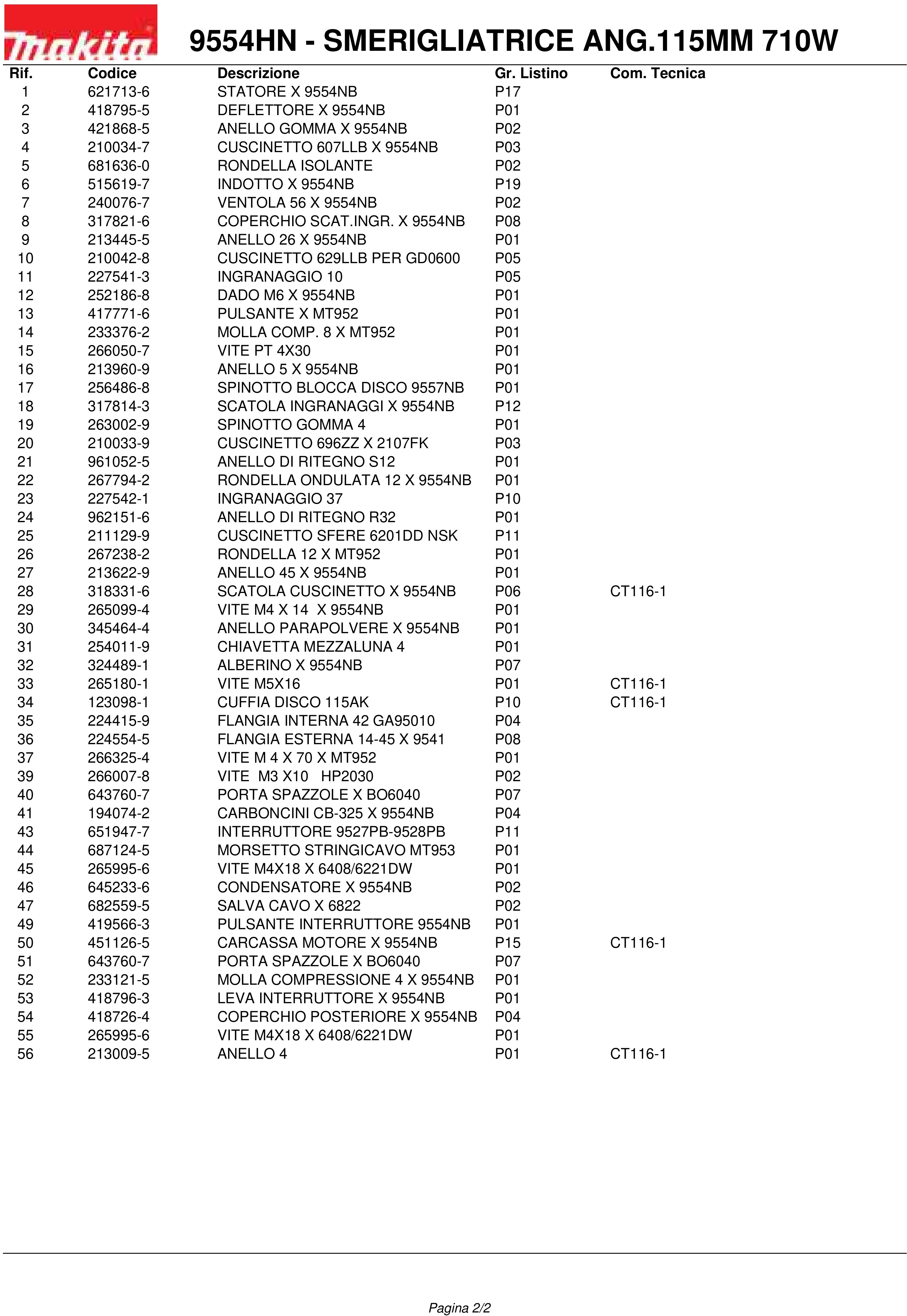

In the following table, look for the model of the angle grinder and theirs spare parts codes.

ANGLE GRINDER 115MM 710 W 9554HN
#	Part Num.	Description
1	621713-6	STATOR FIELD 9554NB
2	418795-5	VANE X 9554NB
3	421868-5	RUBBER RING X 9554NB
4	210034-7	BEARING 607LLB X 9554NB
5	681636-0	INSULATOR
6	515619-7	ARMATURE X 9554NB
7	240076-7	FAN 56 X 9554NB
8	317821-6	COVER GEAR BOX X 9554NB
9	213445-5	RING 26 X 9554NB
10	210042-8	BEARING FOR 629LLB GD0600
11	227541-3	GEAR 10
12	252186-8	NUT M6 X 9554NB
13	417771-6	BUTTON X MT952
14	233376-2	SPRING COMP. 8 X MT952
15	266050-7	SCREW 4X30 PT
16	213960-9	RING 5 X 9554NB
17	256486-8	PIN LOCK DISC 9557NB
18	317814-3	GEAR BOX X 9554NB
19	263002-9	RUBBER PIN 4
20	210033-9	BEARING 696ZZ X 2107FK
21	961052-5	RETAINING RING S12
22	267794-2	WAVY WASHER 12 X 9554NB
23	227542-1	GEAR 37
24	962151-6	RETAINING RING R32
25	211129-9	BALL BEARING NSK 6201DD
26	267238-2	WASHER 12 X MT952
27	213622-9	RING 45 X 9554NB
28	318331-6	BOX X BEARING 9554NB
29	265099-4	SCREW M4 X 14 X 9554NB
30	345464-4	DUST RING X 9554NB
31	254011-9	KEY CRESCENT 4
32	324489-1	POST X-9554NB
33	265180-1	SCREW M5x16
34	123098-1	CAP DISC 115AK
35	224415-9	RECIEVE WASHER 42 GA95010
36	224554-5	CLAMP WASHER 14-45 X 9541
37	266325-4	SCREW M 4 X 70 X MT952
39	266007-8	SCREW M3 X10 HP2030
40	643760-7	CARBON BRUSH HOLDER BO6040
41	194074-2	CARBON BRUSHE SET CB-325 X-9554NB
43	651947-7	SWITCH 9527PB-9528PB
44	687124-5	CLAMP MT953 ties
45	265995-6	SCREW M4X18 X 6408 / 6221DW
46	645233-6	CAPACITOR X 9554NB
47	682559-5	CORD ARMOR X 6822
49	419566-3	BUTTON SWITCH 9554NB
50	451126-5	MOTOR HOUSING X 9554NB
51	643760-7	CARBON BRUSH HOLDER BO6040
52	233121-5	COMPRESSION SPRING 4 X 9554NB
53	418796-3	SWITCH LEVER X 9554NB
54	418726-4	BACK COVER X 9554NB
55	265995-6	SCREW M4X18 X 6408 / 6221DW
56	213009-5	RING 4

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Makita 9554HN

Available 6 Items

Data sheet

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]

Specific References

Condition New

Download

Diagram Makita 9554HN

Download (48.02KB)

Makita SKU: 651947-7

Switch for Angle Grinder Makita 710 W 9554HN/NB

Switch for Angle Grinder Makita 710 W 9554HN/NB Original spare part Makita, Switch for Angle Grinders 9527PB/PBK - 9528PB/PBK - 9554HN/HNG/NB - 9555NB - 9557HN/HNG/HP/NB/PB - 9558HN/HNG/HP/NB/PB - GD0600. Part for the following...

AVAILABLE €14.96
