Makita Spare Parts for Angle Grinder 9557HP

We have the original Spares MAKITA for Angle Grinder 9557HP the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Angle Grinder 9557HP. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.

54 spare parts

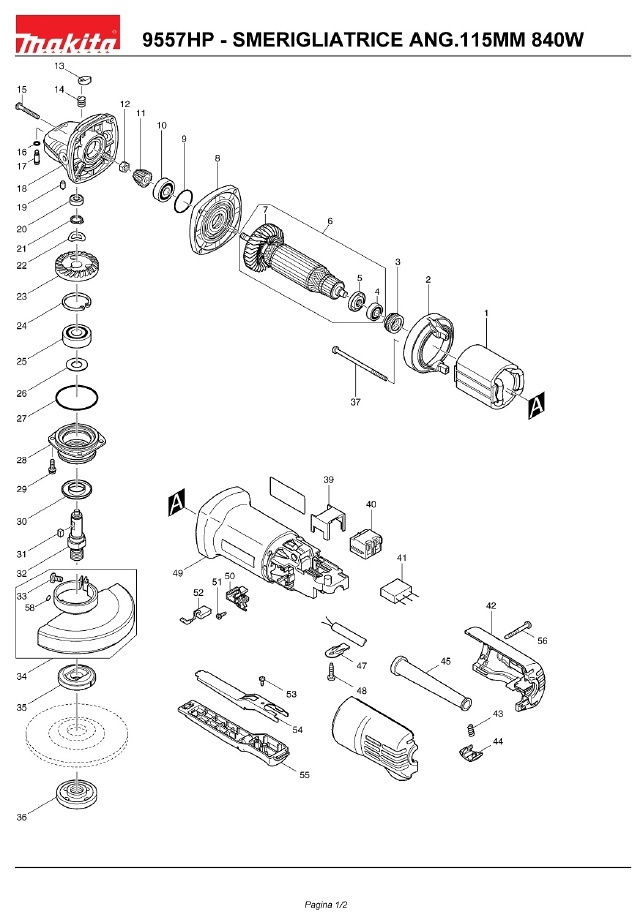

Page 1 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1		621708-9 Stator for Angle Grinder Makita 9557-9558	€22.27
2	Image coming soon	418770-1 AIR BAFFLE X 9557NB	€2.39
3		421868-5 Ball Bearing Protection for Angle Grinder Makita GA4530	€2.00
4		210034-7 Ball Bearing 607 LLB for Angle Grinder Makita 9554NB	€3.34
5		681636-0 Armature Washer for Angle Grinder Makita GA4530	€2.34
6		515613-9 Armature for Angle Grinder Makita 9556-9557-9558	€29.60
7	Image coming soon	240076-7 FAN FOR 56 9554NB	€2.27
8	Image coming soon	317821-6 COVER SCAT.INGR. FOR 9554NB	€8.12
9		213445-5 O-Ring 26 for Powertools Makita	€1.95
10	Image coming soon	210042-8 BEARING FOR 629LLB GD0600	€5.93
11		227541-3 Makita 9554NB Bevel Gear 10	€13.43
12		252186-8 Armature Nut M6 for Angle Grinder Makita 9554NB	€1.47
13		417771-6 Button Pin Disc Block for Angle Grinder Makita 9554NB	€3.18
14		233376-2 Pin Disc Block Spring for Angle Grinder Makita 9554NB	€2.51
15	Image coming soon	266050-7 SCREW 4X30 PT	€3.76
16		213960-9 OR Ring mm 5 for Pin Disc Block for Angle Grinder Makita 9554NB	€1.43
17		256486-8 Pin Disc Block for Angle Grinder Makita 9554NB	€3.35
18		317814-3 Gears Box for Angle Grinder Makita 9554NB	€11.60
19		263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C	€1.32
20		210033-9 Bearing 696ZZ FOR Angle Grinder Makita GA4530	€3.35
21		961052-5 Retaining Ring S12 for Power Tools Makita	€1.40
22		267794-2 Wave Washer 12 for Angle Grinders Makita 9554HN/NB	€1.32
23		227542-1 Makita 9554NB Spiral Bevel Gear 37	€8.38
24		962151-6 Retaining Ring R32 for Powertools Makita	€1.43
25		211129-9 Bearing 6201DD NSK for Powertools Makita	€8.41
26	Image coming soon	267238-2 WASHER 12 MT952	€2.39
27	Image coming soon	213622-9 RING FOR 9554NB 45	€2.40
28	Image coming soon	318331-6 BEARING CASE 9554NB	€5.69
29	Image coming soon	265099-4 SCREW M4x14 FOR 9554NB	€1.43
30	Image coming soon	345464-4 RING FOR DUST 9554NB	€1.40
31		254011-9 Woodruf Key mm 4x7,95x4,97 for Angle Grinder Makita 9554NB	€1.38
32	Image coming soon	324489-1 SPINDLE 9554NB	€6.49
33	Image coming soon	265180-1 SCREW M5x16	€1.40
34		123098-1 Disc Protection for Angle Grinder Makita 9554NB	€16.64
35		224415-9 Inner Flange for Angle Grinder Makita 115-125 mm	€8.23
36		224554-5 Upper Flange for Angle Grinders Makita 115-125 mm	€8.23
39	Image coming soon	418729-8 SPACER X 9557NB	€2.39
40		651947-7 Switch for Angle Grinder Makita 710 W 9554HN/NB	€14.96
41		645233-6 Capacitor for Angle Grinder Makita 9554NB	€3.35
42	Image coming soon	183943-2 COVER POST. X 9557PB	€5.41
43	Image coming soon	231252-4 SPRING 6-9527PB 9528PB	€2.01
44	Image coming soon	418842-2 BUTTON LOCK X 9557PB	€1.79
45		682559-5 Power Cord Protection for Angle Grinder Makita 115-125 mm	€2.07
47	Image coming soon	687169-3 STRAIN RELIEF HP1620	€1.46
48		265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C	€1.46
49	Image coming soon	418838-3 HOUSING MOTOR X 9557PB	€9.54
50	Image coming soon	643760-7 BRUSH HOLDER FOR BO6040	€6.31
51		266007-8 Tapping Screw Bind M3X10 for Percussion Drill Makita HP2030	€2.03
52		194074-2 Carbon Brushes CB-325 for Angle Grinder Makita 9554NB	€4.19
53	Image coming soon	266492-5 SCREW M4X25-9527PB 9528PB	€2.47
54	Image coming soon	345504-8 PLATE LEVER INTER. X GD0600	€1.79
55	Image coming soon	154584-1 LEVER SWITCH B 9557PB	€2.69
56	Image coming soon	266048-4 VITE M 4 PER 40 PER 4334D	€3.51
58	Image coming soon	213009-5 RING 4	€1.40

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Angle Grinder 9557HP

Angle Grinder 9557HP
#	Part Num.	Description
1	621708-9	STATOR X 9557NB
2	418770-1	BAFFLEX 9557NB
3	421868-5	RUBBER RING X 9554NB
4	210034-7	BEARING 607LLB X 9554NB
5	681636-0	INSULATOR
6	515613-9	ARMATURE X 9557NB
7	240076-7	FAN 56 X 9554NB
8	317821-6	COVER SCAT.INGR. X 9554NB
9	213445-5	RING 26 X 9554NB
10	210042-8	BEARING FOR 629LLB GD0600
11	227541-3	GEAR 10
12	252186-8	NUT M6 X 9554NB
13	417771-6	BUTTON X MT952
14	233376-2	SPRING COMP. 8 X MT952
15	266050-7	SCREW 4X30 PT
16	213960-9	RING 5 X 9554NB
17	256486-8	DISC LOCK PIN 9554NB
18	317814-3	GEAR BOX X 9554NB
19	263002-9	RUBBER PLUG 4
20	210033-9	BEARING 696ZZ X 2107FK
21	961052-5	RETAINING RING S12
22	267794-2	WAVY WASHER 12 X 9554NB
23	227542-1	GEAR 37
24	962151-6	RETAINING RING R32
25	211129-9	BALL BEARING NSK 6201DD
26	267238-2	WASHER 12 X MT952
27	213622-9	RING 45 X 9554NB
28	318331-6	BEARING BOX X 9554NB
29	265099-4	SCREW M4 X 14 X 9554NB
30	345464-4	RING DUST X 9554NB
31	254011-9	KEY 4
32	324489-1	POST X 9554NB
33	265180-1	SCREW M5X16
34	123098-1	WHEEL GUARD 115AK
35	224415-9	FLANGE INTERNAL 42 GA95010
36	224554-5	EXTERNAL FLANGE 14-45 X 9541
37	266345-8	SCREW 4x80 X 9557NB
39	418729-8	SPACER X 9557NB
40	651947-7	SWITCH-9527PB 9528PB
41	645233-6	CAPACITOR X 9554NB
42	183943-2	COVER POST. X 9557PB
43	231252-4	SPRING 6-9527PB 9528PB
44	418842-2	BUTTON LOCK X 9557PB
45	682559-5	SAVE CABLE X 6822
47	687169-3	CLAMP ties HP1620
48	265995-6	SCREW M4X18 X 6408 / 6221DW
49	418838-3	HOUSING MOTOR X 9557PB
50	643760-7	BRUSH HOLDER X BO6040
51	266007-8	SCREW M3 X10 HP2030
52	194074-2	CARBON BRUSHES CB-325 X 9554NB
53	266492-5	SCREW M4X25-9527PB 9528PB
54	345504-8	PLATE LEVER INTER. X GD0600
55	154584-1	LEVER SWITCH B 9557PB
56	266048-4	SCREW M 4 X 40 X 4334D
58	213009-5	RING 4
