Makita Spare Parts for Rear Handle Drill 6013BR

SKU: Makita 6013BR
€88.85
VAT included

Makita Spare Parts for Rear Handle Drill 6013BR

We have the original Spares MAKITA for Rear Handle Drill 6013BR the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Rear Handle Drill 6013BR. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Makita Spare Parts for Rear Handle Drill 6013BR
  • Makita Spare Parts for Rear Handle Drill 6013BR
  • Makita Spare Parts for Rear Handle Drill 6013BR

Makita Spare Parts for Rear Handle Drill 6013BR

SKU: Makita 6013BR Condition: New
€88.85
VAT included

Makita Spare Parts for Rear Handle Drill 6013BR

We have the original Spares MAKITA for Rear Handle Drill 6013BR the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Rear Handle Drill 6013BR. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 41 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

37 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 251425-3 M6X22 SCREW €1.40
3
Chuck Spindle for Mixer Makita DS4011 325494-1 Chuck Spindle for Mixer Makita DS4011 €43.57
5
photo_cameraImage coming soon 285808-5 COVER BEARING 25-36X6013B €3.01
6
photo_cameraImage coming soon 211206-7 BEARING 6202V €9.76
7
photo_cameraImage coming soon 156972-8 COVER GEAR BOX 6013b / BR €19.78
8
photo_cameraImage coming soon 212012-3 ROLLER BEARING HK0609 €6.44
10
Gear 7/41 for Mixer Makita DS4011 226028-2 Gear 7/41 for Mixer Makita DS4011 €19.02
11
photo_cameraImage coming soon 211016-2 BALL BEARING 626DD €7.03
12
Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.47
13
photo_cameraImage coming soon 156971-0 GEAR BOX X 6013b / BR €36.56
14
photo_cameraImage coming soon 911256-9 SCREW M5x35 €1.44
15
photo_cameraImage coming soon 257018-4 RING 15 63 / NB / L / 6013BR €2.44
16
photo_cameraImage coming soon 221261-1 INGR.47 63L / 6013BR / DP4700 €19.78
17
Makita Power Tools Ext DIN471 Circlip-14 961054-1 Makita Power Tools Ext DIN471 Circlip-14 €1.37
18
photo_cameraImage coming soon 212004-2 ROLLER 810 X9218S €5.67
19
photo_cameraImage coming soon 253192-6 FLAT WASHER 14 €1.40
20
Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.47
21
photo_cameraImage coming soon 211033-2 BEARING 608LB €9.89
22
photo_cameraImage coming soon 681613-2 INSULATION WASHER €1.29
23
photo_cameraImage coming soon 512613-0 ARMATURE X 6013BR €95.92
25
photo_cameraImage coming soon 213002-9 Spacer 8 €1.69
26
photo_cameraImage coming soon 211031-6 BEARING 608 €6.55
27
Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.47
29
photo_cameraImage coming soon 411487-5 FAN GUIDE 6013b / BR €2.05
31
photo_cameraImage coming soon 651558-8 SWITCH SL220SD-4 €34.88
32
photo_cameraImage coming soon 181163-2 HANDLE COMPLETE 6013BR €23.02
33
photo_cameraImage coming soon 911153-9 SCREW M4X28 €1.39
34
photo_cameraImage coming soon 645209-3 CAPACITOR €8.30
35
photo_cameraImage coming soon 911248-8 CYLINDER HEAD SCREW. M5X28 €1.36
36
photo_cameraImage coming soon 911133-5 SCREW M4X18 €1.46
37
photo_cameraImage coming soon 687001-1 CLAMP cable tie €1.47
38
photo_cameraImage coming soon 682502-4 CABLE SLEEVE 8/85 €4.09
40
photo_cameraImage coming soon 156443-5 CASING MOTOR X6013B / BR €69.54
41
photo_cameraImage coming soon 911153-9 SCREW M4X28 €1.39
42
photo_cameraImage coming soon 181162-4 REAR HANDLE COMPLETE 6013BR €15.40
45
Carbon Brushes CB-51 for Planer Makita N1923B 181021-2 Carbon Brushes CB-51 for Planer Makita N1923B €4.95
46
Brush Holder Cap for Impact Wrench MAKITA TW0350 643550-8 Brush Holder Cap for Impact Wrench MAKITA TW0350 €2.00

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Rear Handle Drill 6013BR

Fix Your Rear Handle Drill 6013BR. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of Drill and the respective parts of the code.
Rear Handle Drill 6013BR

Rear Handle Drill 6013BR
# Part Num. Description
1 251425-3 M6X22 SCREW
3 325494-1 SPINDLE X 6300L / 6013BR
4 254211-1 KEY 5
5 285808-5 COVER BEARING 25-36X6013B
6 211206-7 BEARING 6202V
7 156972-8 COVER GEAR BOX 6013b / BR
8 212012-3 ROLLER BEARING HK0609
9 261008-1 FIBER WASHER 6 63L / 6013BR
10 226028-2 GEAR 7-41 63L / 6013BR
11 211016-2 BALL BEARING 626DD
12 263002-9 RUBBER PIN 4
13 156971-0 GEAR BOX X 6013b / BR
14 911256-9 SCREW M5x35
15 257018-4 RING 15 63 / NB / L / 6013BR
16 221261-1 GEAR 47 63L / 6013BR / DP4700
17 961054-1 RETAINING RING S14
18 212004-2 ROLLER BEARING 810 X 9218S
19 253192-6 FLAT WASHER 14
20 263002-9 RUBBER PIN 4
21 211033-2 BEARING 608SS (LLB) HR2010
22 681613-2 INSULATING WASHER JN / JS32 / 4301BV
23 512613-0 ARMATURE X 6013BR
25 213002-9 SPACER 8 X 9218SB
26 211031-6 BEARING 608LLB X 4304T
27 263002-9 RUBBER PIN 4
28 911280-2 M5X55 SCREW
29 411487-5 FAN GUIDE 6013b / BR
30 527436-3 STATOR X 6013BR
31 651558-8 SWITCH SL220SD-4
32 181163-2 HANDLE COMPLETE 6013BR
33 911153-9 SCREW M4X28 3600H
34 645209-3 CAPACITOR
35 911248-8 HEAD SCREW CILIND. M5X28
36 911133-5 M4X18 SCREW
37 687001-1 CLAMP cable tie
38 682502-4 SLEEVE CABLE 8/85 6408
40 156443-5 CASING MOTOR X6013B / BR
41 911153-9 SCREW M4X28 3600H
42 181162-4 REAR HANDLE COMPLETE 6013BR
45 181021-2 CARBON BRUSHES CB-51 (50)
46 643550-8 CAP BRUSH
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita 6013BR
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

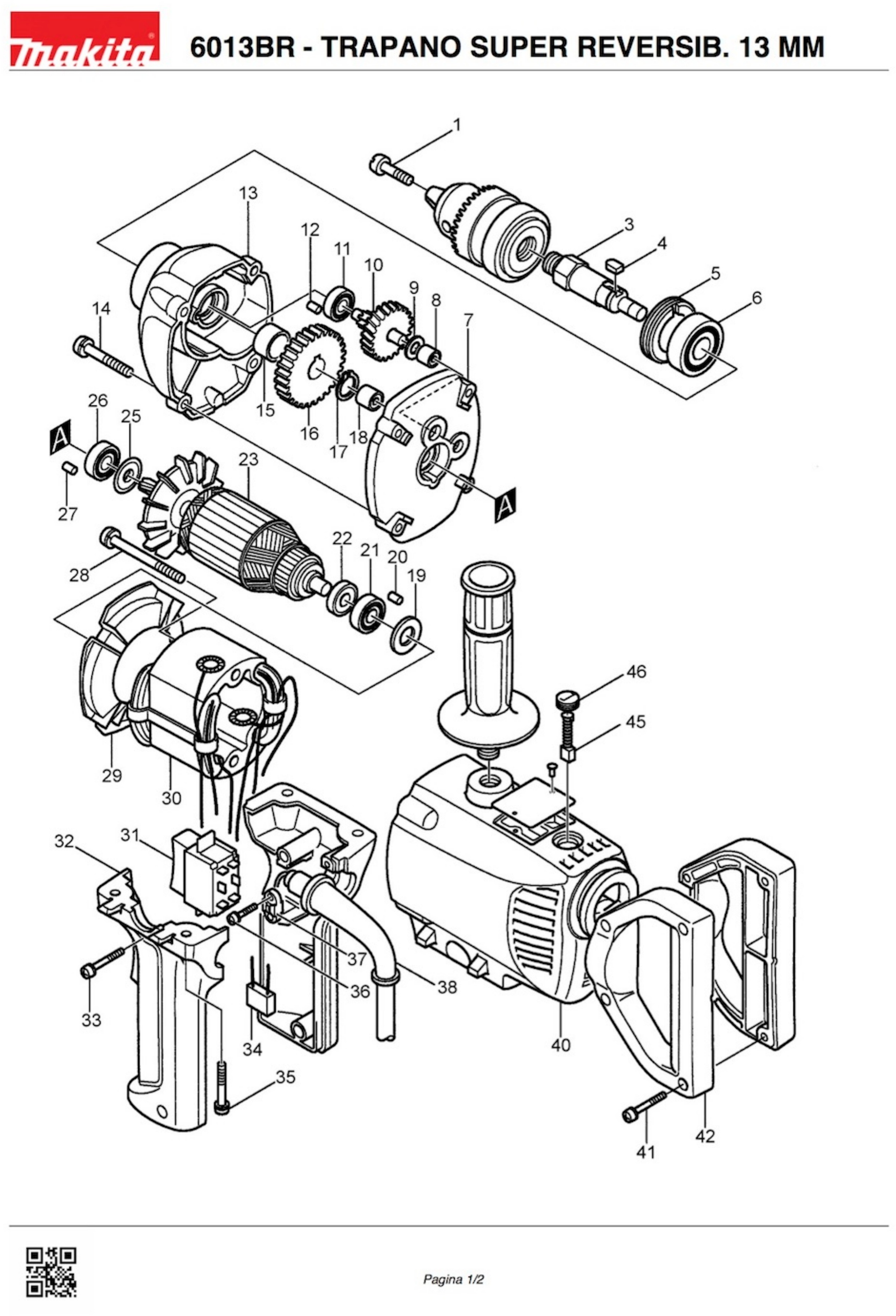

Diagram Makita 6013BR

Diagram Makita 6013BR

Download (274.26KB)
