Makita

Makita Spare Parts for Vacuum Cleaner VC3011L

SKU: Makita VC3011L
€55.04
VAT included

Makita Spare Parts for Vacuum Cleaner VC3011L

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Vacuum Cleaner VC3011L.
Makita Spare Parts for Vacuum Cleaner VC3011L
  • Makita Spare Parts for Vacuum Cleaner VC3011L
  • Makita Spare Parts for Vacuum Cleaner VC3011L
Makita

Makita Spare Parts for Vacuum Cleaner VC3011L

SKU: Makita VC3011L Condition: New
€55.04
VAT included

Makita Spare Parts for Vacuum Cleaner VC3011L

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Vacuum Cleaner VC3011L.
settings 33 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
33 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

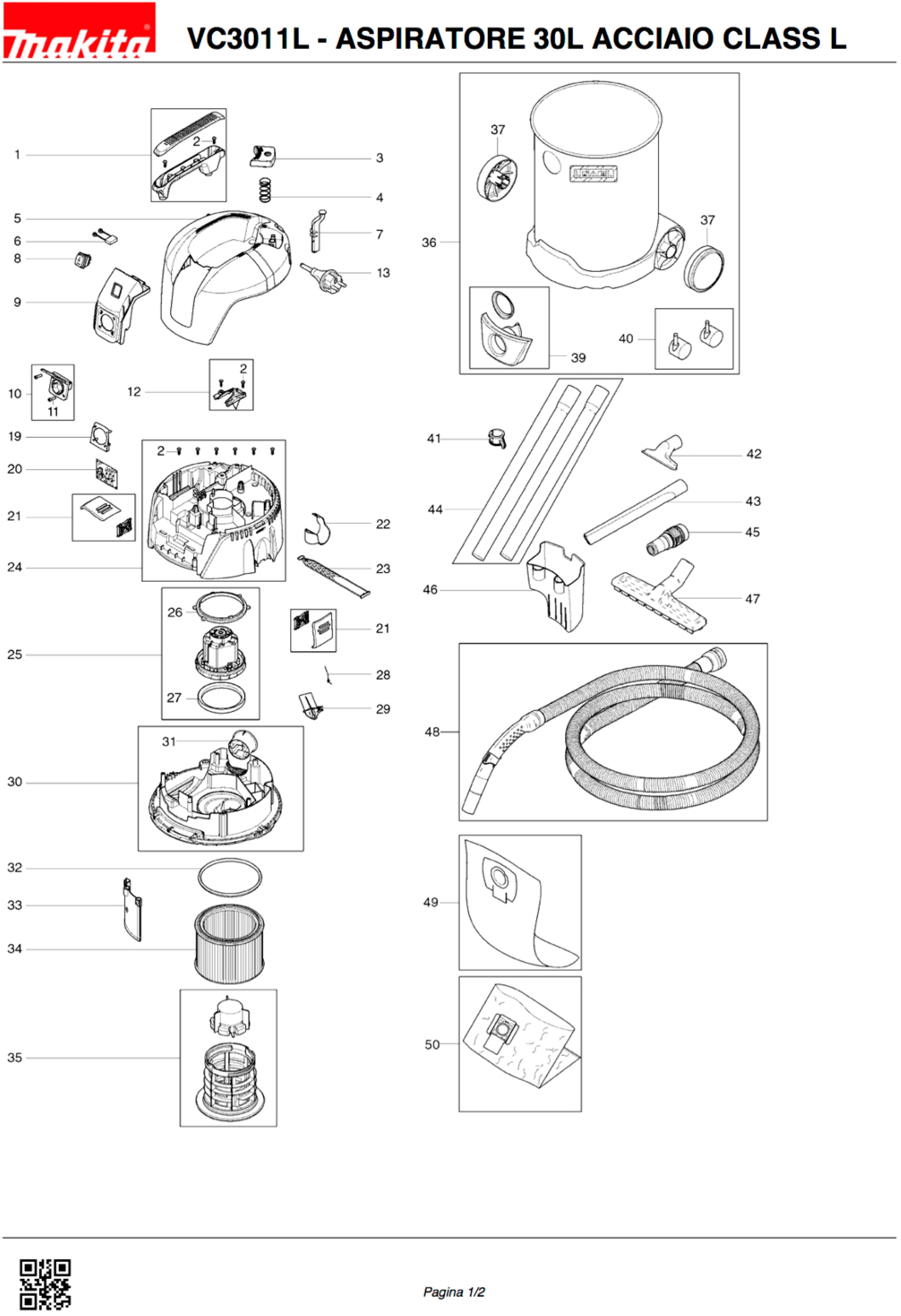

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
4
 photo_cameraImage coming soon W107411345 SPRING €2.38
5
 photo_cameraImage coming soon W107411996 TOP COVER €59.92
7
 photo_cameraImage coming soon W107411600 ROD €11.97
8
 photo_cameraImage coming soon W107409135 SWITCH €26.91
10
 photo_cameraImage coming soon W302004034 PLUG POWER €42.74
13
 photo_cameraImage coming soon W107402641 ALIMENTATION CABLE €81.32
20
 Elektronic for Vacuum Cleaner Makita VC2012L W107409188 Elektronic for Vacuum Cleaner Makita VC2012L €71.79
21
 photo_cameraImage coming soon W107409130 LOCKING LEVER €20.38
23
 photo_cameraImage coming soon W107409131 RUBBER BAND €23.12
24
 photo_cameraImage coming soon W107409132 MOTOR COVER €58.80
25
 Motor 1000W for Vacuum Cleaner Makita VC3011L W107409160 Motor 1000W for Vacuum Cleaner Makita VC3011L €121.30
26
 photo_cameraImage coming soon W107409163 SEAL TOP €13.95
28
 photo_cameraImage coming soon W909100083 SPRING X 446L €4.06
29
 photo_cameraImage coming soon W107409129 BULKHEAD €10.41
30
 photo_cameraImage coming soon W107409166 ENGINE HOLDER €108.08
32
 photo_cameraImage coming soon W107409165 SEAL AIR €13.53
33
 photo_cameraImage coming soon W107409159 BAFFLE €15.82
34
 photo_cameraImage coming soon P-70219 FILTER X 446L VC3011L €50.38
35
 photo_cameraImage coming soon W107402646 FILTER HOUSING €31.15
36
 photo_cameraImage coming soon W107412002 TANK €167.17
37
 photo_cameraImage coming soon W107409170 D130 WHEEL €13.95
39
 photo_cameraImage coming soon W107410817 FILLER INLET €23.12
40
 photo_cameraImage coming soon W1406422500 PIVOTING WHEEL 50MM €38.51
41
 photo_cameraImage coming soon W107409979 HOLDER TUBE €8.73
42
 photo_cameraImage coming soon W14295 BRUSH €7.46
43
 photo_cameraImage coming soon W29541 CREVICE NOZZLE 36X200 €7.46
44
 photo_cameraImage coming soon P-72942 TUBE D35X520 (2 PCS) €53.45
45
 photo_cameraImage coming soon P-81745 ADAPTER €30.87
46
 photo_cameraImage coming soon W107409980 TOOL BOX €16.77
47
 photo_cameraImage coming soon W107402706 BRUSH FLOOR €21.39
48
 photo_cameraImage coming soon P-81739 D32X3500 TUBE €56.79
49
 photo_cameraImage coming soon P-72899 PACKING BAGS 5PZ. x VC3011L €47.32
50
 photo_cameraImage coming soon P-70297 BAG PROTECTION 446L VC3011L €53.45

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Vacuum Cleaner VC3011L

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Vacuum Cleaner VC3011L.

In the following table, look for the model of Vacuum Cleaner and the respective parts of the code.
Makita VC3011L
Vacuum Cleaner VC3011L
# Part Num. Description
1 W107409137 HANDLE TOP
2 W302003704 SCREW 5x18
3 W107409153 BUTTON
4 W107411345 SPRING
5 W107411996 TOP COVER
6 W107404542 0.1 CONDENSER
7 W107411600 ROD
8 W107409135 SWITCH
9 W107411997 COVER
10 W302004034 PLUG POWER
11 W302004032 SCREW 3,5X18
12 W107409125 CONTACT
13 W107402641 ALIMENTATION CABLE
19 W302002052 PLATE NUT JACK
20 W107409188 ELECTRONIC BOARD
21 W107409130 LOCKING LEVER
22 W107402799 HOLDER TUBE
23 W107409131 RUBBER BAND
24 W107409132 MOTOR COVER
25 W107409160 1000W MOTOR
26 W107409163 SEAL TOP
27 W107409164 SEAL LOWER
28 W909100083 SPRING X 446L
29 W107409129 BULKHEAD
30 W107409166 ENGINE HOLDER
31 W107409167 AIR DISCHARGE
32 W107409165 SEAL AIR
33 W107409159 BAFFLE
34 P-70219 FILTER X 446L VC3011L
35 W107402646 FILTER HOUSING
36 W107412002 TANK
37 W107409170 D130 WHEEL
39 W107410817 FILLER INLET
40 W1406422500 PIVOTING WHEEL 50MM
41 W107409979 HOLDER TUBE
42 W14295 BRUSH
43 W29541 BOCCHETTA
44 P-72942 TUBE D35X520 (2 PCS)
45 P-81745 ADAPTER
46 W107409980 TOOL BOX
47 W107402706 BRUSH FLOOR
48 P-81739 D32X3500 TUBE
49 P-72899 PACKING BAGS 5PZ. x VC3011L
50 P-70297 BAG PROTECTION 446L VC3011L
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita VC3011L
10 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita VC3011L

Diagram Makita VC3011L

Download (373.45KB)
