Makita

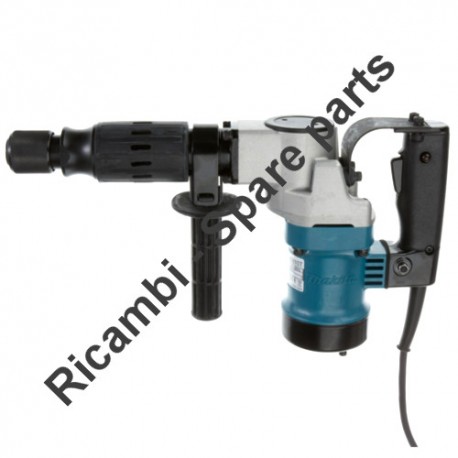

Makita Spare Parts for Hammer HM0810T

SKU: Makita HM0810T
€96.16
VAT included

Makita Spare Parts for Hammer HM0810T

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Hammer HM0810T.
Makita Spare Parts for Hammer HM0810T
  • Makita Spare Parts for Hammer HM0810T
  • Makita Spare Parts for Hammer HM0810T
Makita

Makita Spare Parts for Hammer HM0810T

SKU: Makita HM0810T Condition: New
€96.16
VAT included

Makita Spare Parts for Hammer HM0810T

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Hammer HM0810T.
settings 76 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
76 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

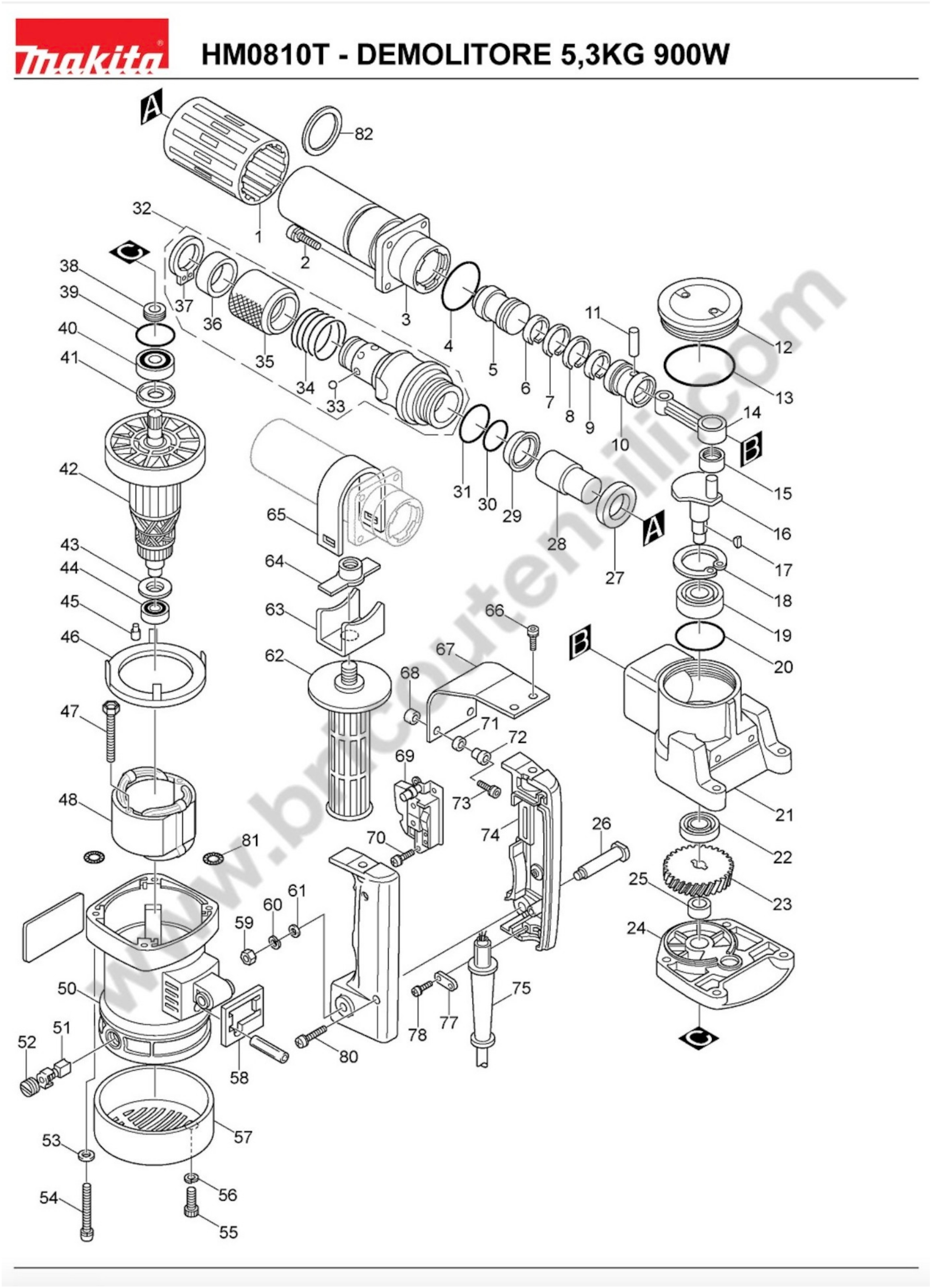

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 421541-7 CYLINDER CYLINDER HM0810 €15.02
2
 photo_cameraImage coming soon 922341-3 SCREW M6X25 €1.44
3
 photo_cameraImage coming soon 151457-9 CYLINDER HM0810 €159.31
4
 photo_cameraImage coming soon 213554-0 SEAL 44 HR2210 / 20/3510 €1.44
5
 photo_cameraImage coming soon 321929-0 BEATING X HM0810 €17.15
6
 photo_cameraImage coming soon 412073-5 INNER RING 26 HM0810 €8.87
7
 photo_cameraImage coming soon 412053-1 PISTON RING 30 HM0810 €6.74
9
 photo_cameraImage coming soon 321514-9 INNER RING €5.89
10
 photo_cameraImage coming soon 321958-3 PISTON HM0810 €17.15
11
 photo_cameraImage coming soon 256165-8 PIN 8 HM0810 €5.13
12
 Crank Cap for Demolition Hammer Makita HM0810T 411709-3 Crank Cap for Demolition Hammer Makita HM0810T €13.26
13
 photo_cameraImage coming soon 213654-6 O-RING 60 HR3850B / HM0810 €3.04
14
 Conrod for Demolition Hammer Makita HM0810T 312956-8 Conrod for Demolition Hammer Makita HM0810T €9.91
15
 Needle Bearing for Demolition Hammer Makita HM0810 212108-0 Needle Bearing for Demolition Hammer Makita HM0810 €20.01
16
 photo_cameraImage coming soon 321954-1 SHAFT ECCENTRIC HM0810 €29.68
17
 photo_cameraImage coming soon 254001-2 KEY CRESCENT 4 €1.44
18
 photo_cameraImage coming soon 962203-3 RETAINING RING R47 €2.39
19
 photo_cameraImage coming soon 211261-9 BEARING 6303DD €10.56
20
 photo_cameraImage coming soon 213606-7 O-RING 48 HR3850 / B / HR2510 €3.13
21
 photo_cameraImage coming soon 157627-8 HOUSING ROD HM0810 €49.92
22
 Oil Seal 17 mm 17x30x6 for Demolition Hammer Makita HM0810 213260-7 Oil Seal 17 mm 17x30x6 for Demolition Hammer Makita HM0810 €6.76
23
 Helical Gear 41 for Demolition Hammer Makita HM0810T 221669-9 Helical Gear 41 for Demolition Hammer Makita HM0810T €23.85
24
 photo_cameraImage coming soon 157628-6 GEAR HOUSING HM0810 €45.60
25
 photo_cameraImage coming soon 212102-2 BEARING ROLLERS BK 1210 €6.70
26
 Handle Shaft for Demolition Hammer Makita HM0810T 321210-9 Handle Shaft for Demolition Hammer Makita HM0810T €2.96
27
 photo_cameraImage coming soon 253955-0 FLAT WASHER 24 HM0810 €15.02
28
 photo_cameraImage coming soon 321495-7 SHAFT HM0810 €17.15
29
 photo_cameraImage coming soon 213428-5 X RING - 28 NEW HR3850 €18.98
30
 photo_cameraImage coming soon 213411-2 O-RING 27 HR3850 / B €1.40
31
 photo_cameraImage coming soon 213508-7 SEAL 38 HM0810 €2.76
32
 Tool Holder Ass'y for Demolition Hammer Makita HM0810T 125070-9 Tool Holder Ass'y for Demolition Hammer Makita HM0810T €96.17
33
 Steel Ball 7,9 mm for Hammer Makita HR3850K-HM0810T 216004-4 Steel Ball 7,9 mm for Hammer Makita HR3850K-HM0810T €1.50
34
 photo_cameraImage coming soon 233191-4 SPRING X HM0810T €2.39
35
 photo_cameraImage coming soon 331518-3 RING SLEEVE X HM0810T €25.64
36
 photo_cameraImage coming soon 257206-3 RING 29 X HM0810T €5.86
37
 photo_cameraImage coming soon 961108-4 RETAINING RING S-28 €2.12
38
 photo_cameraImage coming soon 331194-3 SEAL HM0810 €3.92
39
 Gasket 32 for Hex Collar Power Scrapers Makita HK1800 - HK1810 213459-4 Gasket 32 for Hex Collar Power Scrapers Makita HK1800 - HK1810 €1.43
40
 Ball Bearing 6201LLB NSK for Sander Makita SA7000 211106-1 Ball Bearing 6201LLB NSK for Sander Makita SA7000 €8.69
41
 photo_cameraImage coming soon 213102-5 DUST WASHER 12 €2.57
42
 photo_cameraImage coming soon 516148-3 ARMATURE X HM0810 €147.23
43
 Armature Insulation Washer for Stonecutter HK1810 - HK1800 681625-5 Armature Insulation Washer for Stonecutter HK1810 - HK1800 €2.72
44
 photo_cameraImage coming soon 211031-6 BEARING 608 €6.55
45
 photo_cameraImage coming soon 263014-2 RUBBER PIN 4 €1.42
46
 photo_cameraImage coming soon 410509-8 CONVEYOR AIR HM0810 €4.54
47
 photo_cameraImage coming soon 925283-0 BOLT ESAG. M5x60 €1.35
48
 photo_cameraImage coming soon 528796-6 STATOR HM0810 €63.77
50
 Motor Housing for Demolition Hammer Makita HM0810T 159634-7 Motor Housing for Demolition Hammer Makita HM0810T €88.86
51
 Carbon Brushes CB-105 for Demolition Hammer Makita HM0810T 181038-5 Carbon Brushes CB-105 for Demolition Hammer Makita HM0810T €13.28
52
 Carbon Brush Holder Cap for Hammer Makita HR1820 643600-9 Carbon Brush Holder Cap for Hammer Makita HR1820 €2.02
53
 photo_cameraImage coming soon 941151-9 WASHER 6 X HM1303 €3.66
54
 photo_cameraImage coming soon 922371-4 HEX SCREW M6x50 €1.42
55
 photo_cameraImage coming soon 922227-1 BOLT M5X18 €1.40
56
 photo_cameraImage coming soon 942101-7 SPRING WASHER 5 €1.36
57
 photo_cameraImage coming soon 284059-7 COVER HM0810 €9.92
58
 photo_cameraImage coming soon 423257-0 SPONGE 38.5 to 46 T / 137 €2.39
59
 photo_cameraImage coming soon 931301-4 HEX NUT M6 €1.26
60
 photo_cameraImage coming soon 942151-2 WASHER 6 €3.66
63
 photo_cameraImage coming soon 341922-8 BASE KNOB HM0810 €3.92
64
 photo_cameraImage coming soon 321497-3 NUT KNOB HM0810 €7.60
65
 photo_cameraImage coming soon 341914-7 STOP KNOB HM0810 €8.87
66
 photo_cameraImage coming soon 922316-2 BOLT M6 X 14 €1.25
67
 photo_cameraImage coming soon 343753-1 NEW PLATE X M / HM0810 €7.60
68
 photo_cameraImage coming soon 262051-3 RUBBER RING 9-6 XHR3850 €1.25
69
 Switch for Demolition Hammer Makita HM0810T 651038-4 Switch for Demolition Hammer Makita HM0810T €28.43
70
 photo_cameraImage coming soon 911106-8 SCREW M4X8 €1.31
71
 photo_cameraImage coming soon 262052-1 RUBBER RING 9-3 XHR3850 €3.92
72
 photo_cameraImage coming soon 257636-8 SLEEVE 6 X HR3850 €3.92
74
 photo_cameraImage coming soon 182590-6 HANDLE COMPLETE XHM0810T / 137 €24.92
75
 Power Cord Guard 10/90 for for Makita Power Tools 682505-8 Power Cord Guard 10/90 for for Makita Power Tools €3.18
77
 photo_cameraImage coming soon 687001-1 CLAMP cable tie €1.47
78
 photo_cameraImage coming soon 911133-5 SCREW M4X18 €1.46
80
 photo_cameraImage coming soon 922241-7 SCREW M5x25 €1.47
81
 photo_cameraImage coming soon 654019-7 RING TERMINAL 84 €1.47
82
 photo_cameraImage coming soon 267203-1 WASHER 43 BRASS €1.86
999
 Service Pack for Demolition Hammer Makita HM0810/B/T 193242-4 Service Pack for Demolition Hammer Makita HM0810/B/T €64.27

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Hammer HM0810T

MAKITA Original spare parts

 at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Hammer HM0810T.

In the following table, look for the model of Hammer and the respective parts of the code.
Makita HM0810T

Hammer HM0810T
# Part Num. Description
1 421541-7 CYLINDER CYLINDER HM0810
2 922341-3 M6X25 SCREW
3 151457-9 CYLINDER HM0810
4 213554-0 SEAL 44 HR2210 / 20/3510
5 321929-0 BEATING X HM0810
6 412073-5 INNER RING 26 HM0810
7 412053-1 PISTON RING 30 HM0810
8 412053-1 PISTON RING 30 HM0810
9 321514-9 INNER RING
10 321958-3 PISTON HM0810
11 256165-8 PIN 8 HM0810
12 411709-3 CRANK CAP HR3850 / B / HM0810
13 213654-6 O-RING 60 HR3850B / HM0810
14 312956-8 ROD X HR3850 / B
15 212108-0 NEEDLE BEARING NK1212
16 321954-1 SHAFT ECCENTRIC HM0810
17 254001-2 WOODROOF KEY 4
18 962203-3 RETAINING RING R47
19 211261-9 BEARING 6303DD
20 213606-7 SEAL 48 HR3850 / B / HR2510
21 157627-8 HOUSING ROD HM0810
22 213260-7 SEAL OIL 17 HM0810
23 221669-9 HELICAL GEAR 41 X HM0810
24 157628-6 GEAR HOUSING HM0810
25 212102-2 BEARING ROLLERS BK 1210
26 321210-9 PIN HANDLE HR3850 / B
27 253955-0 FLAT WASHER 24 HM0810
28 321495-7 SHAFT HM0810
29 213428-5 SEAL X-28 NEW HR3850
30 213411-2 SEAL 27 X HR3850 / B
31 213508-7 SEAL 38 HM0810
32 125070-9 TOOL HOLDER ASS'Y HM0810T
33 216004-4 BALL 7.9 HR3520 / HR3850B
34 233191-4 SPRING X HM0810T
35 331518-3 RING SLEEVE X HM0810T
36 257206-3 RING 29 X HM0810T
37 961108-4 RETAINING RING S-28
38 331194-3 SEAL HM0810
39 213459-4 SEAL 32 X HR3850B
40 211106-1 BEARING 6201LLB
41 213102-5 DUST WASHER 12
42 516148-3 ARMATURE X HM0810
43 681625-5 INSULATION WASHER HK1810
44 211031-6 BEARING 608LLB X 4304T
45 263014-2 RUBBER PIN 4
46 410509-8 CONVEYOR AIR HM0810
47 925283-0 HEXAGON BOLT M5x60
48 528796-6 STATOR HM0810
50 159634-7 HOUSING MOTOR HM0810 T / 137
51 181038-5 CARBON BRUSCHE SET CB-105
52 643600-9 PLUG BRUSH
53 941151-9 WASHER 6 X HM1303
54 922371-4 SCREW HEX FLUSH M6x50
55 922227-1 BOLT M5X18
56 942101-7 WASHER 5
57 284059-7 COVER HM0810
58 423257-0 SPONGE 38.5 to 46 T / 137
59 931301-4 HEX NUT M6
60 942151-2 WASHER 6 4101R
61 941151-9 WASHER 6 X HM1303
63 341922-8 BASE KNOB HM0810
64 321497-3 NUT KNOB HM0810
65 341914-7 STOP KNOB HM0810
66 922316-2 BOLT M6 X 14
67 343753-1 NEW PLATE X M / HM0810
68 262051-3 RING RUBBER 9-6 XHR3850
69 651038-4 HPAHR6-3S SWITCH
70 911106-8 SCREW M4X8
71 262052-1 RING RUBBER 9-3 XHR3850
72 257636-8 NASELLO X HR3850
73 922341-3 M6X25 SCREW
74 182590-6 HANDLE COMPLETE XHM0810T / 137
75 682505-8 CABLE SLEEVE 10/90
77 687001-1 CABLE CLAMP
78 911133-5 M4X18 SCREW
80 922241-7 SCREW M5x25
81 654019-7 RING TERMINAL 84
82 267203-1 WASHER 43 BRASS
999 193242-4 SERVICE PACK HM0810 / B / T
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita HM0810T
11 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita HM0810T

Diagram Makita HM0810T

Download (397.12KB)

You might also like

Carbon Brush Holder Cap for Hammer Makita HR1820
Makita SKU: 643600-9
Carbon Brush Holder Cap for Hammer Makita HR1820
Carbon Brush Holder Cap for Hammer Makita HR1820 Genuine part MAKITA, Carbon Brush Holder Cap for Hammers HR1820 - HR2010 - HR2510 - Rotary Hammer HR3520 - Demolition Hammer HM0810 - HM0810B - HM0810T - Polisher 9207SPB - 9207SPC -...
AVAILABLE €2.02
Details
Needle Bearing for Demolition Hammer Makita HM0810
Makita SKU: 212108-0
Needle Bearing for Demolition Hammer Makita HM0810
Needle Bearing for Demolition Hammer Makita HM0810 Genuine spare Makita, Needles Bearing NK1212 for Demolition Hammer 8035NB - BFL301FZ - BFL301RZ - BFL400F - BFL401FZ - BFL402FZ - BFL402RZ - DFL301RZ - DFL402FZ - HM0810 - HM0810B -...
AVAILABLE €20.01
Details
Switch for Demolition Hammer Makita HM0810T
Makita SKU: 651038-4
Switch for Demolition Hammer Makita HM0810T
Switch for Demolition Hammer Makita HM0810T Genuine spare Makita, Switch for Demolition Hammers HM0810T - HM0810 - HM0810B Part for the following products: - HM0810T - DEMOLITION HAMMER 5,3KG 900W -...
AVAILABLE €28.43
Details
Conrod for Demolition Hammer Makita HM0810T
Makita SKU: 312956-8
Conrod for Demolition Hammer Makita HM0810T
Conrod for Demolition Hammer Makita HM0810T Genuine spare Makita, Connection Rod for Demolition Hammers HM0810T - HM0810 - HM0810B Part for the following products: - HM0810 - DEMOLITON...
AVAILABLE €9.91
Details
Service Pack for Demolition Hammer Makita HM0810/B/T
Makita SKU: 193242-4
Service Pack for Demolition Hammer Makita HM0810/B/T
Service Pack for Demolition Hammer Makita HM0810/B/T Genuine spare Makita, Service Pack for Demolition Hammers HM0810T - HM0810 - HM0810B Part for the following article: - HM0810T - DEMOLITION HAMMER 5,3KG 900W - HM0810 - DEMOLITION...
AVAILABLE €64.27
Details
Carbon Brushes CB-105 for Demolition Hammer Makita HM0810T
Makita SKU: 181038-5
Carbon Brushes CB-105 for Demolition Hammer Makita HM0810T
Carbon Brushes CB-105 for Demolition Hammer Makita HM0810T Genuine spare part Makita, Carbon Brushes CB-105 for Demolition Hammers HM0810T - HM0810 - HM0810B. Part for the following products: - 8035NB - ROTARY HAMMER - HK1800 -...
AVAILABLE €13.28
Details
Steel Ball 7,9 mm for Hammer Makita HR3850K-HM0810T
Makita SKU: 216004-4
Steel Ball 7,9 mm for Hammer Makita HR3850K-HM0810T
Steel Ball 7,9 mm for Hammer Makita HR3850K-HM0810T  Genuine spare Makita, Steel Ball 7,9 mm Diameter for Bench Saw 2712 - LF1000 - Hammer HR3850 - Hammers HM1400-HM1810 - Circular Saws 5104S-5143R - Hammer HR3850B. Part for the...
AVAILABLE €1.50
Details
Oil Seal 17 mm 17x30x6 for Demolition Hammer Makita HM0810 Sale
Makita SKU: 213260-7
Oil Seal 17 mm 17x30x6 for Demolition Hammer Makita HM0810
Oil Seal 17 mm 17x30x6 for Demolition Hammer Makita HM0810 Genuine spare part Makita, Oil Seal 17 mm 17x30x6 for Demolition Hammers HM0810 - HM0810B - HM0810T Part for the following products - Demolition Hammer 5,3Kg 900W Makita...
AVAILABLE €6.76
Details
Crank Cap for Demolition Hammer Makita HM0810T
Makita SKU: 411709-3
Crank Cap for Demolition Hammer Makita HM0810T
Crank Cap for Demolition Hammer Makita HM0810T Genuine replacement part Makita, Crank Cap for Demolition Hammers HM0810T - HM0810 - HM0810B. Part for the following products: - HM0810 -...
Last items in stock €13.26
Details
Motor Housing for Demolition Hammer Makita HM0810T
Makita SKU: 159634-7
Motor Housing for Demolition Hammer Makita HM0810T
Motor Housing for Demolition Hammer Makita HM0810T Genuine replacement part Makita, Motor Housing for Demolition Hammers HM0810T - HM0810 - HM0810B. Part for the following products: - HM0810 - DEMOLITON HAMMER 5,3KG 900W - HM0810B -...
Last items in stock €88.86
Details
Tool Holder Ass'y for Demolition Hammer Makita HM0810T
Makita SKU: 125070-9
Tool Holder Ass'y for Demolition Hammer Makita HM0810T
Tool Holder Ass'y for Demolition Hammer Makita HM0810T Genuine spare Makita, Tool Holder Ass'y for Demolition Hammers HM0810T.  Part for the following products: -  HM0810T - DEMOLITION HAMMER 5,3KG 900W - Codice : 125070-9
Last items in stock €96.17
Details
Comments (0)
