Makita Spare Parts for Air Compressor AC1300

SKU: Makita AC1300
€317.88
VAT included

Makita Spare Parts for Air Compressor AC1300

Makita genuine spare parts for the repair or replacement of Air Compressor AC1300.
Makita Spare Parts for Air Compressor AC1300
  • Makita Spare Parts for Air Compressor AC1300
  • Makita Spare Parts for Air Compressor AC1300

Makita Spare Parts for Air Compressor AC1300

SKU: Makita AC1300 Condition: New
€317.88
VAT included

Makita Spare Parts for Air Compressor AC1300

Makita genuine spare parts for the repair or replacement of Air Compressor AC1300.
settings 56 spare parts

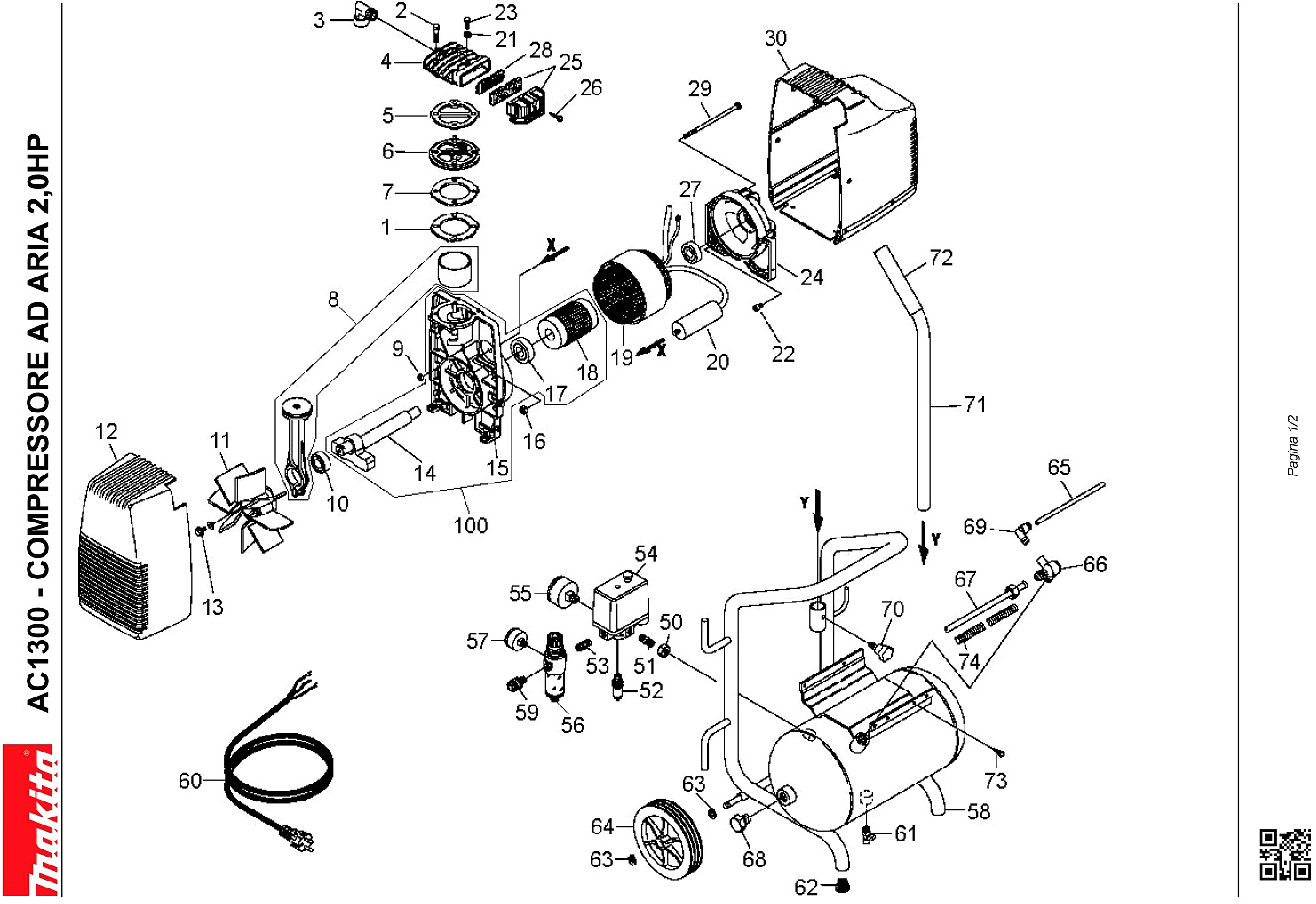

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

53 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
FIAC FX 250 Spacer 7062720000 FIAC FX 250 Spacer €8.53
2
photo_cameraImage coming soon 7011220000 Screw M6X40 UNI-5737 €1.44
3
photo_cameraImage coming soon 7084620000 FITTING "L" X AC1300 €14.68
4
Head for Air Compressors FIAC ECU 201-FB-210-LEONARDO HP 1-FX 95 7570550000 Head for Air Compressors FIAC ECU 201-FB-210-LEONARDO HP 1-FX 95 €33.32
5
FIAC VS254S Head Gasket 7078500000 FIAC VS254S Head Gasket €7.45
6
Valves Plate for Air Compressors FIAC ECU 201-FX 95 4200020000 Valves Plate for Air Compressors FIAC ECU 201-FX 95 €32.09
7
Head Gasket for Air Compressor Fiac ECU201-FB-210 7078490000 Head Gasket for Air Compressor Fiac ECU201-FB-210 €7.98
9
photo_cameraImage coming soon 7021010000 Nut M6-7473 UNI €1.52
10
photo_cameraImage coming soon 7060550000 Bearing 6004 2RS1 / QE6 €8.35
11
Fan Motor for Air Compressor Makita AC1300 7200190000 Fan Motor for Air Compressor Makita AC1300 €14.96
12
photo_cameraImage coming soon 7150590000 Plastic Fairing €26.94
13
photo_cameraImage coming soon 7011040000 Screw M6X20 UNI-5739 €1.52
14
photo_cameraImage coming soon 5040860008 CRANKSHAFT X AC1300 €70.53
15
photo_cameraImage coming soon 7670040000 Casing €53.54
16
photo_cameraImage coming soon 7020070000 Nut M8 UNI-5587 €1.48
17
photo_cameraImage coming soon 7060320000 BEARING X AC1300 €15.66
18
photo_cameraImage coming soon 7660240000 HARMATURE D.64,2X75 X AC1300 €48.70
19
photo_cameraImage coming soon 4012690000 STATOR WRAPPED V230-50 / 1 €299.64
20
Capacitor 30 mf for Air Compressors 7310320000 Capacitor 30 mf for Air Compressors €26.02
21
FIAC Air Compressor Ecu 201 Washer 7030780000 FIAC Air Compressor Ecu 201 Washer €0.62
22
photo_cameraImage coming soon 7013060000 Screw M4X8 UNI-8112 €1.48
24
Fiac LEONARDO HP 1 Rear Motor Holder 7640100000 Fiac LEONARDO HP 1 Rear Motor Holder €23.22
25
Set Intake Filter for Pumping Units FIAC GM 201-202-242 4085010000 Set Intake Filter for Pumping Units FIAC GM 201-202-242 €15.65
26
photo_cameraImage coming soon 7012010000 Screw Ø3,9X19 UNI-6954 €1.48
27
photo_cameraImage coming soon 7060010000 Bearing 6203 ZZ 17:40:12 QE6 €13.55
28
Filter Plate for Pumping Uniti and Air Compressor Fiac 7458340000 Filter Plate for Pumping Uniti and Air Compressor Fiac €1.52
29
photo_cameraImage coming soon 7018010000 Screw M6x139 UNI-5737 €1.73
30
photo_cameraImage coming soon 7150580000 Plastic Fairing €19.99
50
photo_cameraImage coming soon 7023040000 Locknut 1/4" €4.38
51
photo_cameraImage coming soon 7081140000 Joint 1/4" MM €6.97
52
FIAC Safety Valve 1/4" 10,5 Bar for Air Compressors SCS 7192010000 FIAC Safety Valve 1/4" 10,5 Bar for Air Compressors SCS €17.32
53
photo_cameraImage coming soon 7081090000 Fitting 1/4 "MM €5.87
54
Pressure Switch 8 BAR CE for air Compressors FIAC 7250740000 Pressure Switch 8 BAR CE for air Compressors FIAC €27.75
55
Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX 7110300000 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX €19.95
56
Fiac Pressure Reducer Micro W-Filter 7100380000 Fiac Pressure Reducer Micro W-Filter €58.00
57
Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX 7110240000 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX €17.72
58
photo_cameraImage coming soon 5156940008 TANK 20 LT. FOR AC1300 €486.84
59
photo_cameraImage coming soon 7130660000 TAP X AC640 / AC1300 €152.66
60
photo_cameraImage coming soon 7329070000 Power Cord €29.80
61
photo_cameraImage coming soon 7130580000 MF Ball Valve 3/8 " €27.72
62
Rubber Foot for Air Compressor FIAC Cosmos 50 7360040000 Rubber Foot for Air Compressor FIAC Cosmos 50 €4.34
63
Seeger E 20 for Pumping Units FIAC S 15-GM 25-GM 50 7040040000 Seeger E 20 for Pumping Units FIAC S 15-GM 25-GM 50 €0.62
64
photo_cameraImage coming soon 7260060000 Wheel Ø175X45 F20 €18.53
65
Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
66
Check Valve MM 1/2"x3/8"- SX for Air Compressor Fiac-B&D-Michelin 7190180000 Check Valve MM 1/2"x3/8"- SX for Air Compressor Fiac-B&D-Michelin €28.12
68
photo_cameraImage coming soon 7090030000 Cap M1/2" €7.24
69
”L” joint for RILSAN hose (M) D.6 for Air Compressor Michelin MCX 6 7080140000 ”L” joint for RILSAN hose (M) D.6 for Air Compressor Michelin MCX 6 €9.07
70
photo_cameraImage coming soon 7101640000 KNOB X AC1300 €11.41
71
photo_cameraImage coming soon 5140390008 Handle €39.66
72
photo_cameraImage coming soon 7280030000 Knob €7.24
73
photo_cameraImage coming soon 7012290000 Screw M5X20 TAP-TITE €24.21
74
photo_cameraImage coming soon 7327330000 GUAINA X AC1300 €5.67
100
photo_cameraImage coming soon 4280640000 GROUP CARTER / TREE / HARMATURE €191.18

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Air Compressor AC1300

Makita genuine spare parts for the repair or replacement of Air Compressor AC1300.

In the following table, look for the model of Air Compressor and the respective parts of the code.
Makita AC1300

Air Compressor AC1300
# Part Num. Description
1 7062720000 SPACER X AC1300
2 7011220000 SCREW 6X40 X AC1300
3 7084620000 FITTING "L" X AC1300
4 7570550000 HEAD X AC640
5 7078500000 GASKET X AC1300
6 4200020000 VALVE PLATE KIT AC1300
7 7078490000 SEAL X AC1300
8 4190350000 KIT CONNECTING ROD / PISTON / CYLINDER
9 7021010000 NUT AUTOBLOCC. X AC640 / AC1300
10 7060550000 BEARING X AC1300
11 7200190000 FAN X AC1300
12 7150590000 CASING COMPR.X AC640 / 1300
13 7011040000 SCREW 6X20 X AC640 / AC1300
14 5040860008 CRANKSHAFT X AC1300
15 7670040000 CARTER X AC1300
16 7020070000 NUT CAPACITOR X AC640 / 1300
17 7060320000 BEARING X AC1300
18 7660240000 HARMATURE D.64,2X75 X AC1300
19 4012690000 STATOR WRAPPED V230-50 / 1
20 7310320000 CAPACITOR MF30 X AC1300
21 7030780000 WASHER X AC640 / AC1300
22 7013060000 SCREW X AC640 / AC1300
23 7014300000 SCREW X AC640 / AC1300
24 7640100000 REAR MOTOR HOLDER X AC640 / AC1300
25 4085010000 FILTER SUCTION. X AC640 / AC1300
26 7012010000 SCREW X AC640 / AC1300
27 7060010000 BEARING X AC640 / AC1300
28 7458340000 PLATE FILTER AC640 / AC1300
29 7018010000 TIE 6X139 X AC1300
30 7150580000 CASING MOTOR X AC640 / 1300
50 7023040000 NUT X AC1300
51 7081140000 FITTING X AC1300
52 7192010000 SAFETY VALVE X AC1300
53 7081090000 FITTING X AC640 / AC1300
54 7250740000 PRESSURE X AC640 / AC1300
55 7110300000 PRESSURE GAUGE D.50 X AC640 / AC1300
56 7100380000 PRESSURE REDUCER AC1300
57 7110240000 PRESSURE GAUGE D.40 X AC640 / AC1300
58 5156940008 TANK 20 LT. FOR AC1300
59 7130660000 TAP X AC640 / AC1300
60 7329070000 POWER CABLE mt.2
61 7130580000 BLEEDING COCK AC640 / AC1300
62 7360040000 RUBBER D.22 X AC1300
63 7040040000 SEEGER X AC1300
64 7260060000 WHEEL D, X 175X45 AC1300
65 7230010000 TUBE RILSAN X AC640 / AC1300
66 7190180000 CHECK VALVE X AC1300
67 7231790000 SUPPLY TUBE X AC1300 - DISCONTINUED
68 7090030000 CAP X AC1300
69 7080140000 FITTING X AC1300
70 7101640000 KNOB X AC1300
71 5140390008 HANDLE X AC1300
72 7280030000 GRIP X AC1300
73 7012290000 SCREW 5X20 X AC640 / AC1300
74 7327330000 GUAINA X AC1300
100 4280640000 GROUP CARTER / TREE / HARMATURE
