Makita Spare Parts for Band Saw 2106W

SKU: Makita 2106W
€202.15
VAT included

Makita Spare Parts for Band Saw 2106W

Makita original spare parts for to replace broken parts for to fix Band Saw 2106W.

Fix Your Band Saw. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.
Makita Spare Parts for Band Saw 2106W
  • Makita Spare Parts for Band Saw 2106W
  • Makita Spare Parts for Band Saw 2106W

Makita Spare Parts for Band Saw 2106W

SKU: Makita 2106W Condition: New
€202.15
VAT included

Makita Spare Parts for Band Saw 2106W

Makita original spare parts for to replace broken parts for to fix Band Saw 2106W.

Fix Your Band Saw. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 58 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

53 spare parts
Pos. Item Price Buy
1
photo_cameraImage coming soon 922362-5 BOLT M6x40 €1.38
2
photo_cameraImage coming soon 941152-7 FLAT WASHER 6 €1.46
3
photo_cameraImage coming soon 273624-7 KNOB 80 X 2106W €10.01
5
photo_cameraImage coming soon 164869-7 X PLATE FRAME X2106W €43.41
6
photo_cameraImage coming soon 251951-2 ALLEN SCREW M5x10 €1.36
7
photo_cameraImage coming soon 272223-2 LEVER X2106W €8.86
9
photo_cameraImage coming soon 316025-7 CLAMP UPPER 2106W €15.11
10
photo_cameraImage coming soon 210026-6 BALL BEARING 696ZZ €4.06
14
photo_cameraImage coming soon 251337-0 SCREW M5 X2106W €1.44
15
photo_cameraImage coming soon 911248-8 CYLINDER HEAD SCREW. M5X28 €1.36
17
photo_cameraImage coming soon 256033-5 PIN 6 €1.47
23
photo_cameraImage coming soon 231449-5 SPRING 11 X2106W €1.79
24
photo_cameraImage coming soon 343489-2 PLATE X2106W €5.24
26
photo_cameraImage coming soon 343494-9 SOCKET 5 X2106W €1.44
27
photo_cameraImage coming soon 911223-4 HEAD SCREW CILIND. M5X16 €1.44
28
photo_cameraImage coming soon 163276-1 PLATE X2106W €15.11
30
photo_cameraImage coming soon 922241-7 SCREW M5x25 €1.47
32
photo_cameraImage coming soon 421333-4 RING GOMMAXPULEG.2106W €10.01
33
photo_cameraImage coming soon 152325-9 PULLEY X2106W €31.56
36
Needle Bearing for Belt Saw Makita 2106W 212115-3 Needle Bearing for Belt Saw Makita 2106W €11.60
48
photo_cameraImage coming soon 316026-5 CLAMP LOWER 2106W €15.11
55
photo_cameraImage coming soon 151323-0 X2106W FRAME €136.51
57
photo_cameraImage coming soon 343490-7 STOP PLATE X2106W €5.90
59
Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.47
60
Ball Bearing 608DDW for Jigsaw Makita 4327 210005-4 Ball Bearing 608DDW for Jigsaw Makita 4327 €5.44
61
photo_cameraImage coming soon 226080-0 GEAR COMPLETE X2106W €39.46
62
photo_cameraImage coming soon 253139-0 FLAT WASHER 8 €2.03
63
photo_cameraImage coming soon 212005-0 BEARING ROLLER 810 €8.67
64
photo_cameraImage coming soon 254202-2 KEY 4 €1.32
65
photo_cameraImage coming soon 221980-9 GEAR 9 X2106W €31.56
66
photo_cameraImage coming soon 263005-3 PIN RUBBER 6 €2.49
67
Bearing 6201DD NSK for Powertools Makita 211129-9 Bearing 6201DD NSK for Powertools Makita €8.41
68
photo_cameraImage coming soon 221765-3 GEAR 42 X 2106W €19.88
69
photo_cameraImage coming soon 257619-8 SOCKETS 12 X2106W €2.61
70
Ball Bearing 6000DD NSK for Cordless Drill Makita 6221DW 211061-7 Ball Bearing 6000DD NSK for Cordless Drill Makita 6221DW €8.69
73
photo_cameraImage coming soon 157916-1 GEAR HOUSING X2106W €13.30
74
Bearing 629DD FOR Angle Grinder Makita GA4530 211092-6 Bearing 629DD FOR Angle Grinder Makita GA4530 €9.01
76
photo_cameraImage coming soon 241841-7 FAN 62 €4.58
77
photo_cameraImage coming soon 512948-9 ARMATURE X2106W €98.68
80
photo_cameraImage coming soon 922381-1 BOLT M6x60 €1.92
82
Carbon Brush Holder Cap for Hammer Makita HR1820 643600-9 Carbon Brush Holder Cap for Hammer Makita HR1820 €2.02
83
Carbon Brushes CB-100 for Polishing Makita 9207SPB 181030-1 Carbon Brushes CB-100 for Polishing Makita 9207SPB €8.23
84
photo_cameraImage coming soon 157915-3 CASING MOTOR X2106W €39.46
85
photo_cameraImage coming soon 522718-8 STATOR X2106W €43.41
87
photo_cameraImage coming soon 414067-6 CONVEYOR AIR 2106W €2.12
89
photo_cameraImage coming soon 182034-6 HANDLE COMPLETE X2106W €28.44
90
photo_cameraImage coming soon 651204-3 SWITCH SGEL115CDY €13.00
92
photo_cameraImage coming soon 645169-9 CAPACITOR €10.01
93
photo_cameraImage coming soon 651562-7 SL210N-28 SWITCH €23.01
94
photo_cameraImage coming soon 421338-4 PROTECTION SWITCH X2106W €1.79
95
photo_cameraImage coming soon 911133-5 SCREW M4X18 €1.46
96
photo_cameraImage coming soon 687001-1 CLAMP cable tie €1.47
97
photo_cameraImage coming soon 682504-0 CORD GUARD 10/85 €3.84

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Band Saw 2106W

Makita original spare parts for to replace broken parts for to fix Band Saw 2106W.

Fix Your Band Saw. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of Band Saw and the respective parts of the code.
Band Saw 2106W

Band Saw 2106W
# Part Num. Description
1 922362-5 BOLT M6x40
2 941152-7 FLAT WASHER 6
3 273624-7 KNOB 80 X 2106W
4 265899-2 BOLT M5X22 X2106W
5 164869-7 X PLATE FRAME X2106W
6 251951-2 ALLEN SCREW M5X10
7 272223-2 X2106W LEVER
8 267041-1 FLAT WASHER 20 X2106W
9 316025-7 CLAMP UPPER 2106W
10 210026-6 BALL BEARING 696ZZ
11 941152-7 FLAT WASHER 6
12 210026-6 BALL BEARING 696ZZ
14 251337-0 SCREW M5 X2106W
15 911248-8 HEAD SCREW CILIND. M5X28
16 210026-6 BALL BEARING 696ZZ
17 256033-5 PIN 6
18 210026-6 BALL BEARING 696ZZ
19 941152-7 FLAT WASHER 6
20 210026-6 BALL BEARING 696ZZ
22 251337-0 SCREW M5 X2106W
23 231449-5 SPRING 11 X2106W
24 343489-2 PLATE X2106W
25 231449-5 SPRING 11 X2106W
26 343494-9 SOCKETS 5 X2106W
27 911223-4 HEAD SCREW CILIND. M5X16
28 163276-1 PLATE X2106W
29 343494-9 SOCKETS 5 X2106W
30 922241-7 SCREW M5x25
31 253749-3 FLAT WASHER X2106W
32 421333-4 RING PULLEY RUBBER X 2106W
33 152325-9 PULLEY X2106W
34 253749-3 FLAT WASHER X2106W
36 212115-3 ROLLER BEARING 1216
37 256033-5 PIN 6
38 212115-3 ROLLER BEARING 1216
39 941152-7 FLAT WASHER 6
40 251337-0 SCREW M5 X2106W
42 212115-3 ROLLER BEARING 1216
43 251337-0 SCREW M5 X2106W
45 212115-3 ROLLER BEARING 1216
46 941152-7 FLAT WASHER 6
47 212115-3 ROLLER BEARING 1216
48 316026-5 CLAMP LOWER 2106W
49 911248-8 HEAD SCREW CILIND. M5X28
51 253749-3 FLAT WASHER X2106W
52 152325-9 PULLEY X2106W
53 421333-4 RING RUBBER X 2106W PULLEY
54 253749-3 FLAT WASHER X2106W
55 151323-0 X2106W FRAME
57 343490-7 STOP PLATE X2106W
59 263002-9 RUBBER PIN 4
60 210005-4 BALL BEARING 608 DDW
61 226080-0 GEAR COMPLETE X2106W
62 253139-0 FLAT WASHER 8
63 212005-0 BEARING ROLLERS BK0810
64 254202-2 KEY 4
65 221980-9 GEAR 9 X2106W
66 263005-3 RUBBER PIN 6
67 211129-9 BALL BEARING NSK 6201DD
68 221765-3 GEAR 42 X 2106W
69 257619-8 SOCKETS 12 X2106W
70 211061-7 BALL BEARING 6000DD 6221DW
71 286028-4 CAP 26 X2106W
72 263002-9 RUBBER PIN 4
73 157916-1 GEAR HOUSING X2106W
74 211092-6 BALL BEARING 629DD
75 263002-9 RUBBER PIN 4
76 241841-7 FAN 62 X2106W
77 512948-9 ARMATURE X2106W
78 210005-4 BALL BEARING 608 DDW
79 263002-9 RUBBER PIN 4
80 922381-1 BOLT M6x60
81 941152-7 FLAT WASHER 6
82 643600-9 PLUG BRUSH
83 181030-1 CARBON BRUSHES CB-100 (101,2,3)
84 157915-3 CASING MOTOR X2106W
85 522718-8 STATOR X2106W
86 911275-5 SCREW M5x50
87 414067-6 CONVEYOR AIR 2106W
88 911248-8 HEAD SCREW CILIND. M5X28
89 182034-6 HANDLE COMPLETE X2106W
90 651204-3 SGEL115CDY SWITCH
92 645169-9 CAPACITOR
93 651562-7 SL210N-28 SWITCH
94 421338-4 PROTECTION SWITCH X2106W
95 911133-5 M4X18 SCREW
96 687001-1 CLAMP
97 682504-0 CABLE SLEEVE 10/85

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita 2106W
12 Items

Specific References

New

Download

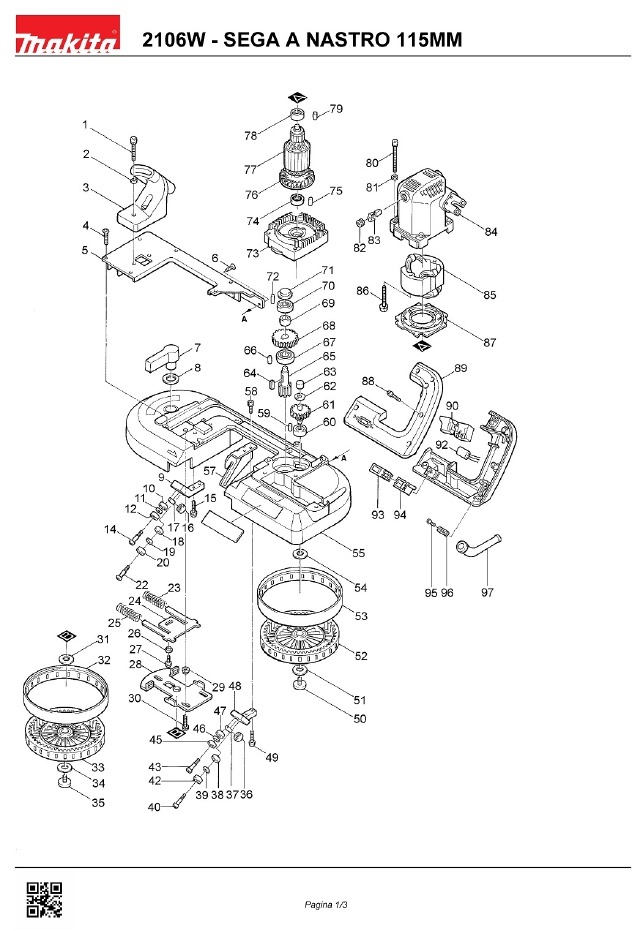

Diagram Makita 2106W

Diagram Makita 2106W

Download (315.71KB)
