Makita

Makita Spare Parts for Random Orbital Sander BO6040

SKU: Makita BO6040
€46.69
VAT included

Makita Spare Parts for Random Orbital Sander BO6040

We have the original Spares for MAKITA Random Orbital Sander BO6040, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Random Orbital Sander BO6040. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Makita Spare Parts for Rotorbital Sander BO6040
  • Makita Spare Parts for Rotorbital Sander BO6040
  • Makita Spare Parts for Rotorbital Sander BO6040
Makita

Makita Spare Parts for Random Orbital Sander BO6040

SKU: Makita BO6040 Condition: New
€46.69
VAT included

Makita Spare Parts for Random Orbital Sander BO6040

We have the original Spares for MAKITA Random Orbital Sander BO6040, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Random Orbital Sander BO6040. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 66 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
66 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

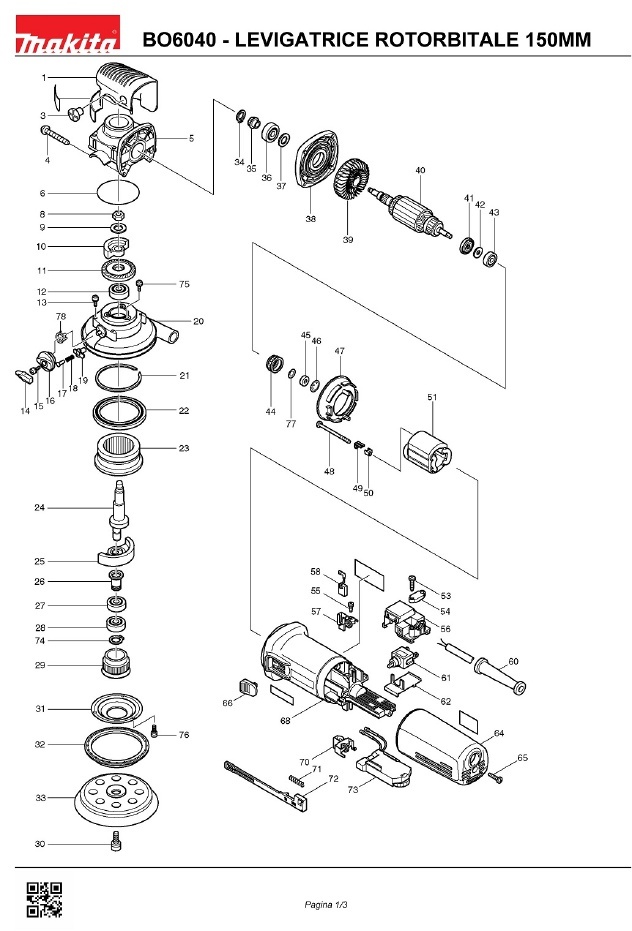

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 417371-2 COVER GEAR BOX X BO6040 €29.67
3
 photo_cameraImage coming soon 265083-9 SCREW M8 X 11 X 9565CVL €2.45
4
 photo_cameraImage coming soon 266050-7 SCREW 4X30 PT €3.76
5
 photo_cameraImage coming soon 152671-0 GEAR BOX CPL BO6040 €40.71
6
 O-Ring 62 for Random Orbital Sander Makita BO6040 213724-1 O-Ring 62 for Random Orbital Sander Makita BO6040 €2.78
8
 photo_cameraImage coming soon 931503-2 HEX NUT M10 €1.35
9
 photo_cameraImage coming soon 253024-7 WASHER 10 X LS1013 €1.33
10
 Upper Balance Weight for Random Orbital Sander Makita BO6040 324071-6 Upper Balance Weight for Random Orbital Sander Makita BO6040 €42.08
11
 photo_cameraImage coming soon 152674-4 GEAR 42 CPL X BO6040 €40.71
12
 Ball Bearing 6201LLB NSK for Sander Makita SA7000 211106-1 Ball Bearing 6201LLB NSK for Sander Makita SA7000 €8.69
13
 photo_cameraImage coming soon 911126-2 SCREW M4x16 €1.47
14
 photo_cameraImage coming soon 417373-8 STOPPER KNOB X BO6040 €3.34
16
 Knob Complete for Random Orbital Sander Makita BO6040 153428-2 Knob Complete for Random Orbital Sander Makita BO6040 €6.77
17
 photo_cameraImage coming soon 417382-7 SPRING LOCK X BO6040 €2.27
18
 photo_cameraImage coming soon 231230-4 SPRING COMPRESSION 4 €1.40
19
 photo_cameraImage coming soon 345209-0 STOP X BO6040 €12.89
20
 photo_cameraImage coming soon 152948-3 HEADSET X BO6040 €68.96
21
 photo_cameraImage coming soon 257933-2 RING LOCK X BO6040 €1.74
22
 photo_cameraImage coming soon 211654-0 BEARING 6811LLB X BO6040 €50.91
23
 Gear 29 for Random Orbital Sander Makita BO6040 227008-1 Gear 29 for Random Orbital Sander Makita BO6040 €6.74
24
 Spindle for Random Orbital Sander Makita BO6040 324069-3 Spindle for Random Orbital Sander Makita BO6040 €29.40
25
 Lower Balance Weight for Random Orbital Sander Makita BO6040 324072-4 Lower Balance Weight for Random Orbital Sander Makita BO6040 €52.31
26
 photo_cameraImage coming soon 324070-8 SOCKET X BO6040 €11.41
27
 Ball Bearing 6001DD for Makita 9218S 211131-2 Ball Bearing 6001DD for Makita 9218S €5.99
28
 Ball Bearing 6001DD for Makita 9218S 211131-2 Ball Bearing 6001DD for Makita 9218S €5.99
29
 photo_cameraImage coming soon 152760-1 GEAR 26 X BO6040 €36.68
30
 photo_cameraImage coming soon 266270-3 SCREW M 8 X 14 X BO6040 €1.74
31
 photo_cameraImage coming soon 152761-9 RETAINING BEARING X BO6040 €15.02
32
 photo_cameraImage coming soon 421763-9 RUBBER HEADSET X BO6040 €3.87
33
 Rubber Pad 150MM for Random Orbital Sanders Makita BO6030-6040 196684-1 Rubber Pad 150MM for Random Orbital Sanders Makita BO6030-6040 €55.35
34
 photo_cameraImage coming soon 961002-0 RETAINING RING S6 €1.26
35
 photo_cameraImage coming soon 227402-7 GEAR X BO6040 €15.02
36
 photo_cameraImage coming soon 211142-7 BEARING 6001LLB X GD0800C €11.39
37
 Flat Washer 12 for Angle Grinder Makita GA4540 253084-9 Flat Washer 12 for Angle Grinder Makita GA4540 €1.39
38
 photo_cameraImage coming soon 317359-1 COVER BOX INPUT. X 9561 €19.04
39
 photo_cameraImage coming soon 240033-5 FAN 57 X 9561CV €8.77
40
 photo_cameraImage coming soon 515223-2 ARMATURE X BO6040 €77.45
41
 Armature Washer for Angle Grinders Makita 9561-9562CV 681656-4 Armature Washer for Angle Grinders Makita 9561-9562CV €1.50
42
 photo_cameraImage coming soon 253823-7 ROND. FLAT 7 X JS1600 €2.40
43
 photo_cameraImage coming soon 210027-4 BEARING 627DDW X 9561CV €6.30
44
 photo_cameraImage coming soon 421738-8 RING LABYRINTH 22 X 9561CV €14.23
45
 Magnet Sleeve for Angle Grinder Makita GA4540C 688117-5 Magnet Sleeve for Angle Grinder Makita GA4540C €4.20
46
 photo_cameraImage coming soon 259039-2 LOCKING 6 X 9566CV €3.76
47
 photo_cameraImage coming soon 413076-2 VANE X GD0800C €2.90
49
 photo_cameraImage coming soon 344871-8 RETAINING X GD0800C €3.24
50
 photo_cameraImage coming soon 417237-6 COVER INSULATION FOR GD0800C €2.17
51
 photo_cameraImage coming soon 626533-3 STATOR 220 X BO6040 €56.00
53
 Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
54
 photo_cameraImage coming soon 687052-4 CLAMP cable clamp X 6408 €5.40
55
 photo_cameraImage coming soon 266256-7 SCREW 3 X 10 X GD0800C €2.17
56
 photo_cameraImage coming soon 632945-0 LOCK SWITCH X GD0800C €17.57
57
 photo_cameraImage coming soon 643760-7 BRUSH HOLDER FOR BO6040 €6.31
58
 Carbon Brushes CB-318 for Angle Grinder Makita 9564 191978-9 Carbon Brushes CB-318 for Angle Grinder Makita 9564 €11.55
60
 photo_cameraImage coming soon 682566-8 CORD GUARD X HR2450 €2.15
61
 Switch Makita Makita ST115A-40 651418-4 Switch Makita Makita ST115A-40 €10.80
62
 photo_cameraImage coming soon 687113-0 COVER X GD0800C €2.17
64
 photo_cameraImage coming soon 417185-9 BACK COVER X GD0800C €14.34
65
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
66
 photo_cameraImage coming soon 417813-6 CONTROL SWITCH X GD0800C €1.91
68
 photo_cameraImage coming soon 417812-8 CASING MOTOR BO6040 €17.14
70
 photo_cameraImage coming soon 643974-8 BRUSH X BO6040 €7.58
71
 photo_cameraImage coming soon 233071-4 SPRING COMPRESSION 4 X 9541 €2.34
72
 photo_cameraImage coming soon 417187-5 LEVER SWITCH X GD0800C €2.70
73
 photo_cameraImage coming soon 631391-4 CONTROL X GD0800C €102.94
74
 Retaining Ring S12 for Power Tools Makita 961052-5 Retaining Ring S12 for Power Tools Makita €1.40
77
 photo_cameraImage coming soon 267756-0 WAVY WASHER X BO6040 €3.76
78
 photo_cameraImage coming soon 153427-4 SEAL DUST €3.34

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Random Orbital Sander BO6040

Fix Your Random Orbital Sander BO6040. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of Sander and the respective parts of the code.
Makita BO6040

Random Orbital Sander BO6040
# Part Num. Description
1 417371-2 COVER GEAR BOX X BO6040
3 265083-9 SCREW M8 X 11 X 9565CVL
4 266050-7 PT SCREW 4X30
5 152671-0 GEAR BOX CPL BO6040
6 213724-1 RING 62 X BO6040
8 931503-2 HEX NUT M10
9 253024-7 WASHER 10 X LS1013
10 324071-6 ROCKER TOP X BO6040
11 152674-4 GEAR 42 CPL X BO6040
12 211106-1 BEARING 6201LLB
13 911126-2 SCREW M4x16
14 417373-8 STOPPER KNOB X BO6040
15 911119-9 SCREW M4X12 8050
16 153428-2 SWITCH X BO6040
17 417382-7 SPRING LOCK X BO6040
18 231230-4 SPRING COMPRESSION 4
19 345209-0 STOP X BO6040
20 152948-3 HEADSET X BO6040
21 257933-2 RING LOCK X BO6040
22 211654-0 BEARING 6811LLB X BO6040
23 227008-1 GEAR 29 X BO6040
24 324069-3 SPINDLE X BO6040
25 324072-4 ROCKER LOWER X BO6040
26 324070-8 SOCKET X BO6040
27 211131-2 BALL BEARING 6001DD
28 211131-2 BALL BEARING 6001DD
29 152760-1 GEAR 26 X BO6040
30 266270-3 SCREW M 8 X 14 X BO6040
31 152761-9 RETAINING BEARING X BO6040
32 421763-9 RUBBER HEADSET X BO6040
33 196684-1 RUBBER PAD 150 SOFT BO6040 / 6030
34 961002-0 RETAINING RING S6
35 227402-7 GEAR X BO6040
36 211142-7 BEARING 6001LLB X GD0800C
37 253084-9 FLAT WASHER 12 8419B / 5016NB
38 317359-1 COVER GEAR BOX X 9561
39 240033-5 FAN 57 X 9561CV
40 515223-2 ARMATURE X BO6040
41 681656-4 INSULATING WASHER X GD0810C
42 253823-7 FLAT WASHER 7 X JS1600
43 210027-4 BEARING 627DDW X 9561CV
44 421738-8 LABYRINTH RING 22 X 9561CV
45 688117-5 SOCKET X GD0800C
46 259039-2 LOCKING 6 X 9566CV
47 413076-2 BAFFLE X GD0800C
48 266274-5 SCREW 4 X 55 X BO604
49 344871-8 RETAINING X GD0800C
50 417237-6 COVER INSULATION X GD0800C
51 626533-3 STATOR 220 X BO6040
53 265995-6 SCREW M4X18 X 6408 / 6221DW
54 687052-4 CLAMP cable clamp X 6408
55 266256-7 SCREW 3 X 10 X GD0800C
56 632945-0 LOCK SWITCH X GD0800C
57 643760-7 BRUSH HOLDER X BO6040
58 191978-9 CARBON BRUSHE SET CB 318 (EX 310)
60 682566-8 PASS CABLE X HR2450
61 651418-4 SWITCH ST115A-40 X 9541
62 687113-0 COVER X GD0800C
64 417185-9 COVER X GD0800C
65 265995-6 SCREW M4X18 X 6408 / 6221DW
66 417813-6 CONTROL SWITCH X GD0800C
68 417812-8 HOUSING FOR MOTOR BO6040
70 643974-8 BRUSH HOLDER X BO6040
71 233071-4 SPRING COMPRESSION 4 X 9541
72 417187-5 LEVER SWITCH X GD0800C
73 631391-4 CONTROL X GD0800C
74 961052-5 RETAINING RING S12
75 911119-9 SCREW M4X12 8050
76 911119-9 SCREW M4X12 8050
77 267756-0 WAVY WASHER X BO6040
78 153427-4 SEAL DUST
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
