Makita Spare Parts for Circular Saw 5104S

SKU: 5104S
€52.30
VAT included

Makita Spare Parts for Circular Saw 5104S

Fix Your Circular Saw 5104S. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Makita Spare Parts for Circular Saw 5104S
  • Makita Spare Parts for Circular Saw 5104S
  • Makita Spare Parts for Circular Saw 5104S

Makita Spare Parts for Circular Saw 5104S

SKU: 5104S Condition: New
€52.30
VAT included

Makita Spare Parts for Circular Saw 5104S

Fix Your Circular Saw 5104S. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 83 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

81 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 266083-2 SCREW M10x25 X 5143R €10.72
2
photo_cameraImage coming soon 224325-0 EXTERNAL FLANGE 45 X 5103R €21.06
3
photo_cameraImage coming soon 224326-8 FLANGE INTERNAL 45 X 5103R €23.81
4
photo_cameraImage coming soon 912222-9 SCREW M5X16 €1.42
5
photo_cameraImage coming soon 285681-3 STILL BEARING X 5103R €9.57
6
photo_cameraImage coming soon 318240-9 PROTECTION BLADE 5104S €83.76
7
photo_cameraImage coming soon 231850-4 SPRING TENSION FOR 6 5104S €3.60
8
Ball Bearing 6203LLU for Makita SG150-2 211490-4 Ball Bearing 6203LLU for Makita SG150-2 €10.49
17
photo_cameraImage coming soon 344303-5 RING THICKNESS X 5103R €8.19
18
photo_cameraImage coming soon 911225-0 SCREW M5X16 X JR180D €2.17
19
photo_cameraImage coming soon 316709-7 HOLDER BEARING X5103R €55.05
20
photo_cameraImage coming soon 322830-2 SLEEVE CHIUSURAX5143R-5103R €67.68
21
photo_cameraImage coming soon 322827-1 SHAFT X 5103R €55.05
22
photo_cameraImage coming soon 231968-1 SPRING 27 X 5143R €35.07
23
photo_cameraImage coming soon 231969-9 SPRING 20 X 5143R €18.53
24
photo_cameraImage coming soon 226452-9 GEAR 39 X 5103R €60.56
25
photo_cameraImage coming soon 211104-5 BEARING 6001 X5143R €12.69
26
Retaining Ring S12 for Power Tools Makita 961052-5 Retaining Ring S12 for Power Tools Makita €1.40
27
photo_cameraImage coming soon 272230-5 LEVER 54 €3.77
28
photo_cameraImage coming soon 231955-0 SPRING RETAINER 12 X 5903R €2.06
29
photo_cameraImage coming soon 252134-7 NUT M8 €4.91
30
photo_cameraImage coming soon 911263-2 HEAD SCREW CILIND. €1.47
31
photo_cameraImage coming soon 266041-8 PT SCREW 5x25 €1.70
32
photo_cameraImage coming soon 182773-8 HANDLE COMPL.X5143R €60.56
33
photo_cameraImage coming soon 415440-3 LOCK BUTTON €2.57
34
photo_cameraImage coming soon 231230-4 SPRING COMPRESSION 4 €1.40
35
photo_cameraImage coming soon 415439-8 LEVER SWITCH €2.99
36
Switch TG70B for Electric Chainsaws Makita UC3530A - UC4030A 651923-1 Switch TG70B for Electric Chainsaws Makita UC3530A - UC4030A €14.89
37
Noise Suppressor for Cut-Off Machine Makita 2412N 645006-7 Noise Suppressor for Cut-Off Machine Makita 2412N €2.14
38
photo_cameraImage coming soon 631209-9 SPEED CONTROL 'X5143R €190.56
40
photo_cameraImage coming soon 331469-0 SOCKETS 9 X 5143R €4.17
41
photo_cameraImage coming soon 267216-2 FLAT WASHER 8 X BO3700 €1.42
42
photo_cameraImage coming soon 232151-3 SPRING PLATE X 5103R €4.86
43
photo_cameraImage coming soon 266019-1 BOLT M8X98 €3.67
44
Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
45
photo_cameraImage coming soon 687053-2 CLAMP cable tie €2.21
46
Power Cord Guard 10/90 for for Makita Power Tools 682505-8 Power Cord Guard 10/90 for for Makita Power Tools €3.18
50
photo_cameraImage coming soon 344263-1 X PLATE 5143R €2.45
51
photo_cameraImage coming soon 318237-8 CAP BLADE 5104S €60.56
52
photo_cameraImage coming soon 266034-5 SCREW CT 4X16 €3.76
54
photo_cameraImage coming soon 344261-5 SHAFT CLOSE X 5103R €8.19
55
photo_cameraImage coming soon 233084-5 COMPRESSION SPRING 6 €1.38
56
photo_cameraImage coming soon 266034-5 SCREW CT 4X16 €3.76
57
photo_cameraImage coming soon 687052-4 CLAMP cable clamp X 6408 €5.40
58
photo_cameraImage coming soon 262007-6 RING 8 X 5143R €2.57
59
photo_cameraImage coming soon 268008-2 PIN 10 X 5143R €4.86
60
photo_cameraImage coming soon 211236-8 BEARING 6002DDW X 5705R €9.72
61
photo_cameraImage coming soon 241889-9 FAN 74 X 5143R €9.57
62
photo_cameraImage coming soon 415768-9 CONVEYOR AIR X 5143R €4.86
63
photo_cameraImage coming soon 516653-0 ARMATURE 220 / 240V X5103R €170.22
64
photo_cameraImage coming soon 911944-8 SCREW M5X80 X 5103R €2.91
65
photo_cameraImage coming soon 596318-0 STATOR X 5104S €83.76
67
photo_cameraImage coming soon 911288-6 SCREW M5X65 X 5143R €1.22
68
Brushes Holder Cap for Angle Grinders Makita GA7020-GA9020-9069 643710-2 Brushes Holder Cap for Angle Grinders Makita GA7020-GA9020-9069 €2.01
69
Carbon Brushes CB-203 for Router Makita 3612C 191953-5 Carbon Brushes CB-203 for Router Makita 3612C €11.60
70
photo_cameraImage coming soon 158613-2 CASING MOTOR 5104S €49.30
71
photo_cameraImage coming soon 210042-8 BEARING FOR 629LLB GD0600 €5.93
72
Armature Washer for Cut-Off  Makita 2414B 681633-6 Armature Washer for Cut-Off Makita 2414B €3.83
73
photo_cameraImage coming soon 318262-9 ANGLE PLATE 5104S €35.07
74
photo_cameraImage coming soon 266039-5 SCREW M6X6 €2.00
77
photo_cameraImage coming soon 921477-5 BOLT M8x55 €2.00
78
photo_cameraImage coming soon 415722-3 GRIP GUIDE ANG. X5103R €27.72
79
photo_cameraImage coming soon 816128-2 STOP X 5103R €2.06
80
photo_cameraImage coming soon 266020-6 SCREW M4 X 12 €1.46
81
photo_cameraImage coming soon 252626-6 NUT M8 X SR2600 €3.67
82
photo_cameraImage coming soon 941201-0 FLAT WASHER 8 €3.18
83
photo_cameraImage coming soon 265726-3 SCREW M6X15 €5.24
84
photo_cameraImage coming soon 911109-2 SCREW M4X8 X 4304T-4305T €1.34
85
photo_cameraImage coming soon 415433-0 CATCH GUIDE €2.00
86
photo_cameraImage coming soon 256231-1 PIN 6 €2.00
87
photo_cameraImage coming soon 266021-4 SCREW 5X20 €3.27
88
photo_cameraImage coming soon 266039-5 SCREW M6X6 €2.00
89
photo_cameraImage coming soon 265993-0 SCREW M4x5 €1.34
90
photo_cameraImage coming soon 318238-6 BASE X 5104S €137.73
91
photo_cameraImage coming soon 318239-4 DRIVING DEPTH 'X 5104S €39.66
92
photo_cameraImage coming soon 951210-1 PIN 6-20 €4.91
93
photo_cameraImage coming soon 921342-8 HEXAGON BOLT 6X25 €1.38
94
photo_cameraImage coming soon 941151-9 WASHER 6 X HM1303 €3.66
95
photo_cameraImage coming soon 252624-0 NUT M6 €3.67
96
photo_cameraImage coming soon 651941-9 SWITCH X LS1013 €5.58
97
Capacitor for Angle Grinder Makita GA4530 645200-1 Capacitor for Angle Grinder Makita GA4530 €2.65

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Circular Saw 5104S

Fix Your Circular Saw 5104S. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of Circular Saw and the respective parts of the code.
Circular Saw 5104S

Makita Circular Saw 5104S Parts List
# Part Num. Description
1 266083-2 SCREW M10x25 X 5143R
2 224325-0 EXTERNAL FLANGE 45 X 5103R
3 224326-8 FLANGE INTERNAL 45 X 5103R
4 912222-9 M5X16 SCREW
5 285681-3 STILL BEARING X 5103R
6 318240-9 PROTECTION BLADE 5104S
7 231850-4 SPRING TENSION FOR 6 5104S
8 211490-4 BEARING 6203LLU X SG150-2
17 344303-5 RING THICKNESS X 5103R
18 911225-0 SCREW M5X16 X JR180D
19 316709-7 HOLDER BEARING X5103R
20 322830-2 SLEEVE CHIUSURAX5143R-5103R
21 322827-1 SHAFT X 5103R
22 231968-1 SPRING 27 X 5143R
23 231969-9 SPRING 20 X 5143R
24 226452-9 GEAR 39 X 5103R
25 211104-5 BEARING 6001 X5143R
26 961052-5 RETAINING RING S12
27 272230-5 LEVER 54
28 231955-0 SPRING RETAINER 12 X 5903R
29 252134-7 NUT M8
30 911263-2 HEAD SCREW CILIND. M5x40
31 266041-8 PT SCREW 5x25
32 182773-8 HANDLE COMPL.X5143R
33 415440-3 LOCK BUTTON
34 231230-4 SPRING COMPRESSION 4
35 415439-8 LEVER SWITCH
36 651923-1 SWITCH TG70B X 5903R
37 645006-7 CAPACITOR X LS1013
38 631209-9 SPEED CONTROL 'X5143R
40 331469-0 SOCKETS 9 X 5143R
41 267216-2 FLAT WASHER 8 X BO3700
42 232151-3 SPRING PLATE X 5103R
43 266019-1 BOLT M8X98
44 265995-6 SCREW M4X18 X 6408 / 6221DW
45 687053-2 CABLE CLAMP
46 682505-8 CABLE SLEEVE 10/90
49 443098-8 FELT X 5143R
50 344263-1 X PLATE 5143R
51 318237-8 CAP BLADE 5104S
52 266034-5 SCREW CT 4X16
54 344261-5 SHAFT CLOSE X 5103R
55 233084-5 COMPRESSION SPRING 6
56 266034-5 SCREW CT 4X16
57 687052-4 CLAMP cable clamp X 6408
58 262007-6 RING 8 X 5143R
59 268008-2 PIN 10 X 5143R
60 211236-8 BEARING 6002DDW X 5705R
61 241889-9 FAN 74 X 5143R
62 415768-9 CONVEYOR AIR X 5143R
63 516653-0 ARMATURE 220 / 240V X5103R
64 911944-8 SCREW M5X80 X 5103R
65 596318-0 STATOR X 5104S
67 911288-6 SCREW M5X65 X 5143R
68 643710-2 PLUG BRUSH XHM1500
69 191953-5 CARBON BRUSHES CB-203 X 3612C
70 158613-2 CASING MOTOR 5104S
71 210042-8 BEARING FOR 629LLB GD0600
72 681633-6 WASHER
73 318262-9 ANGLE PLATE 5104S
74 266039-5 SCREW M6X6
77 921477-5 BOLT M8x55
78 415722-3 GRIP GUIDE ANG. X5103R
79 816128-2 STOP X 5103R
80 266020-6 SCREW M4 X 12
81 252626-6 NUT M8 X SR2600
82 941201-0 FLAT WASHER 8
83 265726-3 SCREW M6x15
84 911109-2 SCREW M4X8 X 4304T-4305T
85 415433-0 CATCH GUIDE
86 256231-1 PIN 6
87 266021-4 5X20 SCREW
88 266039-5 SCREW M6X6
89 265993-0 SCREW M4x5
90 318238-6 BASE X 5104S
91 318239-4 DRIVING DEPTH 'X 5104S
92 951210-1 PIN 6-20
93 921342-8 HEXAGON BOLT 6X25
94 941151-9 WASHER 6 X HM1303
95 252624-0 NUT M6
96 651941-9 SWITCH X LS1013
97 645200-1 CAPACITOR
98 442142-8 SEAL X 5104S
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
5104S
5 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

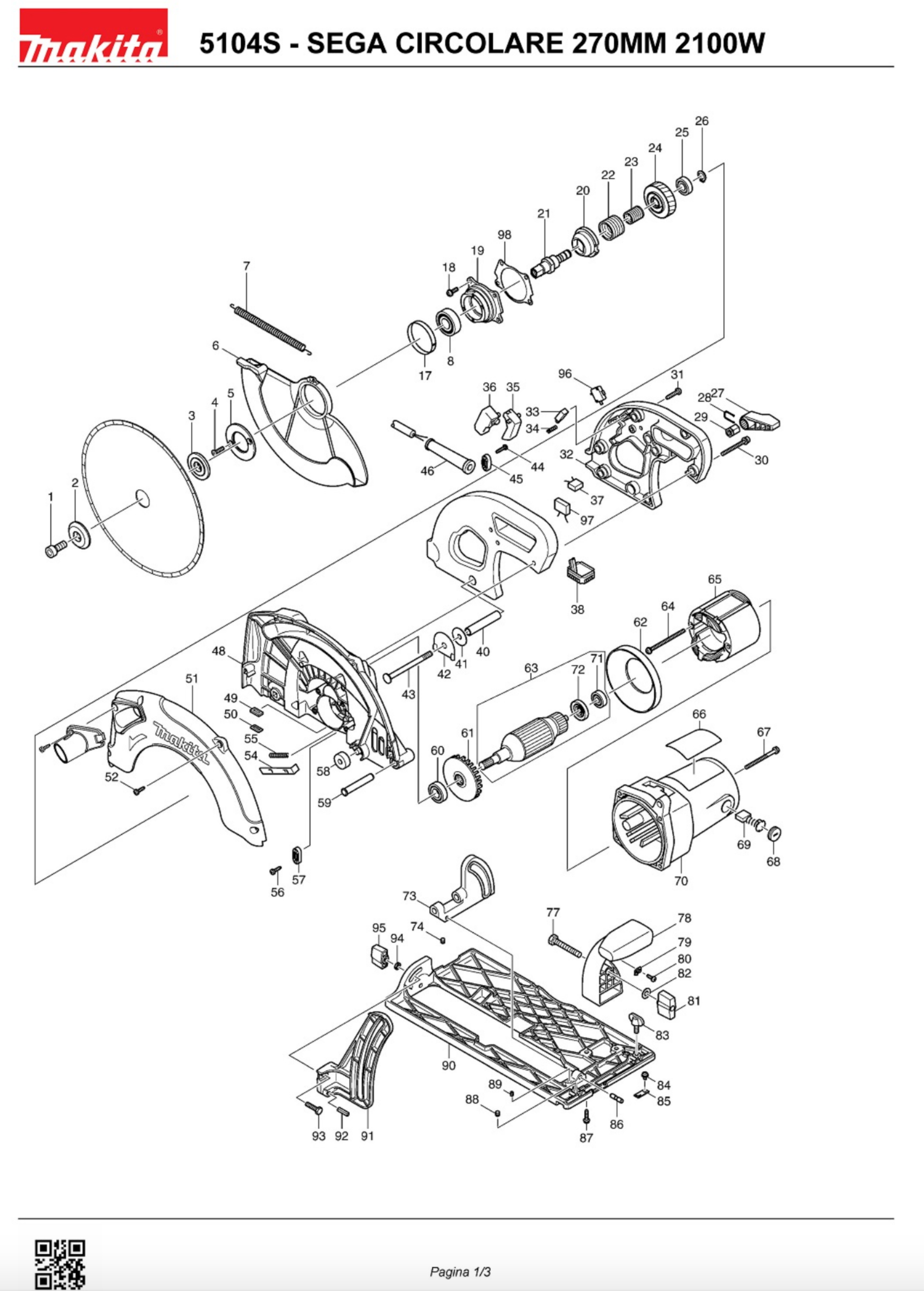

Diagram Makita 5104S

Diagram Makita 5104S

Download (873.12KB)
