Makita

Makita Spare Parts for Circular Saw 5604R

SKU: Makita 5604R
€58.39
VAT included

Makita Spare Parts for Circular Saw 5604R

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Circular Saw 5604R.
Makita Spare Parts for Circular Saw 5604R
  • Makita Spare Parts for Circular Saw 5604R
  • Makita Spare Parts for Circular Saw 5604R
Makita

Makita Spare Parts for Circular Saw 5604R

SKU: Makita 5604R Condition: New
€58.39
VAT included

Makita Spare Parts for Circular Saw 5604R

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Circular Saw 5604R.
settings 57 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
57 spare parts

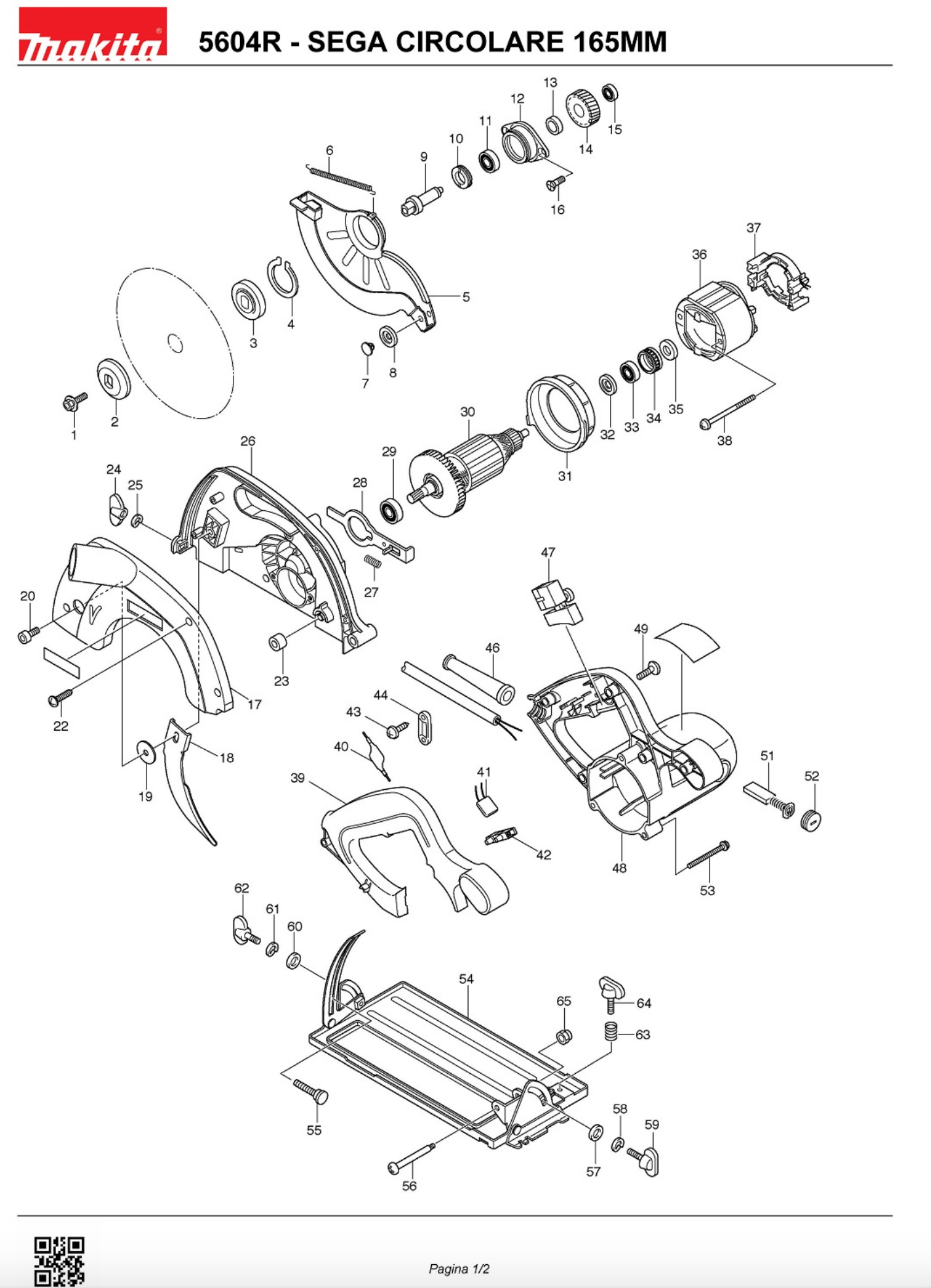

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 266024-8 M6X20 SCREW €2.62
2
 photo_cameraImage coming soon 224329-2 FLANGE EXTERNAL 5604R €2.91
3
 photo_cameraImage coming soon 224180-0 FLANGE INT 45 56NB / 58NB €12.33
4
 photo_cameraImage coming soon 961155-5 RETAINING RING S38 €2.04
5
 photo_cameraImage coming soon 165256-3 PROTECTION 5604R HEADSET €21.06
6
 photo_cameraImage coming soon 231821-1 TENSION SPRING 5604R €2.91
7
 photo_cameraImage coming soon 415437-2 PIN 6 X 5903R €1.34
8
 photo_cameraImage coming soon 415438-0 WASHER 20 €1.34
9
 photo_cameraImage coming soon 322838-6 5604R SHAFT €13.93
10
 photo_cameraImage coming soon 285802-7 BEARING 19-33 €2.91
11
 Bearing 6201DD NSK for Powertools Makita 211129-9 Bearing 6201DD NSK for Powertools Makita €8.41
12
 photo_cameraImage coming soon 316766-5 BOX BEARING 5604R €10.72
13
 Ring 12 for Impact Drill Makita HP1630 257173-2 Ring 12 for Impact Drill Makita HP1630 €1.85
14
 photo_cameraImage coming soon 226467-6 GEAR 47 5604R €13.93
15
 Bearing for Angle Grinder Makita 9524NB 211012-0 Bearing for Angle Grinder Makita 9524NB €8.23
16
 photo_cameraImage coming soon 265034-2 SCREW M5 X 16 €1.33
17
 photo_cameraImage coming soon 416992-7 BLADE COVER CASING 5604R €35.07
18
 photo_cameraImage coming soon 344800-1 KNIFE 5604R €10.72
19
 photo_cameraImage coming soon 253783-3 FLAT WASHER 6 €3.18
20
 photo_cameraImage coming soon 922312-0 BOLT M6 X 12 €1.33
22
 photo_cameraImage coming soon 266034-5 SCREW CT 4X16 €3.76
23
 photo_cameraImage coming soon 262511-5 RUBBER REDUCTION X HM1300 €3.18
24
 photo_cameraImage coming soon 252639-7 BUTTERFLY NUT 5604R €4.17
25
 photo_cameraImage coming soon 942151-2 WASHER 6 €3.66
26
 photo_cameraImage coming soon 151635-1 HOUSING BLADE 5604R €55.05
27
 photo_cameraImage coming soon 233092-6 COMPRESSION SPRING 5 €3.18
28
 photo_cameraImage coming soon 344317-4 AUCTION BLOCK 5604R €2.91
29
 photo_cameraImage coming soon 211097-6 BEARING 5604R €9.66
30
 photo_cameraImage coming soon 510044-7 ARMATURE X-5604R €74.57
31
 photo_cameraImage coming soon 415873-2 BAFFLE 5604R €1.88
32
 photo_cameraImage coming soon 681654-8 INSULATING WASHER 5604R €3.18
33
 photo_cameraImage coming soon 211033-2 BEARING 608LB €9.89
34
 photo_cameraImage coming soon 421720-7 RUBBER RING 5604R €15.56
35
 photo_cameraImage coming soon 261115-0 RUBBER WASHER 13 5604R €5.24
36
 photo_cameraImage coming soon 634154-7 STATOR 5604R €16.23
37
 photo_cameraImage coming soon 632673-7 COMPLETE HOLDER 5604R €6.36
38
 photo_cameraImage coming soon 266095-5 SCREW 5x55 HR5001C €1.47
39
 photo_cameraImage coming soon 416991-9 COVER HANDLE 5604R €12.33
40
 photo_cameraImage coming soon 646077-7 COIL 5604R €6.36
41
 Capacitor for Angle Grinder Makita GA4530 645200-1 Capacitor for Angle Grinder Makita GA4530 €2.65
42
 photo_cameraImage coming soon 654532-5 TERMINAL BLOCK 6E / 1DS €3.76
43
 Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
44
 photo_cameraImage coming soon 687063-9 CABLE TIE X 4304T €3.18
46
 photo_cameraImage coming soon 682503-2 SLEEVE PROTECTING_COVER X HM1500 €2.69
47
 photo_cameraImage coming soon 651291-2 SWITCH 5604R €20.31
48
 photo_cameraImage coming soon 151636-9 CASING MOTOR CPL. 5604R €49.30
49
 Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
51
 Carbon Brushes CB-303 for Belt Sander Makita 9920X 191963-2 Carbon Brushes CB-303 for Belt Sander Makita 9920X €9.96
52
 Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C 643750-0 Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C €2.51
53
 photo_cameraImage coming soon 911268-2 FLAT HEAD SCREW M4X45  €3.18
54
 photo_cameraImage coming soon 168329-1 5604R BASE €49.30
55
 photo_cameraImage coming soon 265950-8 SCREW M 6 X 26 5604R €2.45
56
 photo_cameraImage coming soon 265056-2 BOLT M5 X LS1013 €2.45
57
 photo_cameraImage coming soon 941151-9 WASHER 6 X HM1303 €3.66
58
 photo_cameraImage coming soon 942151-2 WASHER 6 €3.66
59
 photo_cameraImage coming soon 265726-3 SCREW M6X15 €5.24
60
 photo_cameraImage coming soon 941151-9 WASHER 6 X HM1303 €3.66
61
 photo_cameraImage coming soon 942151-2 WASHER 6 €3.66
62
 photo_cameraImage coming soon 265726-3 SCREW M6X15 €5.24
63
 photo_cameraImage coming soon 231316-4 COMPRESSION SPRING 7 SR2100 / 56DW €3.66
64
 photo_cameraImage coming soon 265726-3 SCREW M6X15 €5.24
65
 photo_cameraImage coming soon 252103-8 LOCKNUT X JR3020 €1.32

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Circular Saw 5604R

MAKITA Original spare parts

 at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Circular Saw 5604R.

In the following table, look for the model of Circular Saw and the respective parts of the code.
Makita 5604R

Circular Saw 5604R
# Part Num. Description
1 266024-8 M6X20 SCREW
2 224329-2 FLANGE EXTERNAL 5604R
3 224180-0 FLANGE INT 45 56NB / 58NB
4 961155-5 RETAINING RING S38
5 165256-3 PROTECTION 5604R HEADSET
6 231821-1 TENSION SPRING 5604R
7 415437-2 PIN 6 X 5903R
8 415438-0 WASHER 20
9 322838-6 5604R SHAFT
10 285802-7 BEARING 19-33
11 211129-9 BALL BEARING NSK 6201DD
12 316766-5 BOX BEARING 5604R
13 257173-2 RING 12 5604R
14 226467-6 GEAR 47 5604R
15 211012-0 BEARING X 9524NB
16 265034-2 SCREW M5 X 16
17 416992-7 BLADE COVER CASING 5604R
18 344800-1 KNIFE 5604R
19 253783-3 FLAT WASHER 6
20 922312-0 BOLT M6 X 12
22 266034-5 SCREW CT 4X16
23 262511-5 REDUCTION RUBBER X HM1300
24 252639-7 BUTTERFLY NUT 5604R
25 942151-2 WASHER 6 4101R
26 151635-1 HOUSING BLADE 5604R
27 233092-6 SPRING COMPRESSION 5
28 344317-4 AUCTION BLOCK 5604R
29 211097-6 5604R BEARING
30 510044-7 ARMATURE X-5604R
31 415873-2 BAFFLE 5604R
32 681654-8 INSULATING WASHER 5604R
33 211033-2 BEARING 608SS (LLB) HR2010
34 421720-7 RING RUBBER 5604R
35 261115-0 RUBBER WASHER 13 5604R
36 634154-7 STATOR 5604R
37 632673-7 COMPLETE HOLDER 5604R
38 266095-5 SCREW 5 X 55 HR5001C
39 416991-9 COVER HANDLE 5604R
40 646077-7 COIL 5604R
41 645200-1 CAPACITOR
42 654532-5 TERMINAL BLOCK 6E / 1DS
43 265995-6 SCREW M4X18 X 6408 / 6221DW
44 687063-9 BOOT X 4304T
46 682503-2 SLEEVE PROTECTING_COVER X HM1500
47 651291-2 SWITCH 5604R
48 151636-9 CASING MOTOR CPL. 5604R
49 265995-6 SCREW M4X18 X 6408 / 6221DW
51 191963-2 CARBON BRUSHE SET CB-303
52 643750-0 BRUSH HOLDER CAP
53 911268-2 FLAT HEAD SCREW M4X45
54 168329-1 5604R BASE
55 265950-8 SCREW M 6 X 26 5604R
56 265056-2 BOLT M5 X LS1013
57 941151-9 WASHER 6 X HM1303
58 942151-2 WASHER 6 4101R
59 265726-3 SCREW M6x15
60 941151-9 WASHER 6 X HM1303
61 942151-2 WASHER 6 4101R
62 265726-3 SCREW M6x15
63 231316-4 SPRING PRESS.7 SR2100 / 56DW
64 265726-3 SCREW M6x15
65 252103-8 NUT X JR3020
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
