Makita Spare Parts for Reciprocatng Saw JR3060T

SKU: Makita JR3060T
€131.49
VAT included

Makita Spare Parts for Reciprocatng Saw JR3060T

We are MAKITA original spare parts Dealers at low at unbeatable prices and an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Reciprocating Saw JR3060T.
Makita Spare Parts for Reciprocatng Saw JR3050T-JR3060T
  • Makita Spare Parts for Reciprocatng Saw JR3050T-JR3060T
  • Makita Spare Parts for Reciprocatng Saw JR3050T-JR3060T

Makita Spare Parts for Reciprocatng Saw JR3060T

SKU: Makita JR3060T Condition: New
€131.49
VAT included

Makita Spare Parts for Reciprocatng Saw JR3060T

We are MAKITA original spare parts Dealers at low at unbeatable prices and an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Reciprocating Saw JR3060T.
settings 82 spare parts

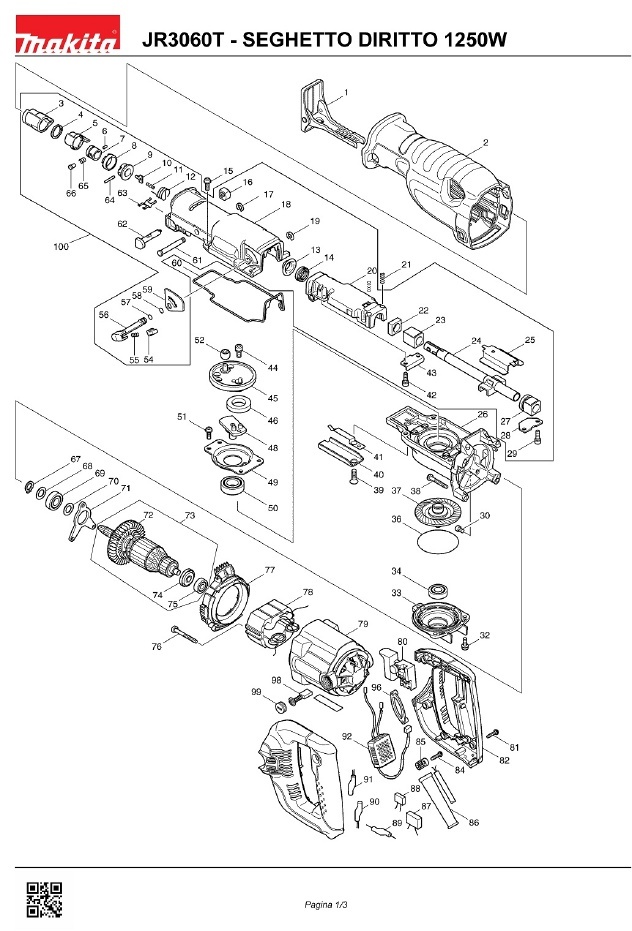

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

82 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 165396-7 SHOE X JR3050T €8.86
2
photo_cameraImage coming soon 421898-6 COVER INSULATION X JR3060T €12.28
3
Protector for Reciprocating Saw Makita JR3050T 424147-0 Protector for Reciprocating Saw Makita JR3050T €1.42
4
Retaining Ring for Reciprocating Saw Makita JR3050T 257952-8 Retaining Ring for Reciprocating Saw Makita JR3050T €1.30
5
photo_cameraImage coming soon 310285-3 SLEEVE HOLDER LAMA X JR3050T €10.38
6
photo_cameraImage coming soon 268094-3 PIN 3 X BJR240 €3.25
7
photo_cameraImage coming soon 331720-8 SLEEVE GUIDE BJR181SF €2.16
8
photo_cameraImage coming soon 417791-0 HOLDER GUIDE X BJR240 €1.40
9
photo_cameraImage coming soon 418311-3 SLEEVE X JR3050T €1.40
10
photo_cameraImage coming soon 345214-7 PLATE X BJR240 €2.16
11
photo_cameraImage coming soon 233025-1 SPRING 2 X 6702DW €1.47
12
photo_cameraImage coming soon 231687-9 SPRING TWIST 17 X JR3060T €1.40
13
photo_cameraImage coming soon 257742-9 SLEEVE 14 X JR3060T €2.17
14
photo_cameraImage coming soon 213174-0 RING 14 JR3030 €1.40
15
photo_cameraImage coming soon 911225-0 SCREW M5X16 X JR180D €2.17
16
photo_cameraImage coming soon 418806-6 CAP BUTTON LOCK JR3050T €1.30
17
photo_cameraImage coming soon 961012-7 RETAINING RING E6 €2.17
18
Gear Housing Cover for Reciprocating Saw Makita JR3070CT 154551-6 Gear Housing Cover for Reciprocating Saw Makita JR3070CT €30.92
20
photo_cameraImage coming soon 154502-9 BUSHE HOLDER JR3060T €20.65
21
photo_cameraImage coming soon 233038-2 COMPRESSION SPRING 5 X JR3060T €2.17
22
photo_cameraImage coming soon 423343-7 O-RING PLATE X JR3060T €2.17
23
photo_cameraImage coming soon 214170-1 BEARING 14A X JR3060T €2.76
24
photo_cameraImage coming soon 168410-8 SLIDER X JR3060T €30.91
25
photo_cameraImage coming soon 345487-2 COVER SUP. BRONZ. JR3060T €2.17
26
photo_cameraImage coming soon 317842-8 GEAR BOX X JR3060T €30.91
27
photo_cameraImage coming soon 154547-7 BEARING X JR3060T €20.65
28
photo_cameraImage coming soon 345486-4 PLATE B X JR3060T €2.17
30
photo_cameraImage coming soon 265530-0 SCREW M5 X 8 X JR3060T €2.17
33
photo_cameraImage coming soon 317844-4 BEARING BOX X JR3060T €12.43
34
Ball Bearing 6001DD for Makita 9218S 211131-2 Ball Bearing 6001DD for Makita 9218S €6.29
36
photo_cameraImage coming soon 213726-7 RING 62 X JR3060T €2.17
37
photo_cameraImage coming soon 154549-3 TORQUE X JR3060T €64.08
38
photo_cameraImage coming soon 266373-3 SCREW 5x35 GA9020 €2.17
39
photo_cameraImage coming soon 265165-7 SCREW M6X16 FOR BJR181SF €1.30
40
photo_cameraImage coming soon 345479-1 GUIDE SHOE X JR3050T €2.16
41
photo_cameraImage coming soon 232222-6 SPRING FLAT B X JR3050T €1.30
43
photo_cameraImage coming soon 345485-6 PLATE X JR3060T €2.17
44
photo_cameraImage coming soon 265531-8 SCREW M 6 X 14 X JR3060T €2.17
45
photo_cameraImage coming soon 154545-1 ECCENTRIC X JR3060T €20.65
46
photo_cameraImage coming soon 257261-5 RING 21B X JR3060T €2.17
48
photo_cameraImage coming soon 154546-9 BASE ECCENTRIC X JR3060T €10.38
49
photo_cameraImage coming soon 285720-9 RETAINING BEARING B X JR3060T €2.17
50
photo_cameraImage coming soon 211251-2 BEARING 6003LLB X DA6301 €14.49
52
Needle Bearing for Reciprocating Saw JR3070CT 212957-5 Needle Bearing for Reciprocating Saw JR3070CT €16.59
54
photo_cameraImage coming soon 418991-5 STOP X JR3060T €2.17
55
photo_cameraImage coming soon 231309-1 SPRING COMPRESSION 5 €2.17
56
photo_cameraImage coming soon 272247-8 LEVER 20 X JR3060T €10.38
57
photo_cameraImage coming soon 213021-5 RETAINING RING 5 X LS1013 €2.17
59
photo_cameraImage coming soon 413095-8 PLATE C X JR3060T €2.17
60
photo_cameraImage coming soon 421899-4 O-RING X JR3060T €2.17
61
photo_cameraImage coming soon 268012-1 NEW PIN JR3020 €6.27
62
photo_cameraImage coming soon 162236-0 BUTTON LOCK X JR3050T €4.57
63
photo_cameraImage coming soon 232221-8 SPRING FLAT A X JR3050T €1.30
64
photo_cameraImage coming soon 256158-5 PIN 3 X T221DW €1.40
65
Compression Spring 6 for Reciprocating Saw Makita BJR2240 233345-3 Compression Spring 6 for Reciprocating Saw Makita BJR2240 €1.37
66
photo_cameraImage coming soon 256492-3 PIN 5 X JR3060T €1.40
67
Retaining Ring S12 for Power Tools Makita 961052-5 Retaining Ring S12 for Power Tools Makita €1.40
68
Hard Washer 12 for Reciprocating Saw Makita JR3070CT 253744-3 Hard Washer 12 for Reciprocating Saw Makita JR3070CT €1.48
71
photo_cameraImage coming soon 285719-4 RETAINING BEARING JR3060T €3.19
72
photo_cameraImage coming soon 241863-7 FAN 70 €13.60
73
photo_cameraImage coming soon 513609-4 ARMATURE 240V X JR3060T €38.78
74
photo_cameraImage coming soon 681644-1 INSULATED WASHER for 9227CB €2.74
75
photo_cameraImage coming soon 210029-0 BALL BEARING 608ZZ X MT601 €2.08
76
photo_cameraImage coming soon 266466-6 SCREW 5x45 MT430 €2.17
77
photo_cameraImage coming soon 418817-1 BAFFLE X JR3060T €3.19
78
photo_cameraImage coming soon 625724-3 STATOR 240V X JR3060T €20.98
79
photo_cameraImage coming soon 154498-4 MOTOR HOUSING JR3050T €20.65
80
Switch for Reciprocating Saw JR3060T 650222-8 Switch for Reciprocating Saw JR3060T €19.65
81
Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
82
photo_cameraImage coming soon 183932-7 HANDLE POST. X JR3060T €18.56
85
photo_cameraImage coming soon 687052-4 CLAMP cable clamp X 6408 €5.40
86
photo_cameraImage coming soon 682573-1 CORD ARMOR 10 X GA9010C €3.41
87
Capacitor for Angle Grinder Makita GA4530 645200-1 Capacitor for Angle Grinder Makita GA4530 €2.65
88
Noise Suppressor for Cut-Off Machine Makita 2412N 645006-7 Noise Suppressor for Cut-Off Machine Makita 2412N €2.14
89
photo_cameraImage coming soon 646049-2 Diode X JR3000VT €11.36
90
photo_cameraImage coming soon 646144-8 COIL X JR3060T €2.17
91
photo_cameraImage coming soon 646145-6 COIL X JR3060T €2.17
92
photo_cameraImage coming soon 631653-0 CONTROLLER X JR3060T €28.26
96
photo_cameraImage coming soon 421448-7 RUBBER BAND JR3020 €3.19
98
Carbon Brushes CB-303 for Belt Sander Makita 9920X 191963-2 Carbon Brushes CB-303 for Belt Sander Makita 9920X €9.96
99
Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C 643750-0 Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C €2.51
100
photo_cameraImage coming soon 125524-6 GEAR HOUSING COVER ASSY JR3060 / 3070 €133.58

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Reciprocatng Saw JR3060T

We are MAKITA original spare parts Dealers at low at unbeatable prices and an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Reciprocating Saw JR3060T.

In the following table, look for the model of Saw and the respective parts of the code.
Makita JR3060T

Reciprocating Saw JR3060T
# Part Num. Description
1 165396-7 SHOE X JR3050T
2 421898-6 COVER INSULATION X JR3060T
3 424147-0 PROTECTOR
4 257952-8 RETAINING RING 18 BJR181SF
5 310285-3 SOCKET HOLDER BLADE X JR3050T
6 268094-3 PIN 3 X BJR240
7 331720-8 SOCKET GUIDE BJR181SF
8 417791-0 HOLDER GUIDE X BJR240
9 418311-3 SOCKET X JR3050T
10 345214-7 PLATE X BJR240
11 233025-1 SPRING 2 X 6702DW
12 231687-9 SPRING TWIST 17 X JR3060T
13 257742-9 SOCKET 14 X JR3060T
14 213174-0 RING 14 JR3030
15 911225-0 SCREW M5X16 X JR180D
16 418806-6 CAP BUTTON LOCK JR3050T
17 961012-7 RETAINING RING E6
18 154551-6 GEAR HOUSING COVER JR3060T
19 961012-7 RETAINING RING E6
20 154502-9 HOLDER BUSHINGS X JR3060T
21 233038-2 SPRING COMP. 5 X JR3060T
22 423343-7 SEAL PLATE X JR3060T
23 214170-1 BEARING 14A X JR3060T
24 168410-8 SLIDER X JR3060T
25 345487-2 SLIDE PLATE JR3060T
26 317842-8 GEAR BOX X JR3060T
27 154547-7 BUSH X JR3060T
28 345486-4 PLATE B X JR3060T
29 911225-0 SCREW M5X16 X JR180D
30 265530-0 SCREW M5 X 8 X JR3060T
32 911225-0 SCREW M5X16 X JR180D
33 317844-4 BOX BEARING X JR3060T
34 211131-2 BALL BEARING 6001DD
36 213726-7 RING 62 X JR3060T
37 154549-3 LIMITING TORQUE X JR3060T
38 266373-3 SCREW 5x35 FOR GA9020
39 265165-7 SCREW M6X16 FOR BJR181SF
40 345479-1 GUIDE SHOE X JR3050T
41 232222-6 SPRING FLAT B X JR3050T
42 911225-0 SCREW M5X16 X JR180D
43 345485-6 PLATE X JR3060T
44 265531-8 SCREW M 6 X 14 X JR3060T
45 154545-1 ECCENTRIC X JR3060T
46 257261-5 RING 21B X JR3060T
48 154546-9 ECCENTRIC BASE X JR3060T
49 285720-9 RETAINING BEARING B X JR3060T
50 211251-2 BEARING 6003LLB X DA6301
51 911225-0 SCREW M5X16 X JR180D
52 212957-5 NEEDLE BEARING 710 JR3060T
54 418991-5 STOP X JR3060T
55 231309-1 SPRING COMPRESSION 5
56 272247-8 LEVER 20 X JR3060T
57 213021-5 RETAINING RING 5 X LS1013
58 213021-5 RETAINING RING 5 X LS1013
59 413095-8 PLATE C X JR3060T
60 421899-4 SEAL X JR3060T
61 268012-1 PIN NEW JR3020
62 162236-0 BUTTON LOCK X JR3050T
63 232221-8 SPRING FLAT A X JR3050T
64 256158-5 PIN 3 X T221DW
65 233345-3 COMPRES OF SPRING. 6 X BJR2240
66 256492-3 PIN 5 X JR3060T
67 961052-5 RETAINING RING S12
68 253744-3 FLAT WASHER 12 24B / 12N / 14
69 211131-2 BALL BEARING 6001DD
70 253744-3 ROND.PIANA 12 24B / 12N / 14
71 285719-4 RETAINING BEARING JR3060T
72 241863-7 FAN 70
73 513609-4 ARMATURE 240V X JR3060T
74 681644-1 INSULATING WASHER X 9227CB
75 210029-0 BEARING 608Z X MT601
76 266466-6 SCREW 5x45 MT430
77 418817-1 BAFFLE X JR3060T
78 625724-3 STATOR 240V X JR3060T
79 154498-4 CASING MOTOR X JR3050T
80 650222-8 SWITCH TG71ARS-1 JR3060T
81 265995-6 SCREW M4X18 X 6408 / 6221DW
82 183932-7 HANDLE POST. X JR3060T
84 265995-6 SCREW M4X18 X 6408 / 6221DW
85 687052-4 CLAMP CABLE X 6408
86 682573-1 CABLE 10 X GA9010C
87 645200-1 CAPACITOR
88 645006-7 CAPACITOR X LS1013
89 646049-2 Diode X JR3000VT
90 646144-8 COIL X JR3060T
91 646145-6 COIL X JR3060T
92 631653-0 CONTROLLER X JR3060T
96 421448-7 SEAL RUBBER X JR3020
98 191963-2 CARBON BRUSHE SET CB-303
99 643750-0 BRUSH HOLDER CAP
100 125524-6 GEAR HOUSING COVER ASSY JR3060 / 3070

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita JR3060T
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita JR3060T

Diagram Makita JR3060T

Download (363.3KB)

You might also like

Reciprocating Saw - Makita JR3050T -20% Sale
HiKOKI Power Tools Italia S.p.a. SKU: Makita JR3050T
Reciprocating Saw - Makita JR3050T Features - Bearings with double seal protection against dust - Ergonomic - Blade engagement fast - Stop carbon brushes
Last items in stock €265.83 €332.29
Needle Bearing for Belt Saw Makita 2106W Sale
Makita SKU: 212115-3
Needle Bearing for Belt Saw Makita 2106W Genuine spare Makita, Needles Bearing HK121816 for Belt Saw 115 mm 2106W - Reciprocating JR3000 - JR3000V - JR3000VT - JR3020. Part for the following article: - Belt Saw 115MM MAKITA 2106W -...
AVAILABLE €11.60
Makita SKU: 643750-0
Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C Genuine part MAKITA, Carbon Brush Holder Cap for Hammers HM1100 - HM1100C - Angle Grinder  GA6021C - GA6020 - Circular Saw 5703R. Parts for the following products: - 2107FK -...
Last items in stock €2.51
Compression Spring 6 for Reciprocating Saw Makita BJR2240 Sale
Makita SKU: 233345-3
Compression Spring 6 for Reciprocating Saw Makita BJR2240 Original spare parts Makita, Compression Spring 6 for Reciprocating Saws Makita BJR141RFE - BJR141RFE - BJR181SFE - BJR240SFE - DJR182Z - JR100DWE Part for the following...
AVAILABLE €1.37
Makita SKU: 211131-2
Ball Bearing 6001DD for Makita 9218S Genuine part Makita, Ball Bearing 6001DD for 9218S. Part for the following products: - Reciprocating Saw JR3070CT - Reciprocating Saw JR3060T...
AVAILABLE €6.29
Makita SKU: 650222-8
Switch for Reciprocating Saw JR3060T Genuine spare Makita, Switch TG71ARS-1 for Reciprocating Saws JR3060T - JR3070CT. Part for the following products: -  JR3060T - Reciprocating 1250W -  JR3070CT - Reciprocating 1510W - Code: 650222-8
Last items in stock €19.65
Makita SKU: 257952-8
Retaining Ring for Reciprocating Saw Makita JR3050T Original spare parts Makita, Retaining Ring for Reciprocating Saw Makita JR3050T - JR3060T - JR3070CT - BJR182 - DJR187RTE - DJR360ZK. Part for the following products: -  JR3050T -...
on 7/10 Business Days Approx €1.30
Makita SKU: 424147-0
Protector for Reciprocating Saw Makita JR3050T Original spare parts Makita, Protector for Reciprocating Saw Makita JR3050T - JR3060T - JR3070CT - BJR182 - DJR187RTE - DJR360ZK. Part for the following products: -  JR3050T -...
Available in 7/10 days €1.42
Makita SKU: 154551-6
Gear Housing Cover for Reciprocating Saw Makita JR3070CT Genuine spare part Makita, Gear Housing Cover for Reciprocating Saw JR3060T - JR3070CT. Part for the following products: -  JR3060T - Reciprocating Saw 1250W -  JR3070CT -...
Last items in stock €30.92
Comments (0)
