Makita Spare Parts for Percussion Drill HP2051F

SKU: Makita HP2051F
€15.20
VAT included

Makita Spare Parts for Percussion Drill HP2051F

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Percussion Drill HP2051F.
Makita Spare Parts for Percussion Drill HP2051F
  • Makita Spare Parts for Percussion Drill HP2051F
  • Makita Spare Parts for Percussion Drill HP2051F

Makita Spare Parts for Percussion Drill HP2051F

SKU: Makita HP2051F Condition: New
€15.20
VAT included

Makita Spare Parts for Percussion Drill HP2051F

MAKITA Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Percussion Drill HP2051F.
settings 56 spare parts

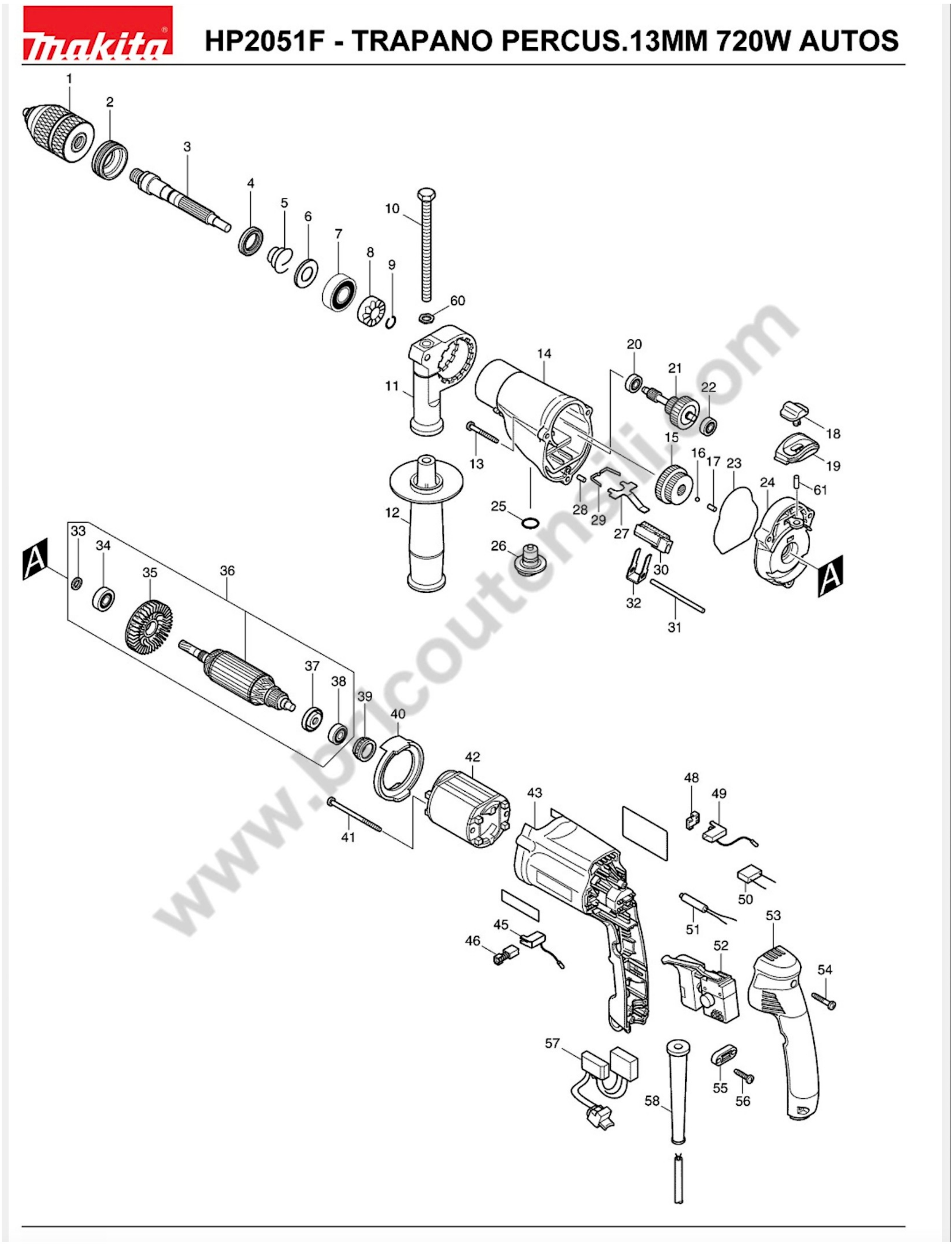

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

56 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 194254-0 CHUCK CHUCK 13 €49.59
2
photo_cameraImage coming soon 285839-4 RETAINING BEARING €5.93
3
photo_cameraImage coming soon 324247-5 POST €22.52
4
photo_cameraImage coming soon 213314-0 SEAL OIL 19 HP2030 €10.85
5
photo_cameraImage coming soon 233921-3 COMPRESSION SPRING €2.86
6
photo_cameraImage coming soon 345224-4 WASHER 15 €2.24
7
photo_cameraImage coming soon 211206-7 BEARING 6202V €9.76
8
photo_cameraImage coming soon 223137-8 A CAM €5.32
9
photo_cameraImage coming soon 233920-5 SNAP RING 11 €2.86
10
Bolt M 8 X 120 for Hammer Drills Makita HP1630-HP1631 921923-8 Bolt M 8 X 120 for Hammer Drills Makita HP1630-HP1631 €2.22
11
Handle Base for Hammer Drills Makita HP1630-HP1631 417630-4 Handle Base for Hammer Drills Makita HP1630-HP1631 €4.41
12
Handle for Hammer Drills Makita HP1630-HP1631 153503-4 Handle for Hammer Drills Makita HP1630-HP1631 €4.41
13
photo_cameraImage coming soon 266048-4 VITE M 4 PER 40 PER 4334D €3.51
14
photo_cameraImage coming soon 153379-9 GEAR HOUSING €21.78
15
Gear 29 - 37 for Percussion Drill Makita HP2071F 227119-2 Gear 29 - 37 for Percussion Drill Makita HP2071F €15.81
16
photo_cameraImage coming soon 216040-0 BALL 3.5 €1.44
17
photo_cameraImage coming soon 256251-5 PIN 4 HP1500 €1.40
18
Change Lever for Impact Drills Makita HP2071F-HP2051 418083-0 Change Lever for Impact Drills Makita HP2071F-HP2051 €1.83
19
Holder Change Lever for Percussion Drills Makita HP2050-HP2051 417802-1 Holder Change Lever for Percussion Drills Makita HP2050-HP2051 €2.00
20
Bearing for Angle Grinder Makita 9524NB 211012-0 Bearing for Angle Grinder Makita 9524NB €8.23
21
photo_cameraImage coming soon 153622-6 GEAR CPL X HP2071F €30.97
23
photo_cameraImage coming soon 421810-6 SEALING RING €2.86
24
photo_cameraImage coming soon 153620-0 COVER BOX ING. HP2071F €11.95
25
photo_cameraImage coming soon 213122-9 RING 12 X HP2071F €2.86
26
photo_cameraImage coming soon 417805-5 LEVER B €4.09
27
photo_cameraImage coming soon 345225-2 LOCKOUT LEVER €2.61
29
photo_cameraImage coming soon 232143-2 SPRING CROSSBOW HP2030 €3.47
30
photo_cameraImage coming soon 417804-7 SUPPORT 12 €2.49
31
photo_cameraImage coming soon 268092-7 PIN 4 €2.86
32
photo_cameraImage coming soon 345223-6 SUPPORT LEVER B €2.24
33
photo_cameraImage coming soon 262087-2 RING 8 X 6823 €8.39
34
Ball Bearing 608DDW for Jigsaw Makita 4327 210005-4 Ball Bearing 608DDW for Jigsaw Makita 4327 €5.44
35
photo_cameraImage coming soon 241881-5 FAN 52 6408 €7.85
36
Armature for Percussion Drills Makita HP2050-HP2051 517414-1 Armature for Percussion Drills Makita HP2050-HP2051 €55.67
37
Armature Washer for Angle Grinder Makita GA4530 681636-0 Armature Washer for Angle Grinder Makita GA4530 €2.34
38
photo_cameraImage coming soon 211021-9 BEARING 607LLB €14.38
39
photo_cameraImage coming soon 421494-0 RUBBER 19 X 9521NB €11.93
40
photo_cameraImage coming soon 417803-9 DEFLECTOR €2.24
41
photo_cameraImage coming soon 266060-4 SCREW M4 X 65 JN1601 €4.70
42
Stator for Percussion Drills Makita HP2050-HP2051 633528-9 Stator for Percussion Drills Makita HP2050-HP2051 €13.28
43
photo_cameraImage coming soon 417806-3 CASING MOTOR X HP2051F €16.23
45
Brush Holder (Red) for Rotary Hammer Makita HR2020 643989-5 Brush Holder (Red) for Rotary Hammer Makita HR2020 €4.69
46
Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 191962-4 Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 €7.53
48
photo_cameraImage coming soon 689111-0 DISTANCE X HR2020 €1.40
49
Brush Holder (Blue) for Rotary Hammer Makita HR2020 643988-7 Brush Holder (Blue) for Rotary Hammer Makita HR2020 €4.69
50
Noise Suppressor for Cut-Off Machine Makita 2412N 645006-7 Noise Suppressor for Cut-Off Machine Makita 2412N €2.14
51
photo_cameraImage coming soon 646133-3 COIL €4.17
52
Switch for Hammer Drill Makita HP2050-2051-2051F-DP4011 650524-2 Switch for Hammer Drill Makita HP2050-2051-2051F-DP4011 €46.94
53
photo_cameraImage coming soon 153284-0 COVER GRIP X HR2020 €14.34
54
photo_cameraImage coming soon 265999-8 4X25 SCREW €1.47
55
photo_cameraImage coming soon 687063-9 CABLE TIE X 4304T €3.18
56
Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
57
photo_cameraImage coming soon 631471-6 CIRCUIT FOR LIGHT X HP2051F €38.68
58
Power Cord Protection for Angle Grinder Makita 115-125 mm 682559-5 Power Cord Protection for Angle Grinder Makita 115-125 mm €2.07
60
photo_cameraImage coming soon 345280-4 WASHER HEXAGON €1.40
61
Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.47

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Percussion Drill HP2051F

MAKITA Original spare parts

 at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Percussion Drill HP2051F.

In the following table, look for the model of Drill and the respective parts of the code.
Makita HP2051F

Hammer Drill Makita HP2051F
# Part Num. Description
1 194254-0 CHUCK 13
2 285839-4 RETAINING BEARING X HP2050
3 324247-5 SHAFT HP2050
4 213314-0 SEAL OIL 19 HP2030
5 233921-3 SPRING COMPRESSION X HP2050
6 345224-4 WASHER X HP2050
7 211206-7 BEARING 6202V
8 223137-8 CAM A HP2050
9 233920-5 CIRCLIP 11 X HP2050
10 921923-8 SCREW M 8 X 120 X HR2020
11 417630-4 HANDLE BASE X X HR2020
12 153503-4 GRIP X MT811
13 266048-4 SCREW M 4 X 40 X 4334D
14 153379-9 GEAR HOUSING HP2050
15 227119-2 GEAR 29-37 X HP2071F
16 216040-0 BALL 3.5
17 256251-5 PIN 4 HP1500
18 418083-0 LEVER A X HP2071F
19 417802-1 HOLDER LEVER A HP2050
20 211012-0 BEARING X 9524NB
21 153622-6 GEAR CPL X HP2071F
22 211012-0 BEARING X 9524NB
23 421810-6 RING X HP2050
24 153620-0 COVER BOX ING. HP2071F
25 213122-9 RING 12 X HP2071F
26 417805-5 LEVER B HP2050
27 345225-2 LEVER LOCK X HP2050
28 256251-5 PIN 4 HP1500
29 232143-2 SPRING CROSSBOW HP2030
30 417804-7 HOLDER 12 X HP2050
31 268092-7 PIN 4 X HP2050
32 345223-6 HOLDER LEVER B HP2050
33 262087-2 RING 8 X 6823
34 210005-4 BALL BEARING 608 DDW
35 241881-5 FAN 52 X 6408
36 517414-1 ARMATURE HP2050
37 681636-0 INSULATION WASHER
38 211021-9 BALL BEARING 607LLB
39 421494-0 RUBBER 19 X 9521NB
40 417803-9 BAFFLE PLATE HP2050
41 266060-4 SCREW M4 X 65 JN1601
42 633528-9 STATOR 220V X HP2050
43 417806-3 CASING MOTOR X HP2051F
45 643989-5 BRUSH HOLDER X HR2020
46 191962-4 CARBON BRUSH CB-419 (406.407) 6408
48 689111-0 SPACER X HR2020
49 643988-7 BRUSH HOLDER X HR2020
50 645006-7 CAPACITOR X LS1013
51 646133-3 COIL X HP2050
52 650524-2 SWITCH X HP2050
53 153284-0 COVER GRIP X HR2020
54 265999-8 4X25 SCREW
55 687063-9 BOOT X 4304T
56 265995-6 SCREW M4X18 X 6408 / 6221DW
57 631471-6 CIRCUIT FOR LIGHT X HP2051F
58 682559-5 SAVE CABLE X 6822
60 345280-4 WASHER X HP2051F
61 263002-9 RUBBER PIN 4
