Makita Spare Parts for Orbital Sander BO5031

SKU: Makita BO5031
€6.73
VAT included

Makita Spare Parts for Orbital Sander BO5031

Distribution and Sale at attractive prices of MAKITA Original Spare Parts. Low prices and a professional Assistance guarantee, repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Orbital Sander BO5031.
Makita Spare Parts for Orbital Sander BO5031
  • Makita Spare Parts for Orbital Sander BO5031
  • Makita Spare Parts for Orbital Sander BO5031

Makita Spare Parts for Orbital Sander BO5031

SKU: Makita BO5031 Condition: New
€6.73
VAT included

Makita Spare Parts for Orbital Sander BO5031

Distribution and Sale at attractive prices of MAKITA Original Spare Parts. Low prices and a professional Assistance guarantee, repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Orbital Sander BO5031.
settings 35 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

34 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
2
photo_cameraImage coming soon 450810-9 TOP COVER BO5031 €4.73
3
Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
4
Noise Suppressor for Cut-Off Machine Makita 2412N 645006-7 Noise Suppressor for Cut-Off Machine Makita 2412N €2.14
5
photo_cameraImage coming soon 687052-4 CLAMP cable clamp X 6408 €5.40
6
photo_cameraImage coming soon 682502-4 CABLE SLEEVE 8/85 €4.09
8
Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 191962-4 Carbon Brushes Makita for Sanders BO4555-4556-4565-4566 €7.53
9
photo_cameraImage coming soon 643995-0 BRUSH BO4555 €3.52
10
photo_cameraImage coming soon 654532-5 TERMINAL BLOCK 6E / 1DS €3.76
11
photo_cameraImage coming soon 651527-9 INTERRUTTORE PER BO4555 €5.89
12
photo_cameraImage coming soon 424039-3 SWITCH COVER BO4555 €3.51
13
photo_cameraImage coming soon 450809-4 CASING MOTOR BO5031 €13.53
15
photo_cameraImage coming soon 633674-8 STATOR FOR BO5030 €13.53
16
photo_cameraImage coming soon 266147-2 SCREW M3 X10 4306 €2.74
17
Ball Bearing 607DDW for Laminate Trimmer Makita 3706 210017-7 Ball Bearing 607DDW for Laminate Trimmer Makita 3706 €8.46
18
photo_cameraImage coming soon 681652-2 INSULATING WASHER X JR180D €3.51
19
photo_cameraImage coming soon 515734-7 ARMATURE BO5030 €30.39
20
photo_cameraImage coming soon 267806-1 WASHER 9 BO4555 €3.51
21
Bearing 629DD FOR Angle Grinder Makita GA4530 211092-6 Bearing 629DD FOR Angle Grinder Makita GA4530 €9.01
22
photo_cameraImage coming soon 450672-5 HOLDER FOR BO5030 €2.76
23
Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
24
photo_cameraImage coming soon 241673-2 FAN 88 X BO5030 €6.43
25
photo_cameraImage coming soon 267164-5 WASHER 15 HP2040-2041-2042 €1.43
26
photo_cameraImage coming soon 188579-2 EDGE LOWER X BO5030 €6.17
27
Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
29
photo_cameraImage coming soon 318304-9 BEARING CASE BO5030 €4.59
30
Ball Bearing 6202DD for Demolition Hammer Makita HM1800 211228-7 Ball Bearing 6202DD for Demolition Hammer Makita HM1800 €8.71
31
photo_cameraImage coming soon 424131-5 RING BO5030 €6.43
32
photo_cameraImage coming soon 318303-1 COVER SCAT.CUSCINET.BO5030 €2.74
33
photo_cameraImage coming soon 253739-6 PLATE 4 X 6510SB €2.74
34
photo_cameraImage coming soon 911128-8 SCREW M4x16 X HR4000C €2.74
35
Round Base for Rotorbital Sanders Makita BO5030-5031 743081-8 Round Base for Rotorbital Sanders Makita BO5030-5031 €28.43
36
photo_cameraImage coming soon 911128-8 SCREW M4x16 X HR4000C €2.74
37
photo_cameraImage coming soon 631832-0 REGULATOR FOR BO5031 €42.74

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Orbital Sander BO5031

Distribution and Sale at attractive prices of MAKITA Original Spare Parts

. Low prices and a professional Assistance guarantee, repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Orbital Sander BO5031.

In the following table, look for the model of Orbital Sander and the respective parts of the code.
Makita BO5031

Orbital Sander Makita BO5031
# Part Num. Description
1 265995-6 SCREW M4X18 X 6408 / 6221DW
2 450810-9 TOP COVER BO5031
3 265995-6 SCREW M4X18 X 6408 / 6221DW
4 645006-7 CAPACITOR X LS1013
5 687052-4 CABLE CLAMP X 6408
6 682502-4 SLEEVE CABLE 8/85 6408
8 191962-4 CARBON BRUSH SET CB-419 (406.407) 6408
9 643995-0 BRUSH HOLDER BO4555
10 654532-5 TERMINAL BLOCK 6E / 1DS
11 651527-9 SWITCH X BO4555
12 424039-3 SWITCH COVER BO4555
13 450809-4 CASING MOTOR BO5031
14 866159-1 B05031 LABEL
15 633674-8 STATOR FOR BO5030
16 266147-2 SCREW M3 X10 4306
17 210017-7 607DDW BEARING
18 681652-2 INSULATING WASHER X JR180D
19 515734-7 ARMATURE BO5030
20 267806-1 WASHER 9 BO4555
21 211092-6 BALL BEARING 629DD
22 450672-5 HOLDER FOR BO5030
23 265995-6 SCREW M4X18 X 6408 / 6221DW
24 241673-2 FAN 88 X BO5030
25 267164-5 WASHER 15 HP2040-2041-2042
26 188579-2 EDGE LOWER X BO5030
27 265995-6 SCREW M4X18 X 6408 / 6221DW
29 318304-9 BOX BEARING BO5030
30 211228-7 BALL BEARING 6202DD
31 424131-5 RING FOR BO5030
32 318303-1 COVER BOX BEARING BO5030
33 253739-6 PLATE 4 X 6510SB
34 911128-8 SCREW M4x16 X HR4000C
35 743081-8 BASE 123 X BO5030 / 5031
36 911128-8 SCREW M4x16 X HR4000C
37 631832-0 REGULATOR FOR BO5031
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita BO5031
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

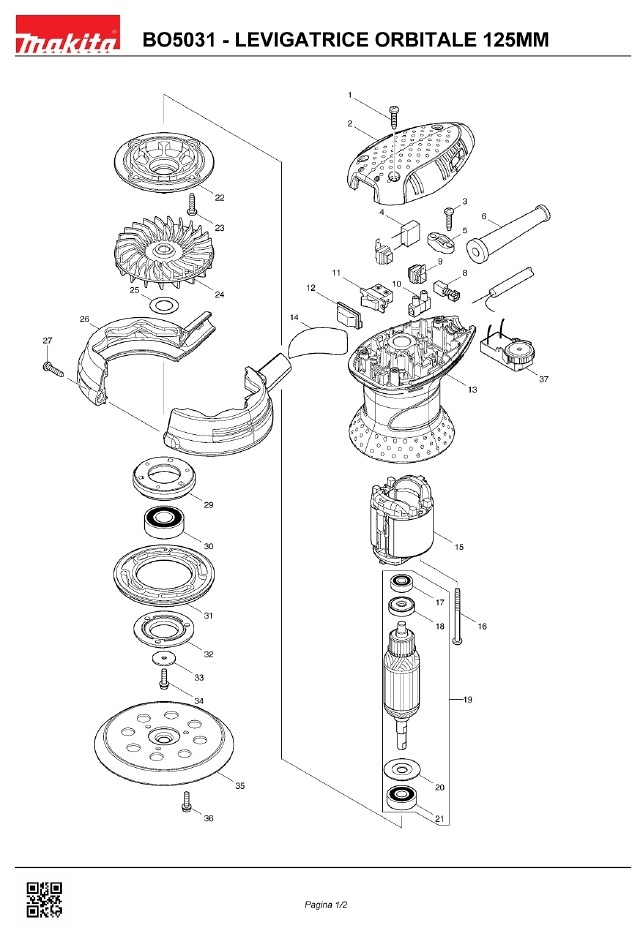

Diagram Makita BO5031

Diagram Makita BO5031

Download (281.88KB)
