Makita Spare Parts for CUT-OFF Machine 2414K
We supply original MAKITA spare parts on offer at unbeatable prices, we are a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for CUT-OFF Machine 2414K.

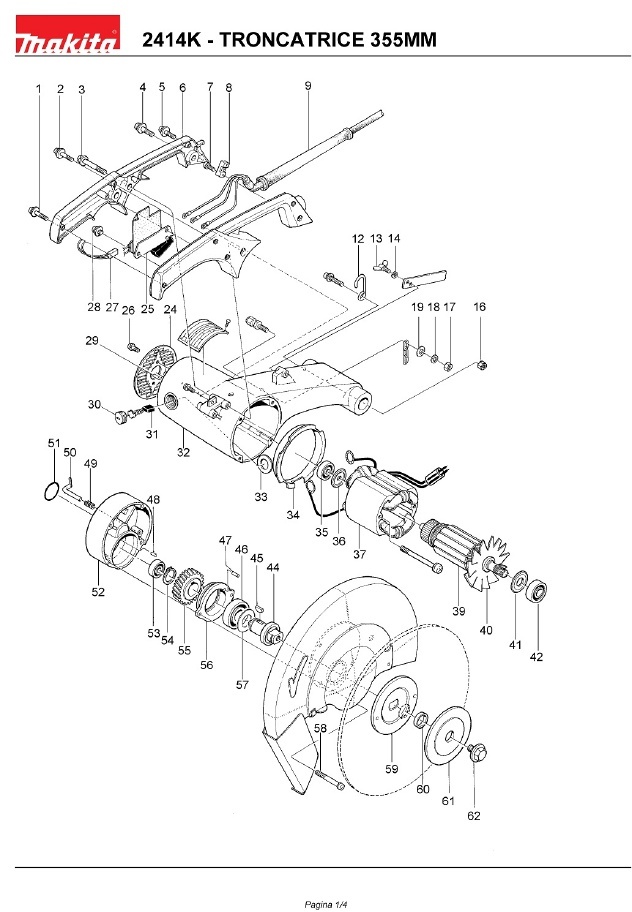

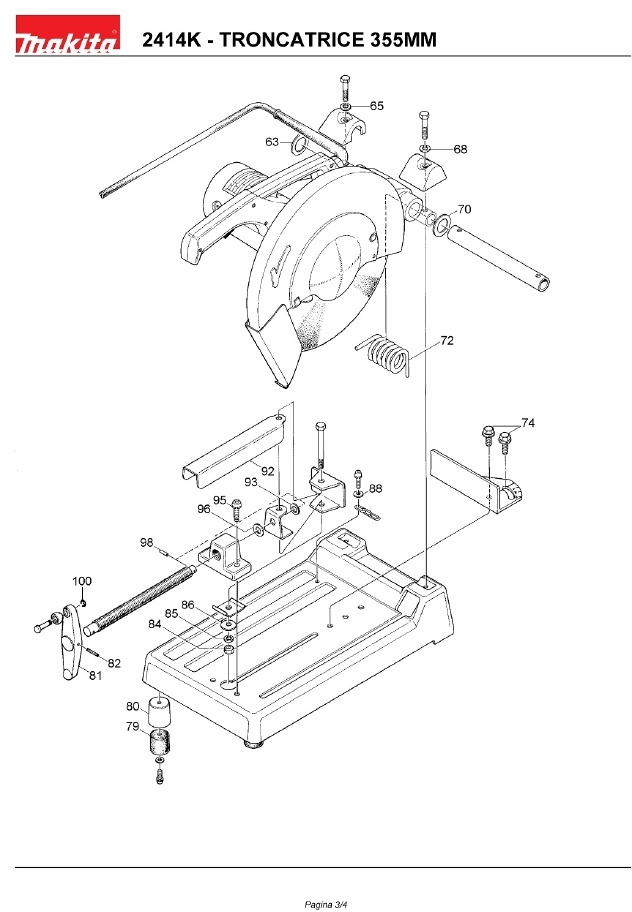

In the following table, look for the model of the CUT-OFF Machine and the respective parts of the code.
| Miter Saw Makita 2414K |
| # |
Part Num. |
Description |
| 1 |
911546-0 |
CILIND. HEAD SCREW M4x25 |
| 2 |
911546-0 |
CILIND. HEAD SCREW M4x25 |
| 3 |
911271-3 |
CILIND. HEAD SCREW M5x50 |
| 4 |
911251-9 |
CILIND. HEAD SCREW. M5x30 |
| 5 |
911546-0 |
CILIND. HEAD SCREW M4x25 |
| 6 |
182751-8 |
HANDLE COMP. 2412N / 14 |
| 7 |
911133-5 |
M4X18 SCREW |
| 8 |
687001-1 |
CLAMP cable tie |
| 9 |
682507-4 |
SLEEVE CABLE 12-200 |
| 12 |
322049-3 |
HOOK |
| 13 |
924206-5 |
BUTTERFLY SCREW M5X10 |
| 14 |
942101-7 |
WASHER 5 |
| 16 |
931301-4 |
HEX NUT M6 |
| 17 |
931301-4 |
HEX NUT M6 |
| 18 |
942151-2 |
WASHER 6 |
| 19 |
253011-6 |
FLAT WASHER 6 |
| 24 |
284010-7 |
COP. REAR |
| 25 |
651018-0 |
HPAHR2-3S SWITCH |
| 26 |
911211-1 |
SCREW M5x12 |
| 27 |
645006-7 |
CAPACITOR X LS1013 |
| 28 |
911101-8 |
HEAD SCREW CILIND. M4X6 |
| 29 |
263002-9 |
RUBBER PIN 4 |
| 30 |
643650-4 |
PLUG BRUSH HOLDER |
| 31 |
181044-0 |
CARBON BRUSCHES CB 153 |
| 32 |
156419-2 |
MOTOR HOUSING |
| 33 |
681002-1 |
INSULATING WASHER |
| 34 |
343299-7 |
GUIDE FAN 2412N / 14 |
| 35 |
211087-9 |
BALL BEARING 6200DDW |
| 36 |
213051-6 |
DUST WASHER 10 |
| 37 |
524878-2 |
STATOR |
| 39 |
514918-4 |
ARMATURE (WITH 35-36-40-41-42) |
| 40 |
241515-0 |
FAN 92 |
| 41 |
213202-1 |
DUST WASHER 15 |
| 42 |
211228-7 |
BALL BEARING 6202DD |
| 44 |
325517-5 |
TREE |
| 45 |
254032-1 |
CRESCENT KEY 5 |
| 46 |
211306-3 |
BALL BEARING 6204DD |
| 47 |
263005-3 |
RUBBER PIN 6 |
| 48 |
263002-9 |
RUBBER PIN 4 |
| 49 |
231240-1 |
SPRING 7 |
| 50 |
325518-3 |
LOCK DISC |
| 51 |
213460-9 |
SEAL 35 |
| 52 |
157331-9 |
GEAR BOX |
| 53 |
211061-7 |
BALL BEARING 6000DDW |
| 54 |
961060-6 |
RETAINING RING S20 |
| 55 |
221774-2 |
GEAR 41 |
| 56 |
157026-4 |
BOX BEARING |
| 57 |
253755-8 |
ROND. FLAT 20 |
| 58 |
911276-3 |
HEAD SCREW CILIND. M5X55 |
| 59 |
224141-0 |
FLANGE INT. 120 |
| 60 |
257054-0 |
RING 20 |
| 61 |
224142-8 |
FLANGE EST. 120 |
| 62 |
251680-7 |
BOLT C / BORDINO 10X25 |
| 63 |
253751-6 |
FLAT WASHER 24 |
| 65 |
942201-3 |
WASHER 8 |
| 68 |
942201-3 |
WASHER 8 |
| 70 |
253751-6 |
FLAT WASHER 24 |
| 72 |
231526-3 |
SPRING 26 |
| 74 |
265201-9 |
HEXAGON BOLT M10x25 |
| 79 |
411436-2 |
PILLOW 2412N / 14 |
| 80 |
342498-8 |
COVER PILLOW |
| 81 |
272021-4 |
KNOB |
| 82 |
951163-4 |
PIN 5-20 X2414K |
| 84 |
931402-8 |
NUT M8 |
| 85 |
942201-3 |
WASHER 8 |
| 86 |
253752-4 |
FLAT WASHER 8 |
| 88 |
253011-6 |
FLAT WASHER 6 |
| 92 |
342497-0 |
PIVOT COVERS |
| 93 |
253753-2 |
FLAT WASHER 12 |
| 95 |
911451-1 |
HEAD SCREW CILIND. M8x30 |
| 96 |
253744-3 |
FLAT WASHER 12 |
| 98 |
951116-3 |
PIN 4-20 |
| 100 |
961012-7 |
RETAINING RING E6 |
