Makita Spare Parts for Cordles Angle Grinder BGA452SFE

SKU: Makita BGA452SFE
€34.02
VAT included

Makita Spare Parts for Cordless Angle Grinder BGA452SFE

Makita Genuine spare parts or replacement parts for to repair Cordless Angle Grinder BGA452SFE.

Fix Your Cordless Angle Grinder BGA452SFE. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Makita Spare Parts for Cordles Angle Grinder BGA452SFE
  • Makita Spare Parts for Cordles Angle Grinder BGA452SFE
  • Makita Spare Parts for Cordles Angle Grinder BGA452SFE

Makita Spare Parts for Cordles Angle Grinder BGA452SFE

SKU: Makita BGA452SFE Condition: New
€34.02
VAT included

Makita Spare Parts for Cordless Angle Grinder BGA452SFE

Makita Genuine spare parts or replacement parts for to repair Cordless Angle Grinder BGA452SFE.

Fix Your Cordless Angle Grinder BGA452SFE. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

settings 44 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

44 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
Armature for Cordless Angle Grinder Makita BGA452SFE 619218-8 Armature for Cordless Angle Grinder Makita BGA452SFE €18.00
2
photo_cameraImage coming soon 317821-6 COVER SCAT.INGR. FOR 9554NB €8.12
3
O-Ring 26 for Powertools Makita 213445-5 O-Ring 26 for Powertools Makita €1.95
4
photo_cameraImage coming soon 961005-4 RETAINING RING S9 €2.34
5
photo_cameraImage coming soon 210042-8 BEARING FOR 629LLB GD0600 €5.93
6
photo_cameraImage coming soon 227501-5 GEAR FOR BGA452S €21.52
7
Button Pin Disc Block for Angle Grinder Makita 9554NB 417771-6 Button Pin Disc Block for Angle Grinder Makita 9554NB €3.18
8
photo_cameraImage coming soon 233072-2 COMPRESSION SPRING 8 X 9541 €1.40
9
photo_cameraImage coming soon 266361-0 4 SCREW FOR 30 PER 9554NB €2.28
10
OR Ring mm 5 for Pin Disc Block for Angle Grinder Makita 9554NB 213960-9 OR Ring mm 5 for Pin Disc Block for Angle Grinder Makita 9554NB €1.43
11
Pin Disc Block for Cordless Angle Grinder Makita BGA450RFE 256496-5 Pin Disc Block for Cordless Angle Grinder Makita BGA450RFE €3.35
12
Gear Housing for Angle Grinder Makita BGA450RFE 318051-2 Gear Housing for Angle Grinder Makita BGA450RFE €9.24
13
Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.47
14
Bearing 696ZZ FOR Angle Grinder Makita GA4530 210033-9 Bearing 696ZZ FOR Angle Grinder Makita GA4530 €3.35
15
Retaining Ring S12 for Power Tools Makita 961052-5 Retaining Ring S12 for Power Tools Makita €1.40
16
Hard Washer 12 for Reciprocating Saw Makita JR3070CT 253744-3 Hard Washer 12 for Reciprocating Saw Makita JR3070CT €1.48
17
photo_cameraImage coming soon 227502-3 GEAR FOR 39 BGA452S €15.35
18
Retaining Ring R32 for Powertools Makita 962151-6 Retaining Ring R32 for Powertools Makita €1.43
19
Bearing 6201DD NSK for Powertools Makita 211129-9 Bearing 6201DD NSK for Powertools Makita €8.41
20
photo_cameraImage coming soon 267238-2 WASHER 12 MT952 €2.39
21
photo_cameraImage coming soon 213622-9 RING FOR 9554NB 45 €2.40
22
photo_cameraImage coming soon 318331-6 BEARING CASE 9554NB €5.69
23
photo_cameraImage coming soon 911121-2 SCREW M4X14X N9500N €2.28
24
photo_cameraImage coming soon 345464-4 RING FOR DUST 9554NB €1.40
25
Woodruf Key mm 4x7,95x4,97 for Angle Grinder Makita 9554NB 254011-9 Woodruf Key mm 4x7,95x4,97 for Angle Grinder Makita 9554NB €1.38
26
photo_cameraImage coming soon 324489-1 SPINDLE 9554NB €6.49
27
photo_cameraImage coming soon 265180-1 SCREW M5x16 €1.40
28
Disc Protection for Angle Grinder Makita 9554NB 123098-1 Disc Protection for Angle Grinder Makita 9554NB €16.64
29
Inner Flange for Angle Grinder Makita 115-125 mm 224415-9 Inner Flange for Angle Grinder Makita 115-125 mm €8.23
30
Upper Flange for Angle Grinders Makita 115-125 mm 224554-5 Upper Flange for Angle Grinders Makita 115-125 mm €8.23
31
photo_cameraImage coming soon 631714-6 LED CIRCUIT BGA452S €15.35
32
photo_cameraImage coming soon 638627-2 YORK UNIT BGD800R €38.32
33
Carbon Brushes Holder for Angle Grinders Makita BGA452S 638921-2 Carbon Brushes Holder for Angle Grinders Makita BGA452S €8.23
35
Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 266326-2 Strain Relief Screw M4x16 for Angle Grinder Makita GA4530 €1.47
36
Switch Lever Button for Angle Grinder Makita 9554-9555 419566-3 Switch Lever Button for Angle Grinder Makita 9554-9555 €2.51
37
photo_cameraImage coming soon 188761-3 MOTOR HOUSING BGA452S €33.04
38
photo_cameraImage coming soon 419519-2 LEVER SWITCH BGA452S €3.05
39
photo_cameraImage coming soon 650579-7 SWITCH 1246.3223 €15.35
41
photo_cameraImage coming soon 643838-6 BATTERY TERMINAL €3.79
43
Carbon Brushes CB-430 for Cordless Angle Grinders Makita BGA450-452RFE 191971-3 Carbon Brushes CB-430 for Cordless Angle Grinders Makita BGA450-452RFE €8.23
44
Carbon Brush Holder Cap for Cordless Drill Makita 6347D 643807-7 Carbon Brush Holder Cap for Cordless Drill Makita 6347D €2.51
45
Carbon Brush Holder Cap for Cordless Angle Grinders Makita BGA450RFE 419518-4 Carbon Brush Holder Cap for Cordless Angle Grinders Makita BGA450RFE €2.51
46
photo_cameraImage coming soon 421977-0 RUBBER RING 13 X BGA452 €2.28
48
photo_cameraImage coming soon 213009-5 RING 4 €1.40

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Cordless Angle Grinder BGA452SFE

Fix Your Cordless Angle Grinder BGA452SFE. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Cordles Angle Grinder and the respective parts of the code.
Makita BGA452SFE

Cordles Angle Grinder BGA452SFE
# Part Num. Description
1 619218-8 ARMATURE BGA452S
2 317821-6 GEAR HOUSING COVER 9554NB
3 213445-5 O-RING 26 X 9554NB
4 961005-4 EXT DIN 471 CIRCLIP-9
5 210042-8 BALL BEARING 629LLB GD0600
6 227501-5 SPIRAL BEVEL GEAR 19 BGA452S
7 417771-6 BUTTON X MT952
8 233072-2 COMPRESSION SPRING 8 X 9541
9 266361-0 SCREW 4 X 30 X 9554NB
10 213960-9 O-RING 5 X 9554NB
11 256496-5 PIN 4 BGA452S
12 318051-2 GEAR BOX BGA452S
13 263002-9 PIN RUBBER 4
14 210033-9 BEARING 696ZZ X 2107FK
15 961052-5 RETAINER RING S12
16 253744-3 FLAT WASHER 12 24B / 12N / 14
17 227502-3 GEAR FOR 39 BGA452S
18 962151-6 RETAINER RING R32
19 211129-9 BALL BEARING NSK 6201DD
20 267238-2 WASHER 12 X MT952
21 213622-9 RING 45 X 9554NB
22 318331-6 BEARING BOX X 9554NB
23 911121-2 SCREW M4X14X N9500N
24 345464-4 RING DUST X 9554NB
25 254011-9 KEY 4
26 324489-1 SPINDLE X 9554NB
27 265180-1 SCREW M5X16
28 123098-1 WHEEL COVER 115AK
29 224415-9 RECIEVE WASHER 42 GA95010
30 224554-5 CLAMP WASHER 14-45 X 9541
31 631714-6 LED CIRCUIT BGA452S
32 638627-2 FIELD BGD800R
33 638921-2 CARBON BRUSHE HOLDER BGA452S-450
35 266326-2 SCREW 4x18 X MT601
36 419566-3 SWITCH BUTTON 9554NB
37 188761-3 MOTOR HOUSING BGA452S
38 419519-2 SWITCH LEVER BGA452S
39 650579-7 SWITCH 1246.3223
41 643838-6 BATTERY TERMINAL
43 191971-3 CARBON BRUSH SET CB-430
44 643807-7 HOLDER CAP 6347D
45 419518-4 COVER CAP BRUSH
46 421977-0 RUBBER RING 13 X BGA452
48 213009-5 RING 4
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita BGA452SFE
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

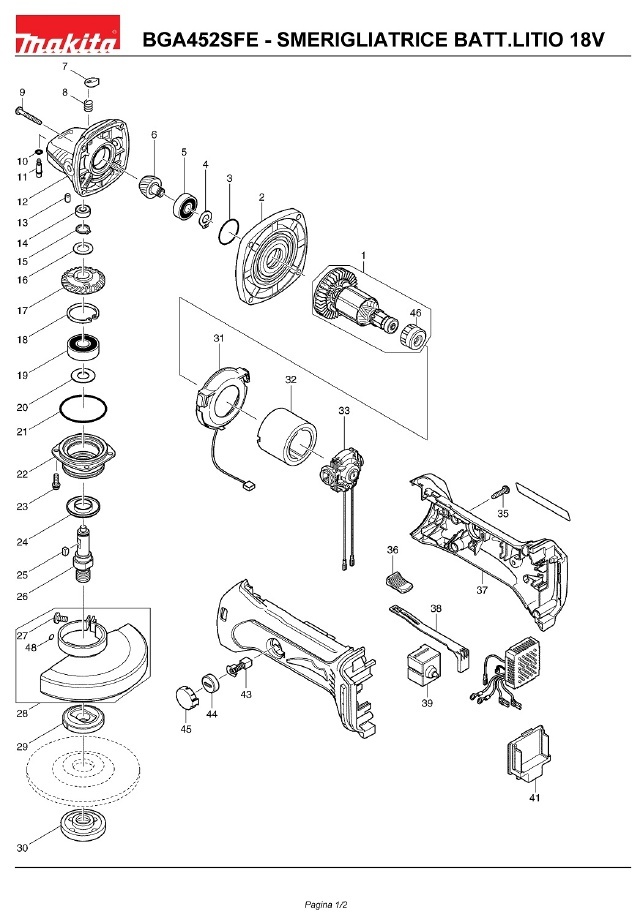

Diagram Makita BGA452SFE
