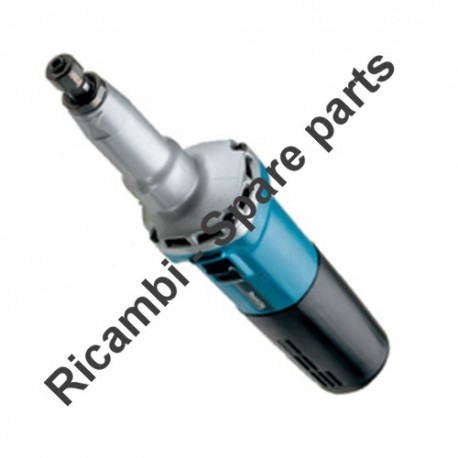

Makita Spare Parts for Die Grinder GD0810C
MAKITA Genuine Parts and Accessories, Professional Tech Service, repair and after-sales service with great professional skills necessary to follow you and advise you on the purchase of spare parts that are most suitable for solving your repair and maintenance problems for Die Grinder GD0810C.
In the following table, look for the model of the Die Grinder and the respective parts of the code.
| Die Grinder GD0810C |
| # |
Part Num. |
Description |
| 1 |
763645-2 |
LOCK NUT X GD0810C |
| 2 |
193012-1 |
BUSH 6 X GD0800C |
| 3 |
324042-3 |
SHAFT X GD0800C |
| 4 |
213209-7 |
RING 16 X 6510SB |
| 5 |
285700-5 |
RETAINING BEARING X GD0800C |
| 6 |
211141-9 |
BEARING 6901LLB X GD0800C |
| 7 |
961052-5 |
RETAINING RING S12 |
| 8 |
317369-8 |
CANNON X GD0810C |
| 9 |
961052-5 |
RETAINING RING S12 |
| 10 |
211142-7 |
BEARING 6001LLB X GD0800C |
| 11 |
962106-1 |
RETAINING RING R28 |
| 12 |
233901-9 |
SPRING 12 X GD0800C |
| 13 |
226531-3 |
GEAR 25 X GD0810C |
| 14 |
265082-1 |
SCREW M4 X 8 X GD0800C |
| 15 |
417363-1 |
COVER GEAR X GD0810C |
| 16 |
213611-4 |
RING 46 X GD0810C |
| 17 |
962106-1 |
RETAINING RING R28 |
| 18 |
961052-5 |
RETAINING RING S12 |
| 19 |
211142-7 |
BEARING 6001LLB X GD0800C |
| 20 |
253084-9 |
WASHER P.12 8419B / 5016NB |
| 21 |
317367-2 |
BEARING BOX X GD0800C |
| 22 |
240036-9 |
FAN 57 X GD0800C |
| 23 |
515214-3 |
ARMATURE X GD0810C |
| 24 |
681656-4 |
INSULATING WASHER X GD0810C |
| 25 |
253823-7 |
WASHER FLAT 7 X JS1600 |
| 26 |
210023-2 |
BEARING 9910/11 |
| 28 |
421770-2 |
RUBBER RING 22 X GD0800C |
| 29 |
688117-5 |
COMPASS X GD0800C |
| 30 |
259039-2 |
LOCKING 6 X 9566CV |
| 31 |
413076-2 |
BAFFLE X GD0800C |
| 32 |
266259-1 |
SCREW M 4 X 60 X GD0800C |
| 33 |
344871-8 |
RETAINING X GD0800C |
| 34 |
417237-6 |
COVER INSULATION X GD0800C |
| 35 |
626529-4 |
STATOR X GD0810C |
| 39 |
266256-7 |
SCREW 3 X 10 X GD0800C |
| 40 |
643760-7 |
BRUSH X BO6040 |
| 41 |
191978-9 |
CARBON BRUSHE SET CB 318 |
| 42 |
265995-6 |
SCREW M4X18 X 6408 / 6221DW |
| 43 |
687052-4 |
CLAMP Cable tie X 6408 |
| 44 |
632945-0 |
LOCK SWITCH X GD0800C |
| 46 |
682559-5 |
SAVE CABLE X 6822 |
| 47 |
651418-4 |
SWITCH ST115A-40 X 9541 |
| 48 |
687113-0 |
COVER X GD0800C |
| 50 |
417185-9 |
BACK COVER X GD0800C |
| 51 |
265995-6 |
SCREW M4X18 X 6408 / 6221DW |
| 52 |
631391-4 |
CONTROL X GD0800C |
| 53 |
417187-5 |
LEVER SWITCH X GD0800C |
| 54 |
233071-4 |
SPRING COMPRESSION 4 X 9541 |
| 55 |
643974-8 |
BRUSH X BO6040 |
| 56 |
417812-8 |
CASING MOTOR BO6040 |
| 58 |
417813-6 |
CONTROL SWITCH X GD0800C |
| 59 |
265999-8 |
SCREW 4X25 |
| 60 |
763646-0 |
BUSH HOLDER 6 X GD0800C |
