Makita Spare Parts for Circular Saw for Metal 4131

SKU: Makita 4131
€71.79
VAT included

Makita Spare Parts for Circular Saw for Metal 4131

MAKITA service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Circular Saw for Metal 4131.
Makita Spare Parts for Circular Saw for Metal 4131
  • Makita Spare Parts for Circular Saw for Metal 4131
  • Makita Spare Parts for Circular Saw for Metal 4131

Makita Spare Parts for Circular Saw for Metal 4131

SKU: Makita 4131 Condition: New
€71.79
VAT included

Makita Spare Parts for Circular Saw for Metal 4131

MAKITA service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Circular Saw for Metal 4131.
settings 87 spare parts

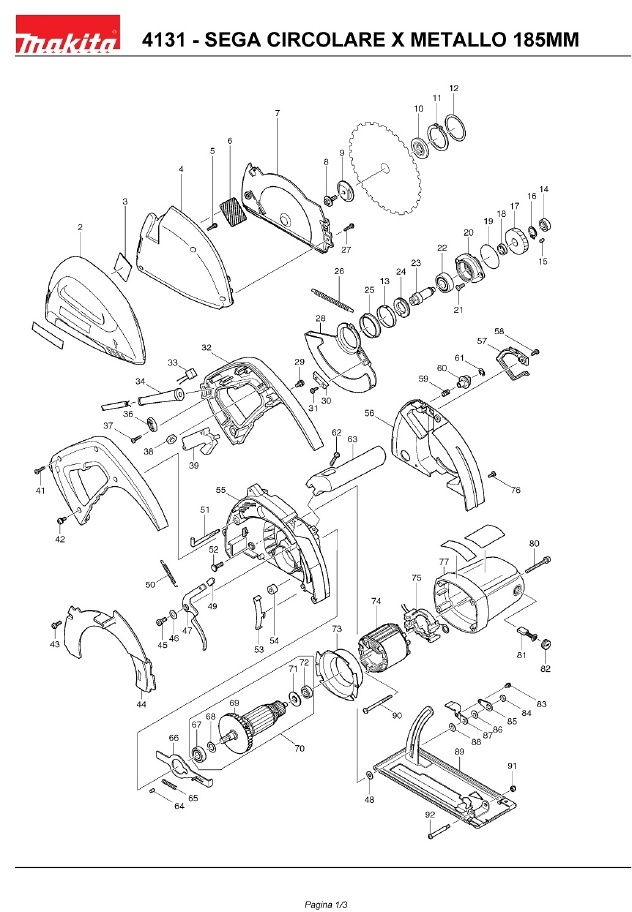

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

81 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon 183837-1 COVER BOX X 4131 €10.01
3
photo_cameraImage coming soon 431005-3 SLIDE X 4131 €13.30
4
photo_cameraImage coming soon 317776-5 BOX POWDER X 4131 €17.09
5
Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
6
photo_cameraImage coming soon 343760-4 COVER METALLIC X 4131 €2.61
7
photo_cameraImage coming soon 317777-3 DUST X 4131 €13.30
8
photo_cameraImage coming soon 266458-5 SCREW M 6 X 18 X 4131 €2.58
9
photo_cameraImage coming soon 224366-6 EXTERNAL FLANGE 40 X 4131 €5.90
10
photo_cameraImage coming soon 224370-5 INNER FLANGE 40 X 5704R €11.59
11
photo_cameraImage coming soon 961201-4 RETAINING RING S42 €2.53
12
photo_cameraImage coming soon 267784-5 WASHER 42 X 4131 €1.38
13
photo_cameraImage coming soon 343759-9 RING THICKNESS X 4131 €2.12
14
photo_cameraImage coming soon 211031-6 BEARING 608 €6.55
15
Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.47
16
Ext DIN471 Circlip-15 for Makita Power Tools 961055-9 Ext DIN471 Circlip-15 for Makita Power Tools €1.47
17
photo_cameraImage coming soon 226591-5 GEAR 48 X 4131 €11.66
18
photo_cameraImage coming soon 257053-2 RING 15 X 6510PBL / LVR €1.79
19
photo_cameraImage coming soon 213621-1 RING 46 X 4157KB €2.40
20
photo_cameraImage coming soon 316579-4 BEARING BOX X 4131 €8.86
22
Ball Bearing 6202DD for Demolition Hammer Makita HM1800 211228-7 Ball Bearing 6202DD for Demolition Hammer Makita HM1800 €8.71
23
photo_cameraImage coming soon 324475-2 SHAFT X 4131 €11.66
24
photo_cameraImage coming soon 285807-7 BEARING 22-36 €2.44
27
Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
28
photo_cameraImage coming soon 317775-7 CAP BLADE X 4131 €15.11
29
photo_cameraImage coming soon 911213-7 SCREW M5X12 X 5143R €1.36
30
photo_cameraImage coming soon 344944-7 PLATE 5017RKB €2.61
31
photo_cameraImage coming soon 266026-4 SCREW M4 X 12 €2.74
32
photo_cameraImage coming soon 183826-6 HANDLE REAR X 4131 €17.09
33
Capacitor for Angle Grinder Makita GA4530 645200-1 Capacitor for Angle Grinder Makita GA4530 €2.65
34
photo_cameraImage coming soon 682503-2 SLEEVE PROTECTING_COVER X HM1500 €2.69
36
photo_cameraImage coming soon 687052-4 CLAMP cable clamp X 6408 €5.40
37
Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
39
photo_cameraImage coming soon 651057-0 SWITCH TG71CL-2 X KP312 €25.76
41
Tapping Screw M4X18 for Cordless Drill Makita 6221DW 265995-6 Tapping Screw M4X18 for Cordless Drill Makita 6221DW €1.46
42
photo_cameraImage coming soon 911213-7 SCREW M5X12 X 5143R €1.36
43
photo_cameraImage coming soon 911223-4 HEAD SCREW CILIND. M5X16 €1.44
44
photo_cameraImage coming soon 317778-1 PROTECTION BLADE X 4131 €11.66
45
photo_cameraImage coming soon 251267-5 SCREW M6 €1.96
46
photo_cameraImage coming soon 941201-0 FLAT WASHER 8 €3.18
47
photo_cameraImage coming soon 345421-2 LEVER FOR OPENING 4131 €2.61
48
photo_cameraImage coming soon 253783-3 FLAT WASHER 6 €3.18
49
photo_cameraImage coming soon 421676-4 HOOD RUBBER X 5017RKB €1.41
50
photo_cameraImage coming soon 231823-7 SPRING TENSION 4 X 5017RKB €1.41
51
photo_cameraImage coming soon 324476-0 HOOK X 4131 €7.71
52
photo_cameraImage coming soon 266031-1 SCREW M6 X 20 X 4131 €1.79
53
photo_cameraImage coming soon 343758-1 PROTECTION X 4131 €2.12
54
photo_cameraImage coming soon 262511-5 RUBBER REDUCTION X HM1300 €3.18
55
photo_cameraImage coming soon 153924-0 CARCASS ING. CPL X 4131 €48.51
56
photo_cameraImage coming soon 418612-9 COVER HOUSING INGR.X 413 €7.71
57
photo_cameraImage coming soon 418613-7 COVER CABLES X 4131 €1.79
58
photo_cameraImage coming soon 266026-4 SCREW M4 X 12 €2.74
60
photo_cameraImage coming soon 271421-5 TUBE 23 X 4131 €2.12
61
photo_cameraImage coming soon 961017-7 RING E-3 X 4305T €3.76
62
photo_cameraImage coming soon 911243-8 SCREW M5x25 HR2010 €1.40
63
photo_cameraImage coming soon 415469-9 FRONT HANDLE X 4131 €7.71
64
Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.47
65
photo_cameraImage coming soon 233092-6 COMPRESSION SPRING 5 €3.18
66
photo_cameraImage coming soon 343832-5 BLADE LOCKING DEVICE X 4131 €3.02
67
Ball Bearing 6001DD for Makita 9218S 211131-2 Ball Bearing 6001DD for Makita 9218S €6.29
68
Hard Washer 12 for Reciprocating Saw Makita JR3070CT 253744-3 Hard Washer 12 for Reciprocating Saw Makita JR3070CT €1.48
69
Fan 76 for Rotary Hammer Makita HR4001C 241876-8 Fan 76 for Rotary Hammer Makita HR4001C €7.77
70
photo_cameraImage coming soon 513578-9 ARMATURE X 4131 €64.96
71
photo_cameraImage coming soon 681634-4 INSULATING WASHER X 4131 €1.93
72
photo_cameraImage coming soon 211031-6 BEARING 608 €6.55
73
photo_cameraImage coming soon 415467-3 VANE X 4131 €1.79
74
photo_cameraImage coming soon 634513-5 STATOR X 4131 €15.11
75
photo_cameraImage coming soon 638358-3 FULL SUPPORT X 4131 €5.24
76
photo_cameraImage coming soon 266026-4 SCREW M4 X 12 €2.74
77
photo_cameraImage coming soon 159685-0 HOUSING MOTOR X 4131 €25.15
80
photo_cameraImage coming soon 911263-2 HEAD SCREW CILIND. €1.47
81
Carbon Brushes CB-303 for Belt Sander Makita 9920X 191963-2 Carbon Brushes CB-303 for Belt Sander Makita 9920X €9.96
82
Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C 643750-0 Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C €2.51
83
photo_cameraImage coming soon 911108-4 SCREW M4X8 X 5103R €3.18
84
photo_cameraImage coming soon 252135-5 NUT x 4131 €2.12
86
photo_cameraImage coming soon 253804-1 WASHER 6 X LS1013 €1.40
87
photo_cameraImage coming soon 342907-7 LEVER X 4131 €1.79
88
photo_cameraImage coming soon 253804-1 WASHER 6 X LS1013 €1.40
89
photo_cameraImage coming soon 165387-8 BASE X 4131 €35.35
90
photo_cameraImage coming soon 266029-8 SCREW M5X65 €3.41
91
photo_cameraImage coming soon 252103-8 LOCKNUT X JR3020 €3.18
92
photo_cameraImage coming soon 265075-8 SCREW M5 X 5704R €5.24

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Circular Saw for Metal 4131

MAKITA service center and original spare parts

 Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Circular Saw for Metal 4131.

In the following table, look for the model of the Angle Cutting and the respective parts of the code.

Circular Saw for Metal 4131
# Part Num. Description
2 183837-1 COVER BOX X 4131
3 431005-3 SLIDE X 4131
4 317776-5 BOX POWDER X 4131
5 265995-6 SCREW M4X18 X 6408 / 6221DW
6 343760-4 COVER METALLIC X 4131
7 317777-3 DUST X 4131
8 266458-5 SCREW M 6 X 18 X 4131
9 224366-6 EXTERNAL FLANGE 40 X 4131
10 224370-5 FLANGE INTERNAL 40 X 5704R
11 961201-4 RETAINING RING S42
12 267784-5 WASHER 42 X 4131
13 343759-9 RING THICKNESS X 4131
14 211031-6 BEARING 608 X 4304T-4305T
15 263002-9 PIN RUBBER 4
16 961055-9 RETAINING RING S15
17 226591-5 GEAR 48 X 4131
18 257053-2 RING 15 X 6510PBL / LVR
19 213621-1 RING 46 X 4157KB
20 316579-4 BEARING BOX X 4131
21 251372-8 SCREW M 5 X 12 X BJR240
22 211228-7 BALL BEARING 6202DD
23 324475-2 SHAFT X 4131
24 285807-7 BEARING 22-36
25 346880-3 DISTANCE
26 231891-0 SPRING TENSION 4
27 265995-6 SCREW M4X18 X 6408 / 6221DW
28 317775-7 CAP BLADE X 4131
29 911213-7 SCREW M5x12 X 5143R
30 344944-7 PLATE 5017RKB
31 266026-4 SCREW M4 X 12
32 183826-6 HANDLE REAR X 4131
33 645200-1 CAPACITOR
34 682503-2 SLEEVE PROTECTING_COVER X HM1500
36 687052-4 CLAMP Cable tie X 6408
37 265995-6 SCREW M4X18 X 6408 / 6221DW
38 421492-4 SPONGE X 4131
39 651057-0 SWITCH TG71CL-2 X KP312
41 265995-6 SCREW M4X18 X 6408 / 6221DW
42 911213-7 SCREW M5x12 X 5143R
43 911223-4 HEAD SCREW CILIND. M5X16
44 317778-1 PROTECTION BLADE X 4131
45 251267-5 SCREW M6
46 941201-0 FLAT WASHER 8
47 345421-2 LEVER FOR OPENING 4131
48 253783-3 FLAT WASHER 6
49 421676-4 HOOD RUBBER X 5017RKB
50 231823-7 SPRING TENSION 4 X 5017RKB
51 324476-0 HOOK X 4131
52 266031-1 SCREW M6 X 20 X 4131
53 343758-1 PROTECTION X 4131
54 262511-5 REDUCTION RUBBER X HM1300
55 153924-0 CARCASS ING. CPL X 4131
56 418612-9 COVER HOUSING INGR.X 413
57 418613-7 COVER CABLES X 4131
58 266026-4 SCREW M4 X 12
59 231402-1 SPRING COMP. 7 X 9079S
60 271421-5 TUBE 23 X 4131
61 961017-7 RING-3 X 4305T
62 911243-8 SCREW M5x25 HR2010
63 415469-9 FRONT HANDLE X 4131
64 263002-9 PIN RUBBER 4
65 233092-6 SPRING COMPRESSION 5
66 343832-5 BLADE LOCKING DEVICE X 4131
67 211131-2 BALL BEARING 6001DD
68 253744-3 ROND.PIANA 12 24B / 12N / 14
69 241876-8 FAN 76
70 513578-9 ARMATURE X 4131
71 681634-4 INSULATING WASHER X 4131
72 211031-6 BEARING 608 X 4304T-4305T
73 415467-3 VANE X 4131
74 634513-5 STATOR X 4131
75 638358-3 FULL SUPPORT X 4131
76 266026-4 SCREW M4 X 12
77 159685-0 HOUSING MOTOR X 4131
80 911263-2 HEAD SCREW CILIND. M5x40
81 191963-2 CARBON BRUSHES CB-303
82 643750-0 PLUG BRUSH HOLDER
83 911108-4 SCREW M4X8 X 5103R
84 252135-5 NUT x 4131
85 341718-7 PLATE BLOC.XSR16 / 1800
86 253804-1 WASHER 6 X LS1013
87 342907-7 LEVER X 4131
88 253804-1 WASHER 6 X LS1013
89 165387-8 BASE X 4131
90 266029-8 SCREW M5X65
91 252103-8 NUT X JR3020
92 265075-8 SCREW M5 X 5704R
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita 4131
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita 4131

Diagram Makita 4131

Download (322.33KB)

You might also like

Makita SKU: Makita HP1640
Impact Drill 680W Makita HP1640 HP1640 - Hammer Drill Selector for exclusion percussion Electronic switch Reversible Ergonomic handle covered with soft grip Technical Data - Capacity hole: Ø 13 mm metal - wood Ø 30 mm - Ø 16 mm cement...
Last items in stock €136.01
Makita SKU: Makita HP2051
Impact Drill 720W Makita HP2051 HP2051 - Hammer Drill 2 Speed - 2 functions: rotation, rotation and striking - Electronic switch - 2-speed mechanical - Reversible - coated grip slip Softgrip - Safety Clutch - Collar diameter 42 mm,...
Last items in stock €240.82
Makita SKU: Makita DHP453RYE
Cordless Drill Makita 18V DHP453RYE Cordless drill 18V LI-ION 1.5 Ah features - Ergonomic soft grip coating - Group metal gears - Chuck - Engine Brake - 2 gears
Last items in stock €409.48
Polisher Sander Makita SA7000C -15% Sale
Makita SKU: Makita SA7000C
Polisher Sander Makita SA7000C Sander - Polisher 1600 Watt platorelo 180 mm, equipped with powerful engine. The brushes are externally accessible for convenient replacement. The pad allows you to install both the sandpaper sheets of...
AVAILABLE €290.58 €341.86
Makita SKU: 650213-9
Switch for Polisher Sander Makita SA7000C Genuine spare part Makita, Switch TG71ARS for Polisher Sander Makita SA7000C Part for the following products: -  SA7000C - POLISHER DIAM.180 1500/4000 Tech Data: - Type : TG71ARS - Code :...
Last items in stock €32.80
Makita SKU: 195844-2
Carbon Brushes Makita for Makita Hammers HM-HR Genuine part MAKITA, Carbon Brushe Set CB-175 old CB-171 for repair Hammers and Rotary Hammers HM1101C - HM1111C - HM1203C - HR4501C - HR4510C - HR5201C - HR5201C. Part For the following...
AVAILABLE €11.59
Makita SKU: 213460-9
O-Ring 35 for Demolition Hammers Makita HR 4501-10-11C Genuine spare part Makita, O-Ring 35 for SDS Max Rotary Demolition Hammers HR4501C  - HR4510C - HR4511C - HR5201C - HR5210C - HR5211C - HR5212C. Part for the following...
AVAILABLE €3.29
Makita SKU: 643750-0
Carbon Brush Holder Cap for Hammer Makita HM1100 - HM1100C Genuine part MAKITA, Carbon Brush Holder Cap for Hammers HM1100 - HM1100C - Angle Grinder  GA6021C - GA6020 - Circular Saw 5703R. Parts for the following products: - 2107FK -...
Last items in stock €2.51
Makita SKU: 211131-2
Ball Bearing 6001DD for Makita 9218S Genuine part Makita, Ball Bearing 6001DD for 9218S. Part for the following products: - Reciprocating Saw JR3070CT - Reciprocating Saw JR3060T...
AVAILABLE €6.29
Makita SKU: 241876-8
Fan 76 for Rotary Hammer Makita HR4001C Genuine part MAKITA, Seal Ring for Rotary Hammers HR4001C - HR4010C - HR4011C Part for the following products: -  HR4000C - ROTARY HAMMER MAKITA -  HR4001C - ROTARY HAMMER SDS-MAX 40MM  -...
Last items in stock €7.77
Comments (0)
