Makita Spare Parts for Drill 6501

SKU: Makita 6501
€37.19
VAT included

Makita Spare Parts for Drill 6501

Makita original replacement parts for to replace broken parts for to fix Drill 6501.

Makita Spare Parts for Drill 6501
  • Makita Spare Parts for Drill 6501
  • Makita Spare Parts for Drill 6501

Makita Spare Parts for Drill 6501

SKU: Makita 6501 Condition: New
€37.19
VAT included

Makita Spare Parts for Drill 6501

Makita original replacement parts for to replace broken parts for to fix Drill 6501.

settings 15 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

14 spare parts
Pos. Item Price Buy
2
Gear Ass'y for Drill Makita 6501 153178-9 Gear Ass'y for Drill Makita 6501 €37.21
3
photo_cameraImage coming soon 214017-9 BEARING 5 €1.87
4
photo_cameraImage coming soon 211016-2 BALL BEARING 626DD €7.03
5
photo_cameraImage coming soon 241508-7 FAN €2.22
6
photo_cameraImage coming soon 517033-3 ARMATURE €56.11
8
photo_cameraImage coming soon 633033-6 STATOR €12.24
9
photo_cameraImage coming soon 191914-5 CARBON BRUSHES CB-70 €4.29
10
photo_cameraImage coming soon 632073-1 HOLDER REAR INDUCED €8.09
11
Motor Housing Complete for Drill Makita 6501 183209-0 Motor Housing Complete for Drill Makita 6501 €29.40
12
photo_cameraImage coming soon 651268-7 SWITCH SGEL206C-2 €6.19
13
Noise Suppressor for Cut-Off Machine Makita 2412N 645006-7 Noise Suppressor for Cut-Off Machine Makita 2412N €2.14
19
photo_cameraImage coming soon 232100-0 SPRING PLATE €1.44
20
Pt Screw M4X18 for Rotary Hammer Makita HR4000C 265995-6 Pt Screw M4X18 for Rotary Hammer Makita HR4000C €1.46
21
photo_cameraImage coming soon 687063-9 CABLE TIE X 4304T €3.18

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Drill 6501

Makita original replacement parts for to replace broken parts for to fix Drill 6501.

In the following table, look for the model of the Drill and the respective parts of the code.
Drill 6501

Drill Makita 6501
# Part NUm. Description
2 153178-9 FULL GEAR
3 214017-9 BEARING 5
4 211016-2 BALL BEARING 626DD
5 241508-7 FAN
6 517033-3 ARMATURE
7 211016-2 BALL BEARING 626DD
8 633033-6 STATOR
9 191914-5 CARBON BRUSHES CB-70
10 632073-1 HOLDER REAR INDUCED
11 183209-0 HOUSING FOR CPL 6501
12 651268-7 SWITCH SGEL206C-2
13 645006-7 CAPACITOR X LS1013
16 265874-8 HEAD SCREW CILINDRICAM4X20
19 232100-0 SPRING PLATE
20 265995-6 SCREW M4X18 X 6408 / 6221DW
21 687063-9 RETAINER X 4304T

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita 6501
12 Items

Specific References

New

Download

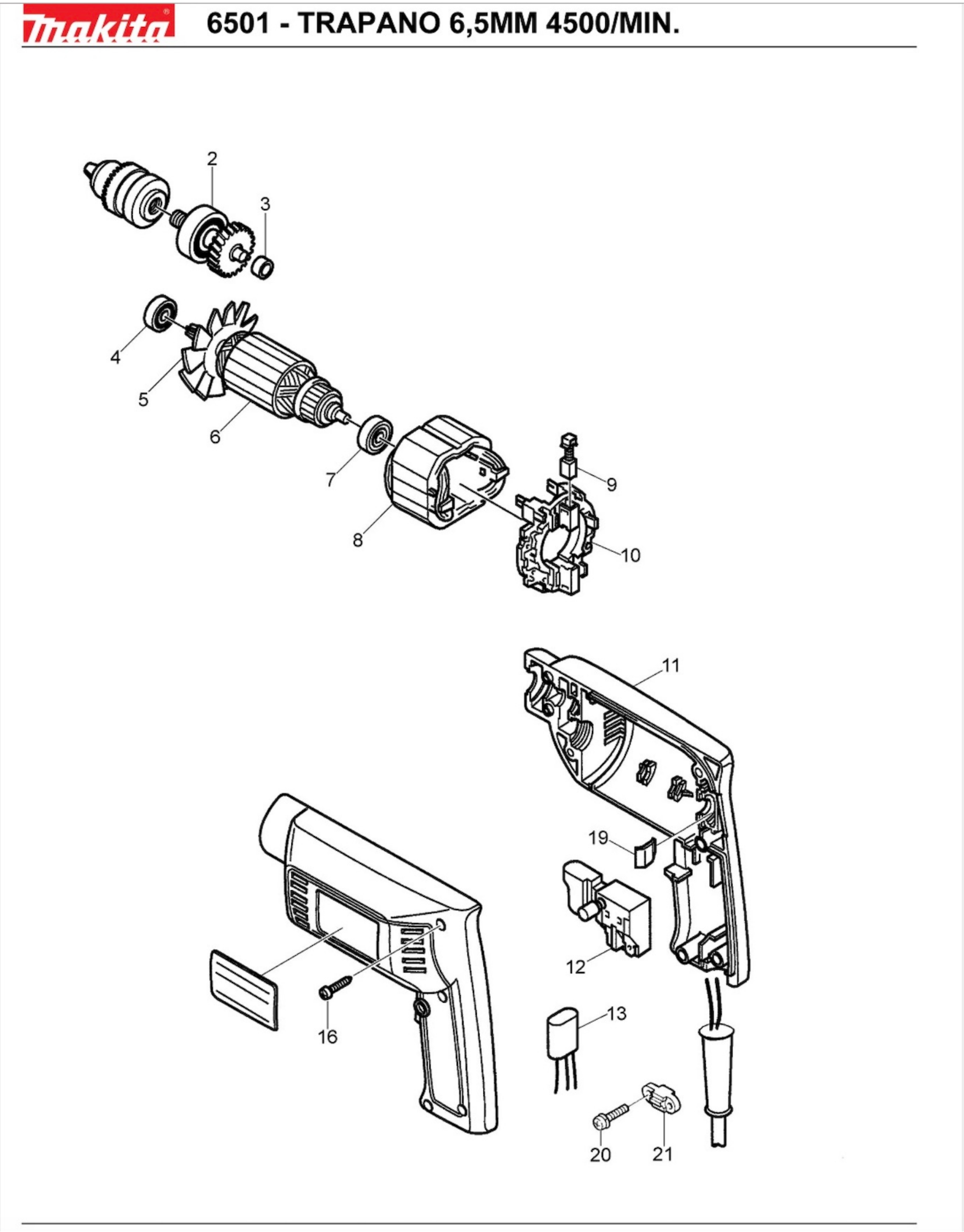

Diagram Makita 6501

Diagram Makita 6501

Download (254.33KB)
