Makita Spare Parts for Orbital Sander BO4563

SKU: Makita BO4563
€21.17
VAT included

Makita Spare Parts for Orbital Sander BO4563

We have the original MAKITA parts, the diagram and parts list and tool repair that help you need to get your tools running like new again.

Fix Your Orbital Sander BO4563. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Makita Spare Parts for Orbital Sander BO4563
  • Makita Spare Parts for Orbital Sander BO4563
  • Makita Spare Parts for Orbital Sander BO4563 - Drawing

Makita Spare Parts for Orbital Sander BO4563

SKU: Makita BO4563 Condition: New
€21.17
VAT included

Makita Spare Parts for Orbital Sander BO4563

We have the original MAKITA parts, the diagram and parts list and tool repair that help you need to get your tools running like new again.

Fix Your Orbital Sander BO4563. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 29 spare parts

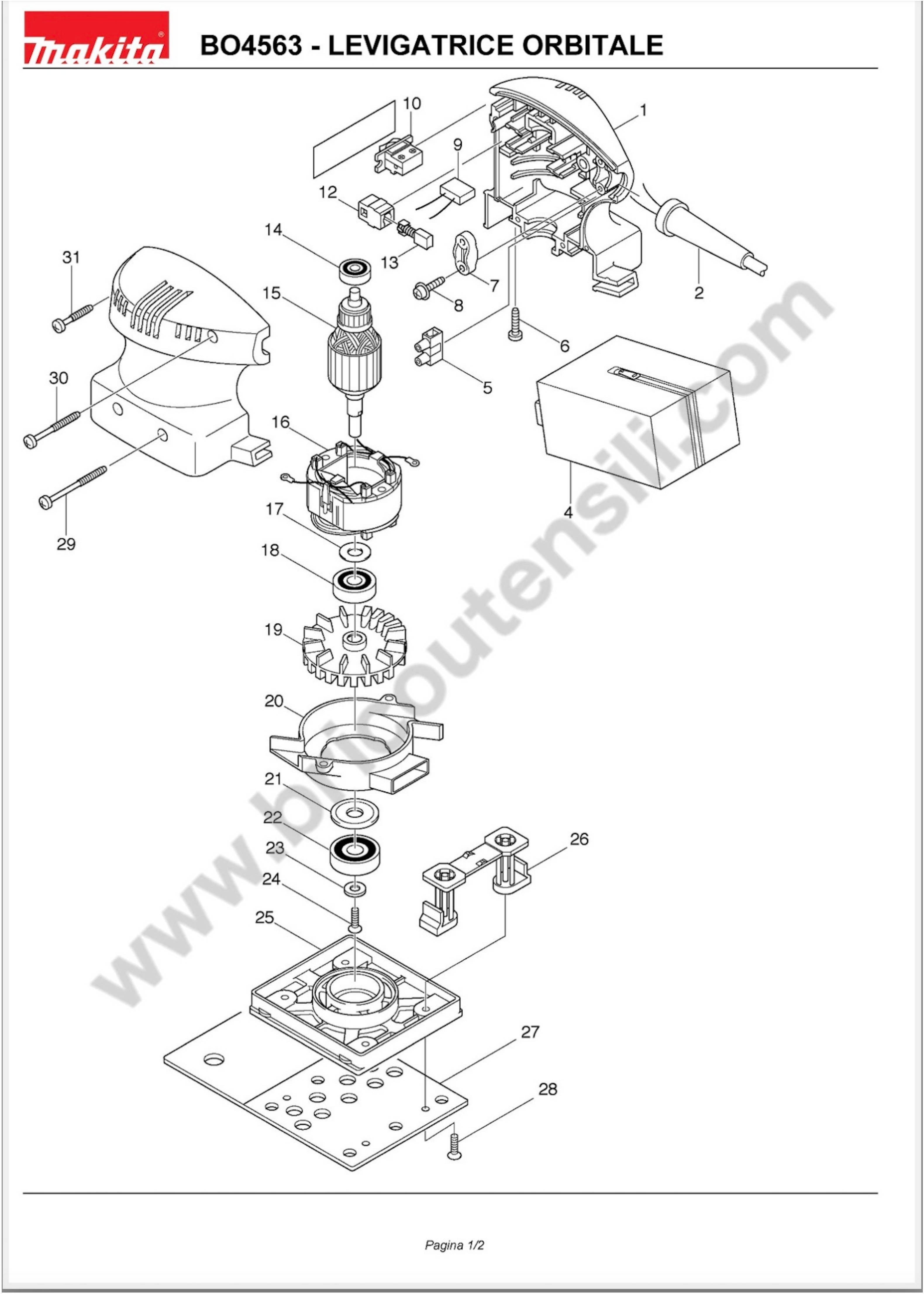

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

25 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 182777-0 HOUSING €19.96
2
photo_cameraImage coming soon 682502-4 CABLE SLEEVE 8/85 €4.09
4
photo_cameraImage coming soon 166027-1 BAG VACUUM €26.19
5
photo_cameraImage coming soon 654532-5 TERMINAL BLOCK 6E / 1DS €3.76
7
photo_cameraImage coming soon 687063-9 CABLE TIE X 4304T €3.18
8
photo_cameraImage coming soon 266121-0 SCREW M4PER18 €1.40
9
photo_cameraImage coming soon 645142-9 CAACITOR BO4553 €7.58
10
photo_cameraImage coming soon 651523-7 SWITCH BO5010 €14.34
12
Brushes Support for Orbital Sander Makita BO4901 643552-4 Brushes Support for Orbital Sander Makita BO4901 €5.02
13
Carbon Brushes Makita for Sanders BO4540-4550-4553-4554 191627-8 Carbon Brushes Makita for Sanders BO4540-4550-4553-4554 €9.91
14
photo_cameraImage coming soon 211021-9 BEARING 607LLB €14.38
15
photo_cameraImage coming soon 517083-8 ARMATURE 220V €55.05
16
photo_cameraImage coming soon 599319-7 STATOR 220V €27.72
17
photo_cameraImage coming soon 253214-2 FLAT WASHER 9 €1.40
18
Bearing 629DD FOR Angle Grinder Makita GA4530 211092-6 Bearing 629DD FOR Angle Grinder Makita GA4530 €9.01
19
Aluminium Fan for Orbital Sander Makita BO4563 241661-9 Aluminium Fan for Orbital Sander Makita BO4563 €6.90
21
photo_cameraImage coming soon 213051-6 DUST WASHER 10 €2.69
22
photo_cameraImage coming soon 211066-7 BALL BEARING HM1301 - 6200 €11.93
23
photo_cameraImage coming soon 253825-3 FLAT WASHER 6 €1.40
24
Screw M 4x12 for Cordless Drill Makita 6830 - 6831DWA 912117-6 Screw M 4x12 for Cordless Drill Makita 6830 - 6831DWA €1.43
25
Complete Base for Orbital Sander Makita BO4563 151500-4 Complete Base for Orbital Sander Makita BO4563 €16.58 Not available for order
26
Base Legs for Orbital Sanders Makita BO4563 410918-1 Base Legs for Orbital Sanders Makita BO4563 €6.55
29
photo_cameraImage coming soon 265872-2 SCREW M4PER50 €1.40
30
photo_cameraImage coming soon 265876-4 SCREW M4PER40 €1.40
31
photo_cameraImage coming soon 265875-6 SCREW M4PER25 €1.40

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Orbital Sander BO4563

Fix Your Orbital Sander BO4563. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of Orbital Sander and the respective parts of the code.
Makita BO4563

Orbital Sander BO4563
# Part Num. Description
1 182777-0 HOUSING
2 682502-4 CABLE ARMOR 8/85
4 166027-1 BAG VACUUM
5 654532-5 STRAIN RELIEF
6 912127-3 SCREW M4PER16 BO4563
7 687063-9 CABLE CLAMP
8 266121-0 SCREW M4PER18
9 645142-9 CAACITOR BO4553
10 651523-7 SWITCH BO5010
12 643552-4 BRUSH
13 191627-8 CARBON BRUSHE SET CB-64
14 211021-9 BALL BEARING 607L
15 517083-8 ARMATURE 220V
16 599319-7 STATOR 220V
17 253214-2 FLAT WASHER 9
18 211092-6 BALL BEARING 629DD
19 241661-9 FAN
20 410752-9 AIR CONVEYOR
21 213051-6 DUST WASHER 10
22 211066-7 BALL BEARING 6200 V
23 253825-3 FLAT WASHER 6
24 912117-6 SCREW M4X12
25 151500-4 BASE COMPLETE
26 410918-1 SUPPORT BASE
27 150807-5 BASE PLATE WITH VELCRO
28 912127-3 SCREW M4PER16
29 265872-2 SCREW M4PER50
30 265876-4 SCREW M4PER40
31 265875-6 SCREW M4PER25
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Makita websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Makita BO4563
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita BO4563

Diagram Makita BO4563

Download (324.72KB)
