Makita Spare Parts for Sander 9218SB

SKU: Makita 9218S
€22.33
VAT included

Makita Spare Parts for Sander 9218SB

We have the Makita original Spares for Sander 180 mm 9218SB, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Sander 180 mm 9218SB. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Makita Spare Parts for Sander 9218SB
  • Makita Spare Parts for Sander 9218SB
  • Makita Spare Parts for Sanders

Makita Spare Parts for Sander 9218SB

SKU: Makita 9218S Condition: New
€22.33
VAT included

Makita Spare Parts for Sander 9218SB

We have the Makita original Spares for Sander 180 mm 9218SB, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Sander 180 mm 9218SB. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 33 spare parts

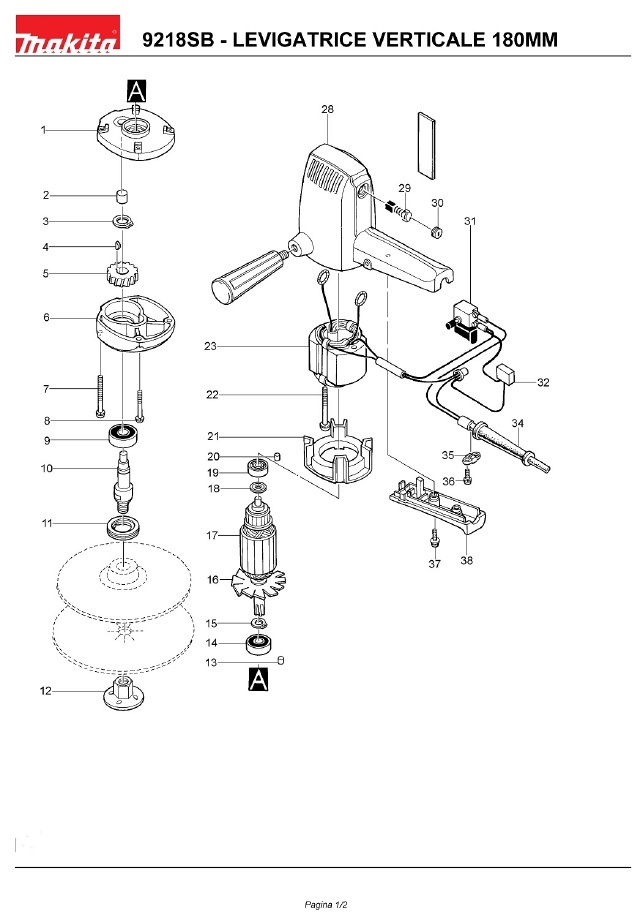

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

30 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 156993-0 COVER GEAR BOX €13.98
2
photo_cameraImage coming soon 212004-2 ROLLER 810 X9218S €5.67
3
Ext DIN471 Circlip-15 for Makita Power Tools 961055-9 Ext DIN471 Circlip-15 for Makita Power Tools €1.47
4
photo_cameraImage coming soon 254001-2 KEY CRESCENT 4 €1.44
5
photo_cameraImage coming soon 221273-4 GEAR 52 €18.39
6
photo_cameraImage coming soon 312368-5 GEAR BOX €21.28
9
photo_cameraImage coming soon 211206-7 BEARING 6202V €9.76
10
photo_cameraImage coming soon 325425-0 POST €18.39
11
photo_cameraImage coming soon 285809-3 CUSHION PORTABLE 23-36 €4.18
12
photo_cameraImage coming soon 224515-5 FLANGE PAD 48 €7.90
13
Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.47
14
Ball Bearing 6001DD for Makita 9218S 211131-2 Ball Bearing 6001DD for Makita 9218S €6.29
15
Retaining Ring S12 for Power Tools Makita 961052-5 Retaining Ring S12 for Power Tools Makita €1.40
16
photo_cameraImage coming soon 241044-3 FAN 68 €4.86
17
photo_cameraImage coming soon 512405-7 ARMATURE €82.12
18
photo_cameraImage coming soon 213002-9 Spacer 8 €1.69
19
photo_cameraImage coming soon 211033-2 BEARING 608LB €9.89
20
Rubber Pin for Hammer SDS-Max Makita HR4000C 263002-9 Rubber Pin for Hammer SDS-Max Makita HR4000C €1.47
21
photo_cameraImage coming soon 411241-7 FLAP €2.42
23
photo_cameraImage coming soon 528701-3 STATOR €44.86
28
photo_cameraImage coming soon 159596-9 HOUSING MOTOR €36.49
29
Carbon Brushes CB-100 for Polishing Makita 9207SPB 181030-1 Carbon Brushes CB-100 for Polishing Makita 9207SPB €8.23
30
Carbon Brush Holder Cap for Hammer Makita HR1820 643600-9 Carbon Brush Holder Cap for Hammer Makita HR1820 €2.02
31
photo_cameraImage coming soon 651204-3 SWITCH SGEL115CDY €13.00
32
photo_cameraImage coming soon 645209-3 CAPACITOR €8.30
34
photo_cameraImage coming soon 682502-4 CABLE SLEEVE 8/85 €4.09
35
photo_cameraImage coming soon 687001-1 CLAMP cable tie €1.47
36
photo_cameraImage coming soon 911133-5 SCREW M4X18 €1.46
37
photo_cameraImage coming soon 911536-3 SCREW M4X20 €2.86
38
photo_cameraImage coming soon 414994-7 COVER HANDLE €4.25

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Makita Spare Parts for Sander 9218SB

We have the Makita original Spares for Sander 180 mm 9218SB, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Sander 180 mm 9218SB. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of Sander and the respective parts of the code.
Makita 9218S

Sander 9218SB
# Part Num. Description
1 156993-0 COVER GEAR BOX
2 212004-2 BEARING 810
3 961055-9 RETAINING RING S15
4 254001-2 KEY CRESCENT 4
5 221273-4 GEAR 52
6 312368-5 GEAR BOX
7 911171-7 SCREW type M4x45
8 911161-0 HEAD SCREW CILIND. M4x35
9 211206-7 BEARING 6202
10 325425-0 POST
11 285809-3 BEARING 23-36
12 224515-5 FLANGE PAD 48
13 263002-9 PIN RUBBER 4
14 211131-2 BALL BEARING 6001DD
15 961052-5 RETAINING RING S12
16 241044-3 FAN 68
17 512405-7 ARMATURE
18 213002-9 Spacer 8
19 211033-2 BEARING 608LB
20 263002-9 PIN RUBBER 4
21 411241-7 FLAP
22 911681-4 SCREW M5x60
23 528701-3 STATOR
28 159596-9 HOUSING MOTOR
29 181030-1 CARBON BRUSHES CB-100
30 643600-9 PLUG BRUSH
31 651204-3 SWITCH SGEL115CDY
32 645209-3 CAPACITOR
34 682502-4 CABLE SLEEVE 8/85 6408
35 687001-1 CLAMP cable tie
36 911133-5 SCREW M4X18
37 911536-3 SCREW M4x20
38 414994-7 COVER HANDLE

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s MAKITA websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to MAKITA brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Makita 9218S
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Makita 9218SB

Diagram Makita 9218SB

Download (214.23KB)
