We have the Makita original Spares for Polisher 9207SPB, the diagram, parts list and tool repair that help you need to get your tools running like new again.
Fix Your Polisher 9207SPB. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

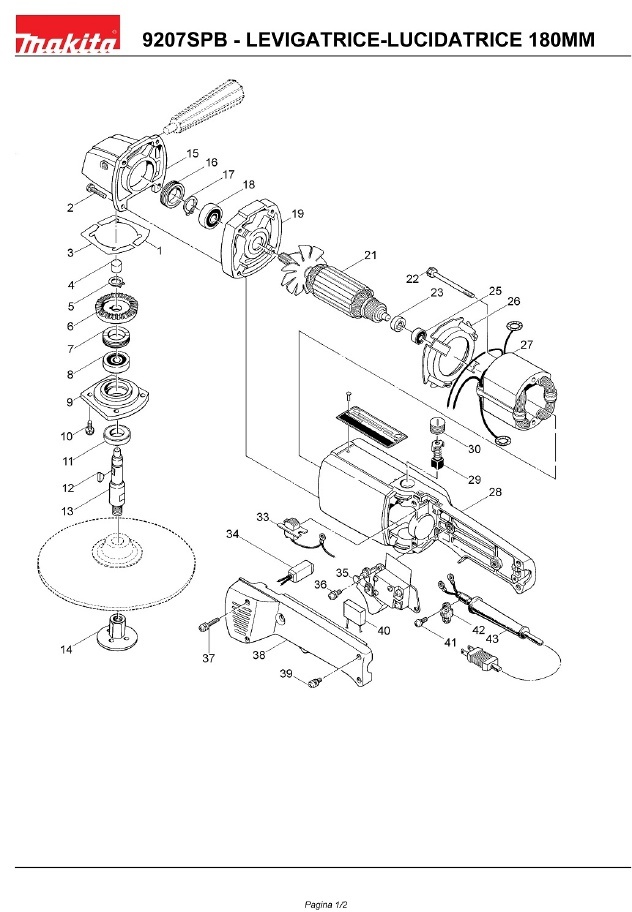

In the following table, look for the model of Polsher and the respective parts of the code.
| Polisher Makita 9207SPB | ||
| # | Part Num. | Description |
| 1 | 341132-7 | Spacer 9207SPB / C |
| 2 | 911263-2 | HEAD SCREW M5x40 |
| 3 | 341132-7 | Spacer 9207SPB / C |
| 4 | 212005-0 | BEARING ROLLER 810 |
| 5 | 961052-5 | RETAINING RING S12 |
| 6 | 221312-0 | GEAR 43 |
| 8 | 211106-1 | BEARING 6201LLB |
| 10 | 911123-8 | HEAD SCREW CILIND. M4x14 |
| 11 | 213301-9 | DUST WASHER 20 |
| 12 | 254002-0 | KEY CRESCENT 3 |
| 14 | 224515-5 | FLANGE PAD 48 |
| 15 | 312355-4 | GEAR BOX |
| 16 | 285816-6 | BEARING 19-33 |
| 17 | 961055-9 | RETAINING RING S15 |
| 18 | 211236-8 | BEARING 6002DDW X 5705R |
| 19 | 312722-3 | COVER GEAR BOX |
| 21 | 512549-3 | ARMATURE |
| 22 | 911691-1 | SCREW M5x70 |
| 23 | 681613-2 | INSULATION WASHER |
| 25 | 210005-4 | BALL BEARING 608 DDW |
| 26 | 411263-7 | FAN GUIDE |
| 27 | 528700-5 | STATOR |
| 28 | 156125-9 | HOUSING MOTOR |
| 29 | 181030-1 | CARBON BRUSHES CB-100 |
| 30 | 643600-9 | TAP. BRUSH |
| 33 | 651600-5 | VARIABLE SPEED 'SS106A |
| 34 | 631010-2 | DIODE |
| 35 | 651018-0 | SWITCH HPAHR2-3S |
| 36 | 911101-8 | HEAD SCREW CILIND. M4X6 |
| 37 | 911166-0 | HEAD SCREW CILIND. M4X40 |
| 38 | 414220-4 | COVER HANDLE |
| 39 | 911546-0 | HEAD SCREW CILIND. M4x25 |
| 40 | 645176-2 | CAPACITOR |
| 41 | 911133-5 | SCREW M4X18 |
| 42 | 687001-1 | CLAMP cable tie |
| 43 | 682504-0 | CABLE SLEEVE 10/85 |
